PC847XJ0000F Series
PC847XJ0000F
Series
∗
DIP 16pin (4-channel)
General Purpose
Photocoupler
1-channel package type is also available.
(model No.
PC817XJ0000F Series)
■
Description
PC847XJ0000F Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 4-channel package, available in
SMT gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V and CTR is 50% to
600% at input current of 5mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC817)
2. Package resin : UL flammability grade (94V-0)
■
Applications
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different po-
tentials and impedances
■
Features
1. 16pin DIP 4-channnel package
2. Double transfer mold package (ldeal for Flow Solder-
ing)
3. High collector-emitter voltage (V
CEO
: 80V)
4. Current transfer ratio (CTR : MIN. 50% at I
F
=5mA,
V
CE
=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0kV)
7. Lead-free and RoHS directive compliant
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A03202EN
Date Jun. 30. 2005
© SHARP Corporation
PC847XJ0000F Series
■
Internal Connection Diagram
16
15
14
13
12
11
10
9
Anode
2 4 6 8
Cathode
9 11 13 15
Emitter
10 12 14 16
Collector
1 3 5 7
1
2
3
4
5
6
7
8
■

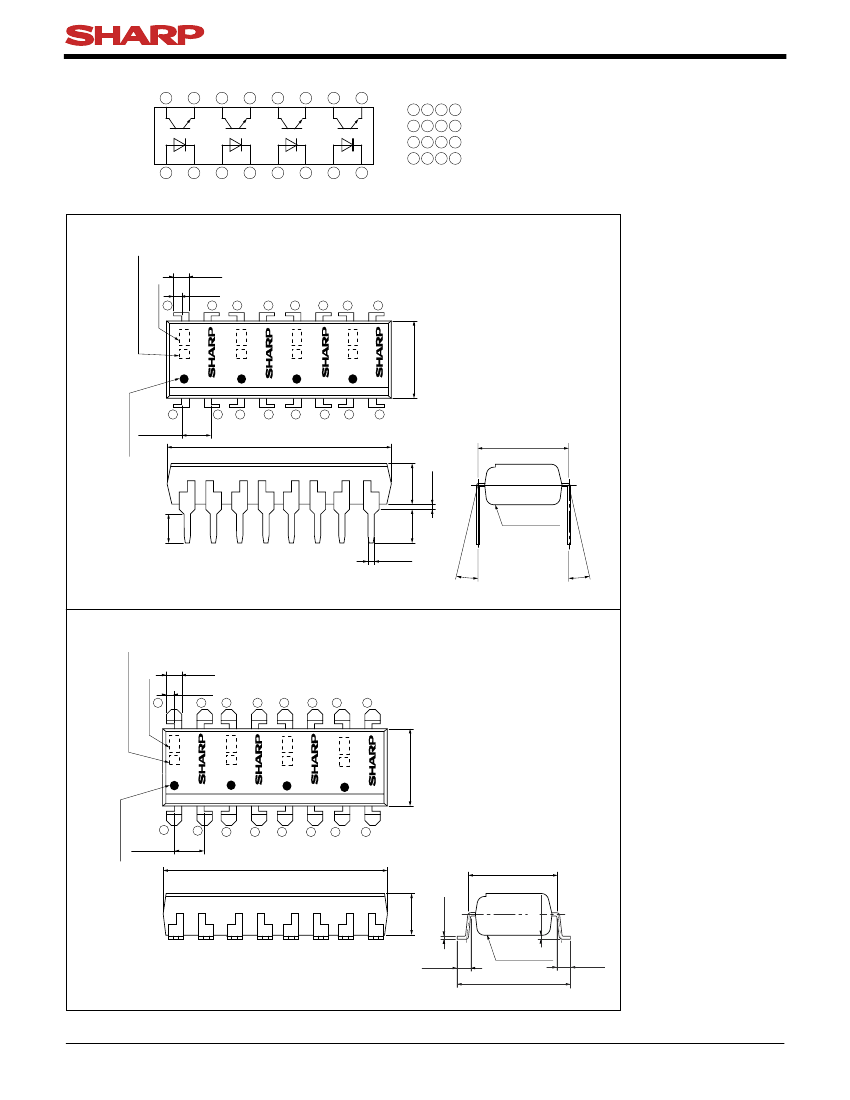

Outline Dimensions
1. Through-Hole [ex.
PC847XJ0000F]
Factory identification
mark
(Unit : mm)
1.2
±0.3
Date code
0.6
±0.2
16
15
14
13
12
11
10
9
PC817
PC817
PC817
PC817
6
7
8
Anode mark
1
2
3
4
5
2.54
±0.25
19.82
±0.5
0.5
TYP.
3.5
±0.5
6.5
±0.5
7.62
±0.3
2.7
±0.5
3.0
±0.5
Epoxy resin
0.5
±0.1
θ
θ
θ
: 0 to 13˚
Product mass : approx. 1.0g
2. SMT Gullwing Lead-Form [ex.
PC847XIJ000F]
Factory identification
mark
1.2
±0.3
Date code
0.6
±0.2
16
15
14
13
12
11
10
9
PC817
PC817
PC817
PC817
7
8
Anode mark
1
2
3
4
5
6
2.54
±0.25
19.82
±0.5
±0.1
6.5
±0.5
7.62
±0.3
1.0
+0.4
−0
Epoxy resin
10.0
+0
−0.5
0.35
±0.25
3.5
±0.5
0.26
1.0
+0.4
−0
Product mass : approx. 0.9g
Plating material : SnCu (Cu : TYP. 2%)
Sheet No.: D2-A03202EN
2
PC847XJ0000F Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
Indonesia
China
* This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see
the actual status of the production.
Country of origin
Rank mark
There is no rank mark indicator.
Sheet No.: D2-A03202EN
3
PC847XJ0000F Series
■
Absolute Maximum Ratings
Parameter
Symbol
Forward current
I
F
*1
Peak forward current
I
FM
Reverse voltage
V
R
Power dissipation
P
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
P
tot
Total power dissipation
*2
Isolation voltage
V
iso (rms)
T
opr
Operating temperature
T
stg
Storage temperature
*3
Soldering temperature
T
sol
(T
a
=25˚C)
Rating
Unit
50
mA
1
A
V
6
70
mW
V
80
6
V
50
mA
150
mW
200
mW
5.0
kV
˚C
−30
to
+100
˚C
−55
to
+125
˚C
260
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1 minute, f = 60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Forward voltage
Peak forward voltage
Reverse current
Terminal capacitance
Collector dark current
Collector-emitter breakdown voltage
Emitter-collector breakdown voltage
Collector current
Collector-emitter saturation voltage
Isolation resistance
Floating capacitance
Cutt-off frequency
Rise time
Response time
Fall time
Symbol
V
F
V
FM
I
R
C
t
I
CEO
BV
CEO
BV
ECO
I
C
V
CE (sat)
R
ISO
C
f
f
C
t
r
t
f
Conditions
I
F
=20mA
I
FM
=0.5A
V
R
=4V
V=0, f=1kHz
V
CE
=50V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=5mA,
V
CE
=5V
I
F
=20mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω,
−3dB
Output
Input
Input
Output
Transfer
charac-
teristics
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
−
80
6
2.5
−
5×10
10
−
−
−
−
TYP.
1.2
−
−
30
−
−
−
−
0.1
1×10
11
0.6
80
4
3
MAX.
1.4
3.0
10
250
100
−
−
30.0
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
µA
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Sheet No.: D2-A03202EN
4
