LZ4-00WW00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LZ4-00WW00

LZ4-00WW00: DescriptionHigh Power LEDs - White Warm White, 3000K 550 lm, 700mA; CategoryLED optoelectronic/LED; File Size1MB，16 Pages; ManufacturerLED Engin; Websitehttp://www.ledengin.com

Download Datasheet Parametric Compare View All

LZ4-00WW00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LZ4-00WW00	-	-	View	Buy Now

LZ4-00WW00 Overview

High Power LEDs - White Warm White, 3000K 550 lm, 700mA

LZ4-00WW00 Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - White
Manufacturer	LED Engin
RoHS	Details
Package / Case	SMD-8
Illumination Color	White (Warm White)
Wavelength/Color Temperature	3000 K
Luminous Flux/Radiant Flux	500 lm
Color Rendering Index - CRI	85
Viewing Angle	105 deg
Lens Color/Style	Clear
If - Forward Current	700 mA
Vf - Forward Voltage	14 V
Power Rating	10 W
Mounting Style	SMD/SMT
Length	7 mm
Width	7 mm
Height	4.2 mm
Maximum Operating Temperature	-
Minimum Operating Temperature	-
Packaging	Cut Tape
Color Temperature	3000 K
LED Size	7 mm x 7 mm x 4.2 mm
Lens Shape	Dome
Factory Pack Quantity	100
Type	LED Emitter
Unit Weight	0.010582 oz

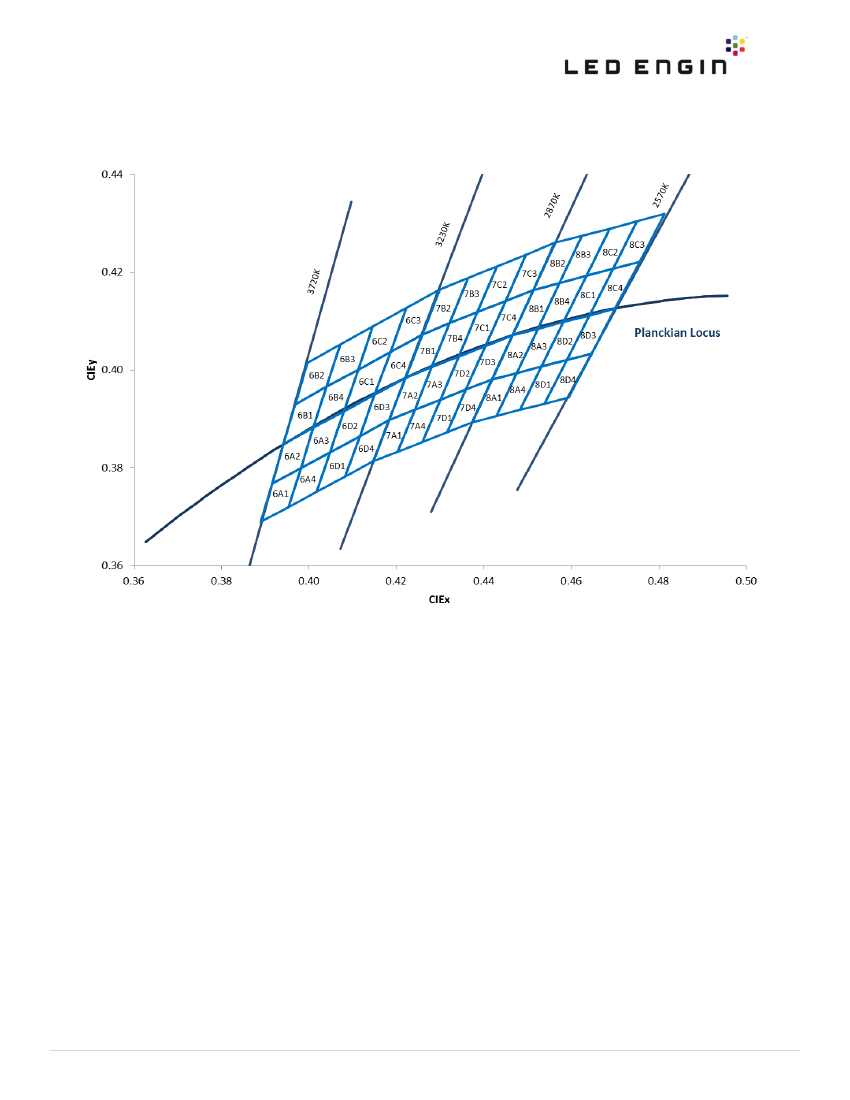

Preview

Download Datasheet

View All

High Luminous Efficacy

Warm White LED Emitter

LZ4-00WW00

Key Features



High Luminous Efficacy 10W Warm White LED

Ultra-small foot print – 7.0mm x 7.0mm

Surface mount ceramic package with integrated glass lens

Very low Thermal Resistance (1.1°C/W)

Individually addressable die

Very high Luminous Flux density

Spatial color uniformity across radiation pattern

JEDEC Level 1 for Moisture Sensitivity Level

Autoclave complaint (JEDEC JESD22-A102-C)

Lead (Pb) free and RoHS compliant

Reflow solderable (up to 6 cycles)

Emitter available on Standard MCPCB (optional)

Typical Applications



General Lighting

Museum Lighting

Retail & Display Lighting

Hospitality Lighting

Accent & Task Lighting

Architectural Detail Lighting

Description

The LZ4-00WW00 Warm White LED emitter provides 10W power in an extremely small package. With a 7.0mm x

7.0mm ultra-small footprint, this package provides exceptional luminous flux density. LED Engin’s patent-pending

thermally insulated phosphor layers provide spatial color uniformity across the radiation pattern and a consistent

CCT over time and temperature. LED Engin’s LZ4-00WW00 LED offers ultimate design flexibility with individually

addressable die. The high quality materials used in the package are chosen to optimize light output and minimize

stresses which results in monumental reliability and lumen maintenance. The robust product design thrives in

outdoor applications with high ambient temperatures and high humidity.

LZ4-00WW00 (5.3-07/01/13)

LED Engin

651 River Oaks Parkway

San Jose, CA 95134 USA

+1 408 922 7200

fax

+1 408 922 0158

sales@ledengin.com

www.ledengin.com
