LLN-9WW005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LLN-9WW005

LLN-9WW005: DescriptionLED Lighting Modules LINEAR 9 W WHT W 5 D; CategoryLED optoelectronic/LED; File Size162KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

LLN-9WW005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LLN-9WW005	-	-	View	Buy Now

LLN-9WW005 Overview

LED Lighting Modules LINEAR 9 W WHT W 5 D

LLN-9WW005 Parametric

Parameter Name	Attribute value
Product Category	LED Lighting Modules
Manufacturer	DIALIGHT
RoHS	Details
Product	LED Light Engines
Number of LEDs	9
Illumination Color	White (Neutral White)
Wavelength/Color Temperature	3300 K
Luminous Intensity	48 mcd
Luminous Flux/Radiant Flux	20 lm
If - Forward Current	350 mA
Vf - Forward Voltage	3.42 V
Width	20.5 mm
Length	324 mm
Packaging	Bulk
Color Temperature	3300 K
Height	15.5 mm
Housing Material	Aluminum
Mounting Style	Screw, Adhesive
Power Rating	10.8 W
Size	324 mm x 20.5 mm x 15.5 mm
Factory Pack Quantity	1
Type	Linear Arrays - Rigid
Viewing Angle	5 deg

Preview

Download Datasheet

View All

FEATURES / BENEFITS

LUMILINE

LED LIGHT ENGINES

SINGLE COLOR

Extremely long life of 50,000 hours at 55ºC PCB

temperature

Durable F-Form optics holder allow for easy changing

of 4 lens options (5, 15, 25 degree + 5x20 degree

oval)**

Available in 6 colors (Cool White, Warm White, Red,

Blue, Green, Amber)

Aluminium based PCB for easier heat dissipation

and more efficient operation

Units with production dates of 8/07 or later come with

22 AWG 12” lead wires pre-attached (red+ / black-)

Patents pending

OPERATING CONDITIONS

Recommended PCB temp=55ºC

Maximum PCB temp = 105ºC

LED Life @ 55ºC PCB temp = 50,000 hours

For maximum performance efficiency and longevity,

all “LumiLine” LED Light Engines should be screwed

or affixed using thermal adhesive to an appropriate

heat sink

Maximum input current = 350mA

Thermal conductivity = 1.3W/m-k

Breakdown voltage = 2kV

APPLICATIONS

Display case lighting

Cove lighting

Wall washing

Any application requiring efficiency & long life

in a linear light pattern

MECHANICAL DIMENSIONS

Height (all models including lens) = 15.5mm (0.61”)

LumiLine 3: 324mm X 20.5mm (12.75” x 0.8”)

LumiLine 9: 324mm X 20.5mm (12.75” x 0.8”)

MATERIALS/FINISH

LUXEON

I LEDs

1.6mm Aluminium clad PCB substrate

White solder resist finish

PART NUMBERS

# of LEDs (A)

3 = 3 LEDs / LumiLine 3

9 = 9 LEDs / LumiLine 9

LED Color (B)

W = Cool White

WW = Warm White

R = Red

G = Green

B = Blue

A = Amber

LENS Type (CCC)**

005 = 5 Degree

015 = 15 Degree

025 = 25 Degree

520 = 5 X 20 Degree

XXX = no lens*

* Lens to be purchased and installed seperately

** This figure indicates half-divergence angle

Dialight Corporation

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEXLUMILINE_D

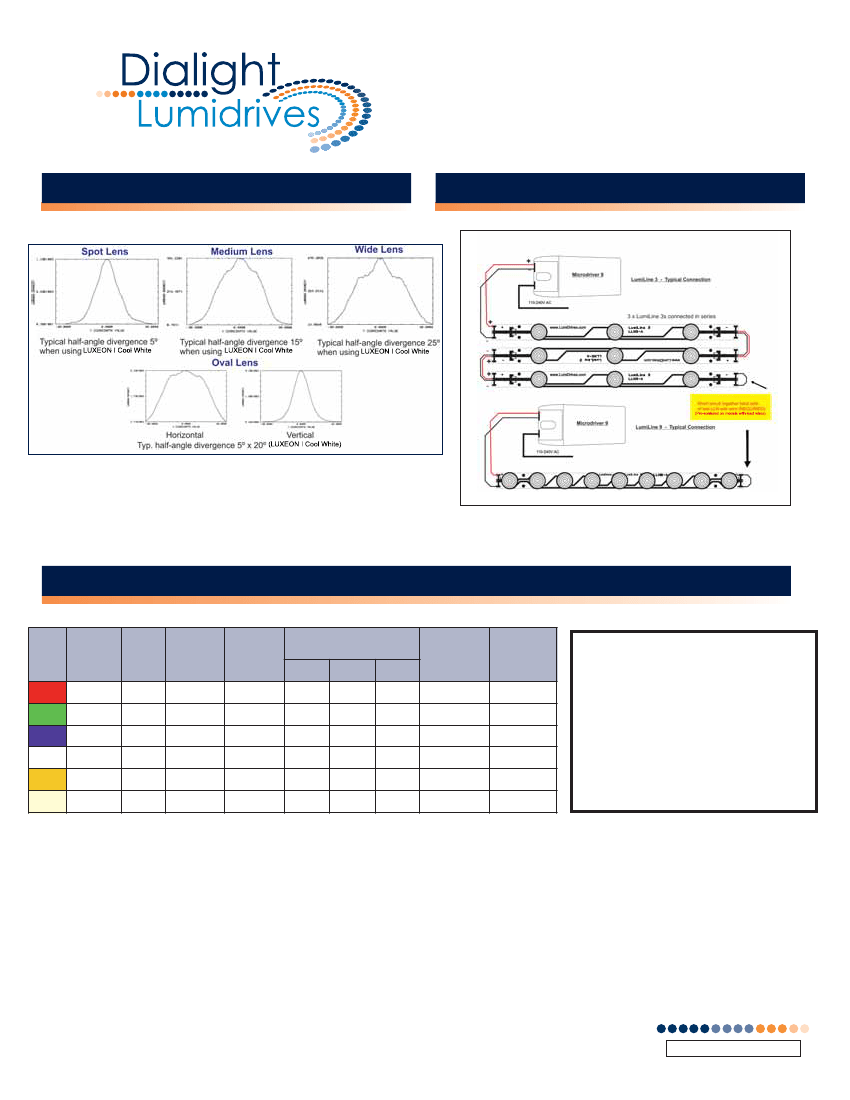

LLN-9WW005 Related Products

	LLN-9WW005	LLN3-W-XXX	LLN-9W015	LLN-9B005	LLN-3WW025	LLN-9W520	LLN-3W005	LLN9-G-XXX
Description	LED Lighting Modules LINEAR 9 W WHT W 5 D		LED Lighting Modules LINEAR 9 WHT W 15 DG	LED Lighting Modules LINEAR 9 BLUE W 5 DE	LED Lighting Modules LINEAR 3 W WHT W 25
Product Category	LED Lighting Modules	-	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	-
Manufacturer	DIALIGHT	-	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	-
RoHS	Details	-	Details	Details	Details	Details	Details	-
Product	LED Light Engines	-	LED Light Engines	LED Light Engines	LED Light Engines	LED Light Engines	LED Light Engines	-
Number of LEDs	9	-	9	9	3	9	3	-
Illumination Color	White (Neutral White)	-	White (Cool White)	Blue	White (Neutral White)	White (Cool White)	White (Cool White)	-
Wavelength/Color Temperature	3300 K	-	5500 K	455 nm	3300 K	5500 K	5500 K	-
Luminous Intensity	48 mcd	-	108 mcd	-	48 mcd	108 mcd	108 mcd	-
Luminous Flux/Radiant Flux	20 lm	-	45 lm	-	20 lm	45 lm	45 lm	-
If - Forward Current	350 mA	-	350 mA	350 mA	350 mA	350 mA	350 mA	-
Vf - Forward Voltage	3.42 V	-	3.42 V	3.42 V	3.42 V	3.42 V	3.42 V	-
Width	20.5 mm	-	20.5 mm	20.5 mm	20.5 mm	20.5 mm	20.5 mm	-
Length	324 mm	-	324 mm	324 mm	324 mm	324 mm	324 mm	-
Packaging	Bulk	-	Bulk	Bulk	Bulk	Bulk	Bulk	-
Color Temperature	3300 K	-	5500 K	-	3300 K	5500 K	5500 K	-
Height	15.5 mm	-	15.5 mm	15.5 mm	15.5 mm	15.5 mm	15.5 mm	-
Housing Material	Aluminum	-	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	-
Mounting Style	Screw, Adhesive	-	Screw, Adhesive	Screw, Adhesive	Screw, Adhesive	Screw, Adhesive	Screw, Adhesive	-
Power Rating	10.8 W	-	10.8 W	10.8 W	3.6 W	10.8 W	3.6 W	-
Size	324 mm x 20.5 mm x 15.5 mm	-	324 mm x 20.5 mm x 15.5 mm	324 mm x 20.5 mm x 15.5 mm	324 mm x 20.5 mm x 15.5 mm	324 mm x 20.5 mm x 15.5 mm	324 mm x 20.5 mm x 15.5 mm	-
Factory Pack Quantity	1	-	1	1	1	1	1	-
Type	Linear Arrays - Rigid	-	Linear Arrays - Rigid	Linear Arrays - Rigid	Linear Arrays - Rigid	Linear Arrays - Rigid	Linear Arrays - Rigid	-
Viewing Angle	5 deg	-	15 deg	5 deg	25 deg	5 deg x 20 deg	5 deg	-
