PS2561-1V Overview

Transistor Output Optocouplers DIP-4 OPTO 1CH VDE

PS2561-1V Parametric

Parameter Name	Attribute value
Product Category	Transistor Output Optocouplers
Manufacturer	CEL
RoHS	No
Output Type	NPN Phototransistor
Number of Channels	1 Channel
Isolation Voltage	5000 Vrms
Packaging	Cut Tape
Packaging	Reel
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

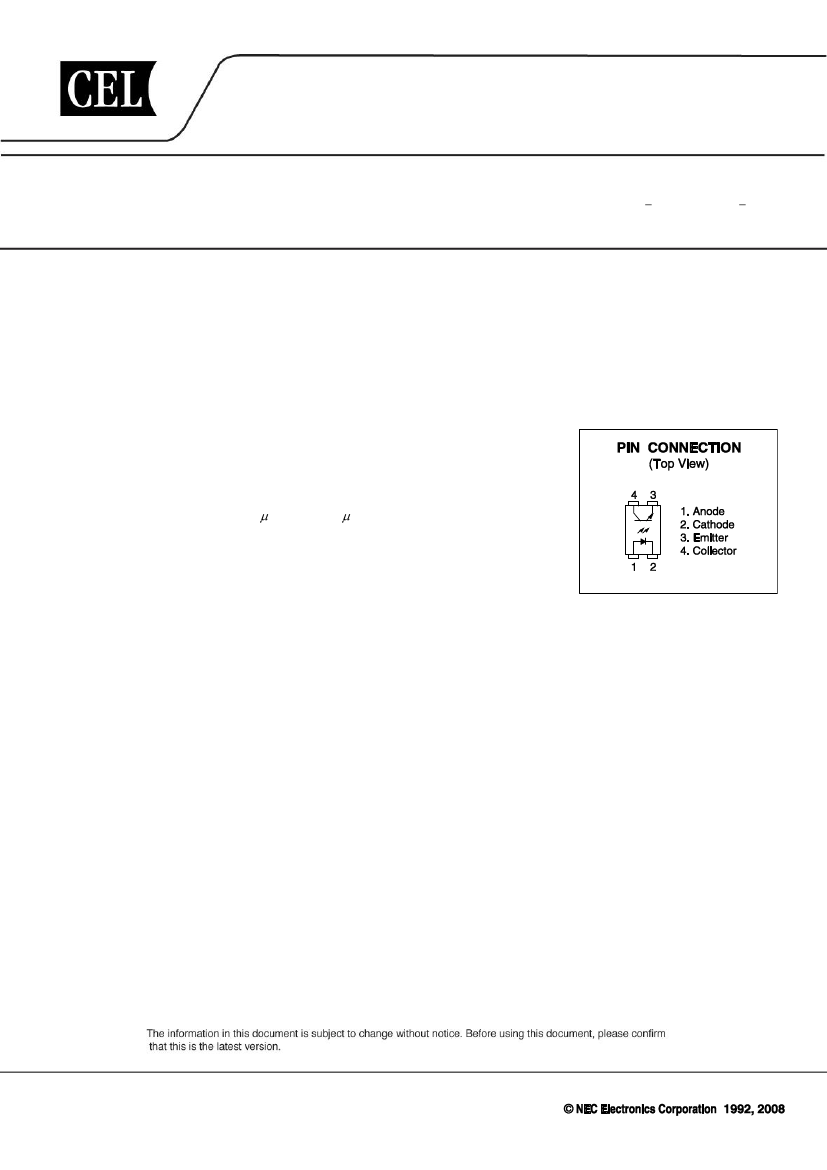

PHOTOCOUPLER

PS2561-1,PS2561L-1,PS2561L1-1,PS2561L2-1

HIGH ISOLATION VOLTAGE

SINGLE TRANSISTOR TYPE

MULTI PHOTOCOUPLER SERIES

DESCRIPTION

The PS2561-1 is optically coupled isolators containing a GaAs light emitting diode and an NPN silicon

phototransistor.

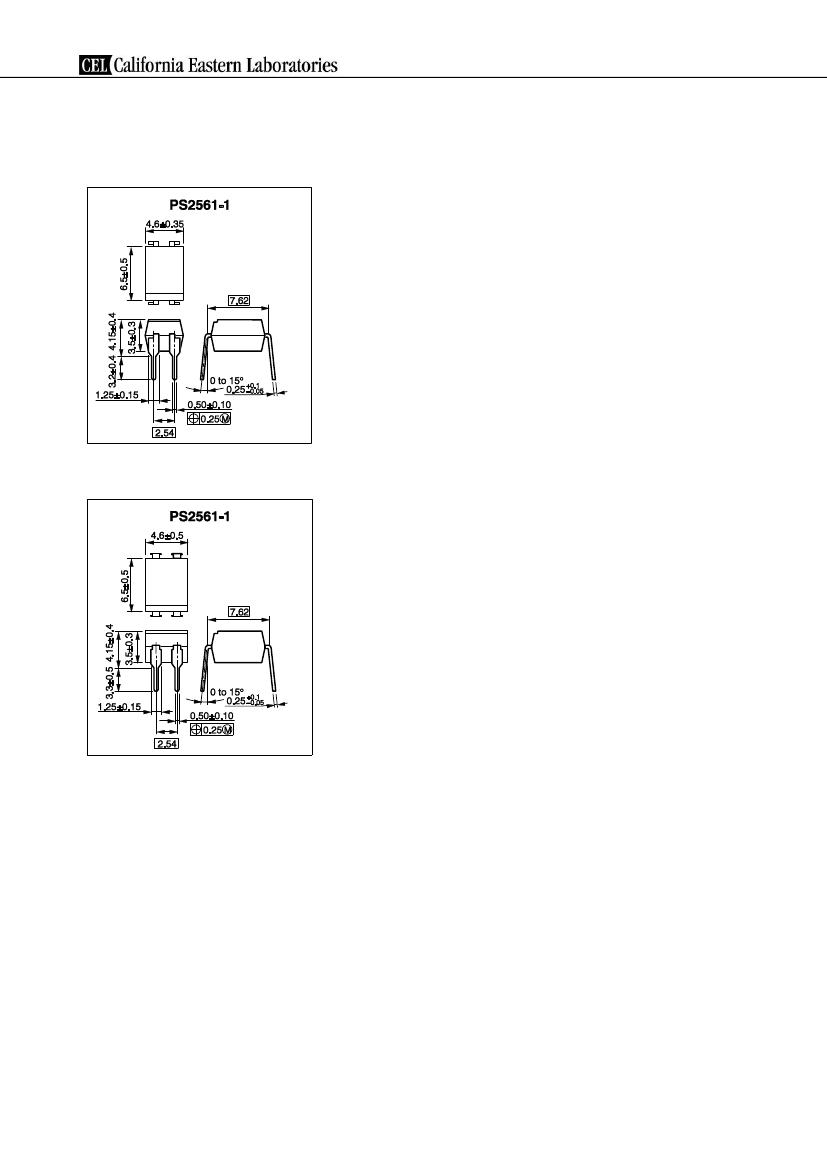

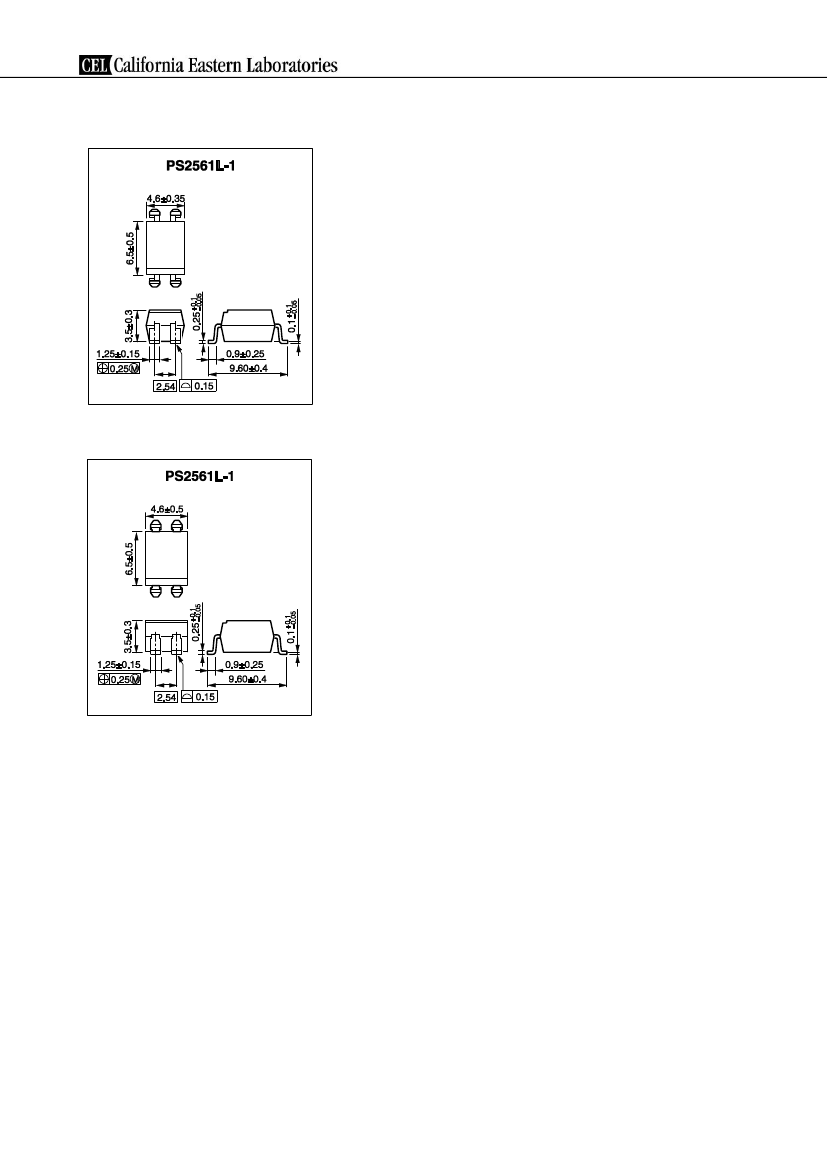

The PS2561-1 is in a plastic DIP (Dual In-line Package) and the PS2561L-1 is lead bending type (Gull-wing) for

surface mount.

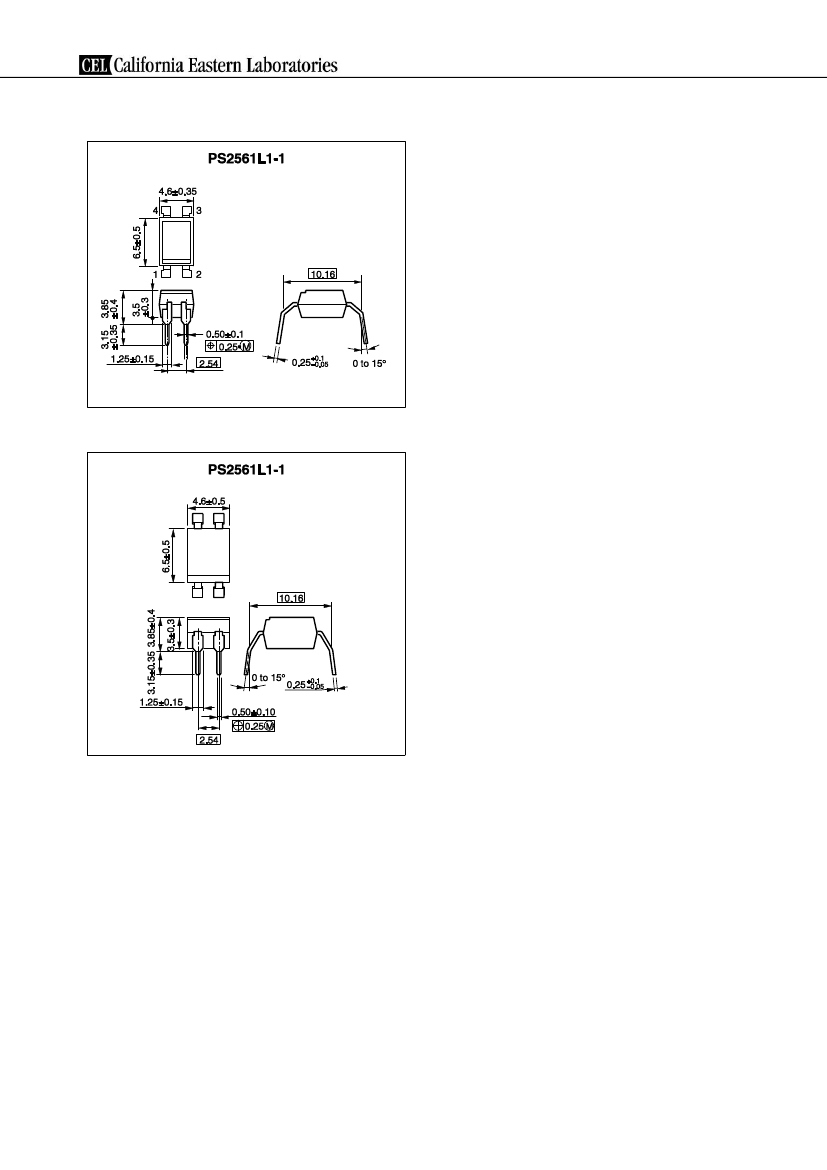

The PS2561L1-1 is lead bending type for long creepage distance.

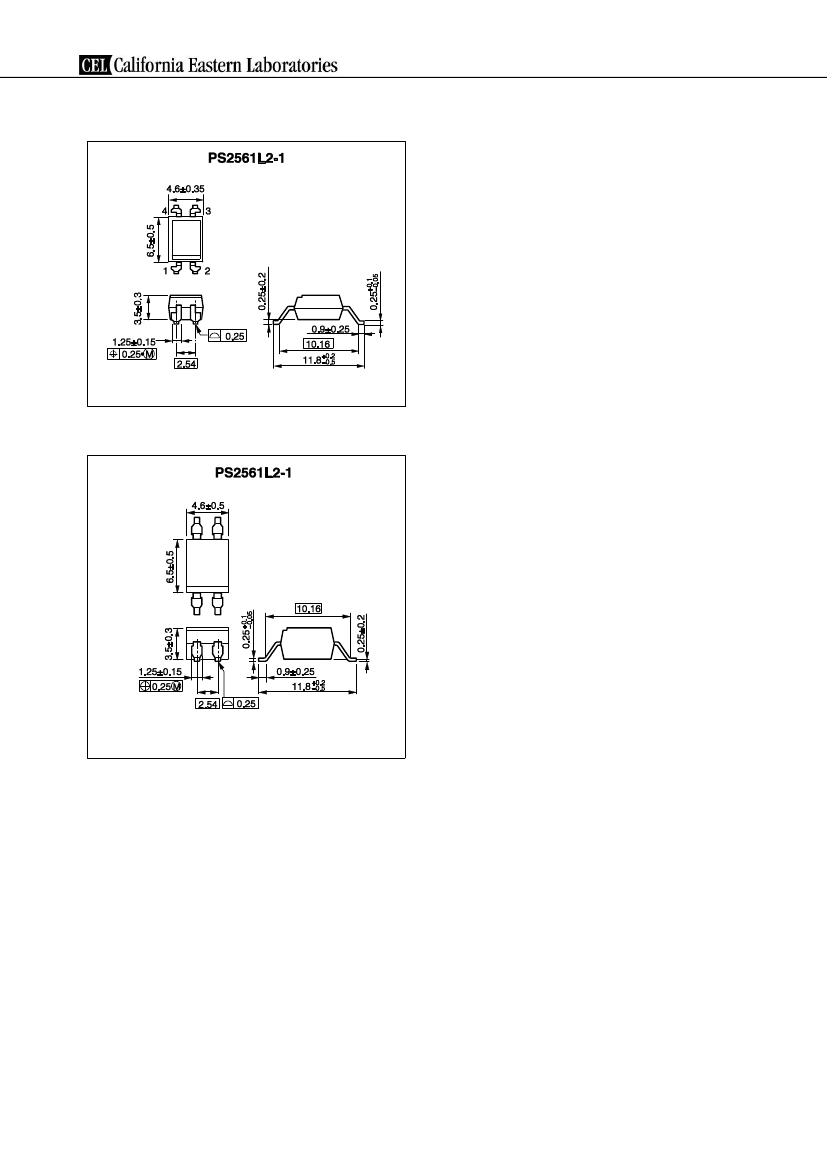

The PS2561L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.

NEPOC Series

FEATURES

• High Isolation voltage (BV = 5 000 Vr.m.s.)

• High collector to emitter voltage (V

CEO

= 80 V)

• High current transfer ratio (CTR = 200% TYP.)

• High-speed switching (t

= 3 s TYP., t

= 5 s TYP.)

• Ordering number of taping product: PS2561L-1-E3, E4, F3, F4, PS2561L2-1-E3, E4

• Safety standards

• UL approved: No. E72422

• CSA approved: No. CA 101391

• BSI approved: No. 7112/7420

• SEMKO approved: No. 303059, 307244

• NEMKO approved: No. P03200272, P03200747

• DEMKO approved: No. 312341, 312340

• FIMKO approved: No. FI 10620, FI 11898

<R>

• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (Option)

APPLICATIONS

• Power supply

• Telephone/FAX.

• FA/OA equipment

• Programmable logic controller

Document No. PN10234EJ04V0DS (4th edition)

Date Published December 2008 NS

The mark <R> shows major revised points.

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
