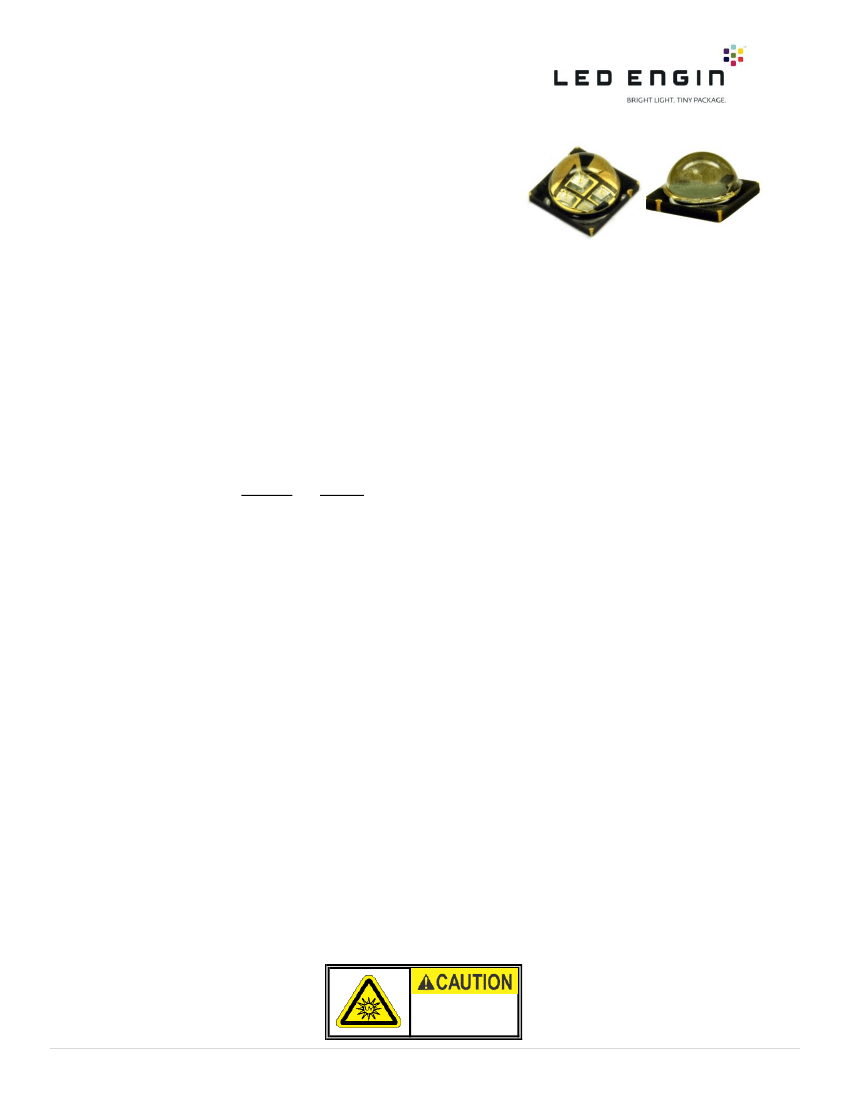

High Efficacy
365nm UV LED Emitter
LZ4-00U600
Key Features
High Efficacy 365nm 11W UV LED
Ultra-small foot print – 7.0mm x 7.0mm
Surface mount ceramic package with integrated glass lens
Very low Thermal Resistance (1.1°C/W)
Individually addressable die
Electrically neutral thermal path
Highest Radiant Flux density
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Standard and Serially connected MCPCB (optional)
Typical Applications
Curing
Sterilization
Medical
Currency Verification
Fluorescence Microscopy
Inspection of dyes, rodent and animal contamination,
Leak detection
Forensics
Description
The LZ4-00U600 UV LED emitter provides superior radiometric power in the wavelength range specifically required
for applications like curing, sterilization, currency verification, and various medical applications. With a 7.0mm x
7.0mm ultra-small footprint, this package provides exceptional optical power density. The patented design has
unparalleled thermal and optical performance. The high quality materials used in the package are chosen to
optimize light output, have excellent UV resistance, and minimize stresses which results in monumental reliability
and radiant flux maintenance.
UV RADIATION
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
Avoid exposure to the beam
Wear protective eyewear
LZ4-00U600 (6.0-12/22/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Part number options
Base part number
Part number
LZ4-00U600-xxxx
LZ4-40U600-xxxx
Description
LZ4 emitter
LZ4 emitter on Standard Star 1 channel MCPCB
Bin kit option codes
U6, Ultra-Violet (365nm)
Kit number
suffix
0000
00U0
00U1
Min
flux
Bin
L
L
L
Color Bin Range
U0 - U1
U0 - U0
U1 - U1
Description
full distribution flux; full distribution
wavelength
full distribution flux; wavelength U0 bin
only
full distribution flux; wavelength U1bin
only
Notes:
1.
Default bin kit option is -0000
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
2
LZ4-00U600 (6.0-12/22/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Radiant Flux Bins
Table 1:
Bin Code
Minimum
Radiant Flux
(Φ)
@ I
F
= 700mA
[1,2]
(w)
0.80
1.00
1.25
1.60
2.00
2.40
Maximum
Radiant Flux
(Φ)
@ I
F
= 700mA
[1,2]
(W)
1.00
1.25
1.60
2.00
2.40
3.00
L
M
N
P
Q
R
Notes for Table 1:
1.
Radiant flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10%
on flux measurements.
2.
Future products will have even higher levels of radiant flux performance. Contact LED Engin Sales for updated information.
Peak Wavelength Bins
Table 2:
Bin Code
Minimum
Peak Wavelength (λ
P
)
@ I
F
= 700mA
[1]
(nm)
365
370
Maximum
Peak Wavelength (λ
P
)
@ I
F
= 700mA
[1]
(nm)
370
375
U0
U1
Notes for Table 2:
1.
LED Engin maintains a tolerance of ± 2.0nm on peak wavelength measurements.
Forward Voltage Bins
Table 3:
Bin Code
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
14.72
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
19.52
0
Notes for Table 3:
1.
Forward Voltage is binned with all four LED dice connected in series.
2.
LED Engin maintains a tolerance of ± 0.16V for forward voltage measurements for the four LEDs.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
3
LZ4-00U600 (6.0-12/22/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Absolute Maximum Ratings
Table 4:
Parameter
DC Forward Current at Tjmax=100°C
[1]
Peak Pulsed Forward Current
[2]
Reverse Voltage
Storage Temperature
Junction Temperature
Soldering Temperature
[4]
Allowable Reflow Cycles
ESD Sensitivity
[5]
Symbol
I
F
I
FP
V
R
T
stg
T
J
T
sol
Value
700
850
See Note 3
-40 ~ +150
100
180
6
> 2,000 V HBM
Class 2 JESD22-A114-D
Unit
mA
mA
V
°C
°C
°C
Notes for Table 4:
1.
Maximum DC forward current is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current derating.
2:
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
3.
LEDs are not designed to be reverse biased.
4.
Use low temperature solders. LED Engin recommends 58Bi-42Sn (wt.%) Solder. See Reflow Soldering Profile Figure 3.
5.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZ4-00U600
in an electrostatic protected area (EPA). An EPA may be adequately protected by ESD controls as outlined in
ANSI/ESD S6.1.
Optical Characteristics @ T
C
= 25°C
Table 5:
Parameter
Radiant Flux (@ I
F
= 700mA)
Peak Wavelength
[1]
Viewing Angle
[2]
Total Included Angle
[3]
Symbol
Φ
λ
P
2Θ
½
Θ
0.9
Typical
1.80
365
115
175
Unit
W
nm
Degrees
Degrees
Notes for Table 5:
1.
When operating the UV LED, observe IEC 60825-1 class 3B rating. Avoid exposure to the beam.
2.
Viewing Angle is the off axis angle from emitter centerline where the radiant power is ½ of the peak value.
3.
Total Included Angle is the total angle that includes 90% of the total radiant flux.
Electrical Characteristics @ T
C
= 25°C
Table 6:
Parameter
Forward Voltage (@ I
F
= 700mA)
Temperature Coefficient
of Forward Voltage
Thermal Resistance
(Junction to Case)
Symbol
V
F
ΔV
F
/ΔT
J
RΘ
J-C
Typical
1 Die
4.1
4 Dice
16.4
-14.8
1.1
Unit
V
mV/°C
°C/W
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
4
LZ4-00U600 (6.0-12/22/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
IPC IPC/JEDEC Moisture Sensitivity Level
Table 7 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Soak Requirements
Floor Life
Level
1
Time
Unlimited
Conditions
≤ 30°C/
85% RH
168
+5/-0
Standard
Time (hrs)
Conditions
85°C/
85% RH
Accelerated
Time (hrs)
n/a
Conditions
n/a
Notes for Table 7:
1.
The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time (MET) between bake and bag and
includes the maximum time allowed out of the bag at the distributor’s facility.
