566-0308F datasheet, PDF - EEWORLD Datasheet

566-0308F: DescriptionLED Circuit Board Indicators 12 LED Array; CategoryLED optoelectronic/LED photoelectric; File Size123KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

566-0308F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	566-0308F	-	-	View	Buy Now

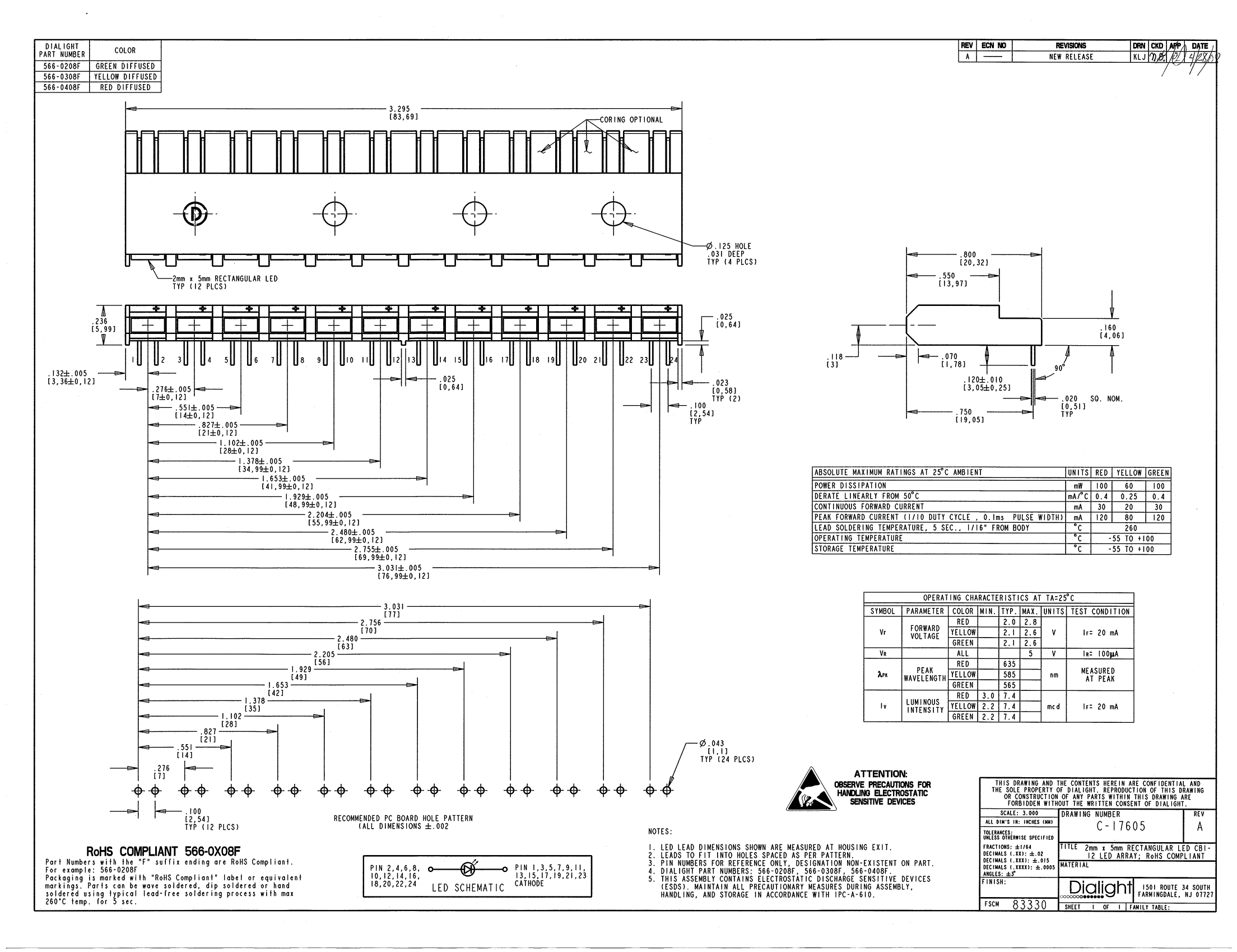

LED Circuit Board Indicators 12 LED Array

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	compliant
color	YELLOW
color@wavelength	Yellow
Configuration	SEPARATE, 12 ELEMENTS
Maximum forward current	0.02 A
JESD-609 code	e4
Nominal luminous intensity	3.5 mcd
Installation features	RADIAL MOUNT
Number of functions	12
Number of LEDs in the array	12
Number of terminals	24
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	6 mm
method of packing	BULK
peak wavelength	583 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch	2.54 mm
perspective	110 deg
Base Number Matches	1

	566-0308F	566-0408F
Description	LED Circuit Board Indicators 12 LED Array	LED Circuit Board Indicators 12 LED Array
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	DIALIGHT	DIALIGHT
Reach Compliance Code	compliant	compliant
color	YELLOW	RED
color@wavelength	Yellow	Orange-Red
Configuration	SEPARATE, 12 ELEMENTS	SEPARATE, 12 ELEMENTS
Maximum forward current	0.02 A	0.03 A
JESD-609 code	e4	e4
Nominal luminous intensity	3.5 mcd	7.4 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	12	12
Number of terminals	24	24
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	6 mm	6 mm
method of packing	BULK	BULK
peak wavelength	583 nm	635 nm
shape	RECTANGULAR	RECTANGULAR
size	5 mm	5 mm
surface mount	NO	NO
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)	Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch	2.54 mm	2.54 mm
perspective	110 deg	140 deg
Base Number Matches	1	1
