PM5RD12VW120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PM5RD12VW120

PM5RD12VW120: CategoryLED optoelectronic/LED; File Size252KB，4 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM5RD12VW120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5RD12VW120	-	-	View	Buy Now

PM5RD12VW120 Parametric

Parameter Name	Attribute value
Product Category	LED Panel Mount Indicators
Manufacturer	Bivar

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

PM5-XXX

5XX

BWS24-1007-RD

BWS24-1007-BK

PART DESCRIPTION

LED Holder, Panel Mount, Press Fit, (5mm)

PM5 (Standard LED), PM5-5V (5V LED), & PM5-12V (12V LED)

T1 ¾ (5mm) Non-Flange LED, See Following Pages

24AWG Wire Lead U.L. 1007, Red

24AWG Wire Lead U.L. 1007, Black

REV.

DESCRIPTION

DATE

APPROVED

Added 5WC2.520 & 5WC4.030 Specs

Added 5WC7.015 & 5XRC8.515 Specs

Added 5BC-Y/G Specs

Updated LED Offering

Updated BOM item 1

Corrected LED P/N Typo in Table

Updated LED Optical Characteristics

06/29/09

10/01/09

02/09/10

05/03/12

11/13/12

04/23/14

09/15/15

T. Y.

J. C.

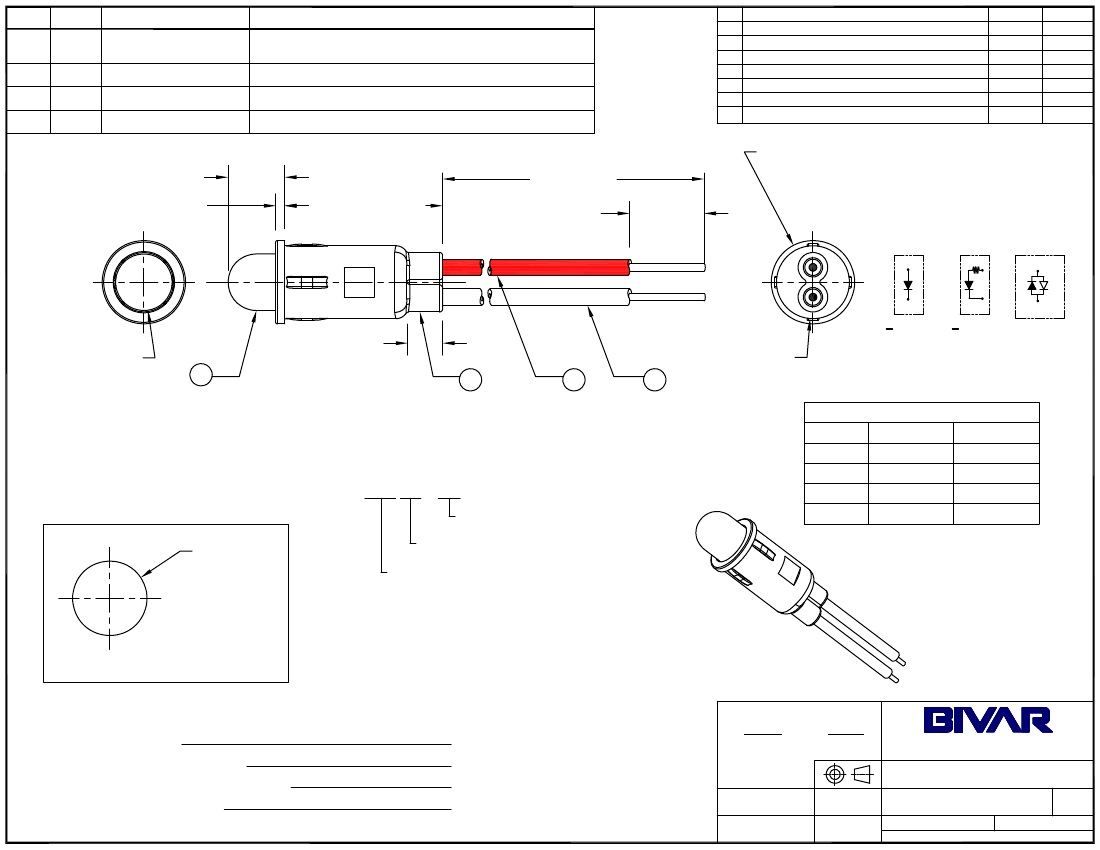

Ø.280 [Ø7.1mm] Flange

0.190 [4.8mm]

0.030 [0.8mm]

0.530 [13.5mm]

X +0.20

-0.05

0.25 [6.4mm]

Stripped And Tinned

0.12 [3.0mm]

Single

Color

(+) Red

Wire

12V

(+) Red

Wire

Bi-Color

( ) Black ( ) Black

Wire

Ø.197 [Ø5.0mm]

LED

Ø.245 [Ø6.2mm]

Body

BI-COLOR POLARITY

LED P/N (1) Cathode (2) Cathode

EXAMPLE:

PM5RDW6.5*

Wire Length in inches

Ø.250+.003

-.002

LED Color & Lens Appearance.

Series

5BC

5BC-Y/G

5BC-R/Y

5BC-A/G

Green

Yellow

Green

Red

Yellow

Red

Amber

Recommended Mounting Hole

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)

REVERSE VOLTAGE

REVERSE CURRENT ( VR=5V)

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE (1/16" FROM BODY)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

100

-25°C ~ 85°C

-30°C ~ 100°C

260°C for 5 Seconds

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

STD PANEL MOUNT

INDICATORS W/ WIRES

REVISION:

David Green

CHECKED:

10/06/04

DATE:

PART NO:

PM5XXWX.X

CAGE CODE : 32559

T. Yin

10/06/04

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
