IllumInatIon
luXeon 3030 HV
High flux, hot-color targeted, 24V and 48V mid power packages
LUXEON 3030 HV is an industry standard package to optimize total voltage
output, available in 24V and 48V. This high voltage at low current architecture
allows system design freedom and is compatible with more efficient and
cost effective drivers. This mid power LED is 1/9
th
micro-color binned for
tight color control and hot-color targeted to ensure that the LEDs are within
color target at application conditions—85°C. LUXEON 3030 HV delivers
efficacy and reliability for a variety of applications such as downlights, lamps
and spotlights.
Features and BeneFIts
High voltage at low current, compatible with more efficient and cost
effective drivers
24V and 48V options available to optimize total voltage output
1/9
th
micro color binning and 85°C hot-color targeting enables tight
color control
EMC based package affirms lumen maintenance and long lifetime
PrImary aPPlIcatIons
Downlights
Lamps
Spotlights
PB215 LUXEON 3030 HV Product Brief ©2017 Lumileds Holding B.V. All rights reserved.
LUXEON 3030 HV product performance at specified test current and temperature.
VoltaGe
nomInal
cct
[1]
2700K
3000K
3500K
4000K
24V
5000K
5700K
6500K
2700K
3000K
2700K
3000K
3500K
48V
4000K
5000K
5700K
6500K
2700K
mInImum
crI
[2, 3]
80
80
80
80
80
80
80
90
90
80
80
80
80
80
80
80
90
lumInous FluX
[2, 3]
(lm)
mInImum
97
99
102
107
107
107
107
87
90
97
99
102
107
107
107
107
87
tyPIcal
107
109
112
117
117
117
117
92
95
107
109
112
117
117
117
117
92
tyPIcal
lumInous
eFFIcacy (lm/W)
132
135
139
145
145
145
145
114
116
132
135
139
145
145
145
145
114
test current
(ma)
34
34
34
34
34
34
34
34
34
17
17
17
17
17
17
17
17
Part numBer
L130-27800BHV00001
L130-30800BHV00001
L130-35800BHV00001
L130-40800BHV00001
L130-50800BHV00001
L130-57800BHV00001
L130-65800BHV00001
L130-27900BHV00001
L130-30900BHV00001
L130-27800CHV00001
L130-30800CHV00001
L130-35800CHV00001
L130-40800CHV00001
L130-50800CHV00001
L130-57800CHV00001
L130-65800CHV00001
L130-27900CHV00001
Notes:
1.
Correlated color temperature is hot targeted at T
j
=85°C.
2. Luminous flux and CRI specs are based upon mounted package on highly reflective surface at T
j
=25°C. Typical CRI is approximately 2 points higher than the minimum CRI specified,
but this is not guaranteed.
3. Lumileds maintains a tolerance of ±2 on CRI and ±7.5% on luminous flux measurements.

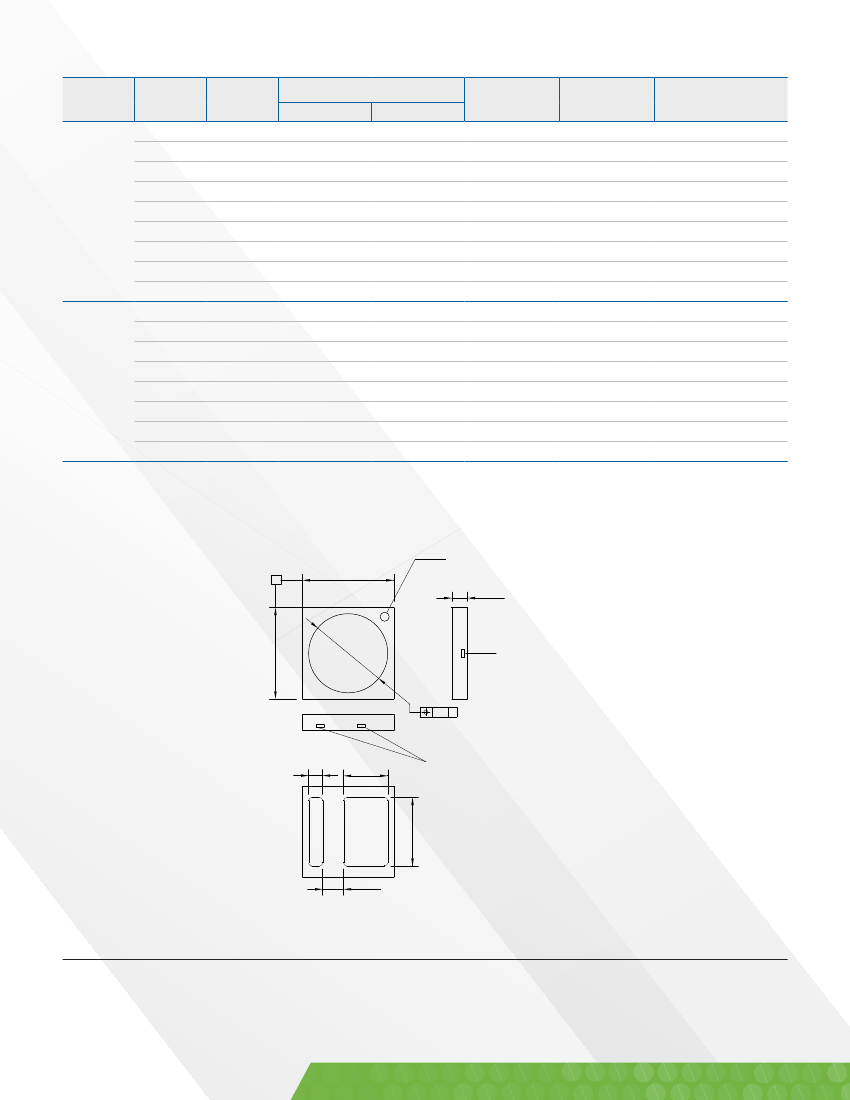

Mechanical Dimensions.
cathode marker
A
3.0
0.52
Note: can have one or
two tie bars on this
and opposite side
Ă2
.6
0.08 A
3.0
0.46
1.45
Note: can have two or
three tie bars on this
and opposite side
cathode
0.69
Notes:
1.
Drawings are not to scale.
2. All dimensions are in millimeters.
©2017 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds Holding B.V.
in the United States and other countries.
lumileds.com
Lumileds Holding B.V. shall not be liable for any kind of loss of data or any other damages, direct,
indirect or consequential, resulting from the use of the provided information and data. Although
Lumileds Holding B.V. has attempted to provide the most accurate information and data, the
materials and services information and data are provided “as is” and Lumileds Holding B.V.
neither warranties, nor guarantees the contents and correctness of the provided information
and data. Lumileds Holding B.V. reserves the right to make changes without notice. You as user
agree to this disclaimer and user agreement with the download or use of the provided materials,
information and data.
PB215 LUXEON 3030 HV
Product Brief 20170110
2.25
