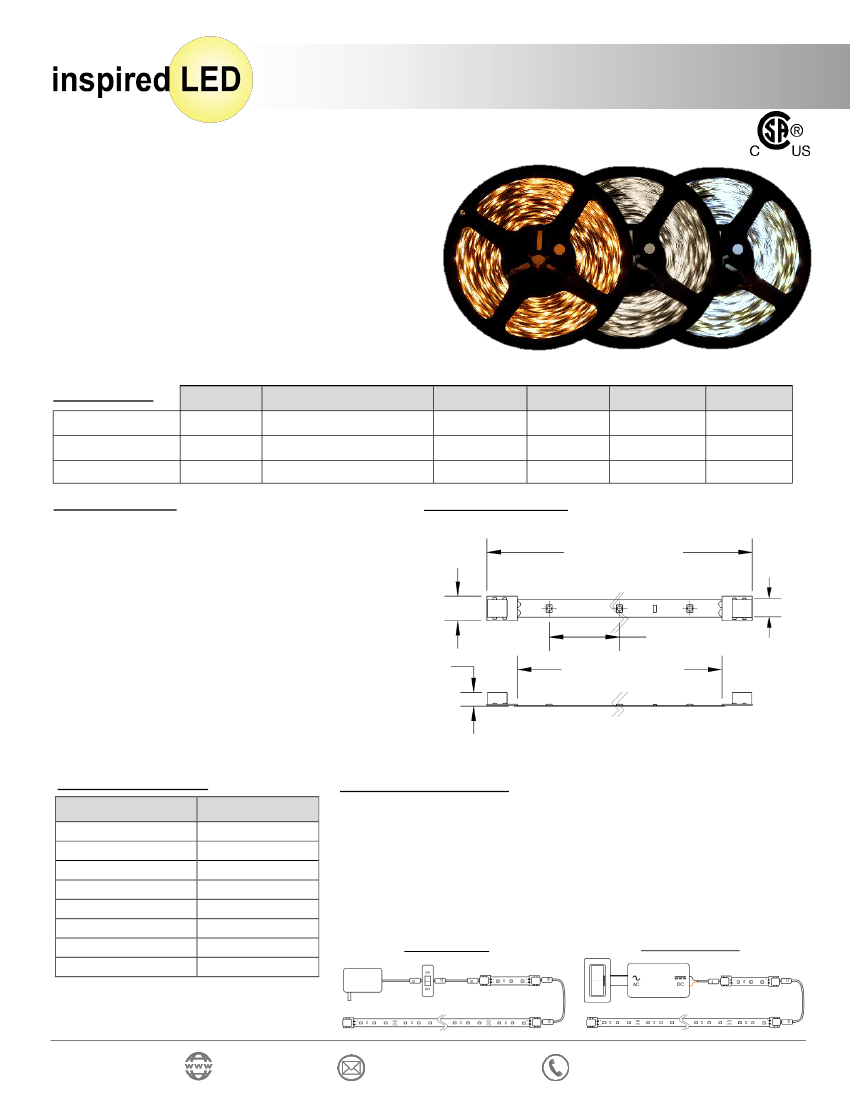

12V Flexible LED Strip Lights
Inspired LED’s
12 Volt Normal Bright Flexible Strip
Lights
are an ideal solution for illuminating
garages, workshops, and other areas where “too
much” light is just right. Available in custom
lengths or 12 meter reels, these unique strips can
easily be cut and terminated with solderless end
connectors for quick DIY installation. Energy
efficient, long lasting, and dimmable with
compatible systems, Inspired LED flex strips are the
perfect option for any lighting application!
Specifications:
Warm White
Pure White
Cool White
Voltage
12V
12V
12V
LED Density
9 LEDs/ft., 30 LEDs/m
9 LEDs/ft., 30 LEDs/m
9 LEDs/ft., 30 LEDs/m
Normal Bright White
265216
Warm White
Wattage
~0.75 W/ft.
~0.75 W/ft.
~0.75 W/ft.
65 lm/ft.
70 lm/ft.
75 lm/ft.
Pure White
Color Temp
3000K
4200K
6000K
Cool White
CRI
92
94
92
Luminosity
Product Features:
Product Dimensions:
Total length:
5.00” to 471.5”
0.31”
1.31” spacing
3.82” to 470.5”
(8mm)
Size 2835 diodes , 1.31” between each LED
8mm flex, cut points available every 3.82” (3 LEDs)
Available in custom pre-cut lengths or full 12m reels
Class 2 DC plug-in connectors (3.5 x 1.3 mm)
or screw terminal end connectors available
0.44”
Adhesive mounting to almost any flat surface
Minimal heat production, no IR or UV output
0.25”
Dimmable with compatible systems
Rated to last up to 100,000 hours
CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598, 8750
To be installed in accordance with NEC,
using Class 2 12V power supply only!
*Dimensions show in inches
Power Requirements:
Power Source
1 Amp (12 W)
2 Amp (24 W)
40W Transformer
3.8 Amp (45.6 W)
5 Amp (60 W)
60W Transformer
100W Transformer
150W Transformer
Max Length
174” (10 W)
347.5” (21.5 W)
580.5” (36W)
662” (41W)
871” (54W)
871” (54W)
1451.5” (90W)
2177.5” (135W)
Installation Instructions:
1.
Clean desired mounting surface(s) and test all products prior to installation.
2.
Temporarily mount LED flex strips using scotch or painters tape.
3.
Connect LED strips with compatible interconnect cables or 16-22 AWG wire.
4.
Run cable from LED system to control device and 12V Class 2 power source
(see diagrams below for more detail).
5.
Test lighting system. When satisfied with placement, peel adhesive backing
from components and press firmly to adhere to surface.
Plug-in System
12V DC
Class 2
In-line Control
Hardwire System
12V DC
Class 2
Wall Dimmer
Flex Interconnection
*70% brightness at 339.5”. Longer strips
should be powered from center to avoid
further voltage drop.
Flex Interconnection
inspiredled.com
orders@inspiredled.com
(480) 941-4286
