Gallery White LED Emitter
LZP-00GW00
Key Features
24-die Gallery White (CRI 98) LED
3 SDCM color bins for CCT - 3000K
Superior Color Rendering: CRI (Ra) 98; R9 98 and R15 98
Up to 90 Watt power dissipation on compact 12.0mm x 12.0mm footprint
Industry lowest thermal resistance per package size (0.6°C/W)
Engineered ceramic package with integrated glass lens
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Copper core MCPCB option with emitter thermal slug directly soldered to the copper core
Full suite of TIR secondary optics family available
Typical Applications
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Description
The LZP-00GW00 Gallery White features warm white light with an exceptional color rendering index (CRI) of 98, as
well as impressive individual R values (R1-16) in industry’s smallest footprint. It enables accurate color
representation and enhances the contrast of retail merchandise, artwork and skin tones, which cannot be obtained
with standard warm white LED emitters. The emitter, based on LED Engin’s LuxiGen technology platform, may be
driven up to 90W of power in a compact 12.0mmx12.0mm footprint. It has the industry lowest thermal resistance
per package size, which allows users to drive the emitter with higher current, while keeping the junction
temperature low to ensure long operating life.
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
LZP-00GW00 (2.5 – 11/09/2018)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
em
LEDE-Sales@osram.com
|
www.osram.us/ledengin
Part number options
Base part number
Part number
LZP-00GW00-xxxx
LZP-D0GW00-xxxx
Description
LZP Gallery White emitter
LZP Gallery White emitter on 5 channel 4x6+1 Star MCPCB
Bin kit option codes
GW, Gallery White (CRI 98)
Kit number
suffix
0030
Min
flux
Bin
D2
Chromaticity bins
3-step MacAdams ellipse
Description
full distribution flux; 3000K ANSI CCT
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
2
LZP-00GW00 (2.5 – 11/09/2018)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
em
LEDE-Sales@osram.com
|
www.osram.us/ledengin
Gallery White CCT Bins

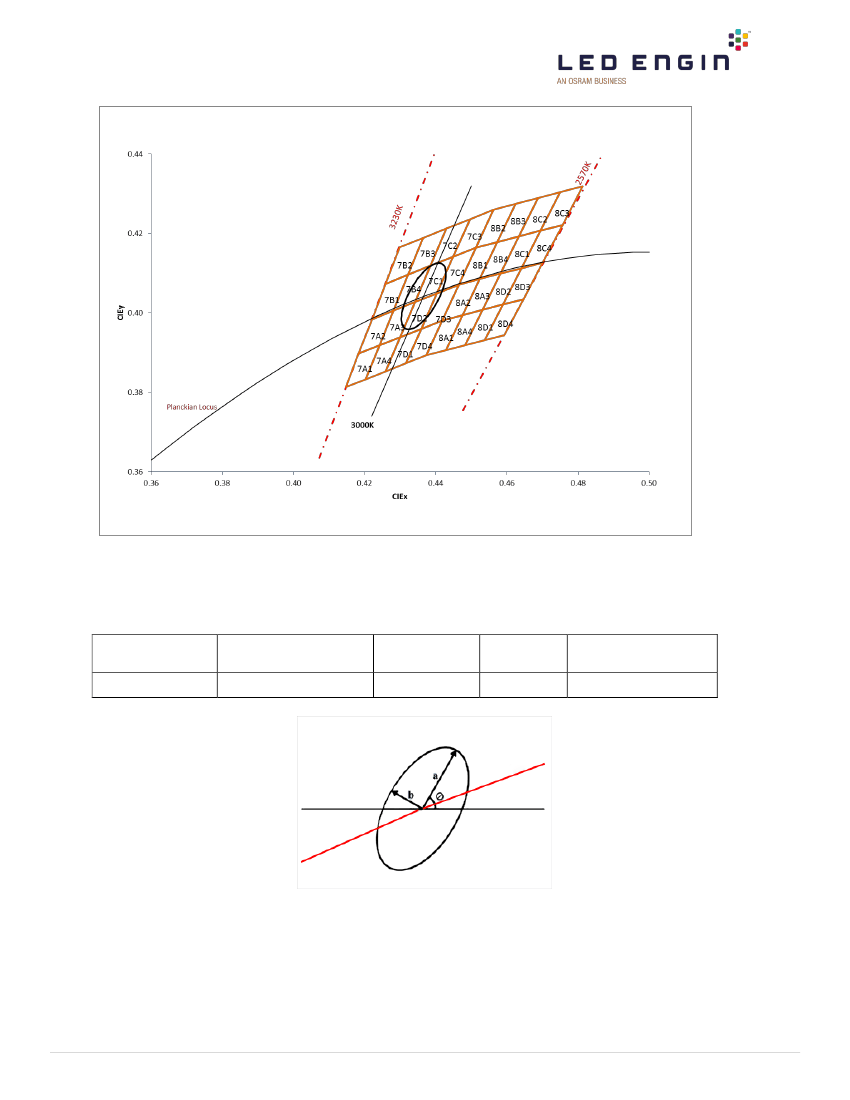

3-step MacAdam ellipse color bins plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in the table.
Gallery White 3-Step MacAdam Ellipse CCT Bin Coordinates
Nominal ANSI
CCT
3000
Center Point
(cx, cy)
(0.4366, 0.4042)
Major Axis
a
0.00967
Minor Axis
b
0.00399
Ellipse Rotation
Angle (⁰)
56.6
Luminous Flux Bins
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
3
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
em
LEDE-Sales@osram.com
|
www.osram.us/ledengin
LZP-00GW00 (2.5 – 11/09/2018)
Table 1:
Bin Code
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
2,350
2,600
2,900
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
2,600
2,900
3,200
D2
E2
F2
Notes:
1.
Luminous flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
2.
Luminous Flux typical value is for all 24 LED dies operating at rated current. The LED is configured with 4 Channels of 6 dies in series.
Forward Voltage Bin
Table 2:
Bin Code
0
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
/Channel
[1]
(V)
18.0
[2,3]
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
/Channel
[1]
(V)
21.6
[2,3]
Notes:
1.
LED Engin maintains a tolerance of ± 0.24V for forward voltage measurements.
2.
All 4 white Channels have matched Vf for parallel operation
3.
Forward Voltage is binned with 6 LED dies connected in series. The LED is configured with 4 Channels of 6 dies in series each.
Color Rendering Index Bin
Table 3:
Bin Code
Minimum
Color Rendering Index
@ I
F
= 700mA
95.0
0
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
4
LZP-00GW00 (2.5 – 11/09/2018)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
em
LEDE-Sales@osram.com
|
www.osram.us/ledengin
Absolute Maximum Ratings
Table 4:
Parameter
DC Forward Current at T
jmax
=135°C
[1]
DC Forward Current at T
jmax
=150°C
[1]
Peak Pulsed Forward Current
[2]
Reverse Voltage
Storage Temperature
Junction Temperature
Soldering Temperature
[4]
Allowable Reflow Cycles
ESD Sensitivity
[5]
Symbol
I
F
I
F
I
FP
V
R
T
stg
T
J
T
sol
Value
1200
1000
1500 /Channel
See Note 3
-40 ~ +150
150
260
6
> 8,000 V HBM
Class 3B JESD22-A114-D
Unit
mA
mA
mA
V
°C
°C
°C
Notes:
1.
Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current de-rating.
2:
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty cycle ≤ 10%.
3.
LEDs are not designed to be reverse biased.
4.
Solder conditions per JEDEC 020D. See Reflow Soldering Profile Figure 5.
5.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZP-00GW00 in an electrostatic protected area (EPA).
An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.
Optical Characteristics @ T
C
= 25°C
Table 5:
Parameter
Luminous Flux (@ I
F
= 700mA)
[1]
Luminous Flux (@ I
F
= 1000mA)
[1]
Luminous Efficacy (@ I
F
= 350mA)
Correlated Color Temperature
Color Rendering Index (CRI)
[2]
Viewing Angle
[3]
Symbol
Φ
V
Φ
V
CCT
R
a
2Θ
1/2
Typical
2650
3450
63
3000
98
110
Unit
lm
lm
lm/W
K
Degrees
Notes:
1.
Luminous flux typical value is for all 24 LED dies operating at rated current.
2.
Typical Ra and individual R1 through R16 values listed in Table 6
3.
Viewing Angle is the off-axis angle from emitter centerline where the luminous intensity is ½ of the peak value.
Typical CRI (Ra) and individual R values
Table 6:
Ra
98
R1
98
R2
99
R3
97
R4
98
R5
98
R6
98
R7
98
R8
98
R9
98
R10
99
R11
96
R12
86
R13
98
R14
97
R15
98
R16
96
COPYRIGHT © 2018 LED ENGIN. ALL RIGHTS RESERVED.
5
LZP-00GW00 (2.5 – 11/09/2018)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
em
LEDE-Sales@osram.com
|
www.osram.us/ledengin
