LTM1203GD: DescriptionLED Circuit Board Indicators Vert LED Assmbly 3mm Green; CategoryLED optoelectronic/LED; File Size161KB，3 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

LTM1203GD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LTM1203GD	-	-	View	Buy Now

LTM1203GD Overview

LED Circuit Board Indicators Vert LED Assmbly 3mm Green

LTM1203GD Parametric

Parameter Name	Attribute value
Product Category	LED Circuit Board Indicators
Manufacturer	Bivar
RoHS	Details
Packaging	Tray
Factory Pack Quantity	100

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

PART DESCRIPTION

REV.

DESCRIPTION

DATE

APPROVED

1

2

1

LTM-XXX

3XX-S

Molded, Self-Retaining LED Mount

T-1 (3mm) Shouldered LED, See Page 2 & 3

A

Engineering Release

B

LED Update

C

Added 3GTL-S and 3HTL-S Specs

07/17/06

10/12/11

06/25/16

M. C.

T. Y.

J. C.

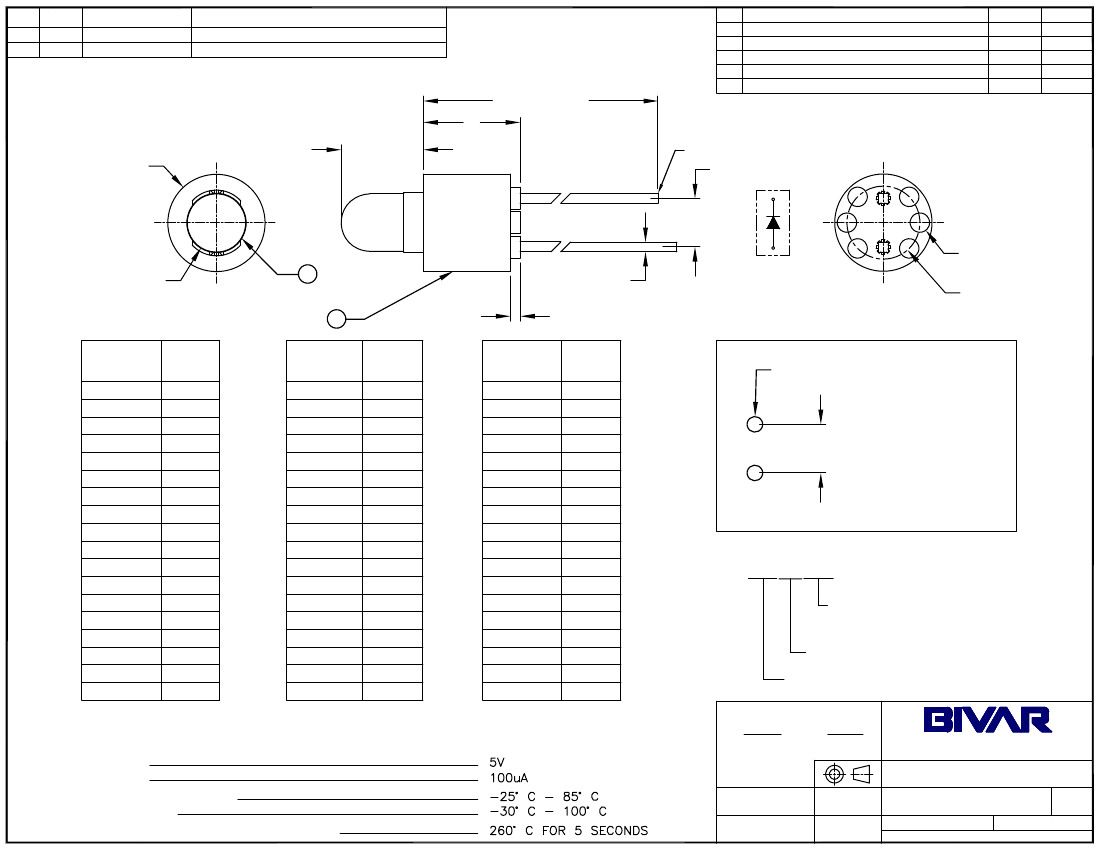

(1.0 [25.4mm])

H

0.17 [4.3mm]

Ø.200 [Ø5.1mm]

SHORT LEAD

0.100 [2.5mm]

Ø.04 [Ø1.0mm]

Ø.120 [Ø3.0mm]LED

2

1

0.020 [0.5mm]

SQ. TYP.

0.020 [0.5mm]

TYP.

Ø.150 [Ø3.8mm]

PART

NO.

LTM-120

LTM-130

LTM-140

LTM-150

LTM-160

LTM-170

LTM-180

LTM-190

LTM-200

LTM-210

LTM-220

LTM-230

LTM-240

LTM-250

LTM-260

LTM-270

LTM-280

LTM-290

H

.120(3.1)

.130(3.3)

.140(3.6)

.150(3.8)

.160(4.1)

.170(4.3)

.180(4.6)

.190(4.8)

.200(5.1)

.210(5.3)

.220(5.6)

.230(5.8)

.240(6.1)

.250(6.4)

.260(6.6)

.270(6.9)

.280(7.1)

.290(7.4)

PART

NO.

LTM-300

LTM-310

LTM-320

LTM-330

LTM-340

LTM-350

LTM-360

LTM-370

LTM-380

LTM-390

LTM-400

LTM-410

LTM-420

LTM-430

LTM-440

LTM-450

LTM-460

LTM-480

H

.300(7.6)

.310(7.9)

.320(8.1)

.330(8.4)

.340(8.6)

.350(8.9)

.360(9.1)

.370(9.4)

.380(9.7)

.390(9.9)

.400(10.2)

.410(10.4)

.420(10.7)

.430(10.9)

.440(11.2)

.450(11.4)

.460(11.7)

.480(12.2)

PART

NO.

LTM-490

LTM-500

LTM-520

LTM-550

LTM-570

LTM-600

LTM-620

LTM-650

LTM-670

LTM-700

LTM-720

LTM-750

LTM-770

LTM-800

LTM-820

LTM-850

LTM-870

LTM-900

H

.490(12.5)

.500(12.7)

.520(13.2)

.550(14.0)

.570(14.5)

.600(15.2)

.620(15.8)

.650(16.5)

.670(17.0)

.700(17.8)

.720(18.3)

.750(19.1)

.770(19.6)

.800(20.3)

.820(20.8)

.850(21.6)

.870(22.1)

.900(22.9)

Ø.032+.003 Ø0.8mm+0.1mm TYP.

-.002

-0.1mm

[

]

0.100 [2.5mm]

RECOMMENDED MOUNTING HOLES

EXAMPLE:

LTM5003GD

LED Color & Lens Appearance

LTM Height "H"

Series

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

ABSOLUTE MAXIMUM RATINGS (Ta=25° C)

REVERSE VOLTAGE

REVERSE CURRENT

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

TITLE:

MOLDED, SELF-RETAINING

T1 (3mm) LED MOUNT ASSEMBLY

REVISION:

PART NO:

S. Dam

CHECKED:

07/17/06

DATE:

LTMXXX3XX

C

T. Yin

07/17/06

CAGE CODE : 32559

SHEET # 1 OF 3

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
