LFB Series 3mm
Press Fit, Low Profile
Diffused Rigid Light Pipe
LFB Series litepipe
TM
features diffused round 3mm surface
for super wide viewing angle at 120 degrees
Applications
•
•
•
•
audio/video
communication
darkroom equipment
electrical panels
•
•
•
•
entertainment
industrial
medical
IoT
•
•
•
security
studio control
transportation
Key features
•
for use with surface-mount or through-hole
•
press fit (front panel mount) with crushable ribs
•
•
•
•
LEDs
optical grade polycarbonate for maximum
light transmission
low profile, flush panel design
wide viewing angle at 120 degrees
frosted surface diffuses light and provides
uniform brightness and a soft glow
•
•
•
•
that simplifies installation
no physical connection between light pipe and
LED provides versatility for assembly
standard lengths from 0.125” to 1.000”
custom lengths available
optional RTN112 retainer provides a reliable
solution for high-vibration environments

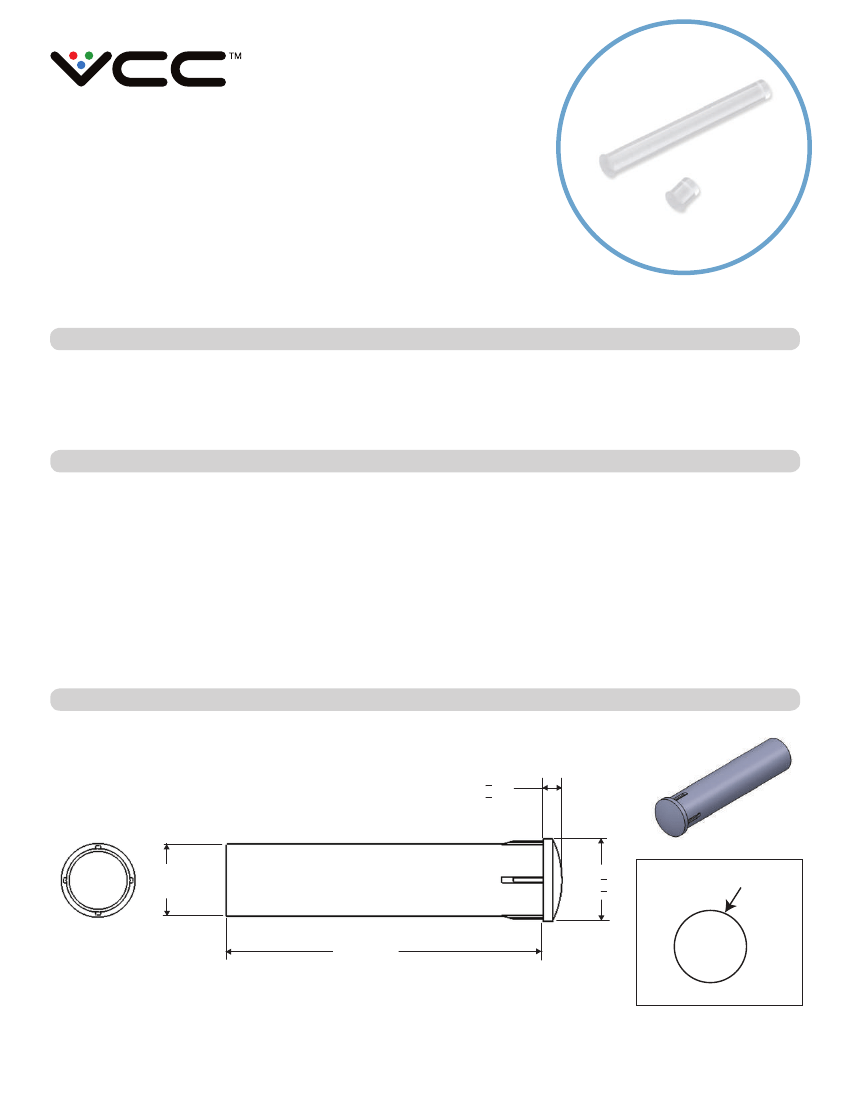

Dimensions
0.030+0.020
[0.76+0.51]
Ø0.112
+0.002
-0.003
[Ø2.84 +0.05
-0.08
]
LENGTH±0.010
“SEE ORDERING DATA”
Ø0.130+0.020
[Ø3.30+0.51]
+0.003
-0.002
+0.08
[Ø3.00 -0.05
Ø0.118
]
mounting hole size
Dimensions in inches [mm]
the first call for illuminated components
www.vcclite.com
1.800.522.5546
10/15 Rev 1
Product Specifications
Material
Polycarbonate, clear, UL 94-V0
Installation Specification
mounting hole
0.118” +0.003/-0.002 (3.00mm +0.08/-0.05)
panel thickness
0.040” (1.02mm) to 0.093”(2.36mm)
Recommendation: Maximum air gap (clearance) between LED and light pipe for best performance:
•
0.020” for wide viewing angle LED
•
0.050” for narrow viewing angle LED
Ordering Data
Optional Accessory
LFB
012
025
035
037
050
063
075
100
CTP
Length
0.125” (3.2mm)
0.250” (6.4mm)
0.350” (8.9mm)
0.375” (9.5mm)
0.500” (12.7mm)
0.625” (15.9mm)
0.750” (19.0mm)
1.000” (25.4mm)

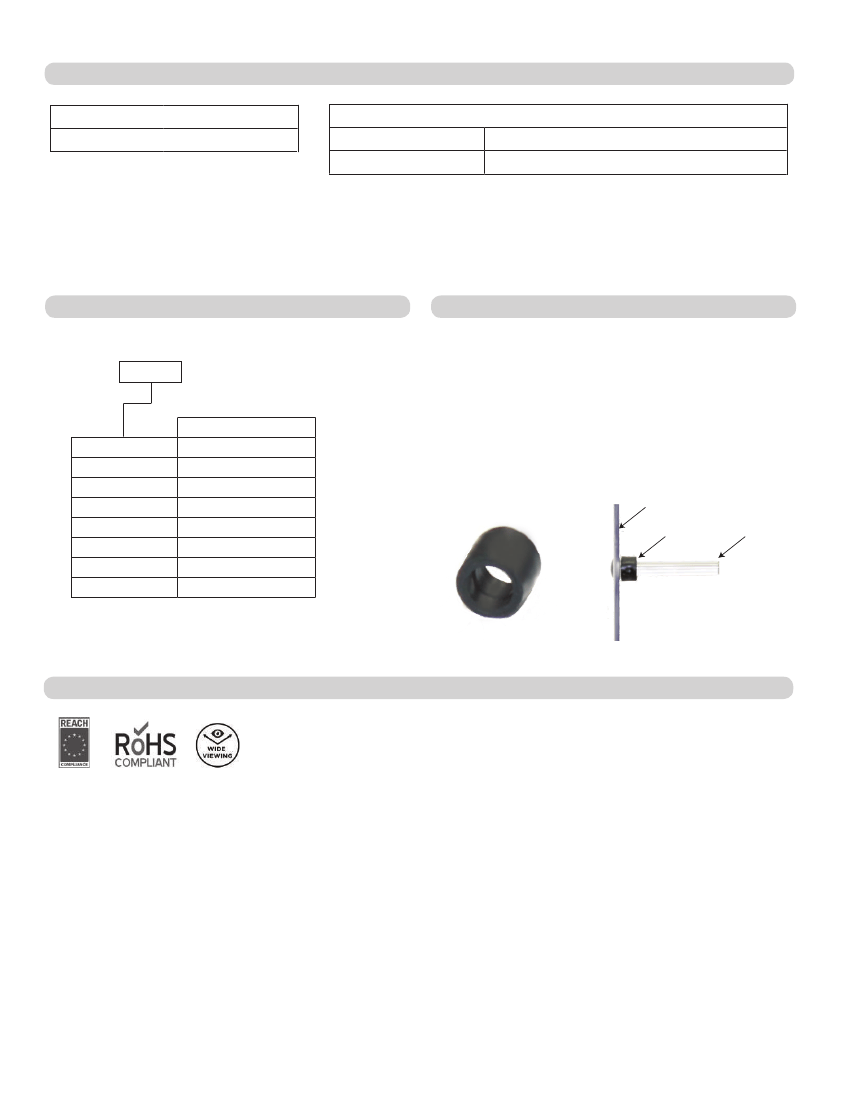

Retainer for LFB Series 3mm Light Pipe (order
separately)
Ordering Number: RTN112
•
•
recommended for high vibration applications
secure and uniform placement of the light pipe
to the panel
•
field-proven design
panel
retainer
light pipe
Please see datasheet RTN112 for more details
