H101CSURC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> H101CSURC

H101CSURC: DescriptionLED Circuit Board Indicators LED Assembly, Right Angle, 3 mm LED, Single Level, 1 Station, Super Ultra Red, Water Clear Lens; CategoryLED optoelectronic/LED photoelectric; File Size100KB，3 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

H101CSURC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H101CSURC	-	-	View	Buy Now

H101CSURC Overview

LED Circuit Board Indicators LED Assembly, Right Angle, 3 mm LED, Single Level, 1 Station, Super Ultra Red, Water Clear Lens

H101CSURC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bivar
Reach Compliance Code	compliant
color@wavelength	Red
Maximum forward voltage	2.4 V
Lens type	WATER CLEAR
minimum luminous intensity	30 cd
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	LED MOUNTING HARDWARE
total height	7.2 mm
peak wavelength	640 nm
Maximum reverse voltage	5 V

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

H-101C

3XX-S

PART DESCRIPTION

T-1 (3mm) LED Holder, 90° Mount

T-1 (3mm) N-Flange Shouldered LED, See Page 2 & 3

REV.

DESCRIPTION

DATE

APPROVED

Holder Update, Added LEDs

LED Package Change to 3XX-S LEDs

Updated LED Specs

Added Water Clear LED Specs

Removed H101CUWC0.6K & H101CUBWC0.6K

Engineering Update w/o Changes

10/04/07

12/14/07

10/08/08

02/05/09

04/24/12

06/20/16

M. C.

T. Y.

J. C.

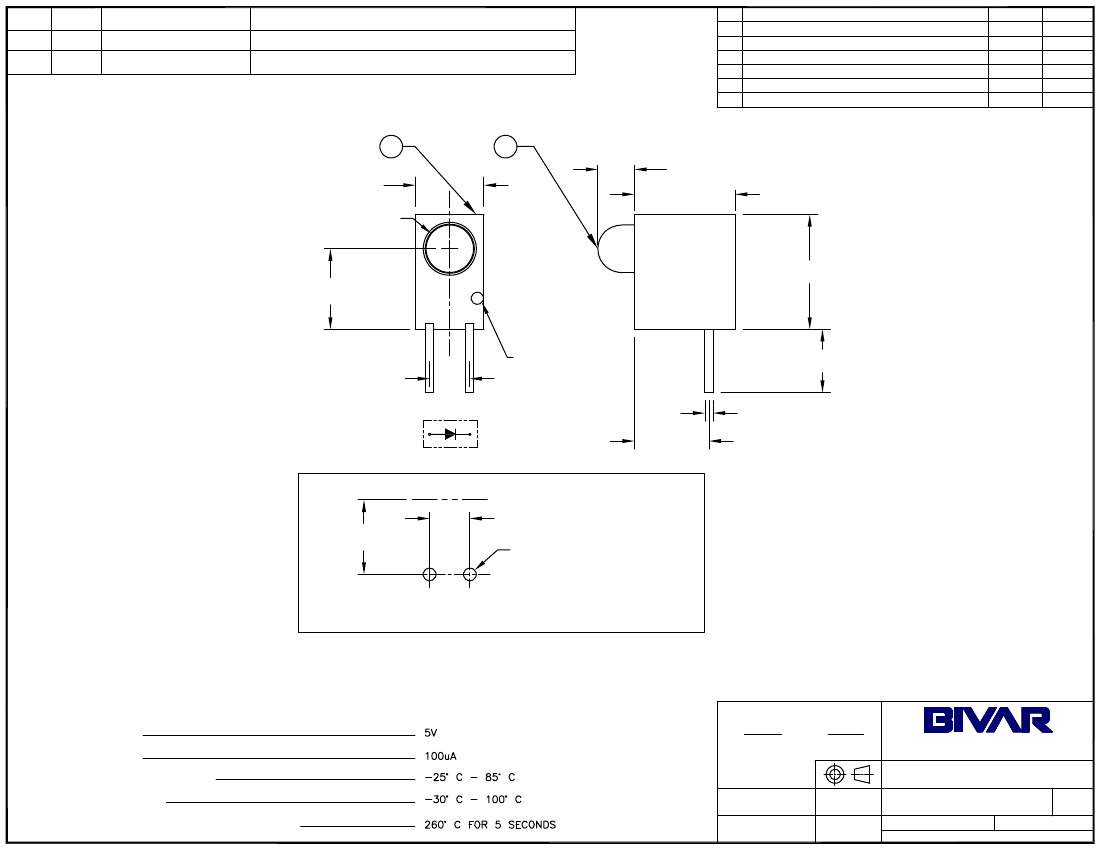

0.170 [4.3mm]

Ø.118 [Ø3.0mm]

0.091 [2.3mm]

0.250 [6.4mm]

0.285 [7.2mm]

0.200 [5.1mm]

0.100 [2.5mm]

Cathode I.D.

Mark

0.157 [4.0mm]

0.020 [0.5mm]

SQ. TYP.

0.185 [4.7mm]

Holder Face

0.100 [2.5mm] LED Lead

Ø.032+.003

-.002

TYP.

Recommended Mounting Holes

ABSOLUTE MAXIMUM RATINGS (Ta=25° C)

REVERSE VOLTAGE

REVERSE CURRENT

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

T. Yin

CHECKED:

03/05/04

DATE:

T-1 (3MM) 90° SINGLE-LEVEL

LED ASSEMBLY

REVISION:

PART NO:

TITLE:

H101CXX

D. Green

03/05/04

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

H101CSURC Related Products

	H101CSURC	H101CYDL	H101CSUGC	H101CHDL	H101CRD	H101CUOC
Description	LED Circuit Board Indicators LED Assembly, Right Angle, 3 mm LED, Single Level, 1 Station, Super Ultra Red, Water Clear Lens	Circuit Board Hardware - PCB TEST POINT RED	LED Circuit Board Indicators LED Assembly, Right Angle, 3 mm LED, Single Level, 1 Station, Super Ultra Green, Water Clear Lens		Circuit Board Hardware - PCB TEST POINT RED	LED Circuit Board Indicators LED Assembly, Right Angle, 3 mm LED, Single Level, 1 Station, Ultra Orange, Water Clear Lens
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant	unknown
color@wavelength	Red	Yellow	Green	Orange-Red	Red	Orange
Maximum forward voltage	2.4 V	2.2 V	2.4 V	2.2 V	2 V	2.4 V
Lens type	WATER CLEAR	DIFFUSED	WATER CLEAR	DIFFUSED	DIFFUSED	WATER CLEAR
minimum luminous intensity	30 cd	45 cd	30 cd	45 cd	45 cd	30 cd
Optoelectronic device types	LED MOUNTING HARDWARE	LED MOUNTING HARDWARE	LED MOUNTING HARDWARE	LED MOUNTING HARDWARE	LED MOUNTING HARDWARE	LED MOUNTING HARDWARE
total height	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm
peak wavelength	640 nm	585 nm	570 nm	635 nm	655 nm	625 nm
