LZ4-00CW08-0065

Description
Isolated DC/DC Converters 30W 18-75Vin 12Vout 2.5A Iso Reg DIP
CategoryLED optoelectronic/LED
File Size1MB,17 Pages
ManufacturerLED Engin
Websitehttp://www.ledengin.com
Download Datasheet Parametric Compare View All

LZ4-00CW08-0065 Online Shopping

Suppliers Part Number Price MOQ In stock
LZ4-00CW08-0065 - - View Buy Now

LZ4-00CW08-0065 Overview

Isolated DC/DC Converters 30W 18-75Vin 12Vout 2.5A Iso Reg DIP

LZ4-00CW08-0065 Parametric

Parameter NameAttribute value
Product CategoryHigh Power LEDs - White
ManufacturerLED Engin
RoHSDetails
Package / CaseSMD-9
Illumination ColorWhite (Cool White)
Wavelength/Color Temperature6500 K
Luminous Intensity-
Luminous Flux/Radiant Flux800 lm
Color Rendering Index - CRI75
Viewing Angle90 deg
Lens Color/StyleWater Clear
If - Forward Current700 mA
Vf - Forward Voltage12.6 V
Power Rating10 W
Mounting StyleSMD/SMT
Length7 mm
Width7 mm
Height3.7 mm
Maximum Operating Temperature-
Minimum Operating Temperature-
PackagingReel
PackagingCut Tape
Color Temperature6500 K
Features-
LED Size7 mm x 7 mm x 3.7 mm
Lens Dimensions5.6 mm
Lens ShapeDome
Factory Pack Quantity250
TypeLED Emitter
Vr - Reverse Voltage-
Unit Weight0.010582 oz

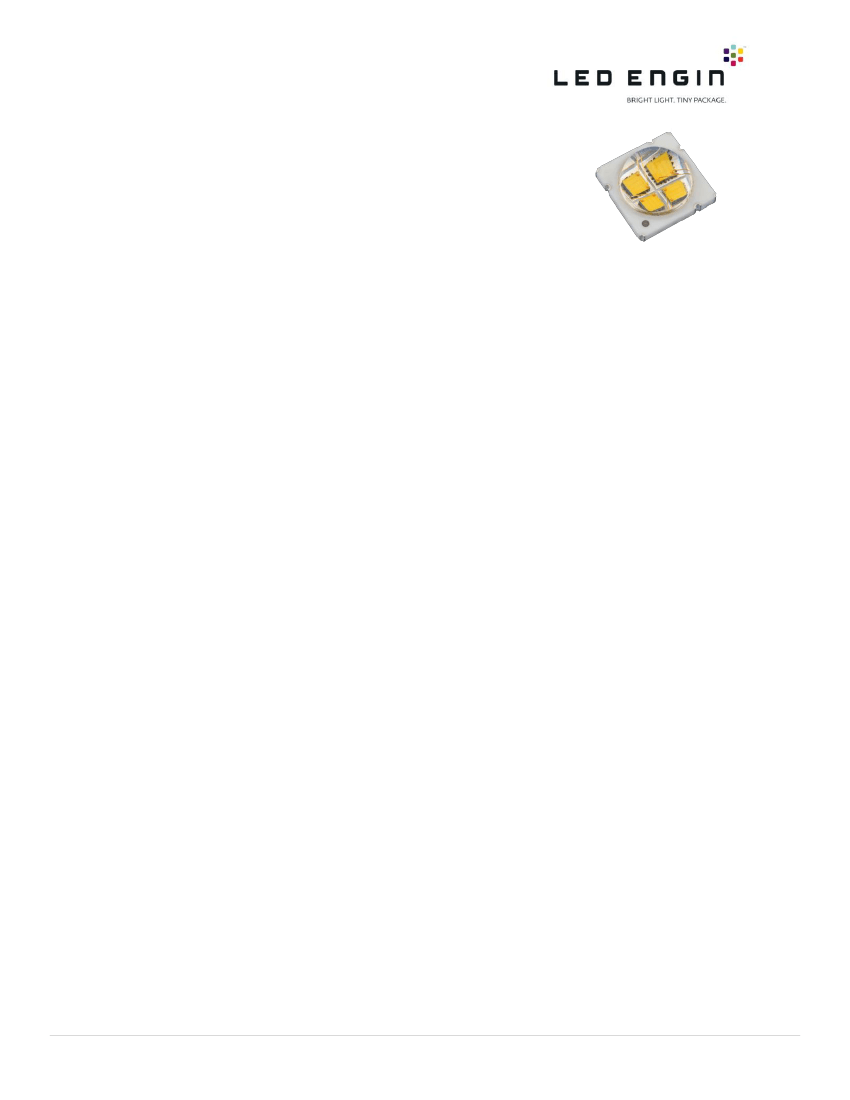

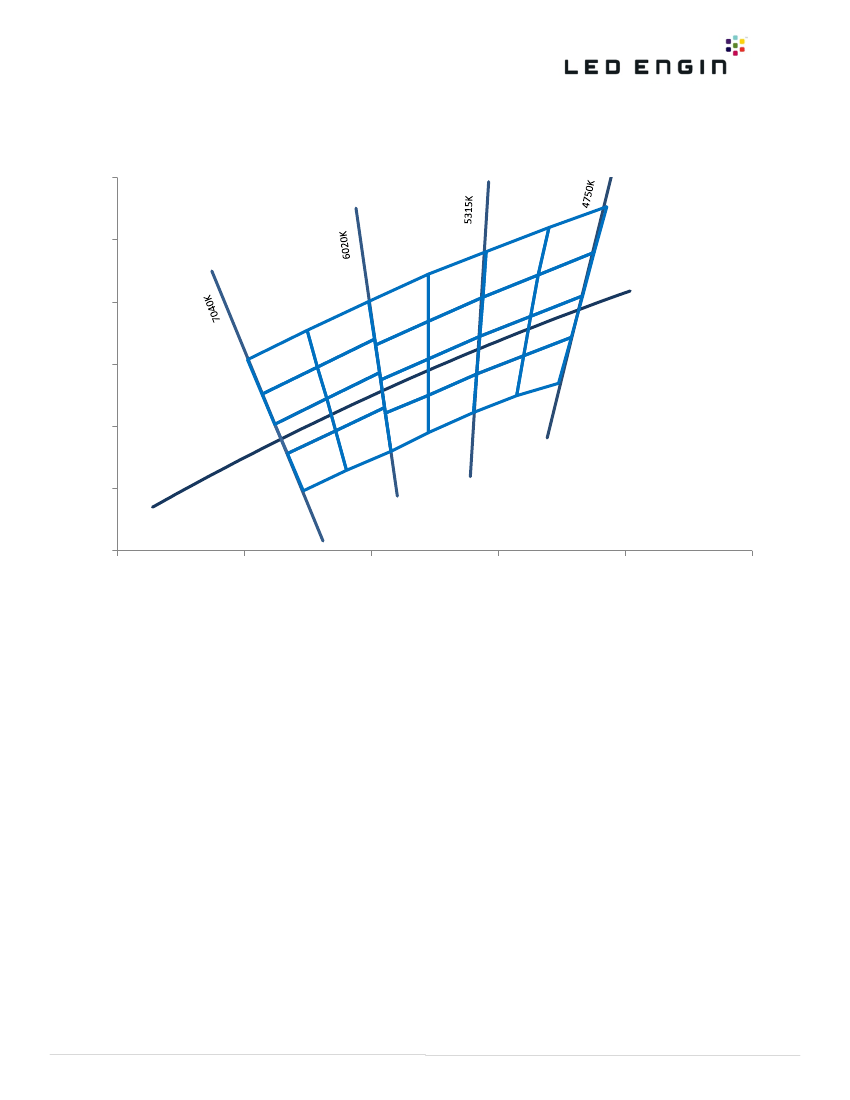

Cool White LED Emitter
LZ4-00CW08
Key Features
High Luminous Efficacy 10W Cool White LED
Ultra-small foot print – 7.0mm x 7.0mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (2.8°C/W)
Individually addressable die
Electrically neutral thermal path
Very high Luminous Flux density
Spatial color uniformity across radiation pattern
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Standard or Serially connected MCPCB (optional)
Typical Applications
Architectural lighting
Street lighting
Stage and Studio lighting
Task and Accent lighting
Refrigeration lighting
Portable lighting
Description
The LZ4-00CW08 Cool White LED emitter provides 10W power in an extremely small package. With a 7.0mm x
7.0mm ultra-small footprint, this package provides exceptional luminous flux density. LED Engin’s LZ4-00CW08 LED
offers ultimate design flexibility with individually addressable die. The high quality materials used in the package
are chosen to optimize light output and minimize stresses which results in monumental reliability and lumen
maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high
humidity.
COPYRIGHT © 2016 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00CW08 (1.2 - 10/20/16)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com

LZ4-00CW08-0065 Related Products

LZ4-00CW08-0065 LZ4-00CW08-0056 LZ4-00CW08-0000 LZ4-00CW08
Description Isolated DC/DC Converters 30W 18-75Vin 12Vout 2.5A Iso Reg DIP High Power LEDs - White Cool White 5600K High Power LEDs - White Cool White High Power LEDs - White
Product Category High Power LEDs - White High Power LEDs - White High Power LEDs - White High Power LEDs - White
Manufacturer LED Engin LED Engin LED Engin LED Engin
Package / Case SMD-9 SMD-9 SMD-9 SMD-9
Illumination Color White (Cool White) White (Cool White) White (Cool White) White (Cool White)
Luminous Flux/Radiant Flux 800 lm 800 lm 800 lm 800 lm
Color Rendering Index - CRI 75 75 75 75
Viewing Angle 90 deg 90 deg 90 deg 90 deg
Lens Color/Style Water Clear Water Clear Water Clear Water Clear
If - Forward Current 700 mA 700 mA 700 mA 700 mA
Vf - Forward Voltage 12.6 V 12.6 V 12.6 V 12.6 V
Power Rating 10 W 10 W 10 W 10 W
Mounting Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Length 7 mm 7 mm 7 mm 7 mm
Width 7 mm 7 mm 7 mm 7 mm
Height 3.7 mm 3.7 mm 3.7 mm 3.7 mm
LED Size 7 mm x 7 mm x 3.7 mm 7 mm x 7 mm x 3.7 mm 7 mm x 7 mm x 3.7 mm 7 mm x 7 mm x 3.7 mm
Lens Dimensions 5.6 mm 5.6 mm 5.6 mm 5.6 mm
Lens Shape Dome Dome Dome Dome
Type LED Emitter LED Emitter LED Emitter LED Emitter
RoHS Details Details Details -
Factory Pack Quantity 250 200 200 -
Unit Weight 0.010582 oz 0.010582 oz 0.010582 oz -
