CXM-7 Product Datasheet
CXM-7 COB Arrays
White LED
Features:
•
High lumen output and efficacy typical
Table of Contents
Technology Overview . . . . . .2
Test Specifications . . . . . . . . .2
Chromaticity Bins . . . . . . . . . .3
Product Ordering & Shipping
Part Numbers . . . . . . . . . . . . . .4
Product Typical Flux Range .5
Operating Characteristics . .6
Optical and Electrical Character-
istics . . . . . . . . . . . . . . . . . . . . . . .7
Spectra . . . . . . . . . . . . . . . . . . . .8
Mechanical Dimensions . . . .9
Packaging Information . . . . .9
Handling Notes . . . . . . . . . . 10
•
Over 720 lm, 125 LPW @ 3000K, 25ºC
•
Over 780 lm, 137 LPW @ 5000K, 25ºC
•
Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
•
80 or 90 CRI min. up to 95 min. in warm white
•
2-step and 3-step MacAdam Ellipse color binning accuracy
•
Excellent optical emission uniformity and color over angle consistency
•
Exceptional long term color stability
•
Superior thermal conductivity for uniform heat spreading
•
Environmentally friendly: RoHS and REACh compliant
•
Applications
•
Spotlights/Track Lights
•
Downlights
•
Replacment lamps
•
Shop Lighting
•
Hospitality Lighting
•
Architectural and Specialty
•
Parking Lot and Area Lighting
1
PDS-002215 Rev 06
© 2015 Luminus Devices, Inc. - All Rights Reserved
CXM-7 Product Datasheet
Technology Overview
Luminus XNova™ Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination
applications. The selection covers a wide lumen range from less than 400lm to over 10,000lm, all major color temperatures and can
deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95. These breakthroughs allow illumination engineers and
designers to develop lighting solutions with maximum efficacy, brightness and overall quality.
Reliability
Designed from the ground up, the XNova™ COB LED is one of
the most reliable light sources in the world today. Having
passed a rigorous suite of environmental and mechanical stress
tests, including mechanical shock, vibration, temperature
cycling and humidity. Only then are the devices qualified for
use in a wide range of lighting application including some of the
most demanding commercial applications. Delivered with fully
qualified LM80 test data and TM21 lifetime results that certify
lumen maintenance at 35,000 hours or more, XNova™ COB LEDs
are ready for the toughest challenges.
UL Recognized Compliance
XNova COB arrays are tested in accordance with ANSI/UL 8750
to ensure safe operation for their intended applications.
REACh & RoHS Compliance
All LED products manufactured by Luminus are REACh and
RoHS compliant and free of hazardous materials, including lead
and mercury.
Understanding XNova™ COB LED Test Specifications
Every XNova™ LED is fully tested to ensure it meets the high quality standards customers have come to expect from Luminus’ products.
Traceability
Each XNova COB LED is marked with a 2D bar code that contains
a unique serial number. With this serial number, Luminus has
the ability to provide customers with actual test data
measurements for a specific LED. In addition, the 2D bar code is
linked to manufacturing date codes that enables traceability of
production processes and materials.
Chromaticity Bin Range
Chromaticity binning delivers color consistency for every order.
Standard products are delivered with a 3-step MacAdam ellipse.
This ensures color performance matching in the application. For
the most demanding application, Luminus is one of only a few
companies that can provide a 2-step ellipse bin. These tightly
controlled, small distribution bins provide customers
predictable, repeatable colors.
Testing Temperature
XNova™ COB products are measured at temperatures typical for
the LED operating in the fixture. Each device is tested at 85ºC
junction temperature eliminating the need to scale data sheet
specifications to real world situations.
2
PDS-002215 Rev 06
© 2015 Luminus Devices, Inc. - All Rights Reserved
CXM-7 Product Datasheet

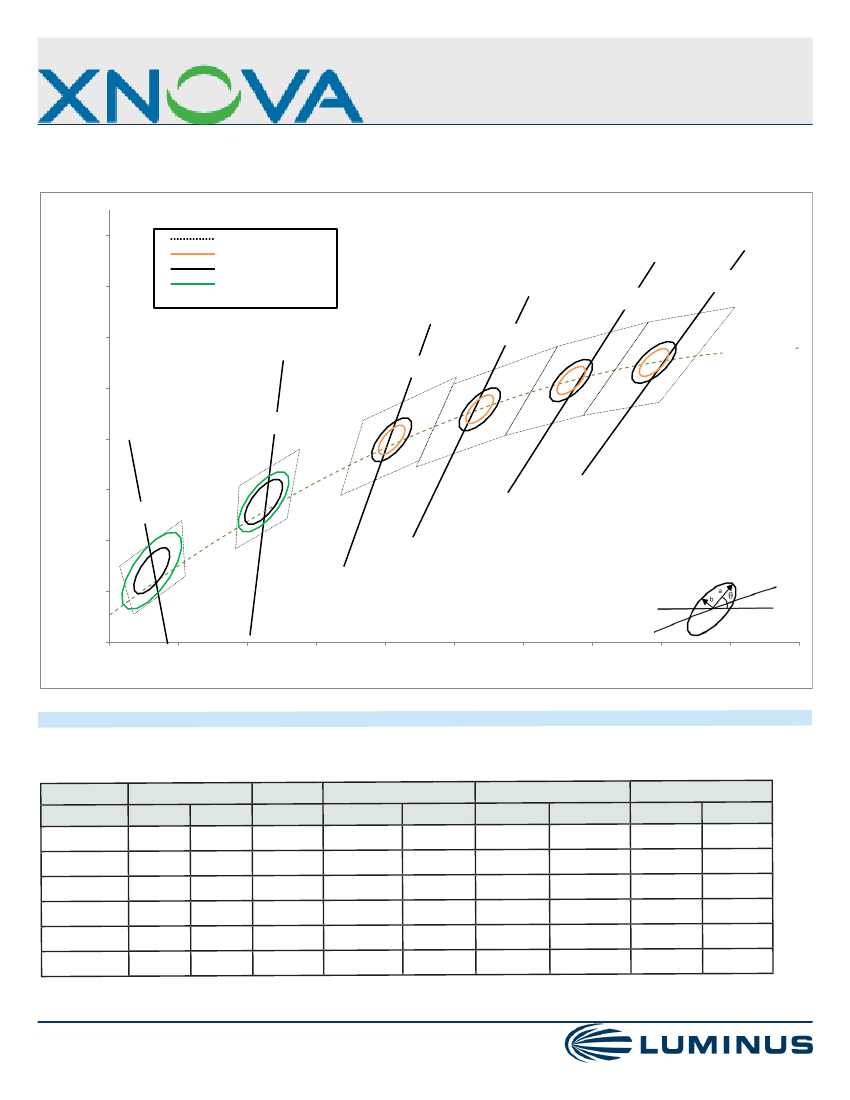

Chromaticity Bin Structure
Chromaticity Bins: 1931 CIE Curve
0.46
0.44
ANSI C78.377-2008
2-step Ellipse
3-step Ellipse
5-step Ellipse
3000K
3500K
4000K
2700K
0.42
Black Body
0.4
CIE y
5000K
0.38
0.36
6500K
0.34
0.32
0.3
0.3
0.32
0.34
0.36
0.38
0.4
CIE x
0.42
0.44
0.46
0.48
0.5
The following tables describe the ANSI bin center points, the orientation angle for the MacAdam ellipse (θ
°),
and the maximum radii for
the ellipses. The ANSI Bin is provided for reference.
Center Point
CCT
2700K
3000K
3500K
4000K
5000K
6500K
*Note:
3
PDS-002215 Rev 06
© 2015 Luminus Devices, Inc. - All Rights Reserved
CXM-7 White Chromaticity Bins
Angle
θ (°)
53.7
53.2
54
53.7
59.6
58.57
a
2-step Bin
b
0.0028
0.00272
0.00276
0.00268
0.00236
0.0019
a
0.0054
0.00556
0.00618
0.00626
0.00548
0.00446
3-step Bin
b
0.0042
0.00408
0.00414
0.00402
0.00354
0.00285
a
0.0081
0.00834
0.00927
0.00939
0.00822
0.00669
5-step Bin
b
0.007
0.0068
0.0069
0.0067
0.0059
0.00475
0.0135
0.0139
0.01545
0.01565
0.0137
0.01115
CIEx
0.4578
0.4338
0.4073
0.3818
0.3447
0.3123
CIEy
0.4101
0.403
0.3917
0.3797
0.3553
0.3282
Luminus maintains a +/- 0.005 tolerance on chromaticity (CIEx and CIEy) measurements.
CXM-7 Product Datasheet
Product Ordering and Shipping Part Number Nomenclature
All CXM-7 products are packaged and labeled with part numbers as outlined in the table on pages 5 and 6. Luminus may include any
smaller chromaticity bin that is contained in the larger bin as part of the ordered part. When shipped, each package will contain only a
single flux and chromaticity bin. The part number designation is as follows:
CXM
Product Family
CXM: Chip on
Board, XNova,
Multi-die
7
Light Emitting
Surface Diameter
7.5 : LES
Diameter (mm)
NN
Color
Temperature
Color
See Note 1
below
CXM-7
XX
Color Render-
ing Index (CRI)
CRI
36
Voltage
(typical)
Volts
QQPP
Package
Configurator
AA00
(Basic package)
FG
Flux Bin
Lumens
W
Chromaticity
Bin
See page 4 for
bins
Note 1:
NN nomenclature corresponds to the following:
27 = 2700K
30 = 3000K
35 = 3500K
40 = 4000K
50 = 5000K
65 = 6500K
Color Temperature, CRI and R9 Values
Color Temperatures
4000K, 5000K, 6500K
2700K, 3000K, 3500K, 4000K, 5000K, 6500K
2700K, 3000K, 3500K, 4000K, 5000K
2700K, 3000K
4000K
XX Value
70
80
90
95
CRI
>70
>80
>90
>95
R9
-
>0
>50
>90
>75
Note:
Luminus part numbers may be accompanied by prefixes or suffixes. The most common is the “Rev01” suffix indicating a part is fully released
and carries a full warranty. These additional characters may appear on shipping labels, packing slips and invoices. In all cases the basic part
number described above will always be included.
4
PDS-002215 Rev 06
© 2015 Luminus Devices, Inc. - All Rights Reserved
CXM-7 Product Datasheet
CXM-7, 36V Part Numbers (Typical)
The following tables describe products with typical flux and minimum flux measured at 160mA and specified at T = 85ºC. The values at
25ºC are calculated and shown for reference only. All product is measured and specified at 85ºC junction temperature. Luminus may
choose to ship a smaller chromatiticy bin in an order for a larger.
Output Flux
(lm)
CCT
Color
Rendering
Index
CRI (min.)
80
90
95
80
90
95
80
90
80
90
95
Reference
Ordering Part Number
Typ.
Typ.
Min.
(calculated)
(85ºC) (85ºC)
(25ºC)
620
590
455
425
615
520
495
645
550
665
570
530
680
530
500
720
610
570
750
640
770
660
615
480
450
650
3-step MacAdam Ellipse
CXM-7-27-80-36-AA00-F2-3
CXM-7-27-90-36-AA00-F2-3
CXM-7-27-95-36-AA00-F2-3
CXM-7-30-80-36-AA00-F2-3
CXM-7-30-90-36-AA00-F2-3
CXM-7-30-95-36-AA00-F2-3
CXM-7-35-80-36-AA00-F2-3
CXM-7-35-90-36-AA00-F2-3
CXM-7-40-80-36-AA00-F2-3
CXM-7-40-90-36-AA00-F2-3
CXM-7-40-95-36-AA00-F2-3
2-step MacAdam Ellipse
CXM-7-27-80-36-AA00-F2-2
CXM-7-27-90-36-AA00-F2-2
CXM-7-27-95-36-AA00-F2-2
CXM-7-30-80-36-AA00-F2-2
CXM-7-30-90-36-AA00-F2-2
CXM-7-30-95-36-AA00-F2-2
CXM-7-35-80-36-AA00-F2-2
CXM-7-35-90-36-AA00-F2-2
CXM-7-40-80-36-AA00-F2-2
CXM-7-40-90-36-AA00-F2-2
CXM-7-40-95-36-AA00-F2-2
2700K
3000K
550
520
3500K
680
580
700
4000K
600
560
Output Flux
(lm)
CCT
Typ.
(85ºC)
710
605
710
Reference
Color
Rendering
Index
CRI (min.)
80
90
80
5-step MacAdam Ellipse
Part Number
Typ.
Min.
(calculated)
(85ºC)
(25ºC)
675
575
675
780
665
780
3-step MacAdam Ellipse
CXM-7-50-80-36-AA00-F2-3
CXM-7-50-90-36-AA00-F2-3
CXM-7-65-80-36-AA00-F2-3
5000K
6500K
CXM-7-50-80-36-AA00-F2-5
CXM-7-50-90-36-AA00-F2-5
CXM-7-65-80-36-AA00-F2-5
*Note:
Luminus maintains a +/- 6% tolerance on flux measurements.
Luminus maintains a +/- 2% tolerance on CRI measurements.
5
PDS-002215 Rev 06
© 2015 Luminus Devices, Inc. - All Rights Reserved
