台北縣汐止鎮康寧街169巷31號12樓
Microtips Technology Inc.
WEB : http://www.microtips.com.tw
E-mail : Macros@microtips.com.tw
TEL: 886-2-2695-3133 FAX :886-2-2695-8625
Microtips
Technology
12F, No 31, Lane 169, Kang Ning St.
Hsi-Chih, Taipei Hsien, Taiwan, R.O.C.
LCD MODULE SPECIFICATION
FOR CUSTOMER’S APPROVAL
CUSTOMER
:
NMTG-S12864IMNHSGW
MODULE TYPE :
APPROVED BY: (FOR CUSTOMER USE ONLY)
Approved by
微 端
2007/1/19
Checked by
微 端
2007/1/19
Made by
微 端
2007/1/19
微 端
2007/1/19
張秀美
趙長慶
蔡宜夢
陳雅靖
CONTENTS
ITEM
FEATURES

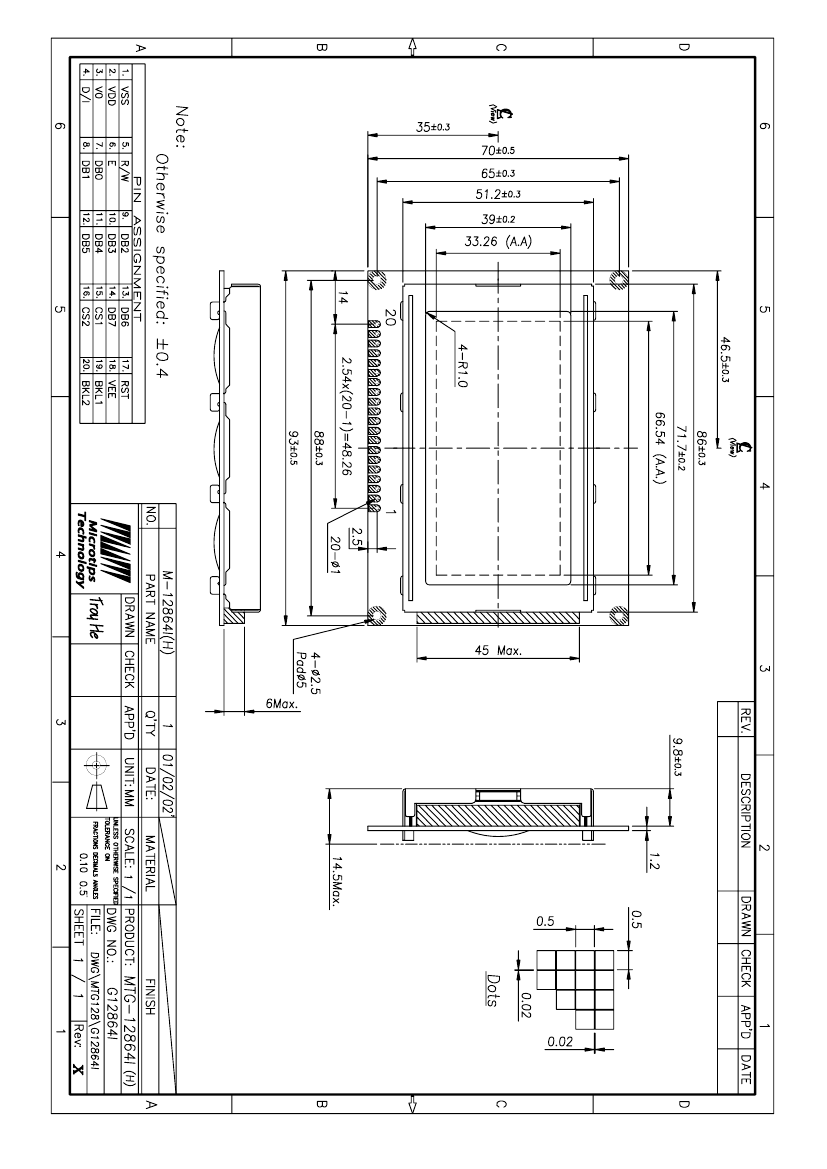

LCD MODULE DRAWING
GENERAL SPECIFICATION
ABSOLUTE MAXIMUM RATING
ELECTRICAL CHARACTERISTIC
OPTICAL CHARACTERISTIC
MECHANICAL SPECIFICATION
INTERFACE PIN ASSIGNMENT
BLOCK DIAGRAM
POWER SUPPLY DIAGRAM
TIMING CHARACTERISTICS
DISPLAY COMMANDS
MEMORY MAPPING
ADDRESS CONFIGURATION OF DISPLAY DATA RAM
RELIABILITY TEST
APPEARANCE CHECK
HANDLING PRECAUTIONS
LCD PRODUCT QUALITY STANDARD
REVISION HISTORY
PAGE
3
4
5
5
6
6
7
8
11
11
12
14
15
16
17
17
18
19
20
2
SPECIFICATION FOR
LIQUID CRYSTAL DISPLAY MODULE
MODEL NO. :
NMTG-S12864IMNHSGW
View Direction
6 O’clock
FSTN Positive
12 O’clock
FSTN Negative
STN Yellow Green
Transflective
Internal Power
External Power
EL
CCFL
Yellow
Green
STN Blue
Transmissive
5V input
24V input
Other
LCD Type
STN Gray
Rear Polarizer
Reflective
Backlight Type
LED
Backlight Color
Temperature
Range
EL Driver IC
White
Amber
Blue
Green
Wide
Normal
Super Wide
Build-in
Not Build-in
DC-to-DC
With
Without
TO BE VERY CAREFUL !
The LCD driver ICs are made by CMOS process, which are very easy to be damaged
by static charge, make sure the user is grounded when handling the LCM.
3
GENERAL SPECIFICATION
Item
Display Resolution
Dimensional Outline(mm)
Display mode
Circuit
Interface
128(W)×64(H)
93.0(W)×70.0(H)×14.5max(D)
Transmissive Type/ Negative Display
Common-Driver IC, Segment-driver IC with build-in
SRAM
Data (D0½D7), D/I, R/W, E, RST, CS1, CS2, V
EE
, V
ADJ
Content
ABSOLUTE MAXIMUN RATING
(1) Electrical Absolute Ratings
Item
Symbol
Power Supply for Logic
Power Supply for LCD
Input Voltage
Supply Current for LED
backlight
V
DD
-V
SS
V
DD
-V
EE
V
I
I
LED
Min.
-0.3
-0.3
-0.3
-
Max.
6.5
19.0
V
DD
780
Unit
Volt
Volt
Volt
mA
Note
(2) Environmental Absolute Maximum Ratings
Normal Temperature
Item
Operating
Max,
Ambient Temperature
Humidity(without
condensation)
Note 2
Note 3
Note 4
Note 5
Note 6
0℃
Min.
+50℃
Storage
Max,
-20℃
Min.
+70℃
Max,
-20℃
Wide Temperature
Operating
Min.
+70℃
Storage
Max,
-30℃
Min.
+80℃
Note 2,4
Note 3,5
Note 4,5
Note 4,6
Ta≦50℃: 80% RH max
Ta>50℃: Absolute humidity must be lower than the humidity of 85%RH at 50℃
Ta at -20℃ will be<48hrs at 70℃will be <120hrs when humidity is higher than 75%.
Background color changes slightly depending on ambient temperature. This phenomenon
is reversible.
Ta≦70℃: 75RH max
Ta>70℃: absolute humidity must be lower than the humidity of 75%RH at 70℃
Ta at -30℃ will be <48hrs, at 80
℃
will be <120hrs when humidity is higher than 75%.
