Description

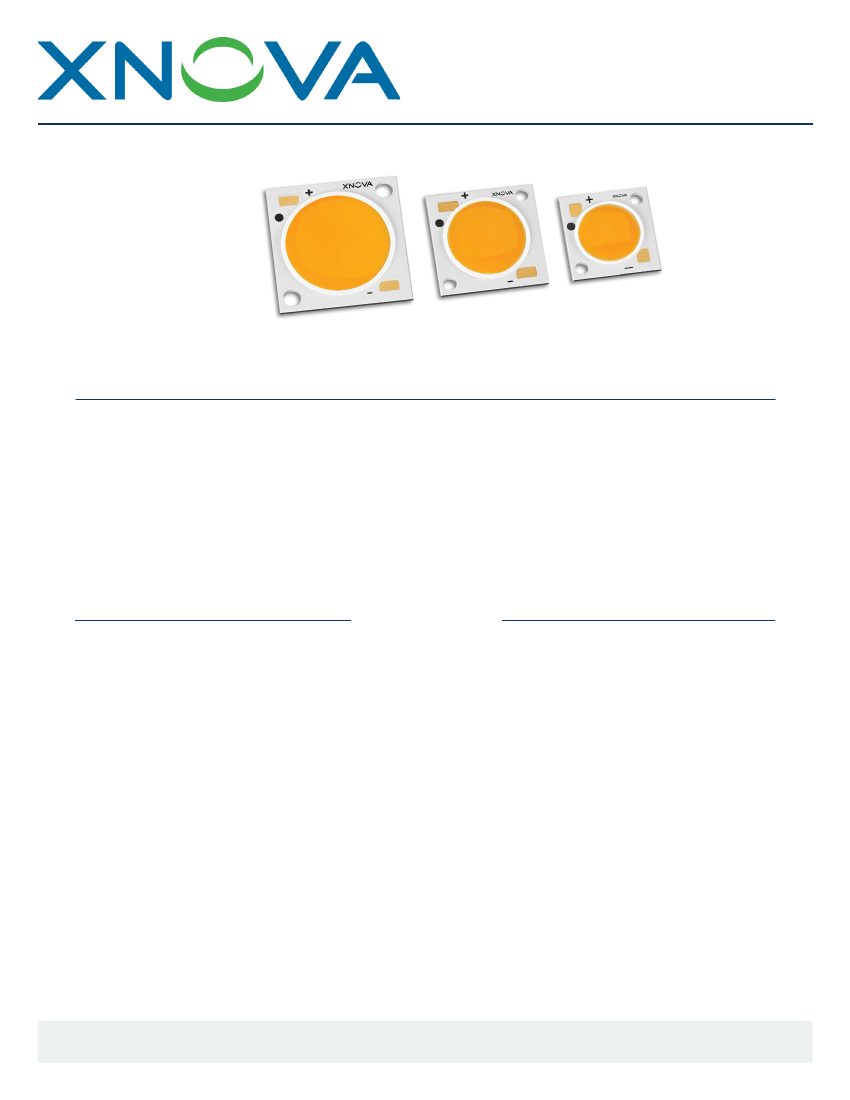

The XNOVA array series provide a full range of LED solutions for the most demanding spot lighting,
down lighting and directional applications in general lighting. Available in lumen packages from less
than 350 to over 9,000 lm, efficacies exceeding 100 LPW and CRIs with as high as 97 XNOVA provide
lighting designers and manufacturers with the choices necessary to meet optimum performance at
the most cost effective price. Tight color control combined with the highest performance, quality,
consistency and reliability means XNOVA is the one stop solution.
Features
•
Wide range of lumen packages
•
350lm to over 8,000 lumen, 3000K, 85ºC
•
High Lumen per Watt
•
120 LPW typical at 3000K, 25ºC
•
135 LPW typical at 5000K , 25ºC
•
2700K, 3000K, 3500K, 4000K and 5000K
•
Color Quality options CRI 95, 90 and 80 min.
•
High temperature (85ºC) binning
•
Most accurate color and light output
•
2-step MacAdam ellipse chromaticity binning
Applications
•
•
•
Spot and Track Lighting
Shop and Retail Lighting
Directional with high color
rendering
Hospitality and office space
Halogen/CDM replacements
PARs, BRs, MR-16’s, AR-111
Industrial high bay
Outdoor area and roadway
Architectural and Landscape
•
•
•
•
•
•
available
•
3-step MacAdam ellipse binning
standard
XNOVA LED Solutions
CXM COB LED Arrays
Shop and Retail Lighting
Shop owners and retailers know the secret to
successful sales is the right product lighting.
Lighting helps products look their best and this
can be key for colorful merchandise like grocery
store produce and luxury items. However, with
the continuously increasing cost of electricity
finding the best compromise is a tough job.
XNOVA 90 CRI LEDs solve this problem by
delivering the high color rendering while
maintaining low energy consumptioin (high
efficacy). These attibutes assure your lighting
can make products “pop” without paying all your
profits to the electric company.
CXM-18
17.5
28.8
CXM-14
13.5
17.3
CXM-9
9
8.6
XNOVA
CXM-6
CXM-7
XNOVA 90 CRI Minimum
LES Power (W)
CCT (K)
(mm)
(Measured)
6.3
7.5
4.3
5.8
2700
3000
2700
3000
2700
3000
2700
3000
2700
3000
Lumen Typ. 1x
Current (85ºC)
350
390
470
520
675
755
1395
1560
2520
2990
Lumen Typ. 2x
Current (85ºC)
630
700
845
935
1215
1360
2510
2810
4535
5380
XNOVA 95 CRI Minimum
XNOVA
CXM-6
CXM-7
CXM-9
CXM-14
CXM-18
LES Power (W)
CCT (K)
(mm)
(Measured)
6.3
7.5
9
13.5
17.5
4.3
5.8
8.6
17.3
28.8
2700
3000
2700
3000
2700
3000
2700
3000
2700
3000
Specialty Lighting
When only the highest color rendering is needed,
Lumen Typ. 2x
Current (85ºC)
585
665
790
890
1150
1300
2365
2690
3940
4475
Lumen Typ. 1x
Current (85ºC)
325
370
440
495
640
720
1315
1495
2190
2485
XNOVA has the solution. Available in standard
3-step binning, the 95CRI min. devices will deliver
incandescent type light with the cost effective
energy consumptioin (high efficacy) of LEDs.
Ask for XNOVA 95CRI when you need the highest
color renedering in the most cost effective
package. XNOVA’s make your lighting targets
come alive with color.
2
PDB-002244 Rev 01
© 2013 Luminus Devices, Inc. - All Rights Reserved
CXM COB LED Arrays
Spot, Track and Down
Lighting
Whether it’s retail, hospitality, office, residential
or replacement bulbs, sometime its all about
energy consumption and payback period. When
searching for this solution in warm white LEDs,
XNOVA can delivers some of the best value in the
business.
XNOVA can deliver Energy Star performance in
at a range of cost points. Designed to operate at
either the highest efficiency or the highest lumen
output, XNOVA lets you choose which solution
best meets your needs.
CXM-18
17.5
28.8
CXM-14
13.5
17.3
CXM-9
9
8.6
CXM-7
7.5
5.8
XNOVA
CXM-6
6.3
XNOVA 80 CRI Minimum
LES Power (W)
CCT (K)
(mm)
(Measured)
4.3
2700
3000
2700
3000
2700
3000
2700
3000
2700
3000
Lumen Typ. 1x
Current (85ºC)
450
470
600
630
875
920
1800
1880
3010
3120
Lumen Typ. 2x
Current (85ºC)
810
846
1080
1134
1575
1656
3240
3384
5418
5616
85ºC Testing
All testing and binning for XNOVA products is
done at temperatures that will be typical for the
device in the fixture. By testing this way, common
shifts in flux or color as a function of temperature,
most pronounced between 25ºC and nominal
operating temperatures will be already accounted
for prior to designing the light. While some may
not provide this detail, XNOVA is about enabling
designers to select the best choice and get what
they expect.
0.34
0.38
0.42
0.46

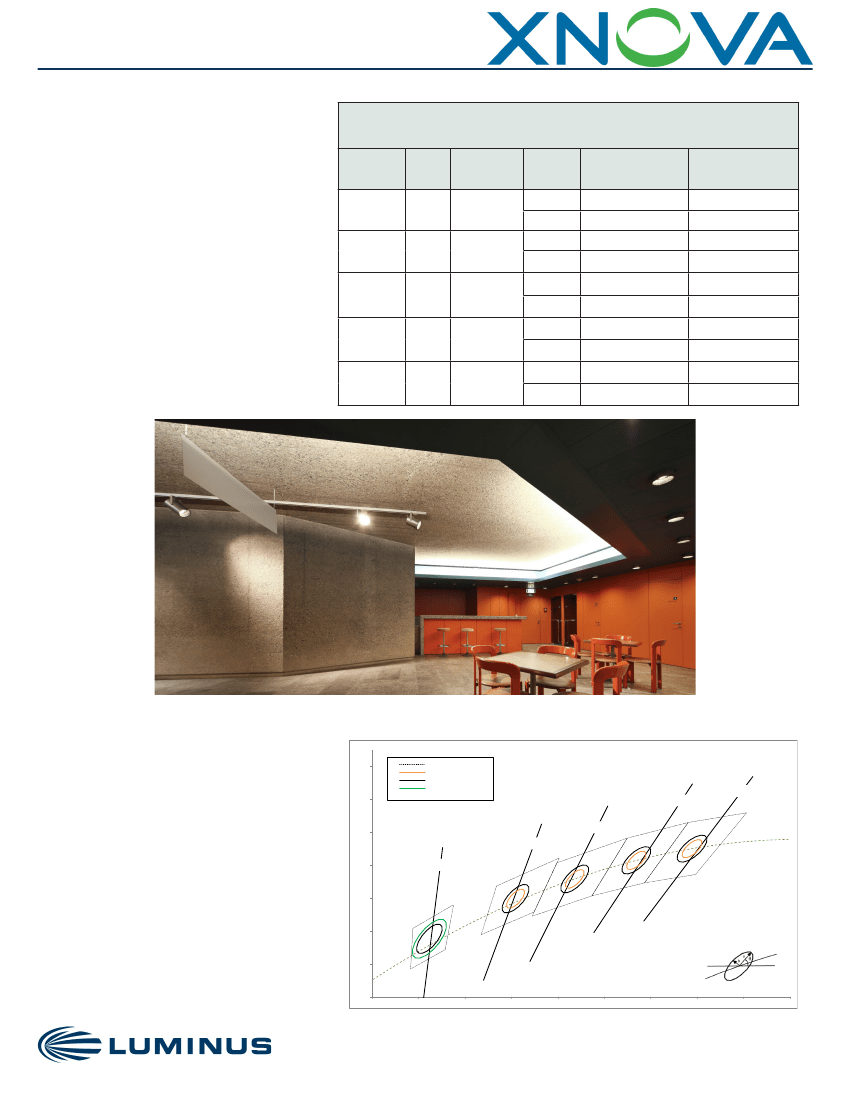

Chromaticity Bins 3-step Standard
ANSI C78.377-2008
2-step Ellipse
3-step Ellipse
5-step Ellipse
3000K
2700K
0.44
3500K
4000K
Black Body
0.4
5000K
0.36
0.32
0.32
0.34
0.36
0.38
0.4
0.42
0.44
0.46
0.48
0.5
3
PDB-002244 Rev 01
© 2013 Luminus Devices, Inc. - All Rights Reserved
CXM COB LED Arrays
XNOVA 5000K, 75 CRI Minimum
XNOVA
CXM-7
CXM-9
CXM-14
CXM-18
LES Power (W)
(mm)
(Measured)
7.5
9
13.5
17.5
26.5
5.8
8.6
17.3
28.8
64.8
Lumen Typ.
1x Current
(85ºC)
685
995
2050
3415
7755
Lumen Typ.
2x Current
(85ºC)
1235
1790
3690
6145
13960
