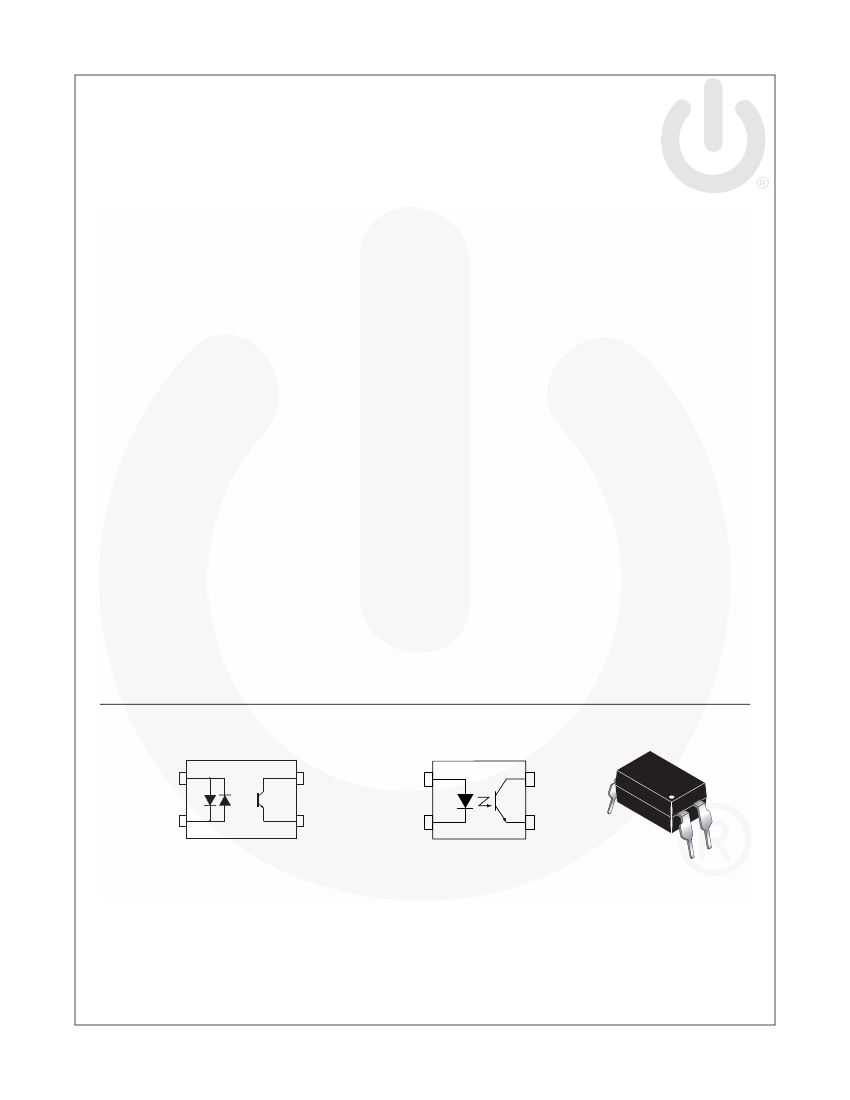

FOD814 Series, FOD817 Series — 4-Pin DIP Phototransistor Optocouplers
May 2017
FOD814 Series, FOD817 Series
4-Pin DIP Phototransistor Optocouplers
Features
• AC Input Response (FOD814)
• Current Transfer Ratio in Selected Groups:
FOD814: 20–300%
FOD814A: 50–150%
FOD817: 50–600%
FOD817A: 80–160%
FOD817B: 130–260%
FOD817C: 200–400%
FOD817D: 300–600%
Description
The FOD814 consists of two gallium arsenide infrared
emitting diodes, connected in inverse parallel, driving a
silicon phototransistor output in a 4-pin dual in-line
package. The FOD817 Series consists of a gallium
arsenide infrared emitting diode driving a silicon
