608-1332-230F: DescriptionLED Panel Mount Indicators 8 MM AMBER LED PMI; CategoryLED optoelectronic/LED photoelectric; File Size92KB，3 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

608-1332-230F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	608-1332-230F	-	-	View	Buy Now

608-1332-230F Overview

LED Panel Mount Indicators 8 MM AMBER LED PMI

608-1332-230F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.015 A
Nominal luminous intensity	90.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	3.05 mm
method of packing	BULK
shape	ROUND
size	9.91 mm
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES / BENEFITS

RoHS compliant

Long life - typically 100k hours

Low power consumption - uses up to 90% less

energy than an incandescent indicator

No heat generated

Colors include red, green and yellow

Front panel mounting

Housing matches emitted color

608 Series

LED Panel Mount Indicators

for 8mm Mounting Hole

APPLICATIONS

Dialight's 600 series of metric indicators are designed for a variety of

applications such as:

• Main and remote power indication

• Status Indication

• Maintenance and warning indication

• Instrumentation

and much more!

SPECIFICATIONS

Voltage Requirements:

2 VDC (current limiting resistor required)

6, 12 & 24 VDC (no resistor required)

Electrical connection:

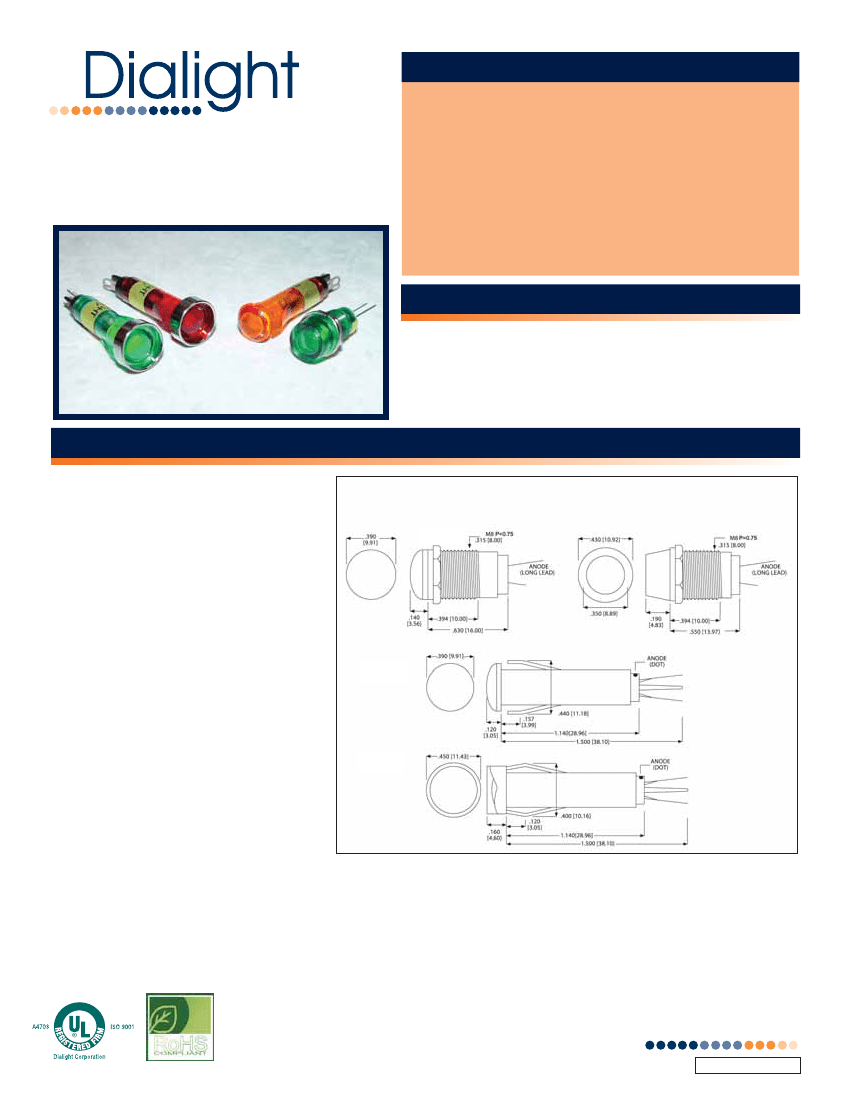

Leads (Figures 1 & 2)

Solder terminals (Figures 3 & 4)

Maximum panel thickness: See reverse side

Mounting hole sizes:

0.327 inches (8.3 mm) (Figures 1 & 2)

0.335 inches (8.5 mm) (Figures 3 & 4)

Mounts with lock washer and nut or snap fit

0.217 lbs/ft or 3 kg/cm torque recommended

(Figures 1 & 2 only)

FIG. 4

FIG. 3

FIG. 1

Dimensions in inches [mm]

All measurements are typical

FIG. 2

Operating temperature:

-25

C to +85

Storage temperature:

-25

C to +85

Housing material:

Polycarbonate to match emitting color

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL608X001_C
