XHP70A-01-0000-0D0UK40DV datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> XHP70A-01-0000-0D0UK40DV

XHP70A-01-0000-0D0UK40DV: CategoryLED optoelectronic/LED; File Size2MB，31 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

XHP70A-01-0000-0D0UK40DV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XHP70A-01-0000-0D0UK40DV	-	-	View	Buy Now

XHP70A-01-0000-0D0UK40DV Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - White
Manufacturer	Cree
RoHS	Details
Package / Case	SMD-2
Illumination Color	White (Cool White)
Wavelength/Color Temperature	6000 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	1290 lm
Color Rendering Index - CRI	90
Viewing Angle	120 deg
Lens Color/Style	Water Clear
If - Forward Current	1050 mA
Vf - Forward Voltage	12 V
Power Rating	-
Mounting Style	SMD/SMT
Length	7 mm
Width	7 mm
Height	4.49 mm
Maximum Operating Temperature	-
Minimum Operating Temperature	-
Packaging	Reel
Color Temperature	6000 K
Features	Configurable to 6 V at 2.1 A
LED Size	7 mm x 7 mm x 4.49 mm
Lens Dimensions	7 mm x 7 mm
Lens Shape	Dome
Factory Pack Quantity	100
Type	XLamp XHP70 LEDs
Vr - Reverse Voltage	5 V
Unit Weight	0.010582 oz

Preview

Download Datasheet

View All

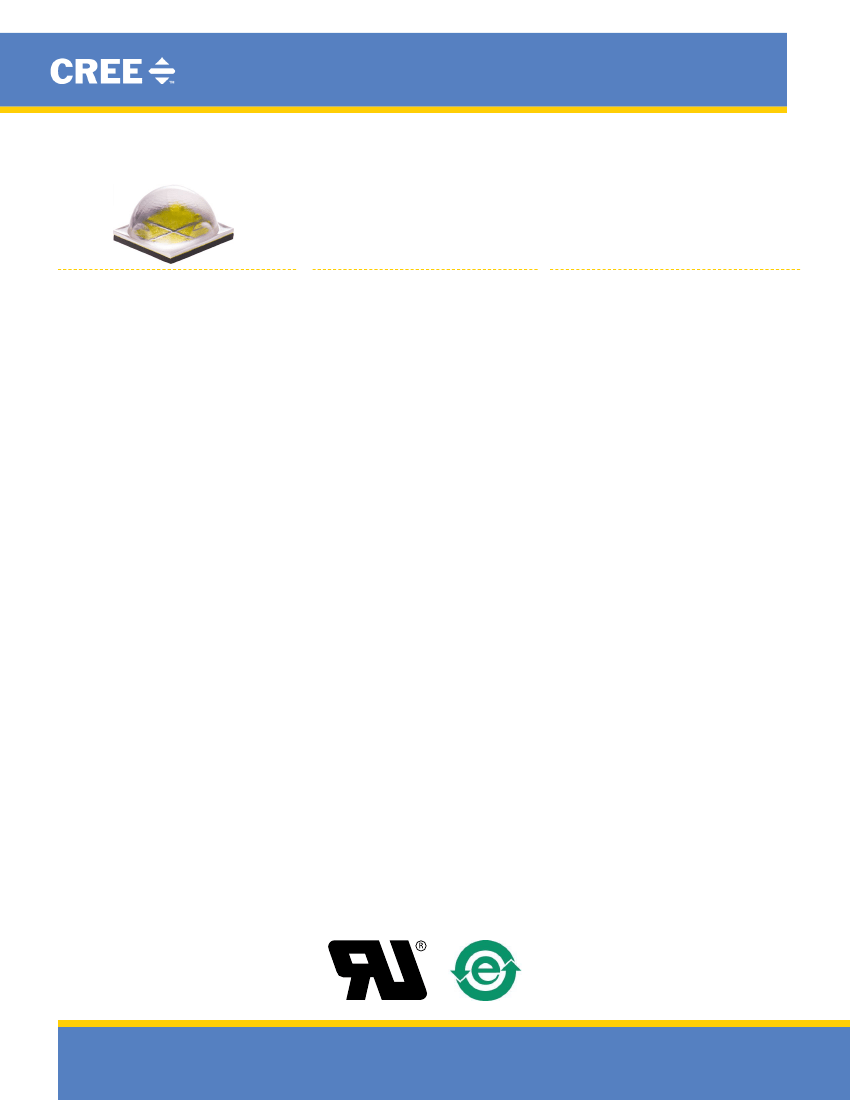

CLD-DS114 Rev 1J

Product family data sheet

Cree

XLamp

XHP70 LEDs

ProDuCt DEsCriPtion

Technology™ Platform, the XLamp XHP70

LeD is a member of Cree’s extreme High

Power (XHP) class of LEDs that redefines

lumen density and reliability to radically

reduce system costs by up to 40 percent.

At its maximum current, the XHP70 LeD

delivers twice the light output of the XLamp

MK-R LeD, with similar lumens per watt and

without increasing the package footprint.

The XHP70 LeD also achieves longer

lifetime at higher operating temperatures

than previous LeD technology. The result is

significantly lower thermal, mechanical and

optical costs at the system level.

FEAturEs

•

Available in white, configurable to 6 V

or 12 V by PCB layout

Available in 5-step easyWhite

bins

at 3000 K to 5000 K CCT, 3-step

EasyWhite bins at 2700 K to 5000 K

and 2-step EasyWhite bins at 2700 K

to 4000 K CCT

•

Available in ANSI white bins at

3000 K to 7000 K CCT

Available in standard, 70-, 80-, and

90-minimum CRI options

Binned at 85 °C

Maximum drive current: 4800 mA

(6 V), 2400 mA (12 V)

Low thermal resistance: 0.9 °C/W

Wide viewing angle: 120°

Unlimited floor life at

≤ 30 ºC/85% RH

Reflow solderable - JEDEC

J-STD-020C

RoHS and ReACh compliant

recognized component

(e349212)

tAbLE oF ContEnts

Characteristics ..............................................2

Flux Characteristics, easyWhite

Order

Codes and Bins

.............................................3

Flux Characteristics, ANSI White Order

Codes and Bins

.............................................6

Relative Spectral Power Distribution ...........9

Relative Flux vs. Junction Temperature.......9

electrical Characteristics ........................... 10

Relative Flux vs. Current ............................ 11

Relative Chromaticity vs Current............... 12

Relative Chromaticity vs Temperature ...... 13

Typical Spatial Distribution........................ 13

Thermal Design .......................................... 14

Performance Groups – Luminous Flux..... 15

Performance Groups – Chromaticity........ 15

Cree’s Standard White Chromaticity

Regions Plotted on the CIe 1931 Curve.... 19

Cree’s Standard Cool White Kits Plotted

on ANSI Standard Chromaticity Regions .. 22

Cree’s Standard Warm and Neutral White

Kits Plotted on ANSI Standard

Chromaticity Regions ................................ 23

Bin and Order-Code Format

....................... 24

Reflow Soldering Characteristics

.............. 25

Notes ..........................................................

Mechanical Dimensions ............................ 28

Electrical Configuration

............................. 30

Tape and Reel ............................................. 30

Packaging ................................................... 31

WWW.CREE.Com/XLAmp

, XLamp

and

EasyWhite

are registered trademarks and the Cree logo and SC5 Technology™ are trademarks of Cree, Inc. UL

and the UR logo are registered

trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
