L24-T5000K: DescriptionHigh Power LEDs - White N.White 4000K LXH7 Starboard 220lm; CategoryLED optoelectronic/LED; File Size124KB，1 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

L24-T5000K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L24-T5000K	-	-	View	Buy Now

L24-T5000K Overview

High Power LEDs - White N.White 4000K LXH7 Starboard 220lm

L24-T5000K Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - White
Manufacturer	Bivar
RoHS	Details
Package / Case	MCPCB - Star
Illumination Color	White (Cool White)
Wavelength/Color Temperature	5000 K
Luminous Flux/Radiant Flux	220 lm
Viewing Angle	120 deg
If - Forward Current	700 mA
Vf - Forward Voltage	2.8 V
Mounting Style	SMD/SMT
Length	30.7 mm
Width	19.1 mm
Height	3.6 mm
Packaging	Tray
Color Temperature	5000 K
Lens Shape	Dome
Factory Pack Quantity	50
Type	L24 Light Engines

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

F

Corrected Board Thickness

G

Engineering Release

H

Removed BOM

04/01/14

08/09/16

J. C.

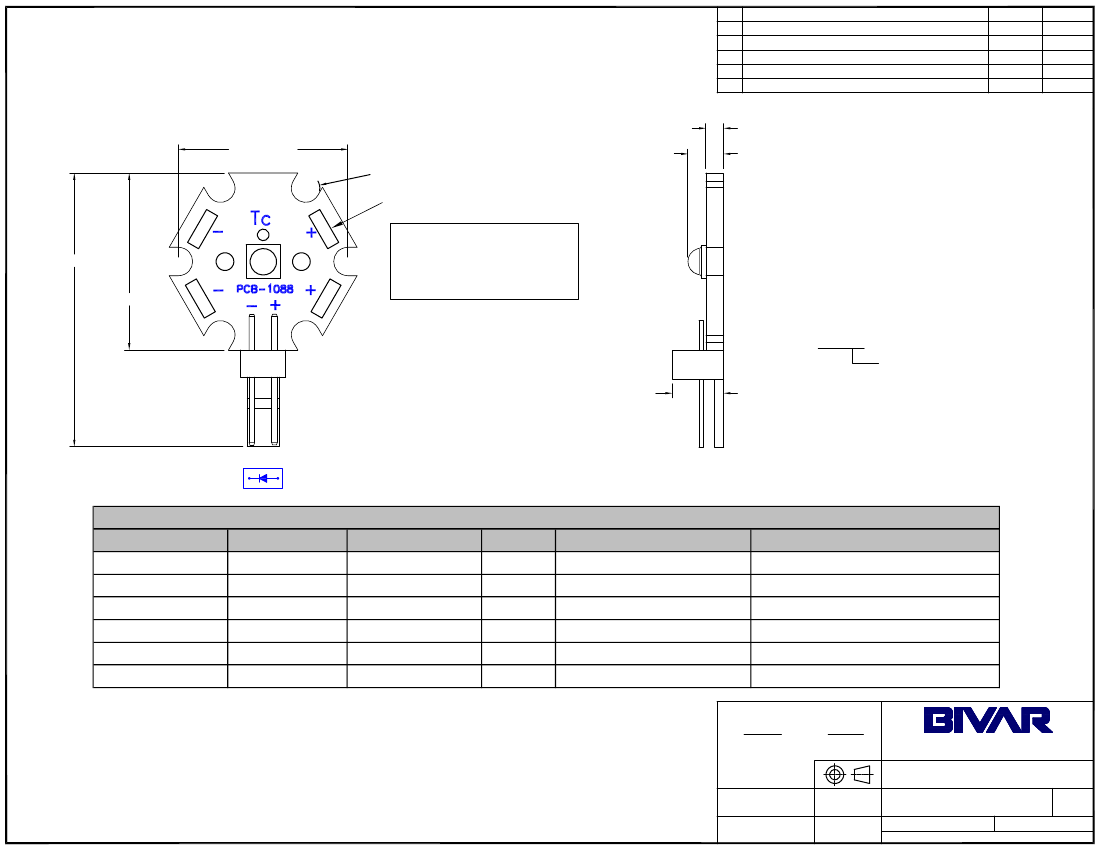

0.08 [2.0mm]

0.750 [19.1mm]

R0.063 [R1.6mm]

Solder Pad x4

0.158 [4.0mm]

REF.

1.21 [30.7mm]

0.78 [19.9mm]

For Use With:

Wire Harness: BIVAR L2CON-24

or

Housing : LEOCO 2530S020000

Terminal : LEOCO 2533TPB0000

ORDERING INFORMATION

L24-TXXXXK

CORRELATED COLOR TEMPERATURE

IN KELVIN

0.228 [5.8mm]

LED POLARITY

Table 1: Assembly Configurations

Part Number

L24-T2700K

L24-T3000K

L24-T4000K

L24-T5000K

L24-T5700K

L24-T6500K

LED P/N

BDL-1503

BDL-1504

BDL-1505

BDL-1506

BDL-1507

BDL-1508

Color

Warm White

Neutral White

Cool White

CCT (K)

2700

3000

4000

5000

5700

6500

Typical Luminous Flux (lm)

170

200

210

220

Philips Lumileds P/N Reference

LXH8-FW27-5

LXH7-FW30

LXH7-FW40

LXH7-FW50

LXH7-FW57

LXH7-FW65

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

L24 Starboard Light Engine

REVISION:

B. Oliver

CHECKED:

PART NO:

11/07/13

DATE:

L24-TXXXXK

H

J. Chiang

CAGE CODE : 32559

SHEET #

1

OF

1

11/07/13

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

L24-T5000K Related Products

	L24-T5000K	L24-T2700K	L24-T4000K	L24-T5700K
Description	High Power LEDs - White N.White 4000K LXH7 Starboard 220lm	High Power LEDs - White W. White 2700K 170lm LXH8 Starboard	High Power LEDs - White W. White 3000K LXH7 Starboard 200lm
Product Category	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White
Manufacturer	Bivar	Bivar	Bivar	Bivar
RoHS	Details	Details	Details	Details
Package / Case	MCPCB - Star	MCPCB - Star	MCPCB - Star	MCPCB - Star
Illumination Color	White (Cool White)	White (Warm White)	White (Neutral White)	White (Cool White)
Wavelength/Color Temperature	5000 K	2700 K	4000 K	5700 K
Luminous Flux/Radiant Flux	220 lm	170 lm	210 lm	220 lm
Viewing Angle	120 deg	120 deg	120 deg	120 deg
If - Forward Current	700 mA	700 mA	700 mA	700 mA
Vf - Forward Voltage	2.8 V	2.8 V	2.8 V	2.8 V
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Length	30.7 mm	30.7 mm	30.7 mm	30.7 mm
Width	19.1 mm	19.1 mm	19.1 mm	19.1 mm
Height	3.6 mm	3.6 mm	3.6 mm	3.6 mm
Packaging	Tray	Tray	Tray	Tray
Color Temperature	5000 K	2700 K	4000 K	5700 K
Lens Shape	Dome	Dome	Dome	Dome
Factory Pack Quantity	50	50	50	50
Type	L24 Light Engines	L24 Light Engines	L24 Light Engines	L24 Light Engines
