IllumInatIon
luXEon CoB Compact Range
Unsurpassed light quality and CBCP due to small LES
LUXEON CoB Compact Range offers the industry’s smallest Light Emitting
Surface (LES) that enables more cost effective designs and provides
good Center Beam Candle Power (CBCP) for crisp light beams with the
best luminance and color uniformity. LUXEON CoB Compact Range parts
are available in 3–step (80CRI and 90CRI) MacAdam ellipse, ensuring
uniform optical performance in retrofit lamps and spotlight applications.
LUXEON CoB Compact Range LEDs are all hot–tested at 85°C—real world
operating conditions—which means that luminaire design is simplified
and testing can be minimized.
FEatuREs and BEnEFIts
Highest flux densities with industry’s smallest LES, 6.5mm
Industry leading thermal resistance allows for smaller heat sinks
Ceramic substrate that offers better protection in Hi Pot testing
Supported by a comprehensive optical, mechanical and electrical ecosystem
3-step MacAdam ellipse color definition:
Freedom from Binning
for color
consistency from luminaire to luminaire
Tested at T
j
=85°C for accurate color in application
PRImaRy aPPlICatIons
Downlights
High Bay & Low Bay
Lamps
–
Directional
Spotlights
PB139 LUXEON CoB Compact Range Product Datasheet ©2015 Lumileds Holding B.V. All rights reserved.
LUXEON CoB Compact Range product performance at test current, T
j
=85°C.
PRoduCt
FoRwaRd
VoltagE
(V
f
)
nomInal
CCt
2700K
3000K
3500K
12V
4000K
2700K
3000K
3500K
4000K
2200K
LUXEON
CoB 105
2700K
3000K
3500K
4000K
36V
5000K
5700K
2200K
2700K
3000K
3500K
4000K
2200K
2700K
3000K
3500K
4000K
LUXEON
CoB 107
36V
5000K
5700K
2200K
2700K
3000K
3500K
4000K
mInImum
CRI
[1, 2]
80
80
80
80
90
90
90
90
80
80
80
80
80
80
80
90
90
90
90
90
80
80
80
80
80
80
80
90
90
90
90
90
lumInous FluX
[1]
(lm)
mInImum
405
425
435
457
347
369
378
395
375
525
525
525
550
600
600
350
450
475
475
525
500
625
650
675
700
700
700
450
550
550
575
600
tyPICal
450
472
493
507
385
410
419
439
425
575
600
600
625
650
650
400
500
500
525
575
550
725
750
750
775
800
800
500
625
650
675
675
tyPICal
lumInous
EFFICaCy (lm/w)
112
117
122
126
96
102
104
109
79
106
111
111
116
120
120
74
93
93
97
106
77
102
106
106
109
113
113
70
88
92
95
95
tEst
CuRREnt
(ma)
350
350
350
350
350
350
350
350
150
150
150
150
150
150
150
150
150
150
150
150
200
200
200
200
200
200
200
200
200
200
200
200
lEs
(mm)
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
PaRt numBER
L2C3-2780105B06000
L2C3-3080105B06000
L2C3-3580105B06000
L2C3-4080105B06000
L2C3-2790105B06000
L2C3-3090105B06000
L2C3-3590105B06000
L2C3-4090105B06000
L2C3-2280105E06000
L2C3-2780105E06000
L2C3-3080105E06000
L2C3-3580105E06000
L2C3-4080105E06000
L2C3-5080105E06000
L2C3-5780105E06000
L2C3-2290105E06000
L2C3-2790105E06000
L2C3-3090105E06000
L2C3-3590105E06000
L2C3-4090105E06000
L2C3-2280107E06000
L2C3-2780107E06000
L2C3-3080107E06000
L2C3-3580107E06000
L2C3-4080107E06000
L2C3-5080107E06000
L2C3-5780107E06000
L2C3-2290107E06000
L2C3-2790107E06000
L2C3-3090107E06000
L2C3-3590107E06000
L2C3-4090107E06000
Table continued on next page:
1.
Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on luminous flux measurements.
2.
Typical CRI is approximately 2 points more than the CRI minimum, but not guaranteed.
PB139 LUXEON CoB Compact Range Product Datasheet 20151206 ©2015 Lumileds Holding B.V. All rights reserved.
2
LUXEON CoB Compact Range product performance at test current, T
j
=85°C (continued).
PRoduCt
FoRwaRd
VoltagE
(V
f
)
nomInal
CCt
2700K
3000K
3500K
24V
4000K
2700K
3000K
3500K
4000K
2200K
LUXEON
CoB 109
2700K
3000K
3500K
4000K
36V
5000K
5700K
2200K
2700K
3000K
3500K
1
mInImum
CRI
[1, 2]
80
80
80
80
90
90
90
90
80
80
80
80
80
80
80
90
90
90
90
90
lumInous FluX
[1]
(lm)
mInImum
792
810
842
871
680
710
720
753
700
875
900
950
950
1000
1000
625
775
775
800
825
2
tyPICal
880
900
936
968
755
789
800
837
775
975
1025
1075
1075
1100
1100
700
850
875
875
925
tyPICal
lumInous
EFFICaCy (lm/w)
109
112
117
120
94
98
99
104
87
110
115
121
121
124
124
79
96
99
99
104
3
tEst
CuRREnt
(ma)
350
350
350
350
350
350
350
350
250
250
250
250
250
250
250
250
250
250
250
250
FILE NAME
lEs
(mm)
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
6.5
PaRt numBER
L2C3-2780109D06000
L2C3-3080109D06000
L2C3-3580109D06000
L2C3-4080109D06000
L2C3-2790109D06000
L2C3-3090109D06000
L2C3-3590109D06000
L2C3-4090109D06000
L2C3-2280109E06000
L2C3-2780109E06000
L2C3-3080109E06000
L2C3-3580109E06000
L2C3-4080109E06000
L2C3-5080109E06000
L2C3-5780109E06000
L2C3-2290109E06000
L2C3-2790109E06000
L2C3-3090109E06000
L2C3-3590109E06000
L2C3-4090109E06000
4
REVISION
STORE LOC
4000K
Notes:
1.
Lumileds maintains a tolerance of ±2 on CRI and ±6.5% on luminous flux measurements.
2.
Typical CRI is approximately 2 points more than the CRI minimum, but not guaranteed.
5
DOCUME
COB_12x15_3080 10xE
-

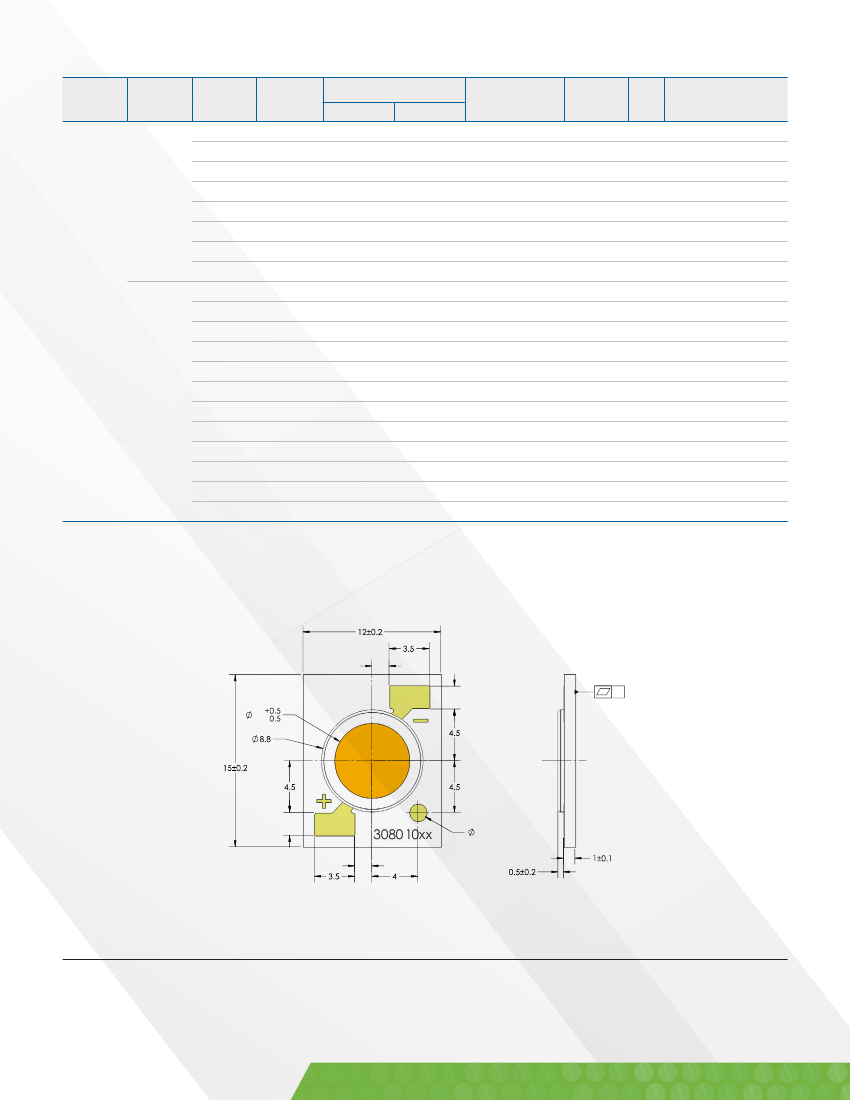

Mechanical Dimensions.
C
C
L
1.5
.1
2
6.5 -
C
L
C
L
B
2
1.5
1.5
Notes:
1. Drawings are not scale.
2. All dimensions are in millimeters.
A
MMW
DRAWN BY
3/2/15
DATE
YYYY-MM-DD
©2015 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds Holding B.V.
in the United States and other countries.
lumileds.com
1
Neither Lumileds Holding B.V. nor its affiliates shall be liable for any kind of loss of data or any
DATE
NAME
COB CERAMIC
other damages, direct, indirect or consequential, resulting from the use of the provided
ENGINEER/CHECKER
DATE
UNLESS OTHERWISE
and/or its affiliates have attempted to
DRAWING
information and data. Although Lumileds Holding B.V.
SPECIFIED
° DIMENSIONS ARE IN MILLIMETERS
TITLE
provide the most accurate information and
ANGLE PROJECTION
materials and services information and data
data, the
° THIRD
DO NOT SCALE THIS
GD&T SYMBOLOGY
are provided “as is,” and neither Lumileds Holding B.V. nor its affiliates warrants or guarantees
B
PER
1
OF
1
6:1
-
-
METRIC
ASME Y14.5M-1994
the contents and correctness of the provided information and data. Lumileds Holding B.V. and its
SIZE
SHEET
SCALE
DRAWING
MATERIAL
FINISH
2
affiliates reserve the right to make changes without notice. You as user agree to this disclaimer
3
4
and user agreement with the download or use of the provided materials, information and data.
FRAME DATE: 2013-05-10
12x15 LES 6.5
L
UM
PART
NUMBER
DOCUME
5
PB139 LUXEON CoB Compact Range
