LPS090CTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LPS090CTP

LPS090CTP: CategoryLED optoelectronic/LED photoelectric; File Size74KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LPS090CTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LPS090CTP	-	-	View	Buy Now

LPS090CTP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Visual Communications Company, LLC
Reach Compliance Code	compliant
Optoelectronic device types	OPTICAL PIPE

Preview

Download Datasheet

View All

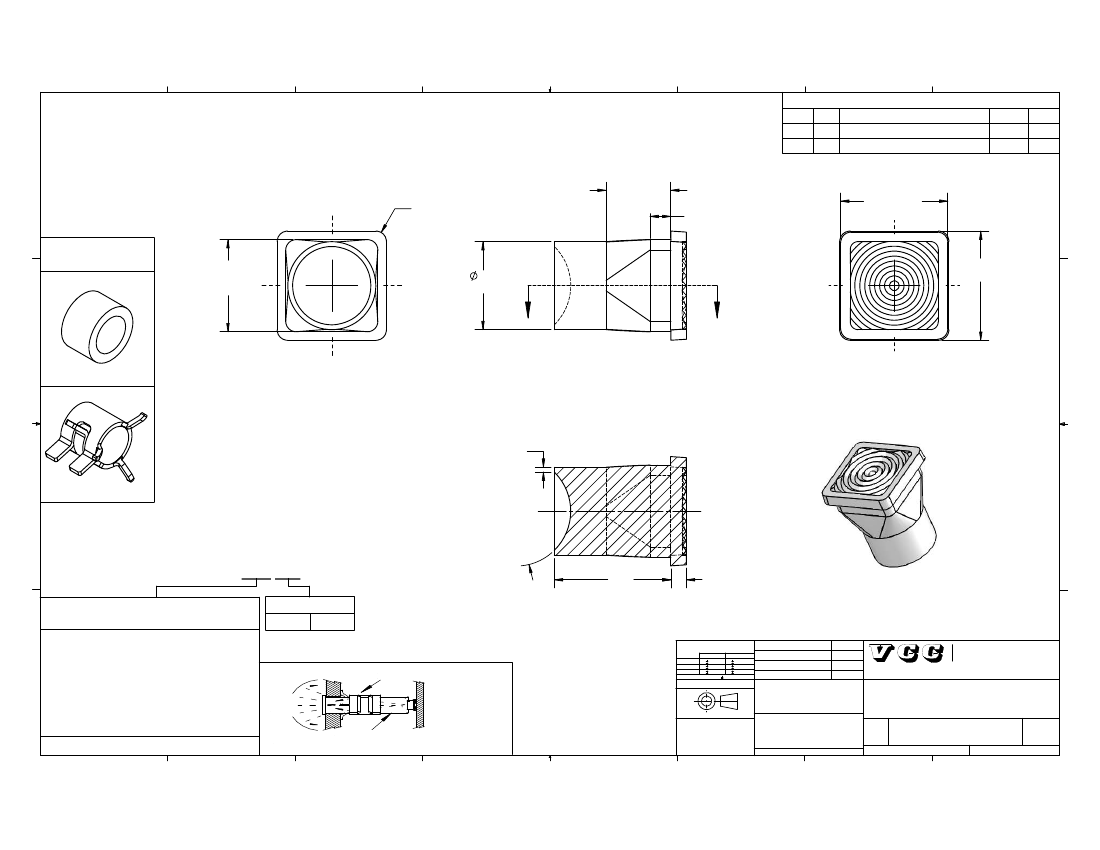

REVISIONS

ECN #

REV.

001

314

002

DESCRIPTION

REVISED PER ECR 111009AZ01

REVISED PER ECR 052511ED01

NOTES:

1. MOUNTING: Panel mounting hole .180" X .180" (4.57mm X 4.57mm)

Litepipe from .300" to .500" use grommet retainer (RTN150)

Litepipe from .500" to 2.00" the spring clip (RTN250) is recommended for rigidity

2. Standoff used to adjust the height of a standard LED above the PCB to maintain a maximum .050"

clearance between Litepipe and LED

3. U.S. & Foreign Pat. Issued.

DATE

4/23/10

6/2/11

INITIALS

R.020 TYP

(.508mm)

RETAINERS

(ORDER SEPERATELY)

.125

(3.175mm)

.040

(1.016mm)

4X .202

(5.131mm)

+.002

4X .178

- .005

(4.521mm)

.170

(4.318mm)

4X .206

(5.232mm)

RTN 150

2X .010

(.254mm)

RTN 250

R.106

(2.69mm)

ORDERING CODE:

LPS XXX CTP

LENGTH CODE

(Min 030 = .300" / Max 200 = 2.000"

030

032

034

036

038

040

042

044

046

048

050

052

054

056

058

060

062

064

066

068

070

072

074

076

078

080

082

XXX

.030

(.762mm)

COLOR

CTP

192

195

197

200

160°

ANGLE

SECTION A-A

CLEAR

DIMENSION STYLE: INCHES [MM]

GENERAL TOLERANCES UNLESS

OTHERWISE SPECIFIED

084

086

088

090

092

094

096

098

100

102

105

107

110

112

115

117

120

122

125

127

130

132

135

137

140

142

145

147

150

152

155

157

160

162

165

167

170

172

175

177

180

182

185

187

190

APPROVAL

DATE

RETAINING CLIP

For litepipes from .500" to 2.0"

.XX

.XXX

INCHES

.020

.010

.005

ANGLE 1'

.508

.254

.127

DRAWN

CHECKED

K.Howard

4/23/10

6/2/11

OPTOELECTRONICS

190 BOSSTICK BLVD. SUITE 101 SAN MARCOS, CA 92069 U.S.A

PHONE: (760) 560-1300, FAX: (760) 560-1301 EMAIL: vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

MATERIAL

TITLE:

ACRYLIC (OPTICAL GRADE)

UL 94-HB

THIRD ANGLE PROJECTION

CLIPLITE 4MM SQUARE

LITEPIPE

SIZE DWG. NO.

REV

PROPRIETARY AND CONFIDENTIAL

FINISH

SPECIAL LENGTHS UPON REQUEST

DISPLAY

PANEL

LITEPIPE

VERTICAL

SURFACE MOUNT

LED

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC.

ANY REPRODUCTION IN PART OR AS

A WHOLE WITHOUT THE WRITTEN

PERMISSION OF VISUAL

COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

SEE NOTES

DO NOT SCALE DRAWING

LPS XXX CTP

002

SHEET 1 OF 1

SCALE: 8:1
