3.65x6.15mm SINGLE CHIP LED LIGHT BAR
Part Number: WP1043GD
Green
Features
Flat rectangular light emitting surface.
Single color.
Ideal as flush mounted panel indicators.
Excellent on/off contrast.
Long life - solid state reliability.
This series are tin-dipped.
RoHS compliant.
Description
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.

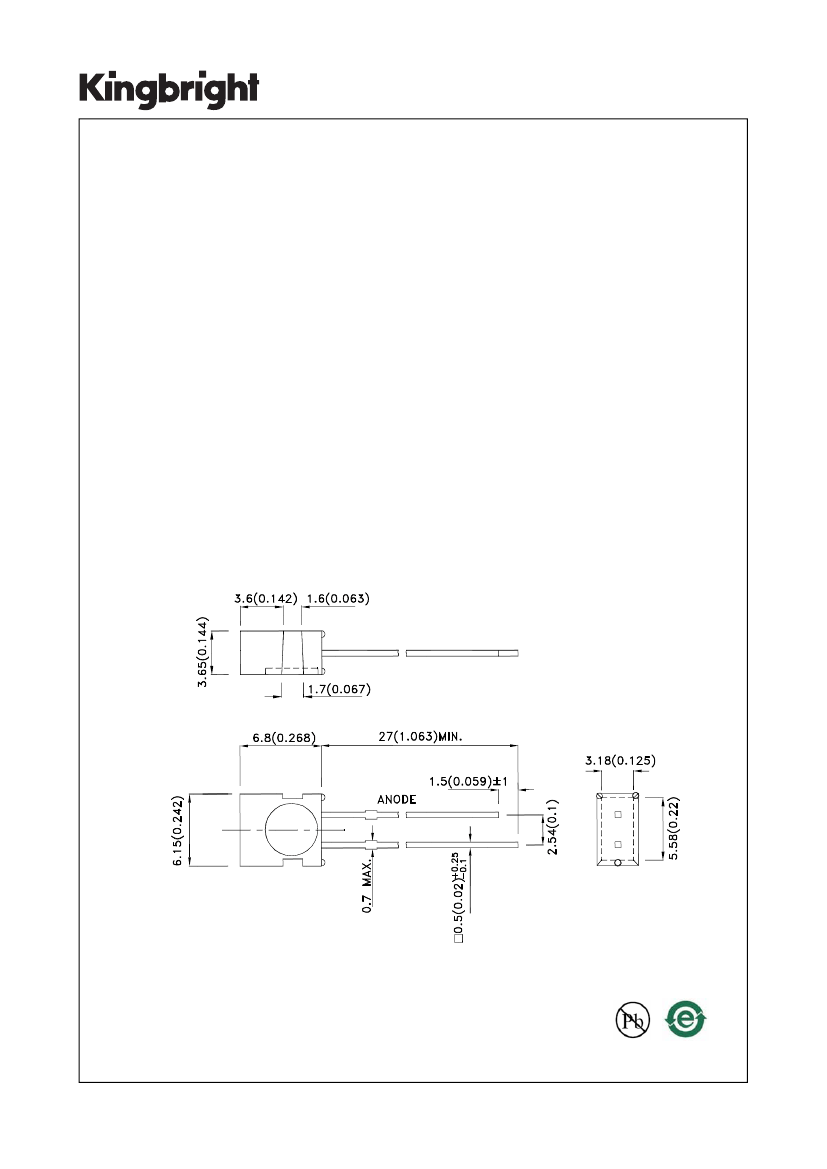

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAF2699
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: JAN/25/2013
DRAWN: Y.Liu
PAGE: 1 OF 6
ERP: 1101000419
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 10mA
Min.
WP1043GD
Green (GaP)
Green Diffused
2
Typ.
6
Viewing
Angle [1]
2θ1/2
100
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
3.Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
565
568
30
15
2.2
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3.Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Green
62.5
25
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAF2699
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: JAN/25/2013
DRAWN: Y.Liu
PAGE: 2 OF 6
ERP: 1101000419

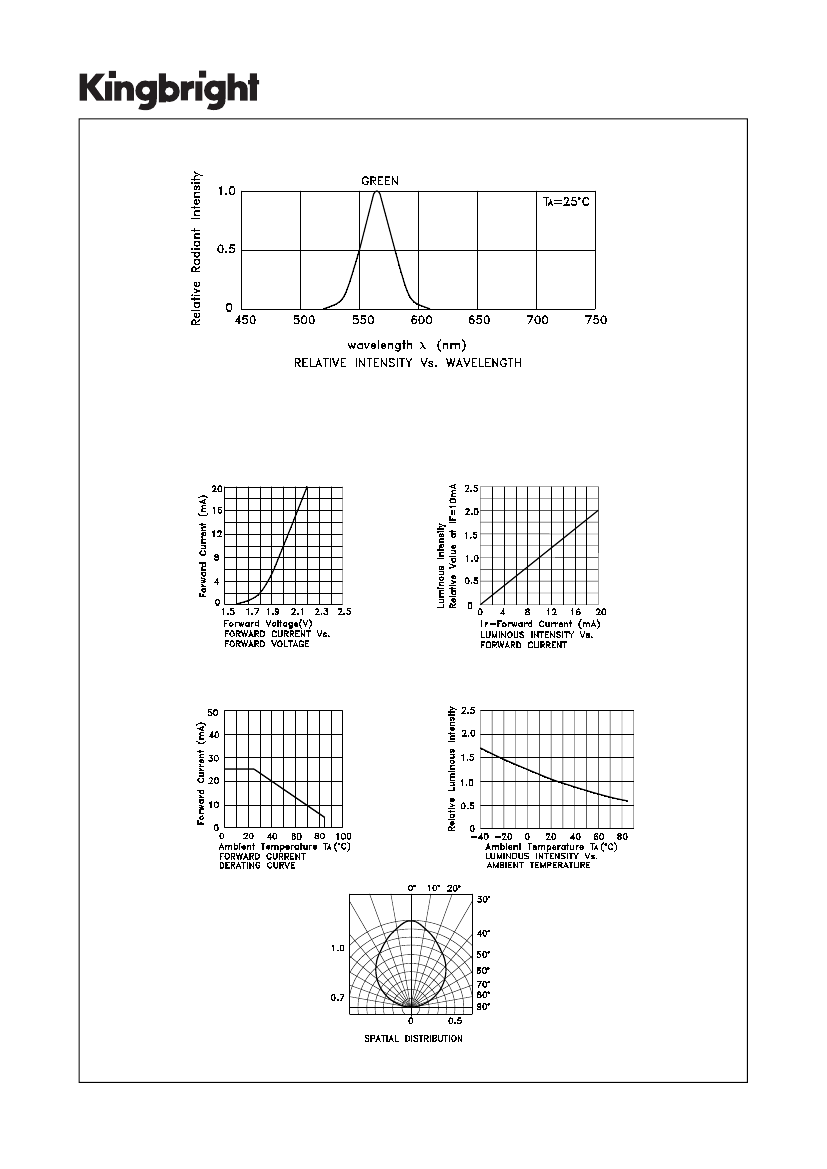

Green
WP1043GD
SPEC NO: DSAF2699
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: JAN/25/2013
DRAWN: Y.Liu
PAGE: 3 OF 6
ERP: 1101000419

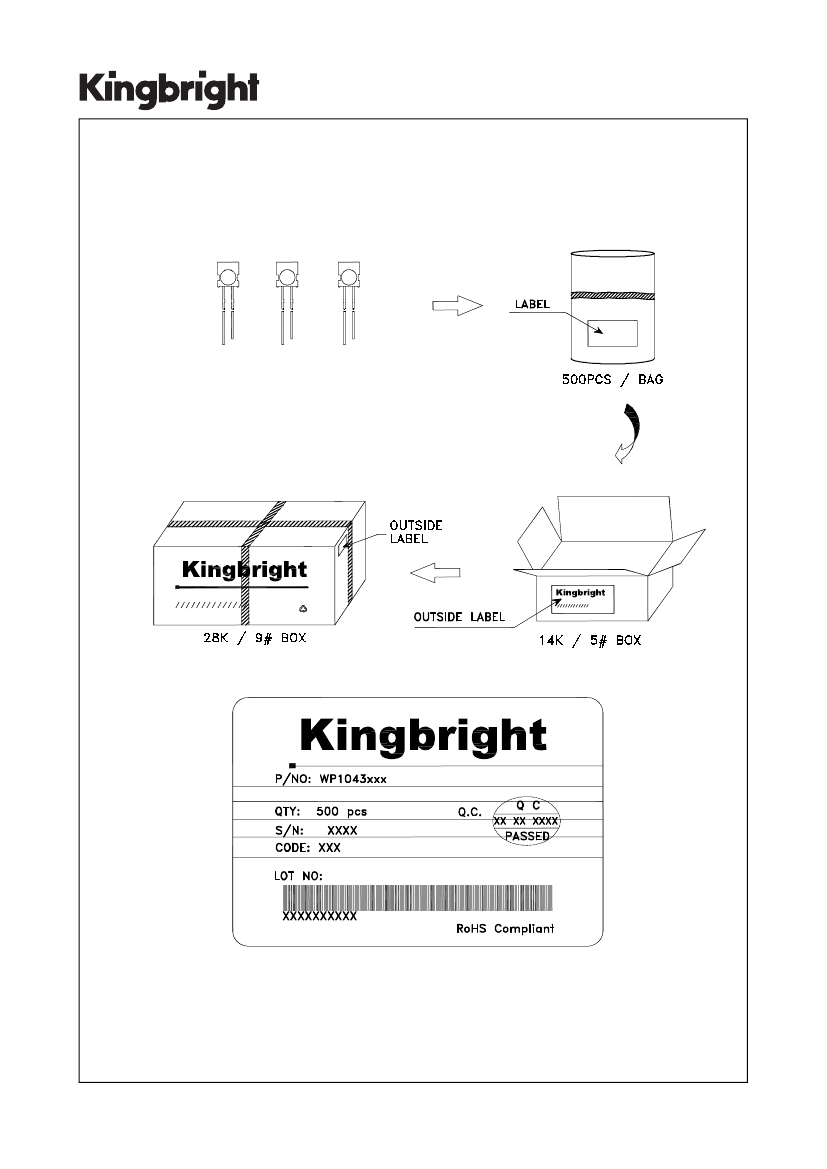

PACKING & LABEL SPECIFICATIONS
WP1043GD
SPEC NO: DSAF2699
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: JAN/25/2013
DRAWN: Y.Liu
PAGE: 4 OF 6
ERP: 1101000419

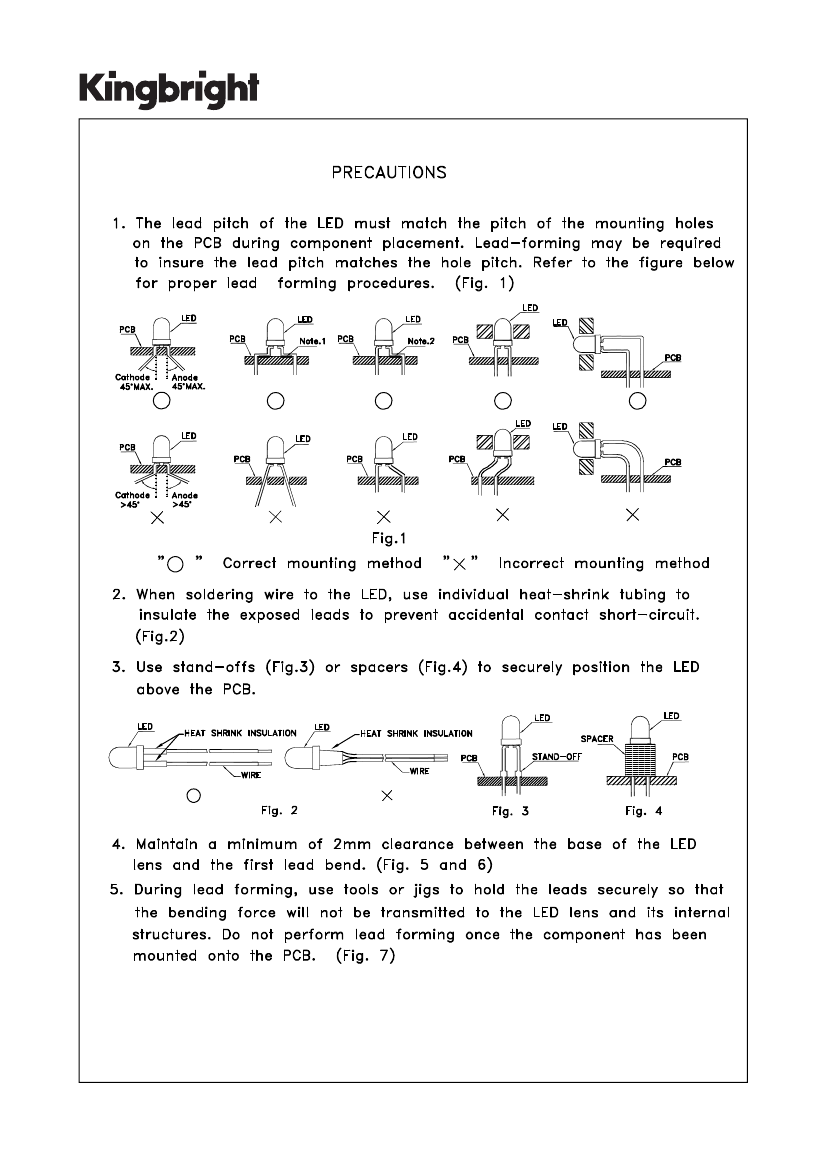

SPEC NO: DSAF2699
APPROVED: WYNEC
REV NO: V.6B
CHECKED: Allen Liu
DATE: JAN/25/2013
DRAWN: Y.Liu
PAGE: 5 OF 6
ERP: 1101000419
