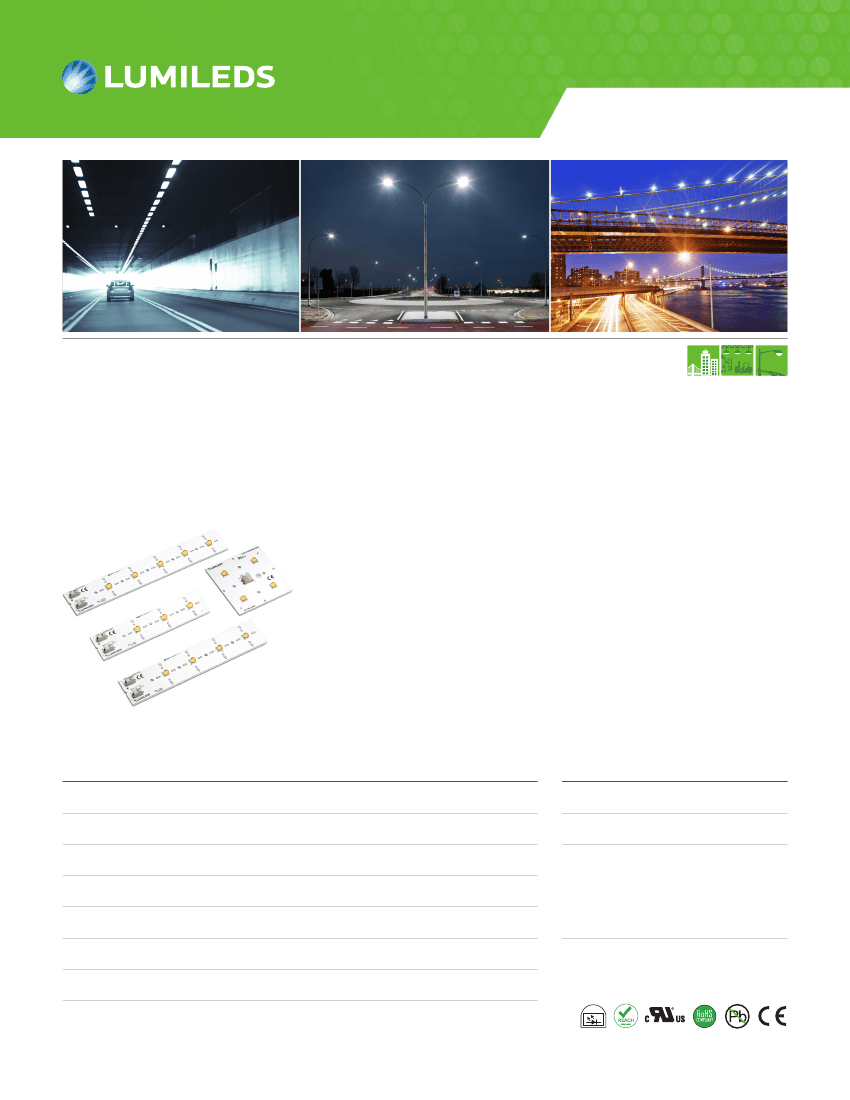

LUXEON XR-M
Bright, uniform light source in practical, convenient and easy to
configure modules
LUXEON XR-M products are LED modules optimized for lighting
applications requiring high power LED arrays mounted on a rigid and
thermally conductive substrate. These versatile building blocks come
with 3, 4 or 5 LUXEON M LEDs on a MCPCB substrate and are designed
for ease of system integration, faster time to market, and use with
industry standard optics. The 4 LED square version will become a
complete IP66 solution when used in combination with standard third
party optics and heat sink.
FEATURES AND BENEFITS
Typical 3200–5300 lumen building blocks with 140 lm/W efficacy
@700mA, T
c
=85°C
Available in 70CRI 4000K, 5000K and 5700K
May be used with off-the-shelf individual lenses and lens plates
for easy system integration
Constant board-to-board LED pitch for versatile system design
3, 4 and 5 LED linear board options and 4 LED square board option
for design flexibility and luminaire adaptability
MCPCB for efficient heat dissipation and mechanical robustness
5 year limited warranty
No. E335118
PRIMARY APPLICATIONS
Architectural
High Bay & Low Bay
Outdoor
– Streetlights
– Stadium
LUXEON XR-M product performance at 700mA, T
c
=85ºC.
CONFIGURATION
NOMINAL
CCT
4000K
Square
5000K
5700K
4000K
5000K
5700K
4000K
Linear
5000K
5700K
4000K
5000K
5700K
MINIMUM
CRI
[1]
70
70
70
70
70
70
70
70
70
70
70
70
LUMINOUS FLUX
[2]
(lm)
MINIMUM
4053
4200
4156
3040
3150
3117
4053
4200
4156
5067
5249
5195
TYPICAL
4211
4363
4318
3158
3272
3239
4211
4363
4318
5264
5454
5397
TYPICAL LUMINOUS
EFFICACY (lm/W)
138
144
142
138
144
142
138
144
142
138
144
142
PART NUMBER
L2M0-4070004MC2200
L2M0-5070004MC2200
L2M0-5770004MC2200
L2M0-4070003MC3300
L2M0-5070003MC3300
L2M0-5770003MC3300
L2M0-4070004MC3300
L2M0-5070004MC3300
L2M0-5770004MC3300
L2M0-4070005MC3300
L2M0-5070005MC3300
L2M0-5770005MC3300
Notes:
1. Lumileds maintains a tolerance of ±2 on CRI measurements.
2. Lumileds maintains a tolerance of ±7.5% on luminous flux measurements.

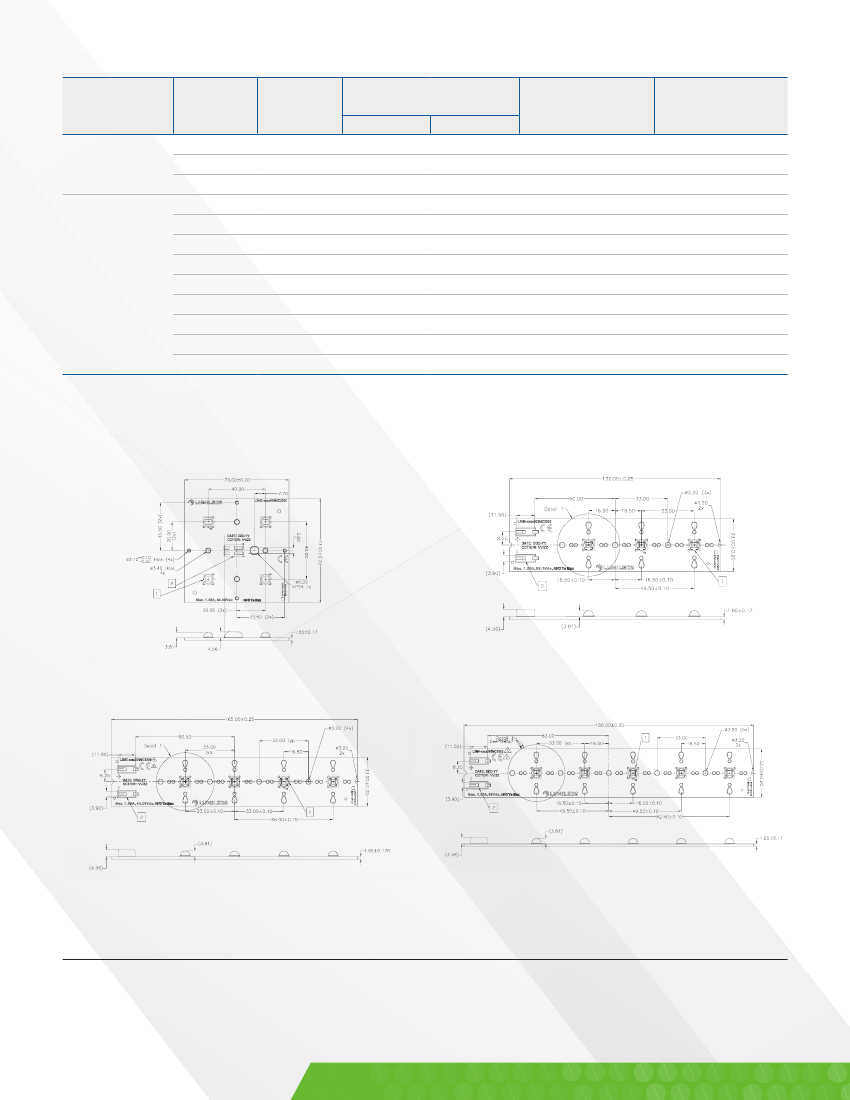

Mechanical dimensions for L2M0-xxxx004MC2200.
Mechanical dimensions for L2M0-xxxx003MC3300.
Mechanical dimensions for L2M0-xxxx004MC3300.
Mechanical dimensions for L2M0-xxxx005MC3300.
Notes:
1. Drawings are not scale.
2. All dimensions are in millimeters.
©2015 Lumileds Holding B.V. All rights reserved.
LUXEON is a registered trademark of the Lumileds Holding B.V.
in the United States and other countries.
lumileds.com
Lumileds Holding B.V. shall not be liable for any kind of loss of data or any other damages, direct,
indirect or consequential, resulting from the use of the provided information and data. Although
Lumileds Holding B.V. has attempted to provide the most accurate information and data, the
materials and services information and data are provided “as is” and Lumileds Holding B.V.
neither warranties, nor guarantees the contents and correctness of the provided information
and data. Lumileds Holding B.V. reserves the right to make changes without notice. You as user
agree to this disclaimer and user agreement with the download or use of the provided materials,
information and data.
PB158 LUXEON XR-M
Product Brief 20151109
