LXK8-PW27-0004A datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> LXK8-PW27-0004A

LXK8-PW27-0004A: DescriptionHigh Power LEDs - White Warm White, 2700K 80CRI; CategoryLED optoelectronic/LED; File Size2MB，28 Pages; ManufacturerLumileds; Websitehttps://www.lumileds.com/

Download Datasheet Parametric View All

LXK8-PW27-0004A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LXK8-PW27-0004A	-	-	View	Buy Now

LXK8-PW27-0004A Overview

High Power LEDs - White Warm White, 2700K 80CRI

LXK8-PW27-0004A Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - White
Manufacturer	Lumileds
RoHS	Details
Package / Case	-
Illumination Color	White (Warm White)
Wavelength/Color Temperature	2700 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	360 lm
Color Rendering Index - CRI	80
Viewing Angle	100 deg
Lens Color/Style	Water Clear
If - Forward Current	350 mA
Vf - Forward Voltage	11 V
Power Rating	-
Mounting Style	SMD/SMT
Length	17.67 mm
Width	17.67 mm
Height	3.62 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Packaging	Tray
Color Temperature	2700 K
Features	-
LED Size	17.67 mm x 17.67 mm x 3.62 mm
Lens Dimensions	-
Lens Shape	Dome
Factory Pack Quantity	400
Type	LUXEON K
Vr - Reverse Voltage	-

Preview

Download Datasheet

View All

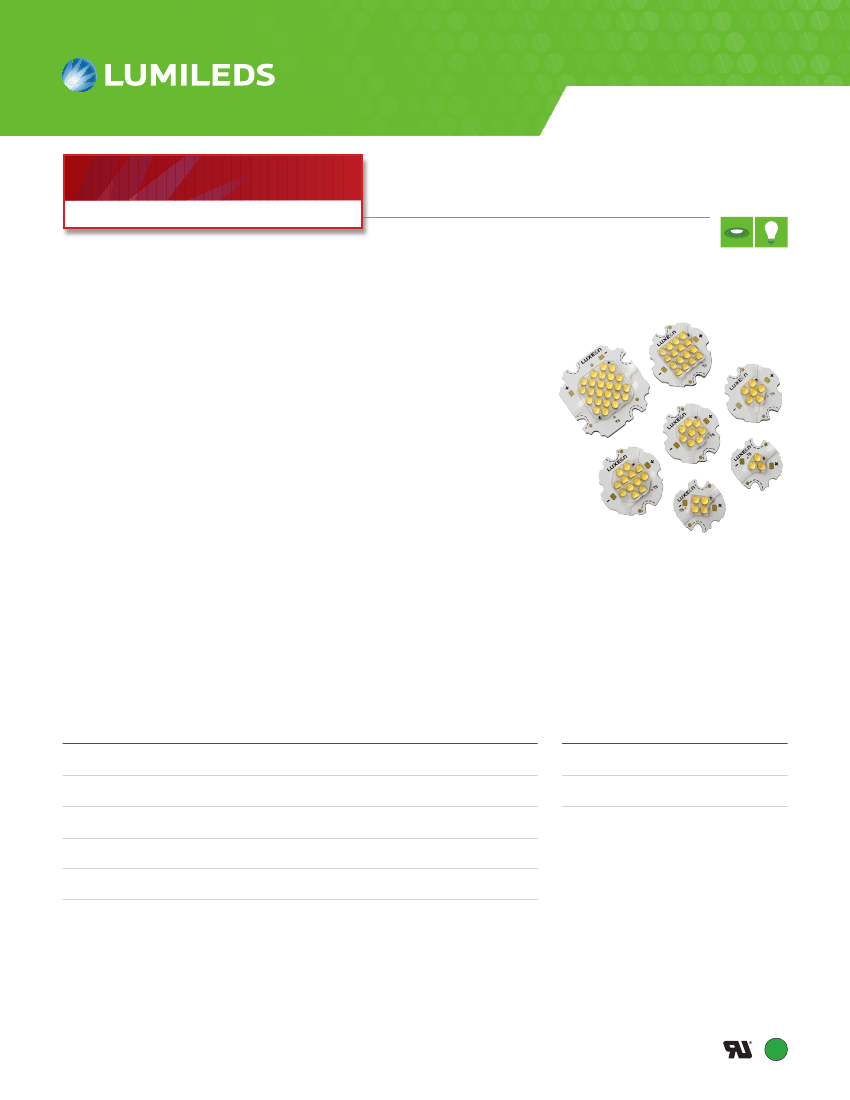

ILLUMINATION

For NEW designs consider

this replacement product:

• LUXEON CoB Core Range (Gen 3)

O O

R L

D O

ER N

A E

B R

LUXEON K

Plug and play matrix platform solution

with precise flux, V

and color

LUXEON K delivers high flux at high efficacy in a small, easy-to-use

package. The high lumen density enables high light output in thermally

and space constrained systems (like retrofit lamps) and high efficiency in

systems aiming for high energy efficiency (such as downlights). The small

size bolt-down package enables simple assembly in space constrained

systems. With

Freedom from Binning,

every LUXEON K white product falls

within a single 3-step MacAdam ellipse positioned around the center

point of the ANSI nominal CCT bins to deliver tight CCT control to ensure

consistency in system color point. In addition, these parts deliver the

lumen maintenance and reliability that all LUXEON LEDs are renowned for.

FEATURES AND BENEFITS

PRIMARY APPLICATIONS

Downlights

Lamps

300–5000 lumen packages for a range of options

3-step MacAdam ellipse color binning for exceptional lamp to lamp consistency

L2 design for a reduction in design costs

Full range of CCTs and CRIs including Royal Blue

LM-80 test report available

COMPLIANT

RoHS

Table of Contents

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Average Lumen Maintenance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

O O

R L

D O

ER N

A E

B R

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Electrical Lead Soldering Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Relative Spectral Distribution vs. Wavelength Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Light Output Characteristics over Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Typical Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Packaging on Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

LUXEON K White ANSI Color Bin Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

General Information

Product Nomenclature

LUXEON K products are specified and binned “hot” (T

= 85°C) under conditions comparable to those found in

“real-world” lighting products.

The part number designation is explained as follows:

LXKA-PBCD-EFGHJ

Where:

—

O O

R L

D O

ER N

A E

B R

designates minimum CRI performance (value 8 = 80 minimum, value 9 = 90 minimum, value 0 for

Royal Blue)

designates color (value W = White, value R = Royal Blue)

C, D —

E, F —

G, H —

—

emitter count

denotes a flux upgrade (e.g, A, B, C, etc)

Therefore, 3000K products specified at 350mA 85°C follow the part numbering scheme:

L X K 8 - P W 3 0 - 0 0 0 4 for LUXEON K White 3000K 4-up

L X K 8 - P W 3 0 - 0 0 0 8 for LUXEON K White 3000K 8-up

L X K 0 - P R 0 4 - 0 0 0 8 for LUXEON K Royal Blue 8-up

designates nominal ANSI CCT (value 27 = 2700K, 30 = 3000K, 35 = 3500K, 40 = 4000K, 50 = 5000K,

and 04 = Royal Blue 447.5nm - 452.5nm peak wavelength)

custom spec designation or multi-junction designation (F - Number of strings, H number of emitters,

for example 0206, 2 strings of 3 = total emitters of 6)

Average Lumen Maintenance Characteristics

Lumen maintenance for solid-state lighting devices (LEDs) is typically defined in terms of the percentage of initial

light output remaining after a specified period of time. Lumileds projects that LUXEON K products will deliver, on

average, 70% lumen maintenance (L70) at 50,000 hours of operation at a forward current of up to 700mA. This

projection is based on constant current operation with junction temperature maintained at or below 125°C. This

performance is based on independent test data, Lumileds historical data from tests run on similar material systems,

and internal LUXEON reliability testing. Observation of design limits included in this data sheet is required in order to

achieve this projected lumen maintenance.

Environmental Compliance

Lumileds is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON K

is compliant to the European Union directives on the restriction of hazardous substances in electronic equipment,

namely the RoHS directive. Lumileds will not intentionally add the following restricted materials to the LUXEON K:

lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl ethers

(PBDE).
