T-1 3/4 (5mm) SOLID STATE LAMP
Part Number: L-7113YD
Yellow
Features
Low power consumption.
Popular T-1 3/4 diameter package.
General purpose leads.
Reliable and rugged.
Long life - solid state reliability.
Available on tape and reel.
RoHS compliant.
Description
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.

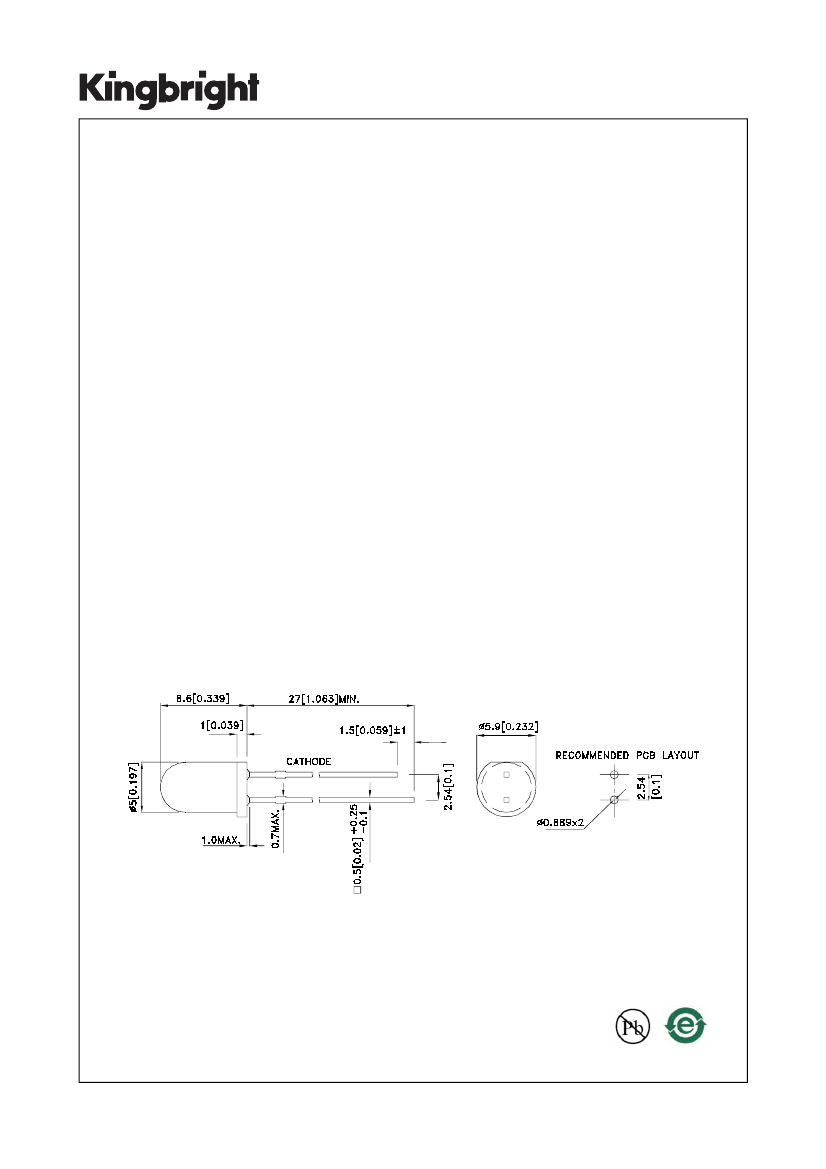

Package Dimensions
K
g
in
ig
r
b
t
h
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAA4399
APPROVED: Wynec
REV NO: V.19B
CHECKED: Allen Liu
DATE: AUG/10/2015
DRAWN: L.Q.Xie
PAGE: 1 OF 6
ERP: 1101005405
Selection Guide
Part No.
Emitting Color (Material)
Lens Type
Iv (mcd) [2]
@ 10mA
Min.
L-7113YD
Yellow (GaAsP/GaP)
Yellow Diffused
10
Typ.
25
Viewing
Angle [1]
2θ1/2
30
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity / luminous Flux: +/-15%.
3. Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Emitting Color
Yellow
Yellow
Yellow
Typ.
590
588
35
Max.
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
in
K
b
g
Yellow
Yellow
Yellow
ig
r
20
1.95
t
h
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=10mA
I
F
=10mA
I
F
=10mA
V
F
=0V;f=1MHz
I
F
=10mA
V
R
= 5V
2.5
10
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Values
75
30
140
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAA4399
APPROVED: Wynec
REV NO: V.19B
CHECKED: Allen Liu
DATE: AUG/10/2015
DRAWN: L.Q.Xie
PAGE: 2 OF 6
ERP: 1101005405

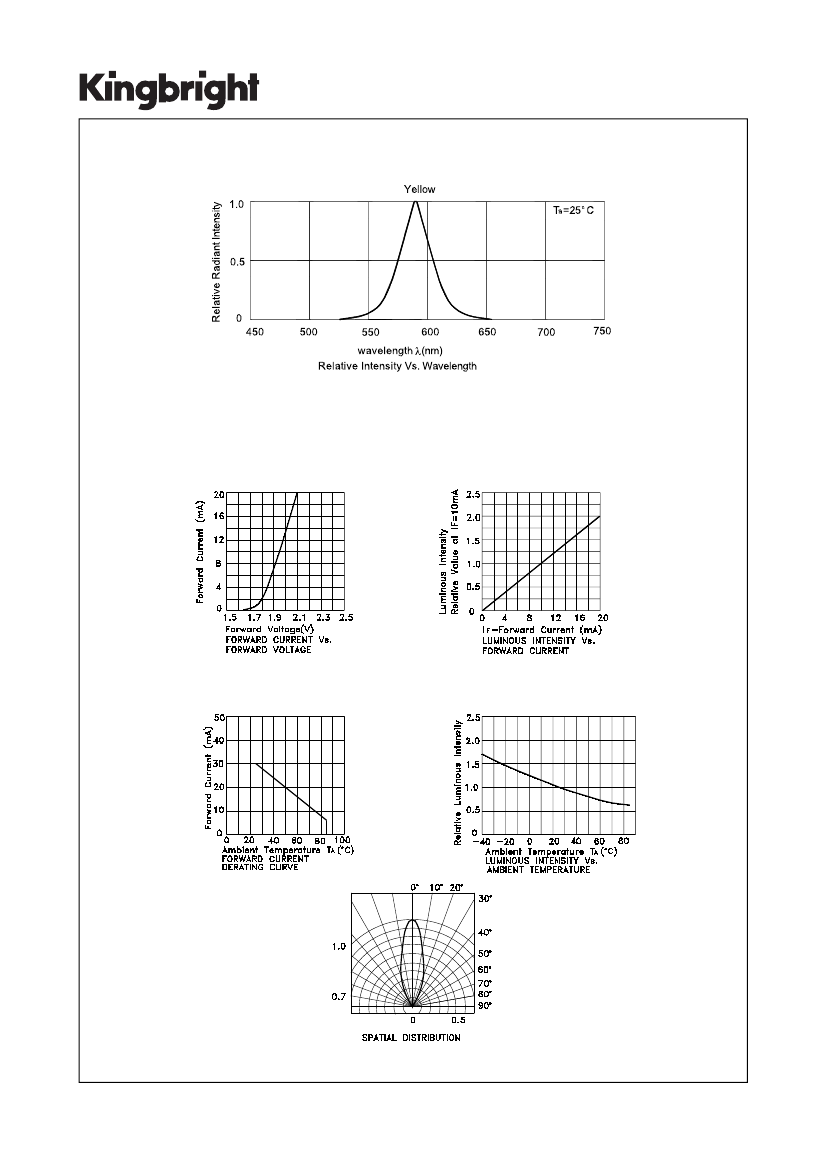

Yellow
L-7113YD
t
h
ig
r
b
g
in
K
SPEC NO: DSAA4399
APPROVED: Wynec
REV NO: V.19B
CHECKED: Allen Liu
DATE: AUG/10/2015
DRAWN: L.Q.Xie
PAGE: 3 OF 6
ERP: 1101005405

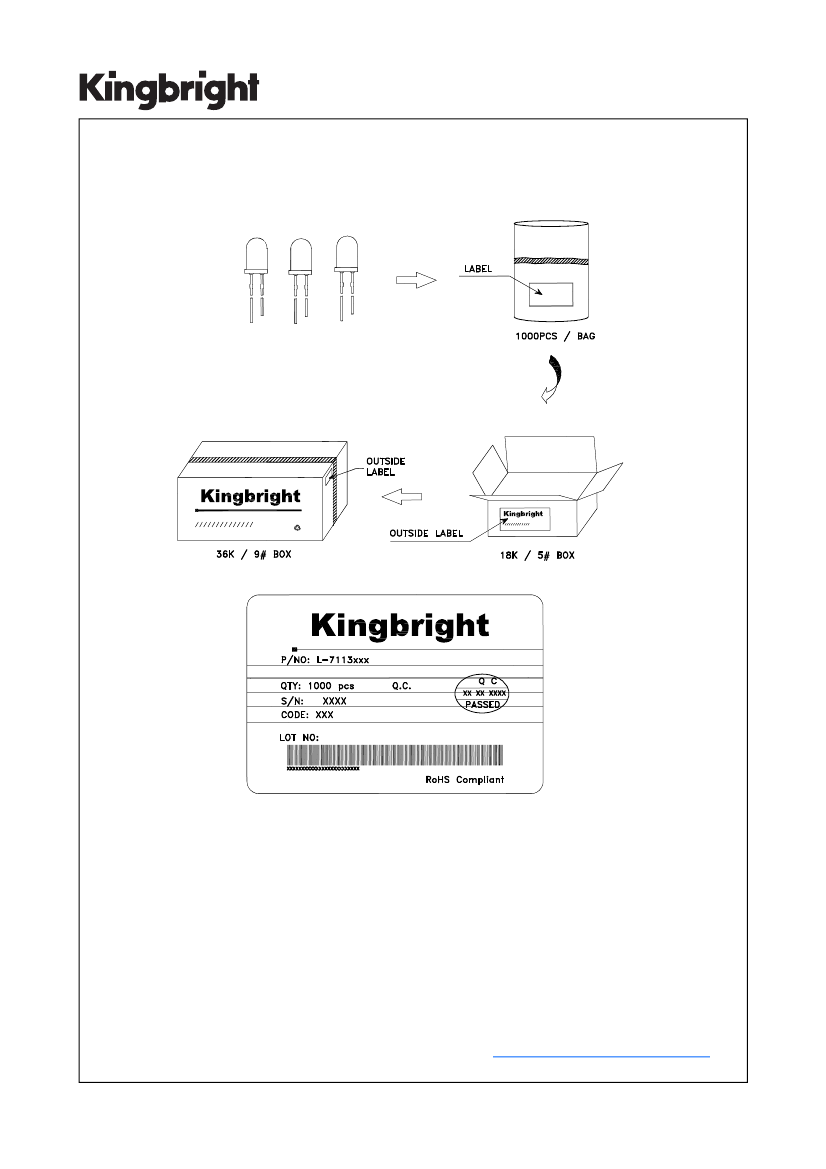

PACKING & LABEL SPECIFICATIONS
L-7113YD
K
g
in
ig
r
b
t

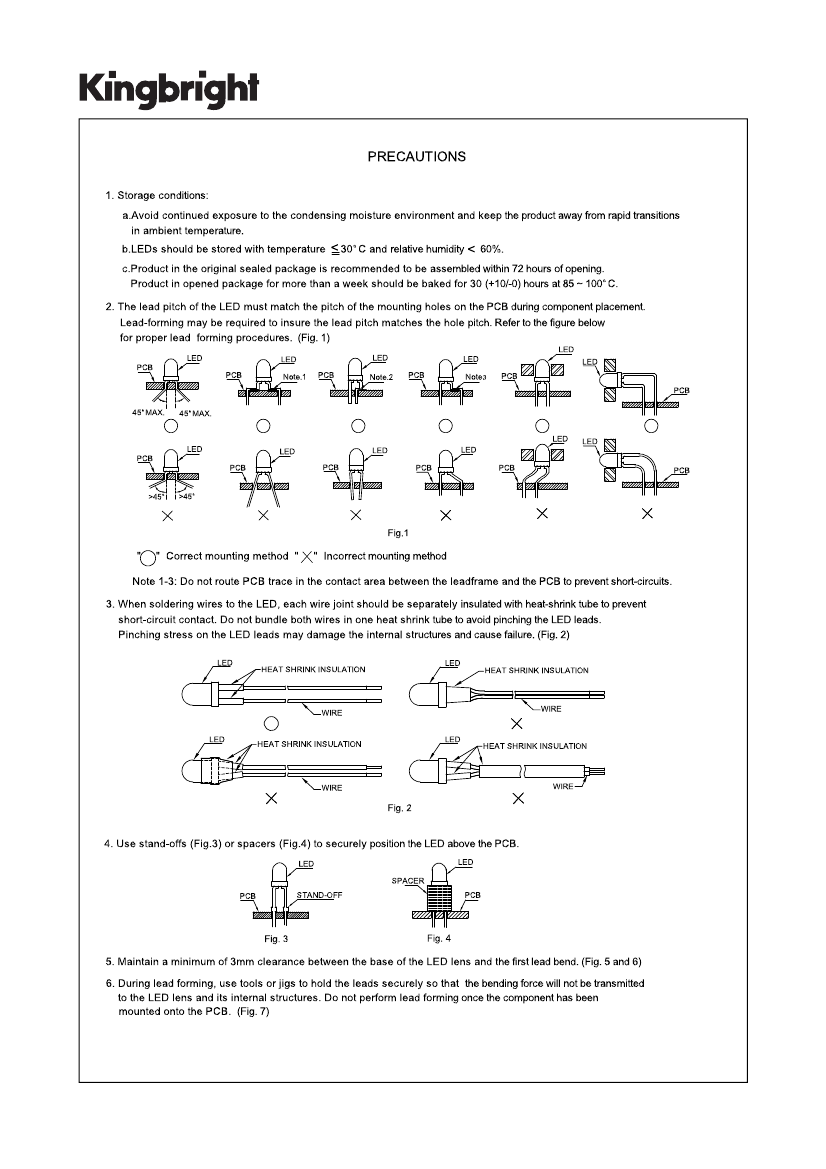

h
