XPGDWT-01-0000-00KE7 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> XPGDWT-01-0000-00KE7

XPGDWT-01-0000-00KE7: DescriptionHigh Power LEDs - White White, 156lm XP-G Gen 3; CategoryLED optoelectronic/LED; File Size2MB，37 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

XPGDWT-01-0000-00KE7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XPGDWT-01-0000-00KE7	-	-	View	Buy Now

XPGDWT-01-0000-00KE7 Overview

High Power LEDs - White White, 156lm XP-G Gen 3

XPGDWT-01-0000-00KE7 Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - White
Manufacturer	Cree
RoHS	Details
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Factory Pack Quantity	1000
Unit Weight	0.003527 oz

Preview

Download Datasheet

View All

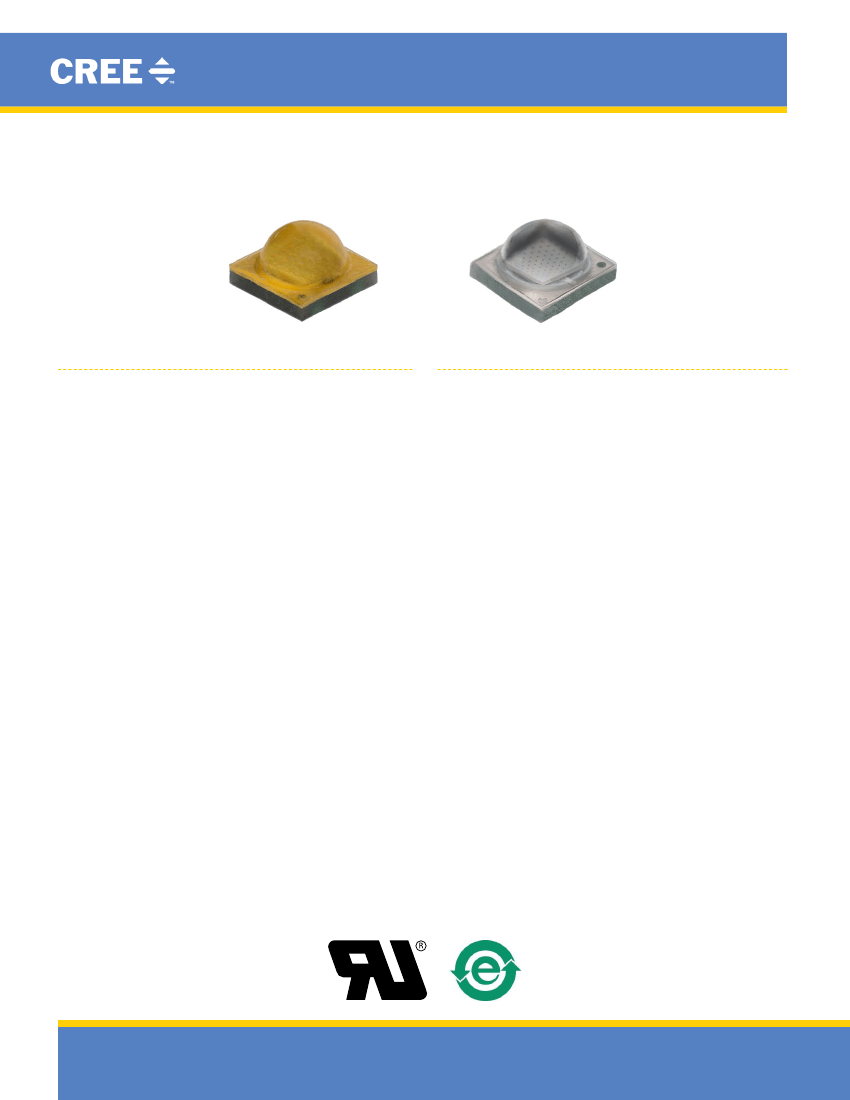

CLD-DS139 Rev 1D

Product family data sheet

Cree

XLamp

XP-G3 LEDs

XP-G3 White

XP-G3 Royal Blue

PRoDuCt DEsCRiPtion

The XLamp

XP-G3 LED is the highest efficacy and most reliable

LED in the XP-G platform. Incorporating elements of Cree’s SC5

Technology™ Platform, the XP-G3 LED delivers both high reliability

at high operating temperatures and high efficacy to meet the

higher efficacy and lumen maintenance requirements of DLC

classification. Optimized for directional, high-lumen applications,

from indoor and outdoor to portable and lamp retrofits, the XP-G3

LED delivers the benefits of the XP-G platform – compact and

proven 3.45 mm x 3.45 mm package and established ecosystem

– enabling customers to simplify the design process and shorten

time to market.

FEAtuREs

•

Available in outdoor white and 70-, 80- and 90-CRI white

and royal blue

ANSI-compatible chromaticity bins

3-step and 5-step options

White binned at 85 °C, royal blue binned at 25 °C

Maximum drive current: 2000 mA

Low thermal resistance: white: 3 °C/W, royal blue: 2 °C/W

Wide viewing angle: 125° - 130°

Unlimited floor life at ≤ 30 ºC/85% RH

Reflow solderable - JEDEC J-STD-020C

Electrically neutral thermal path

RoHS and REACh compliant

recognized component (E349212)

WWW.CREE.Com/XLAmp

, XLamp

and

EasyWhite

are registered trademarks and SC5 Technology and the Cree logo are trademarks of Cree, Inc. UL

and the UR logo are registered

trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

XLamp

Xp-G3 LED

tABLE oF ContEnts

Characteristics

......................................................................................................................................................................................................

Flux Characteristics - White.................................................................................................................................................................................. 4

Flux Characteristics - Royal Blue ........................................................................................................................................................................12

Relative Spectral Power Distribution - White .....................................................................................................................................................13

Relative Spectral Power Distribution - Royal Blue .............................................................................................................................................13

Relative Flux vs. Junction Temperature - White ................................................................................................................................................14

Relative Flux vs. Junction Temperature - Royal Blue ........................................................................................................................................14

electrical Characteristics - White

.......................................................................................................................................................................15

Electrical Characteristics - Royal Blue ...............................................................................................................................................................15

Relative Luminous Flux vs. Current - White .......................................................................................................................................................16

Relative Radiant Flux vs. Current - Royal Blue ...................................................................................................................................................16

Relative Chromaticity vs. Current and Temperature .........................................................................................................................................17

Typical Spatial Distribution - White ....................................................................................................................................................................18

Typical Spatial Distribution - Royal Blue ............................................................................................................................................................18

Thermal Design - White

......................................................................................................................................................................................19

Thermal Design - Royal Blue...............................................................................................................................................................................19

Performance Groups - Luminous Flux ...............................................................................................................................................................20

Performance Groups - Radiant Flux ...................................................................................................................................................................20

Performance Groups - Peak Wavelength...........................................................................................................................................................20

Performance Groups - Chromaticity ..................................................................................................................................................................21

Cree’s Standard Chromaticity Regions Plotted on the 1931 CIE Curve ...........................................................................................................25

Cree’s Standard Cool White Kits Plotted on ANSI Standard Chromaticity Regions........................................................................................27

Cree’s Standard Warm and Neutral White Kits Plotted on ANSI Standard Chromaticity Regions .................................................................28

Cree’s EasyWhite

White Kits Plotted on ANSI Standard Chromaticity Regions ............................................................................................29

Cree’s Standard Chromaticity Kits .....................................................................................................................................................................30

Bin and Order Code Formats ..............................................................................................................................................................................31

Reflow Soldering Characteristics .......................................................................................................................................................................32

Notes ...................................................................................................................................................................................................................33

Mechanical Dimensions .....................................................................................................................................................................................35

Tape and Reel

......................................................................................................................................................................................................36

Packaging ............................................................................................................................................................................................................37

, XLamp

and EasyWhite

are registered trademarks and SC5 Technology

and the Cree logo are trademarks of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.

Recommended Resources
