High Luminous Efficacy
Neutral White LED Emitter
LZ9-00NW00
Key Features
High Luminous Efficacy, Neutral White LED
CRI 80 minimum
Single 4000K ANSI bin distribution
Can dissipate up to 20W
Ultra-small foot print – 7.0mm x 7.0mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (1.3°C/W)
Very high Luminous Flux density
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on MCPCB (optional)
Full suite of TIR secondary optics family available
Part Number Options
Base part number
Part number
LZ9-00NW00-xxxx
LZ9-J0NW00-xxxx
LZ9-K0NW00-xxxx
Description
9-die emitter CRI 80 minimum
9-die emitter CRI 80 minimum on Star MCPCB in 1x9 electrical configuration
9-die emitter CRI 80 minimum on Star MCPCB in 3x3 electrical configuration
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
LZ9-00NW00 (1.6-11/12/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Bin Kit Option Codes
NW, Neutral-White (4000K)
Kit number
suffix
0040
Min
flux
Bin
Y
Color Bin Ranges
5B2, 5C2, 5B1, 5C1, 5A2, 5D2, 5A1, 5D1
Description
full distribution flux; 4000K ANSI CCT bin
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
2
LZ9-00NW00 (1.6-11/12/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com

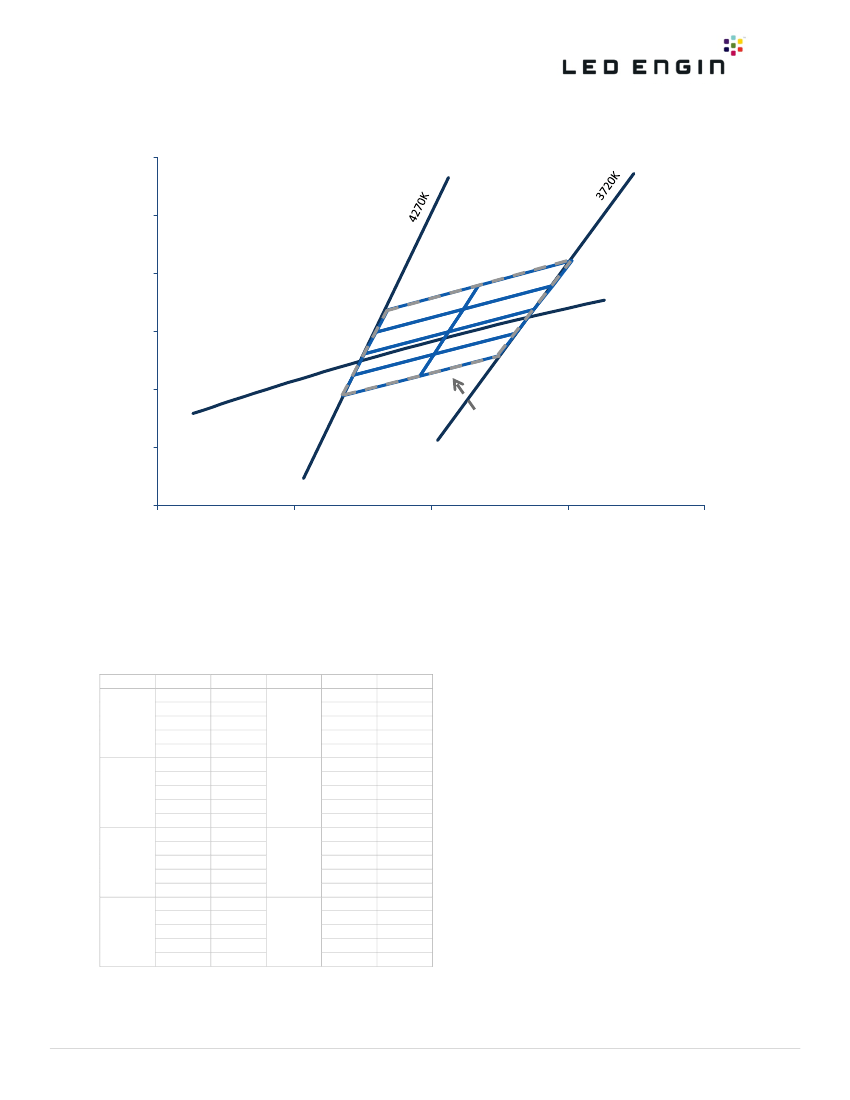

Neutral White Chromaticity Groups
0.44
0.42
0.40
5B2
5C2
5C1
5D2
5D1
CIEy
0.38
5A1
5B1
5A2
Planckian Locus
0.36
0.34
4000K ANSI
C78.377A bin
0.32
0.34
0.36
0.38
CIEx
Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in the table.
0.40
0.42
Neutral White Bin Coordinates
Bin code
CIEx
0.3719
0.3736
0.3869
0.3847
0.3719
0.3702
0.3719
0.3847
0.3825
0.3702
0.3686
0.3702
0.3825
0.3804
0.3686
0.367
0.3686
0.3804
0.3783
0.367
CIEy
0.3797
0.3874
0.3958
0.3877
0.3797
0.3722
0.3797
0.3877
0.3798
0.3722
0.3649
0.3722
0.3798
0.3721
0.3649
0.3578
0.3649
0.3721
0.3646
0.3578
Bin code
CIEx
0.3847
0.3869
0.4006
0.3978
0.3847
0.3825
0.3847
0.3978
0.395
0.3825
0.3804
0.3825
0.395
0.3924
0.3804
0.3783
0.3804
0.3924
0.3898
0.3783
CIEy
0.3877
0.3958
0.4044
0.3958
0.3877
0.3798
0.3877
0.3958
0.3875
0.3798
0.3721
0.3798
0.3875
0.3794
0.3721
0.3646
0.3721
0.3794
0.3716
0.3646
5B2
5C2
5B1
5C1
5A2
5D2
5A1
5D1
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
3
LZ9-00NW00 (1.6-11/12/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Luminous Flux Bins
Table 1:
Bin Code
Minimum
Radiant Flux
(Φ
v
)
@ I
F
= 700mA
[1,2]
(lm)
1357
1696
Maximum
Radiant Flux
(Φ
v
)
@ I
F
= 700mA
[1,2]
(lm)
1696
2120
Y
Z
Notes for Table 1:
1.
Luminous flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
Forward Voltage Range per String
Table 2:
Bin Code
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
9.0
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
10.8
0
Notes for Table 2:
1.
LED Engin maintains a tolerance of ± 0.04V for forward voltage measurements.
2.
Forward Voltage per string of 3 LED dies in series.
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
4
LZ9-00NW00 (1.6-11/12/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Absolute Maximum Ratings
Table 3:
Parameter
DC Forward Current at T
jmax
=135°C
[1]
DC Forward Current at T
jmax
=150°C
[1]
Peak Pulsed Forward Current
[2]
Reverse Voltage
Storage Temperature
Junction Temperature
Soldering Temperature
[4]
Allowable Reflow Cycles
Autoclave Conditions
[5]
ESD Sensitivity
[6]
Symbol
I
F
I
F
I
FP
V
R
T
stg
T
J
T
sol
Value
800
700
1000
See Note 3
-40 ~ +150
150
260
6
121°C at 2 ATM,
100% RH for 168 hours
> 8,000 V HBM
Class 3B JESD22-A114-D
Unit
mA
mA
mA
V
°C
°C
°C
Notes for Table 3:
1.
Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature. Follow the curves in Figure 10 for current
de-rating.
2:
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
3.
LEDs are not designed to be reverse biased.
4.
Solder conditions per JEDEC 020c. See Reflow Soldering Profile Figure 3.
5.
Autoclave Conditions per JEDEC JESD22-A102-C.
6.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZ9-00NW00 in an electrostatic protected area (EPA).
An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.
Optical Characteristics @ T
C
= 25°C
Table 4:
Parameter
Luminous Flux (@ I
F
= 700mA)
[1]
Luminous Efficacy (@ I
F
=350mA)
Correlated Color Temperature
Color Rendering Index (CRI)
Viewing Angle
[2]
Total Included Angle
[3]
Symbol
Φ
v
Typical
Unit
lm
lm/W
K
Degrees
Degrees
1650
1300
98
850
76
CCT
4000
900
50
R
a
82
53
110
2Θ
½
110
135
Θ
0.9
110
120
Notes for Table 4:
110
120
1.
Luminous flux typical value is for all 9 LED dies operating concurrently at rated current.
2.
Viewing Angle is the off axis angle from emitter centerline where the luminous intensity is ½ of
120
peak value.
the
3.
Total Included Angle is the total angle that includes 90% of the total luminous flux.
Electrical Characteristics @ T
C
= 25°C
Table 5:
Parameter
Forward Voltage per String (@ I
F
= 700mA)
Temperature Coefficient
of Forward Voltage (per String)
Thermal Resistance
(Junction to Case)
COPYRIGHT © 2013 LED ENGIN. ALL RIGHTS RESERVED.
5
Symbol
V
F
ΔV
F
/ΔT
J
RΘ
J-C
Typical
9.7
-6.0
1.3
Unit
V
mV/°C
°C/W
LZ9-00NW00 (1.6-11/12/13)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
