4304H3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 4304H3

Preview

4304H3: DescriptionStandard LEDs - Through Hole Blue Round LED; CategoryLED optoelectronic/LED photoelectric; File Size620KB，3 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric Compare View All

4304H3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4304H3	-	-	View	Buy Now

4304H3 Overview

Standard LEDs - Through Hole Blue Round LED

4304H3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compliant
color	AMBER
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	DIFFUSED
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	55 °C
Minimum operating temperature
Optoelectronic device types	SINGLE COLOR LED
total height	8.6995 mm
method of packing	BULK
peak wavelength	608 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.4892 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

4304H Series

Solid State LED Lamps

T-1 3/4 (5mm)

Key Features

• Low power consumption

• T-1 3/4 diameter package

• 4 colors available: red, amber, green and

yellow

• Long life - solid state reliability

• Reliable and rugged

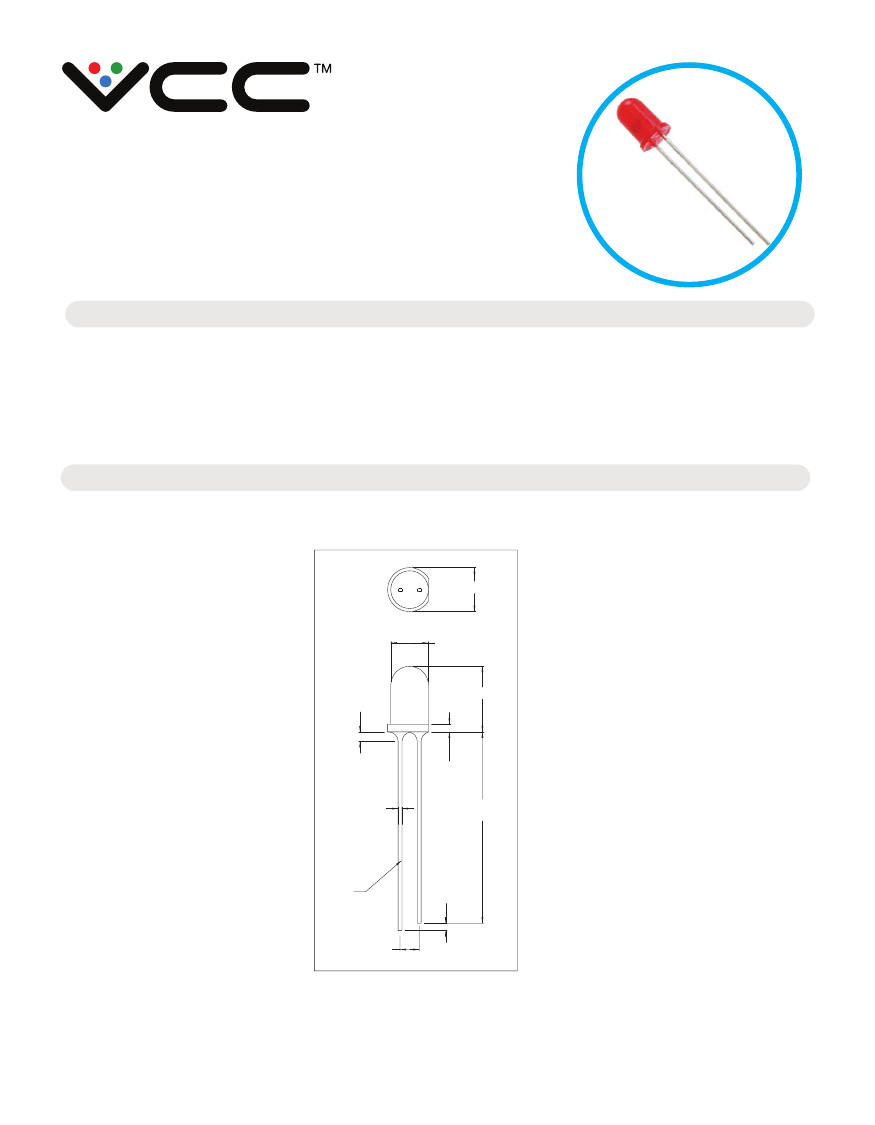

Product Dimensions

All dimensions

in inches.

Ø.224/.248

Ø.189/.205

.039

MAX.

.331/.354

.039

.020

S Q.T Y P .

.945

MIN.

ANODE

.059/.138

MIN.

.098

the first call for illuminated components

www.vcclite.com

1.800.522.5546

03/16 Rev 1

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

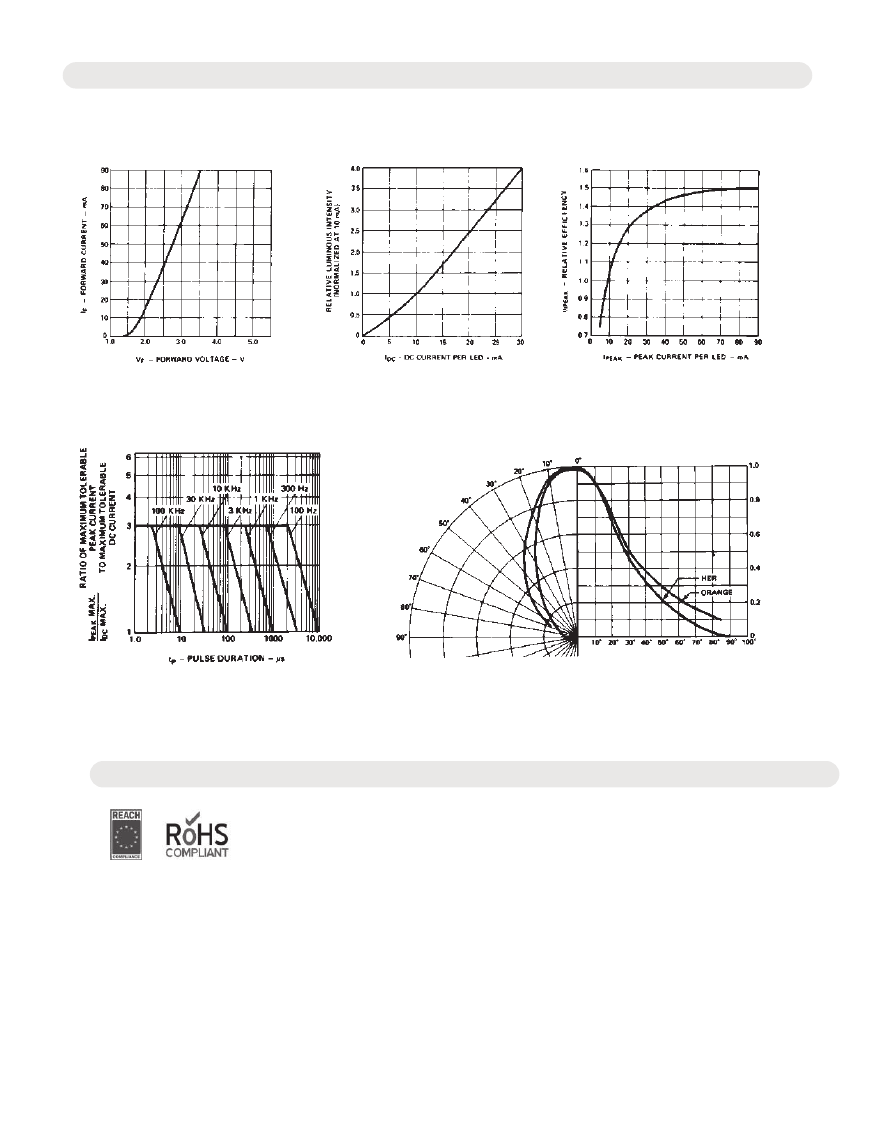

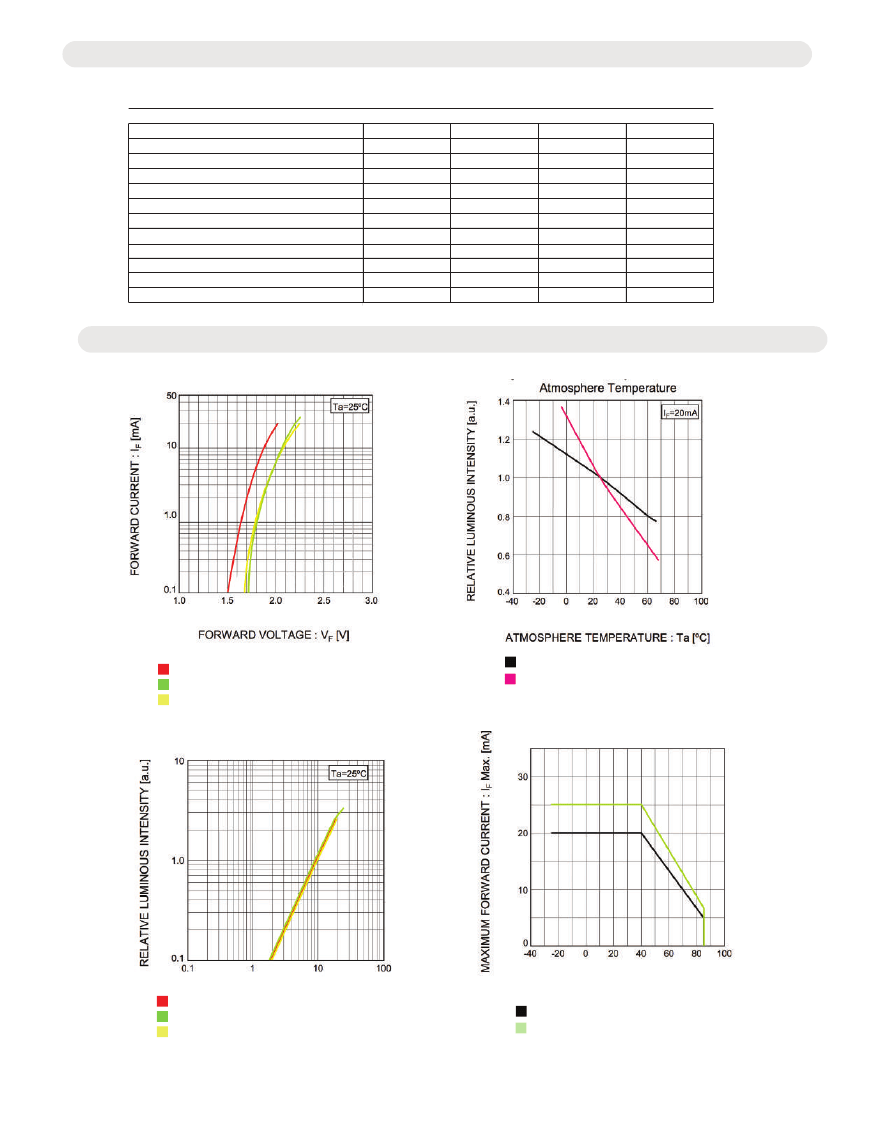

4304H3 Related Products

	4304H3	4304H6	4304H7
Description	Standard LEDs - Through Hole Blue Round LED	Cree, Inc. ROYAL BLUE	Audio Amplifiers SoundPlus(TM) Hi-Perf Aud Oper Amp
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
color	AMBER	BLUE	YELLOW
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.02 A	0.01 A
Lens type	DIFFUSED	CLEAR NONDIFFUSED	DIFFUSED
Nominal luminous intensity	20.0 mcd	160.0 mcd	6.3 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	PANEL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	55 °C	100 °C	100 °C
Minimum operating temperature	-	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6995 mm	8.6106 mm	9.652 mm
method of packing	BULK	BULK	BULK
peak wavelength	608 nm	430 nm	585 nm
shape	ROUND	ROUND	ROUND
size	5 mm	5.0038 mm	9.906 mm
surface mount	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-4
Terminal pitch	2.4892 mm	2.54 mm	2.4892 mm
perspective	60 deg	40 deg	65 deg
Base Number Matches	1	1	1
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	-	ROHS COMPLIANT PACKAGE-1
