Single Digit LED Numeric Display
LA-601 B / L Series
SIM-013STW1
LA-601 B / L series is designed to use in the light. Materials of emission are GaAsP on GaP,
AlGalnP and GaP. This is the height of a letter 14.6mm, single digit LED Numeric Display
that is packed by epoxy resin.
lFeatures
1) The height of a letter is 14.6mm.
2) Dimension is 12.5×19.0×8.0mm.
3) The package of surface color is black. Color of segment is colored in emitting color.
4) Each color has anode common and cathode common respectively.

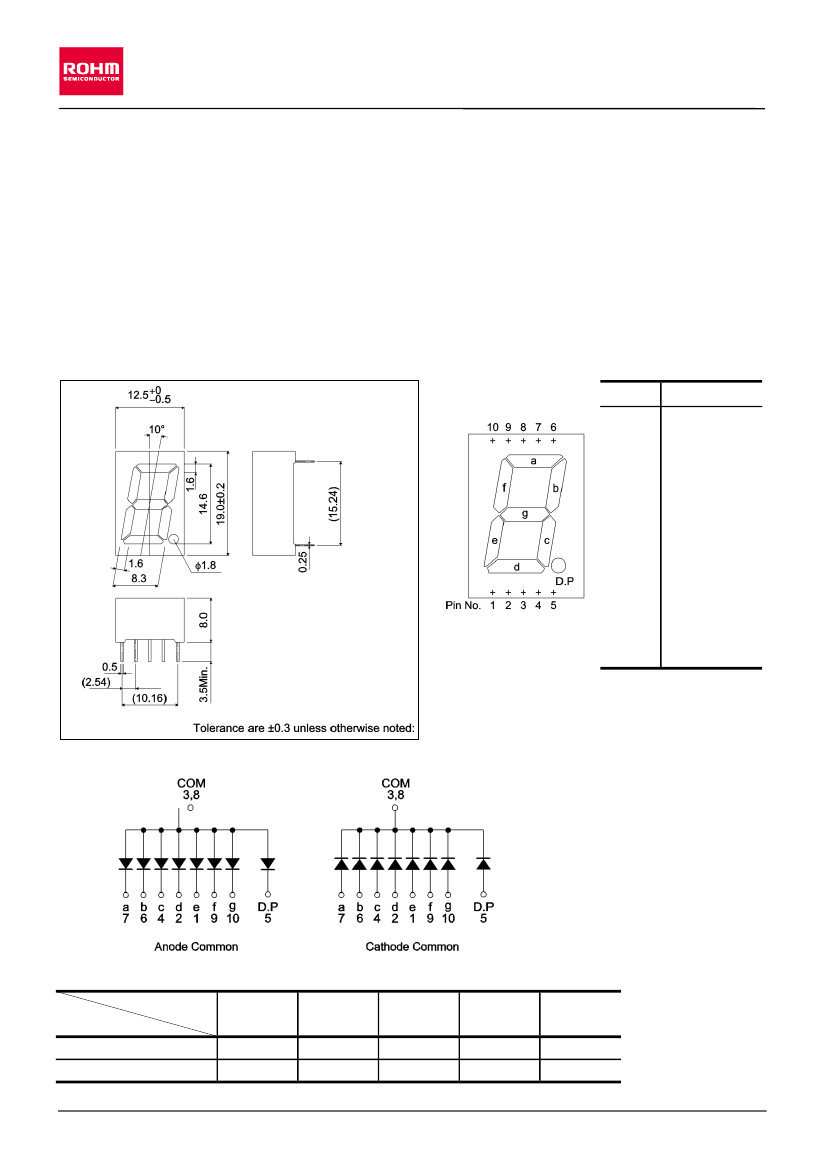

lDimensions
(Unit : mm)
lPin
assignments
Pin No.
1
2
3
4
5
6
7
8
9
10
Function
Segment "e"
Segment "d"
Common
Segment "c"
D.P
Segment "b"
Segment "a"
Common
Segment "f"
Segment "g"
Datasheet
lInternal
circuit schematic
lSelection
guide
Emitting color
Red
Orange
Yellow
Red
Green
(High brightness) (High brightness) (High brightness)
Common
Anode
LA-601VB LA-601AB LA-601EB LA-601XB LA-601MB
Cathode
LA-601VL LA-601AL LA-601EL LA-601XL LA-601ML
