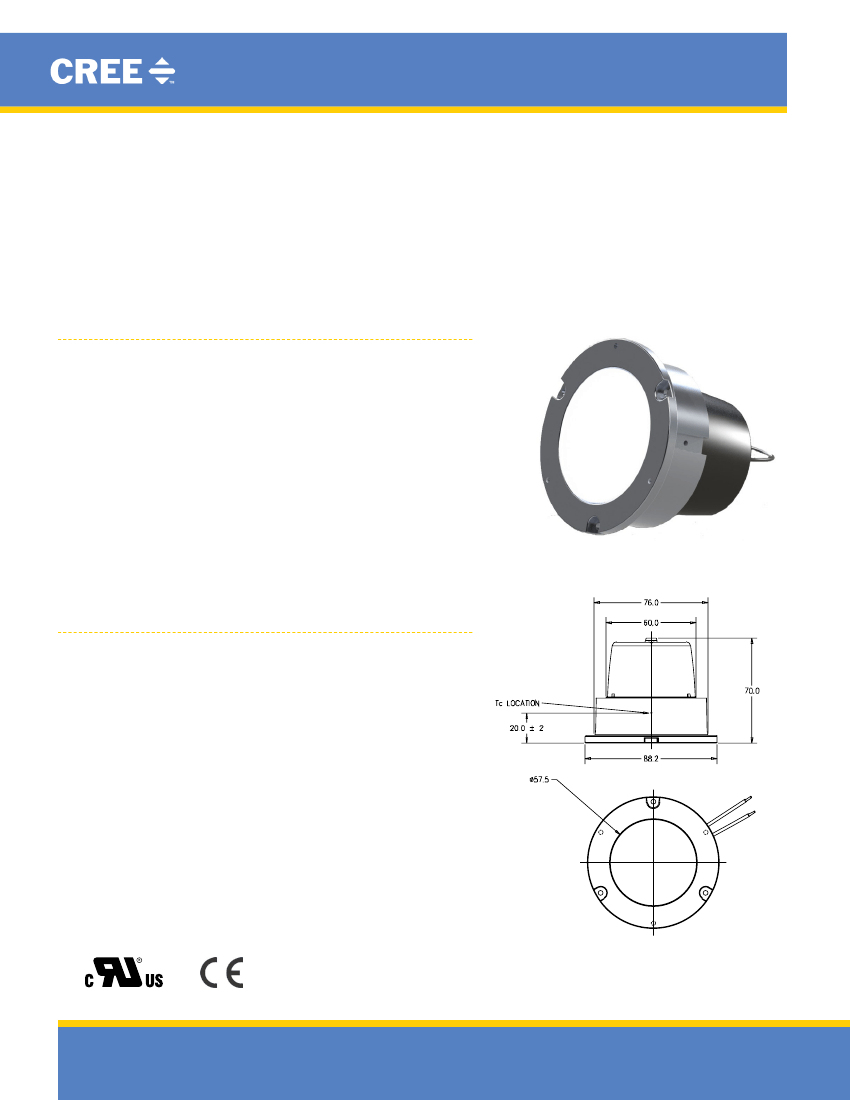

CLM-DS05 LMR2 Rev 3e
Product family data sheet
Cree
®
LMR2 LED Module
Cree LED modules provide lighting designers and manufacturers with simple, easy-to-adopt LED lighting solutions that reduce fixture
development time and speed time-to-market. The Cree LMR2 LED module is the ideal choice for enabling rapid fixture development
where bright, beautiful, long-life lighting is required. The LMR series of modules incorporates a compact system of integrated driver
electronics, optics and primary thermal management together with 80- and 90-CRI options to address a wide range of residential and
commercial lighting applications. This versatile LED lighting module jump starts the design process for 3-8” (76-203 mm) downlights,
wall sconces or pendant lights.
BEnEfits foR LuMinaiRE DEsignERs
•
•
•
•
•
Faster time-to-market and lower system cost with complete, compact
light source solution
Reduced development time with concurrently designed and tested
optics, driver electronics, and primary thermal management
Wide variety of design applications enabled with 2700 K, 3000 K, 3500 K
and 4000 K correlated color temperatures
Industry-leading 5-year limited warranty backed by patented, reliable
Cree LeD technology
Rapid regulatory approval and voluntary qualification of final luminaire
enabled by:
◊
UL
®
approval (120 V)
◊ California Title 24 compliance (120 V)
◊
LeD LM-80 data for US eNeRGY STAR
®
◊ Compliance with CE and other international standards (230 V)
BEnEfits foR EnD usERs
•
Two color rendering options:
◊
90 CRI for retail, museums and hospitality
◊
80 CRI for general illumination
Significant energy savings over traditional lighting through superior
efficacy up to 72 lm/W
visually comfortable appearance whether the module is powered on
or off
Designed to last 35,000 hours at L
70
Consistent light quality over time and temperature
Dimming down to 5% of rated light output using standard incandescent
and electronic low-voltage dimmers
No Uv or mercury
•
•
•
•
•
•
www.cree.com/modules
units: mm
Copyright © 2011-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and TrueWhite
®
are
registered trademarks and the Cree logo and the Cree TrueWhite Technology logo are trademarks of Cree, Inc. ENERGY STAR
®
is a registered trademark
of the U.S. Environmental Protection Agency. UL
®
and the UR logo are registered trademarks of UL LLC. Other trademarks, product, and company names
are the property of their respective owners and do not imply specific product and/or vendor endorsement, sponsorship or association.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
LMR2 LED MoDuLE
ChaRaCtERistiCs - 650 LuMEns (tRuEWhitE
®
)
nominal
Luminous flux
(lm)*
650
650
650
650
CCt
(K)
4000
3500
3000
2700
CRi
> 90
> 90
> 90
> 90
input Power
(W)
10
10.5
10
10.5
10
10.5
10
10.5
Module
Efficacy
(lm/W)
65
62
65
62
65
62
65
62
input Voltage
(V)/frequency
(hz)**
120/60
230/50
120/60
230/50
120/60
230/50
120/60
230/50
Power
factor
> .80
> .90
> .80
> .90
> .80
> .90
> .80
> .90
Dimming
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
TRIAC
order Code
LMR020-0650-40F9-10100TW
LMR020-0650-40F9-20100TW
LMR020-0650-35F9-10100TW
LMR020-0650-35F9-20100TW
LMR020-0650-30F9-10100TW
LMR020-0650-30F9-20100TW
LMR020-0650-27F9-10100TW
LMR020-0650-27F9-20100TW
*
Luminous flux measured at Tc = 55 °C
**
Input ranges are 110–130 V/60 Hz and 220–240 V/50 Hz
•
Maximum power = 12.1 W
Note: Cree maintains a tolerance of ±7% on flux and power measurements
ChaRaCtERistiCs - 750 LuMEns
nominal
Luminous flux
(lm)*
750
750
750
750
CCt
(K)
4000
3500
3000
2700
CRi
> 80
> 80
> 80
> 80
input Power
(W)
11.5
11.5
11.5
11.5
Module
Efficacy
(lm/W)
65
65
65
65
input Voltage
(V)/frequency
(hz)**
120/60
120/60
120/60
120/60
Power
factor
> .90
> .90
> .90
> .90
Dimming
TRIAC
TRIAC
TRIAC
TRIAC
order Code
LMR020-0750-40F8-10100eW
LMR020-0750-35F8-10100eW
LMR020-0750-30F8-10100eW
LMR020-0750-27F8-10100eW
*
Luminous flux measured at Tc = 55 °C
**
Input range is 110–130 V/60 Hz
•
Maximum power = 13.5 W
Note: Cree maintains a tolerance of ±7% on flux and power measurements
ChRoMatiCity
The Cree LMR2 LED module provides high color consistency around the specified color temperature. Individual LEDs are tested and
matched in order to meet our designed chromaticity specification.
Secondary optics can be added to the module but will reduce light output and may also alter the color characteristics of the final luminaire
design.
Copyright © 2011-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and TrueWhite
®
are registered trademarks and the Cree logo and the Cree
TrueWhite Technology logo are trademarks of Cree, Inc. ENERGY STAR
®
is a registered trademark of the U.S. Environmental Protection Agency. UL
®
and the UR logo are registered trademarks of UL LLC. Other
trademarks, product, and company names are the property of their respective owners and do not imply specific product and/or vendor endorsement, sponsorship or association.
2
LMR2 LED MoDuLE

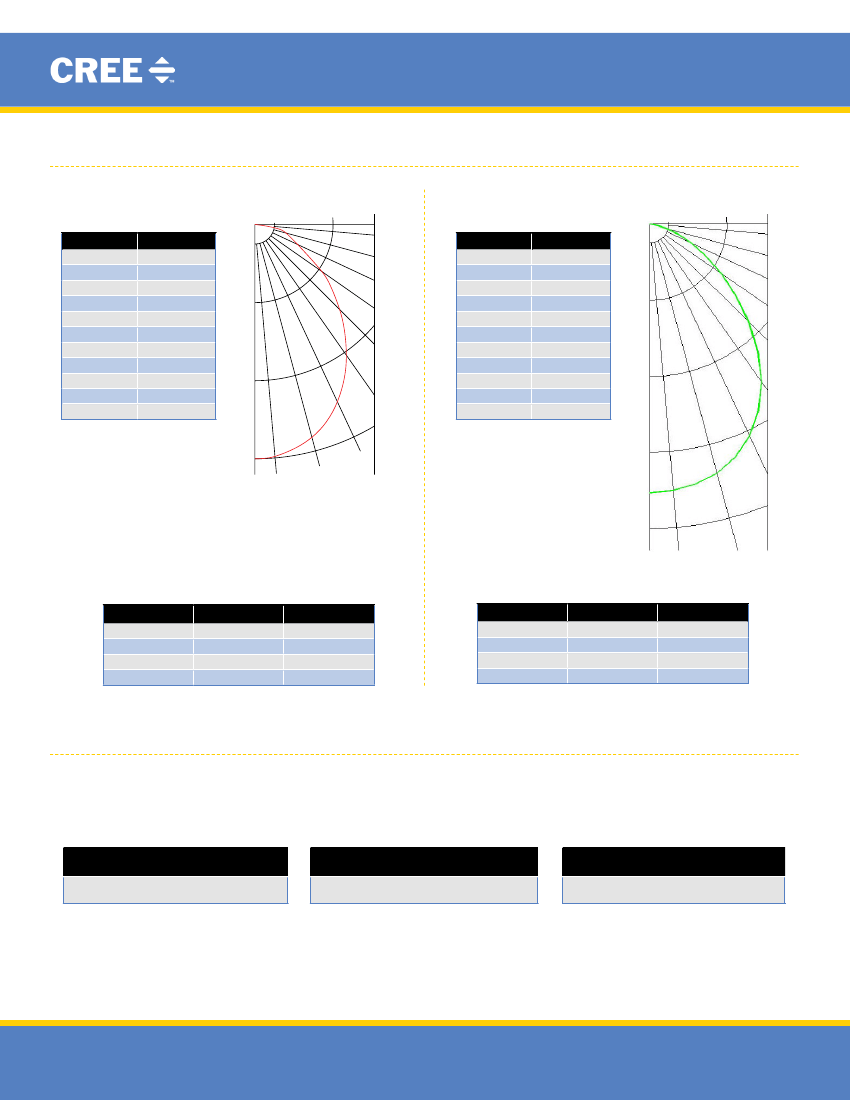

PhotoMEtRy
650 Lumens TrueWhite
®
intensity
(Candlepower)
angle
0°
5°
15°
25°
35°
45°
55°
65°
75°
85°
90°
Mean CP
300
298
282
250
204
153
104
60
41
2
0
750 Lumens
90
intensity
(Candlepower)
angle
0°
5°
15°
Mean CP
352
350
338
306
252
181
113
60
22
2
0
90
100
45
200
25°
35°
45°
55°
65°
75°
85°
90°
100
200
45
300
0
300
400
0
Zonal Lumens
Zone
0-30°
0-40°
0-60°
0-90°
Lumens
222
350
562
650
%
34
54
86
100
Zone
0-30°
0-40°
0-60°
0-90°
Zonal Lumens
Lumens
269
425
668
757
%
34
54
86
100
thERMaL ManagEMEnt guiDELinEs
The Cree LMR2 LeD module is designed to perform in a variety of environments. To achieve lifetime and performance estimates, and to
maintain the warranty, the final luminaire design cannot allow the module case temperature (Tc) point shown on page one to exceed the
maximum of the ranges shown below when the fixture is at thermal equilibrium. Follow the mechanical and thermal design guidelines
listed in the Cree
LMR2 LeD Module Design Guide
to ensure proper thermal management.proper thermal management.
operating temperature (at tc point)
650 Lumens TrueWhite
0-70 °C
operating temperature (at tc point)
750 Lumens
0-75 °C
optional heat sink order Code
LMR020-HS02-0000-0000001
Copyright © 2011-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and TrueWhite
®
are registered trademarks and the Cree logo and the Cree
TrueWhite Technology logo are trademarks of Cree, Inc. ENERGY STAR
®
is a registered trademark of the U.S. Environmental Protection Agency. UL
®
and the UR logo are registered trademarks of UL LLC. Other
trademarks, product, and company names are the property of their respective owners and do not imply specific product and/or vendor endorsement, sponsorship or association.
3
