556-1903-314F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 556-1903-314F

556-1903-314F: DescriptionLED Panel Mount Indicators Flat Orange 12 VDC 95mA 3000fL Clear; CategoryLED optoelectronic/LED photoelectric; File Size103KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

556-1903-314F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	556-1903-314F	-	-	View	Buy Now

556-1903-314F Overview

LED Panel Mount Indicators Flat Orange 12 VDC 95mA 3000fL Clear

556-1903-314F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	UL RECOGNIZED
color	ORANGE
Maximum forward current	0.095 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1

Preview

Download Datasheet

View All

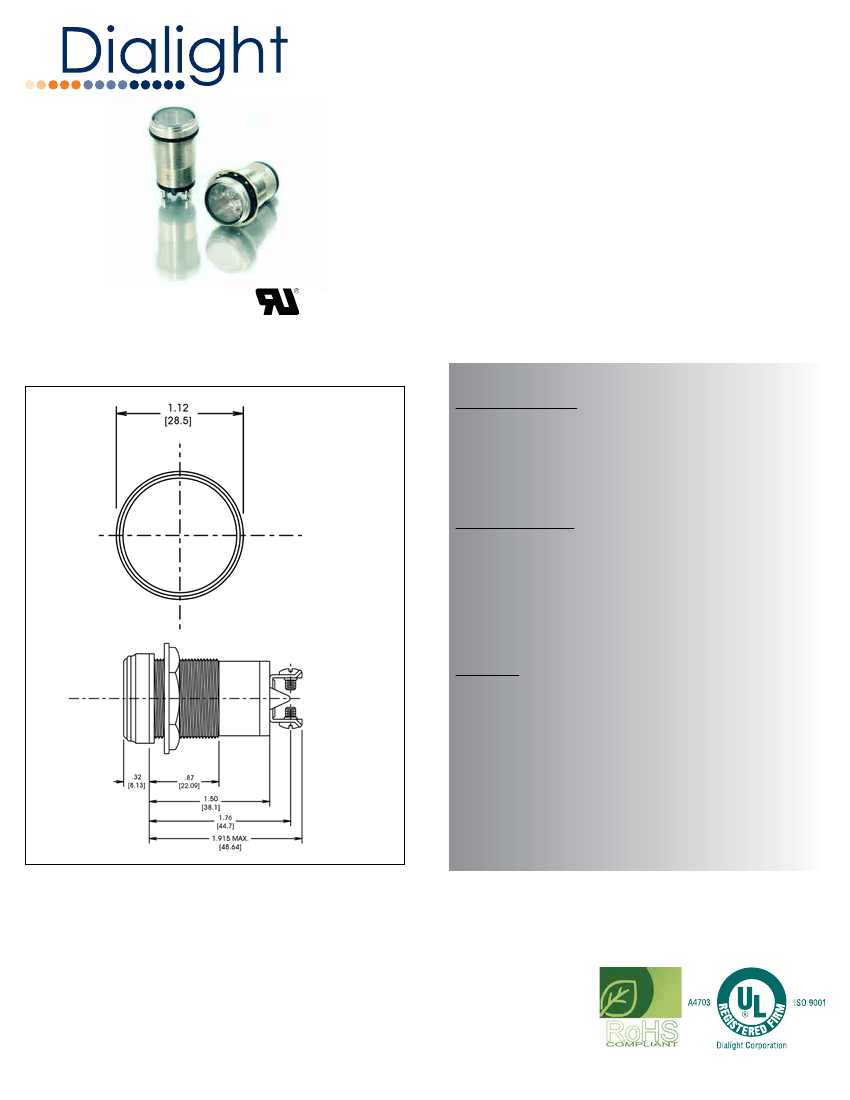

556 Series

Day Light Viewable

Panel Mount Indicators

Application:

The 556 Series LED Panel Mount Indicators incorporate both InGaN

and AlInGaP technologies to offer maximum light output. This is a

highly durable package, designed to withstand outdoor applica-

tions susceptible to rain, dust and sunlight.

• Instrument panels

• Safety applications

• UL 508 panel applications

• Agricultural controls

• Power Generators

• Environmental Monitoring Equipment

• Ground support vehicles

• Pump system controlers

• Transportation - rail, bus, airline

• Lane control

• Display lighting

...and many more!

Mechanical Information

Mounting Hole Size:

Max Panel Thickness:

Mounting Torque:

Electrical specifications

Operating Voltage:

Operating Temp:

Storage Temp:

Electrical connection

Construction

Housing:

Lens Material:

Terminals:

Lock washer:

Nut:

Nickel Plated Brass

Clear UV Stabilized Polycarbonate (UL 94V-0)

Brass – Hot solder dip per Mil-F-14072D,

M258, Type II

Phosphor Bronze – White Nickel Plated

Brass – White Nickel Plated

12 to 125VDC and 125, 230VAC

-30°C to +85°C

-40°C to +100°C

6-32 Screw Terminals

1” (25.4 mm)

.600” (15.24 mm)

40 in-lbs torque

Polarity marking near positive supply terminal

Dimensions in inches [mm]

•

UL1598

•

NEMA 4x IP66

•

RoHS Compliant

•

IK07

Certifications & Ratings

Features and Benefits

•

Daylight viewable – Clear lens to prevent phantom light effect

•

Tamperproof / Designed for high durability

•

Long life, lasting up to 100k hours

•

Uniform illumination - multi-LED construction

•

Low profile flat lens: Non-tinted, non-diffused

•

Available in red, yellow, green, blue, orange, and cyan

www.dialight.com

•

Dialight HQ (P) 732-919-3119

556-1903-314F Related Products

	556-1903-314F	556-1609-314F	BLU1206A-4220-BB50	BLU1206ER-1003-AB15Q	BLU1206ER-1012-CB15W	556-1706-314F	556-1905-314F	556-1508-314F	556-1707-314F	556-1904-314F
Description	LED Panel Mount Indicators Flat Orange 12 VDC 95mA 3000fL Clear	LED Panel Mount Indicators Flat Green 230 VAC 7mA 1800fL Clear	Fixed Resistor, Thin Film, 0.25W, 422ohm, 150V, 0.1% +/-Tol, 50ppm/Cel, 1206,	Fixed Resistor, Thin Film, 0.25W, 100000ohm, 150V, 0.05% +/-Tol, 15ppm/Cel, 1206	Fixed Resistor, Thin Film, 0.25W, 10100ohm, 150V, 0.25% +/-Tol, 15ppm/Cel, 1206		LED Panel Mount Indicators Flat Orange 125 VAC 10.5mA 500fL Clear	LED Panel Mount Indicators Flat Red 37.5 VDC 20mA 2600fL Clear		LED Panel Mount Indicators Flat Orange 24 VDC 46mA 1200fL Clear
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	85 °C	85 °C	155 °C	155 °C	155 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Is it Rohs certified?	conform to	conform to	-	incompatible	conform to	conform to	conform to	conform to	conform to	conform to
Other features	UL RECOGNIZED	UL RECOGNIZED	-	-	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
color	ORANGE	GREEN	-	-	-	YELLOW	ORANGE	RED	YELLOW	ORANGE
Maximum forward current	0.095 A	0.007 A	-	-	-	0.02 A	0.0105 A	0.02 A	0.01 A	0.046 A
Number of functions	1	1	-	-	-	1	1	1	1	1
Minimum operating temperature	-30 °C	-30 °C	-55 °C	-	-	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	-	-	-	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER
Base Number Matches	1	1	-	-	-	1	1	1	1	1
