585-2211: DescriptionLED Replacement Lamps - Based LEDs WEDGE BASED LED UL; CategoryLED optoelectronic/LED photoelectric; File Size501KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

585-2211 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	585-2211	-	-	View	Buy Now

585-2211 Overview

LED Replacement Lamps - Based LEDs WEDGE BASED LED UL

585-2211 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
color	RED
color@wavelength	Red
Configuration	COMPLEX
Display height	5.9 mm
Maximum forward current	0.05 A
JESD-609 code	e0
Number of functions	1
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER
total height	17.8 mm
peak wavelength	660 nm
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

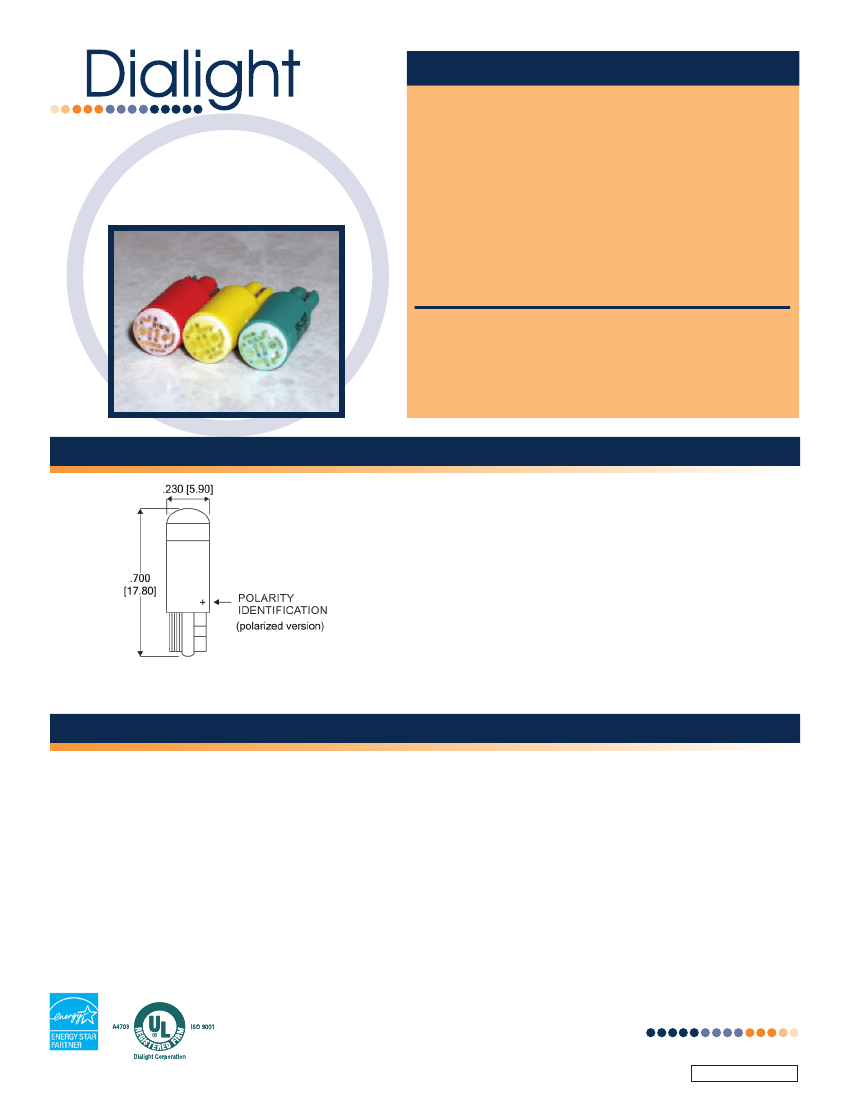

FEATURES / BENEFITS

Low current draw - uses up to 90% less energy

than incandescent

Long Life - up to 100K hours

True non-polarized configurations available

No heat generated

Mounts directly into industry standard socket

Available in 6, 14, and 28 VDC

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

585 Series

Multi-Chip BASED LED

T 1 3/4 Wedge

SPECIFICATIONS

Operating Voltages: 6, 14, and 28 VDC

Polarized and non-polarized available

Operating temperature: -20°C to +60°C

Storage temperature: -30

+100

Replaces incandescent lamp numbers: 16, 17,

18, 37, 70, 73, 74, 79, 84, 85 and 86.*

* See Dialight’s Incandescent lamp/based LED

cross reference for a complete listing.

Measurements are typical

Dimensions are inches [mm]

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the

LED. If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,

which will optimize the light output.

If you are unfamiliar with the polarity of the circuit, Dialight recommends using the non-polarized version.

Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEL585WG001_B

585-2211 Related Products

	585-2211	585-2411	585-2415	585-2423	585-2311	585-2213	585-2221	585-2325	585-2313	585-2215
Description	LED Replacement Lamps - Based LEDs WEDGE BASED LED UL		LED Replacement Lamps - Based LEDs YELLOW 28V MULTI-CHIP	LED Replacement Lamps - Based LEDs YELLOW 14V MULTI-CHIP		LED Replacement Lamps - Based LEDs WEDGE BASED LED	LED Replacement Lamps - Based LEDs WEDGE BASE ULT-RED 6		LED Replacement Lamps - Based LEDs WEDGE BASED LED GR	LED Replacement Lamps - Based LEDs WEDGE BASED LED UL
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	RED	YELLOW	YELLOW	YELLOW	GREEN	RED	RED	GREEN	GREEN	RED
Configuration	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Display height	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm	5.9 mm
Maximum forward current	0.05 A	0.044 A	0.015 A	0.03 A	0.046 A	0.03 A	0.075 A	0.015 A	0.028 A	0.016 A
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
color@wavelength	Red	Yellow	Yellow	-	Green	Red	Red	-	Green	Red
total height	17.8 mm	17.8 mm	17.8 mm	-	17.8 mm	17.8 mm	17.8 mm	-	17.8 mm	17.8 mm
peak wavelength	660 nm	585 nm	585 nm	-	565 nm	660 nm	660 nm	-	565 nm	660 nm
