MAGIC LED
PLW16A120 Series
Advance Product Information
Description

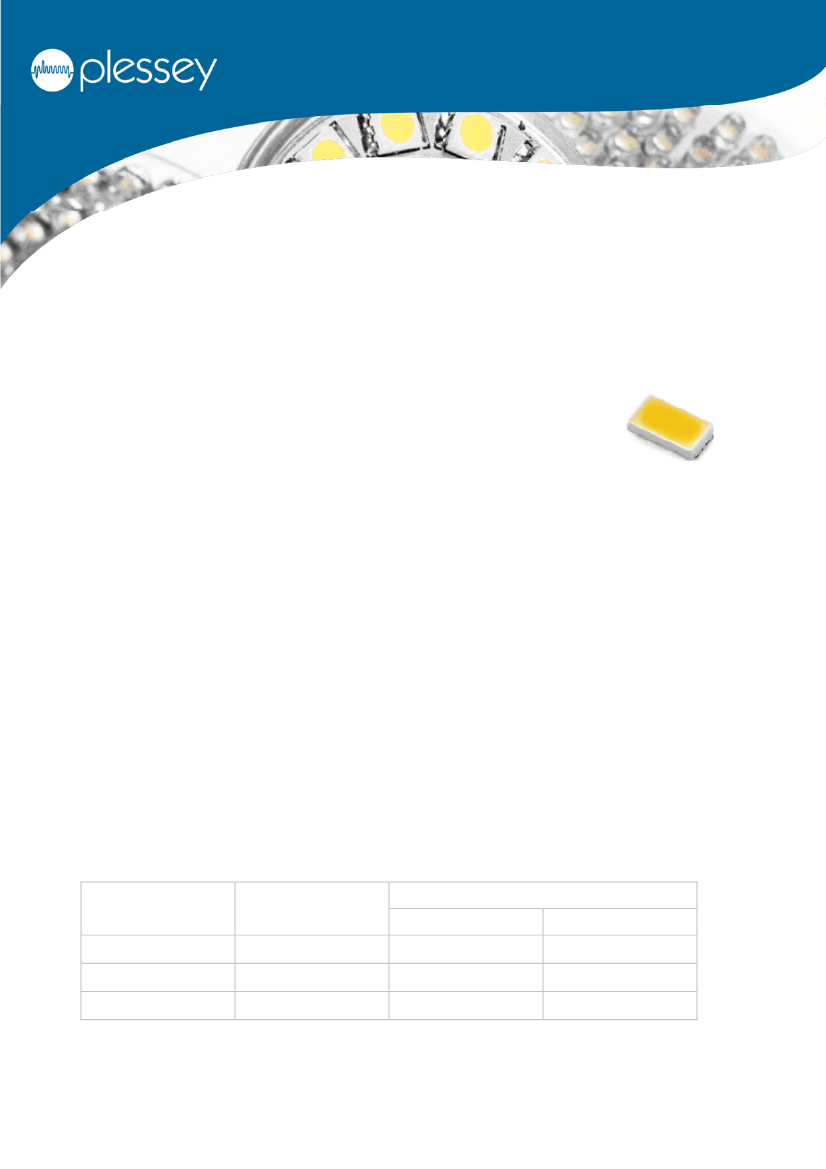

Plessey PLW16A120 SMT LEDs are designed for linear tubes and other general
lighting applications. The light is emitted close to a Lambertian distribution and hence
this SMT package is naturally suitable for backlighting panels and symbols. The LEDs
are packed in reels containing 2000 pieces; every reel will be shipped in single
intensity and colour bin, to provide close uniformity.
Features
•
•
•
•
5630 footprint
High reliability PLCC packaging
Diffused pale yellow resin
120 degree wide viewing angle
Applications
•
•
•
•
•
Decoration Lighting
Instrument panel backlighting
Illumination symbols
General lighting
Signage lighting
Variant
Colour
CCT
Min.
Max.
PLW16A120WW
PLW16A120NW
PLW16A120CW
Warm White
Neutral White
Cool White
2870K
3710K
5310K
3220K
4260K
6020K
Datasheet No 293030 Issue 2
1 of 10
02/07/2014
PLW16A120 Series
| Advance Product Information
Absolute Maximum Ratings
T
amb
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Peak Pulse Forward Current
[1]
Reverse Voltage
Storage Temperature
Junction Temperature
[1]
Symbol
I
F
I
FP
V
R
T
stg
T
j
Minimum
-
-
-
-40
-40
Maximum
150
180
5
+105
+105
Unit
mA
mA
V
o
o
C
C
Pulse width
≤10ms,
duty cycle
≤10%
Electro-optical Characteristics
T
amb
= +25
o
C unless otherwise stated
Parameter
Forward Voltage
Reverse Current
Correlated Colour
Tempertaure
Colour Rendering Index
Symbol
V
F
I
R
CCT
Condition
I
F
= 100mA
V
R
= 5V
I
F
= 100mA
I
F
= 100mA
I
F
= 100mA
3000K
Luminous Flux
I
F
= 100mA
4000K
I
F
= 100mA
5700K
Thermal Resistance
Half-Intensity Angle
R
thj-sp
2Θ
1/2
I
F
= 100mA
-
-
Min.
2.8
-
2870
3710
5310
CRI
80
28
30
30
18
120
-
-
K/W
deg
lm
Typ.
3.2
-
Max.
3.4
10
3220
4260
6020
85
%
K
Unit
V
µA
Recommended Operating Conditions
In typical applications, for optimum LED performance
Parameter
Operating Ambient Temperature
Symbol
T
opr
Minimum
-40
Maximum
+85
Unit
o
C
Datasheet No 293030 Issue 2
Page 2 of
10
02/07/2014
PLW16A120 Series
| Advance Product Information
Intensity Bin Groups
I
F
= 100mA, T
amb
= +25
o
C, unless otherwise stated
Group
Luminous flux
Min.
[1]
(lm)
Max.
C2
C3
[1]
24
28
28
34
Tolerance ±11%
Forward Voltage Bin Groups
I
F
= 100mA, T
amb
= +25
o
C, unless otherwise stated
Group
V
F
[1]
(V)
Min.
Max.
V1
V2
V3
V4
V5
V6
[1]
2.8
2.9
3.0
3.1
3.2
3.3
2.9
3.0
3.1
3.2
3.3
3.4
Tolerance ±0.05V
Datasheet No 293030 Issue 2
Page 3 of
10
02/07/2014
PLW16A120 Series
| Advance Product Information
Relative Spectral Emission

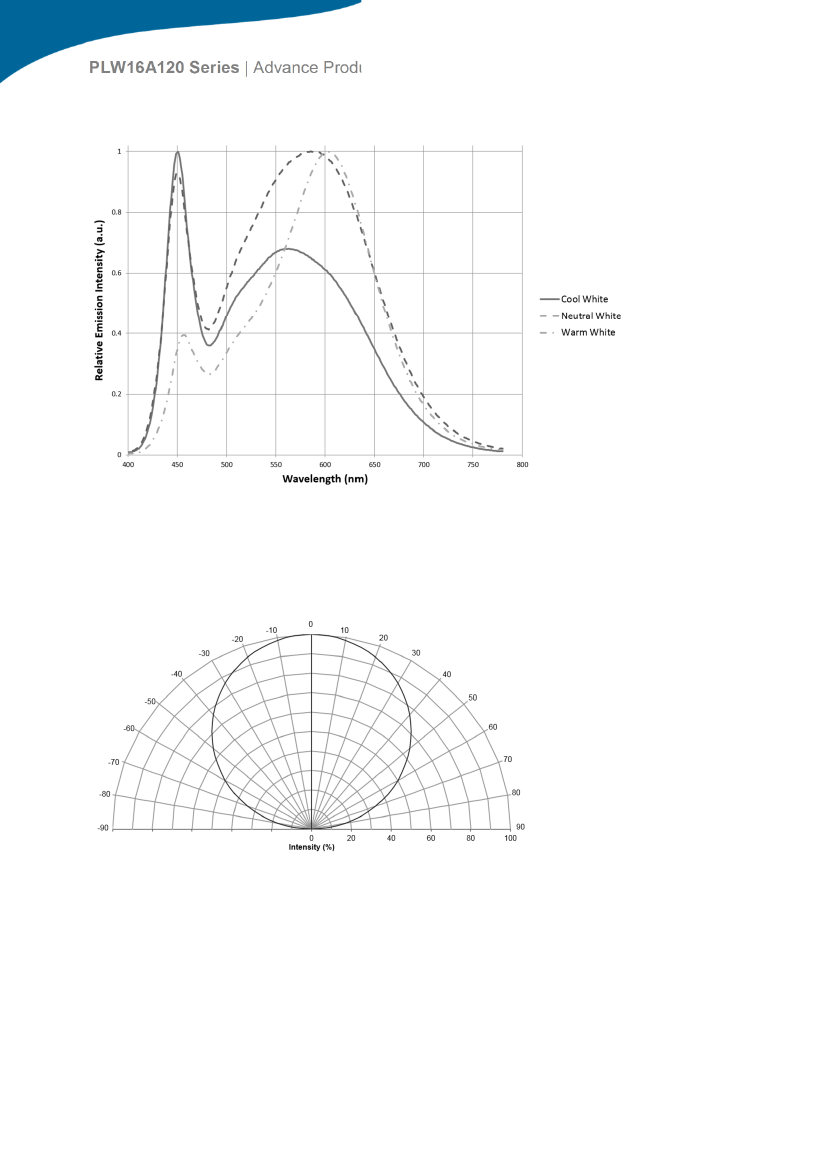

Figure 1. Normalised spectral power distribution (Neutral white)
Note: The relative spectral emission correspond to a random LED sample
Angular Light Distribution
Figure 2. Angular distribution pattern of emitted light
Datasheet No 293030 Issue 2
Page 4 of
10
02/07/2014
PLW16A120 Series
| Advance Product Information
Colour Chromaticity – Warm White
Warm White 2870-3220 K
3SW
x
y
x
3NE
y
x
3NW
y
x
3SE
y
0.4345
0.4223
0.4147
0.4260
0.4033
0.3990
0.3814
0.3854
0.4562
0.4431
0.4345
0.4468
0.4260
0.4213
0.4033
0.4077
0.4431
0.4299
0.4223
0.4345
0.4213
0.4165
0.3990
0.4033
0.4468
0.4345
0.4260
0.4373
0.4077
0.4033
0.3854
0.3893
Chromaticity co-ordinate tolerance for each bin is ±0.01

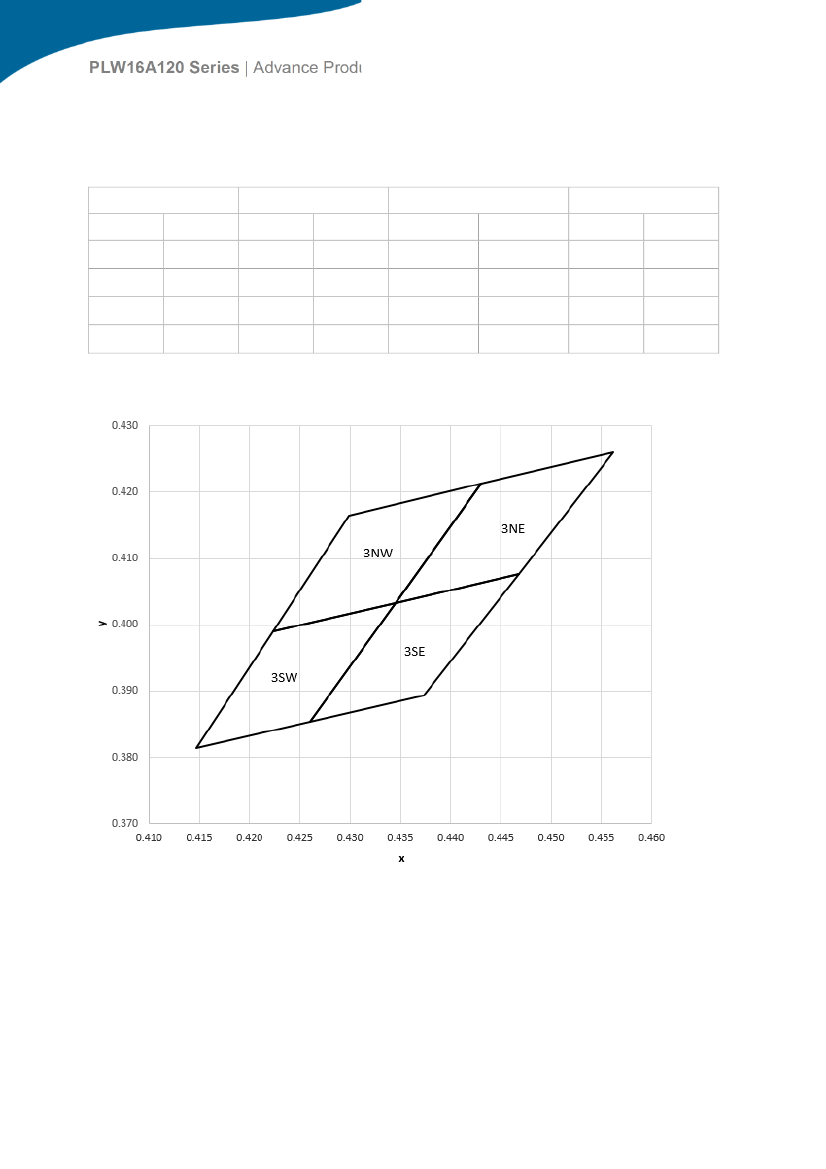

Figure 3A. CIE1931 chromaticity diagram (ANSI standard C78.377-2008)
Datasheet No 293030 Issue 2
Page 5 of
10
02/07/2014
