H
G
F
E
D
C
B
A
4
14.72
Front view
4
Isometric view
PU foam tape 0.4mm
3
LED position
3
21
.6
2
O-beam direction
O-90 rotated 90 degrees
Top view
Bottom view
2
INDEX DESCRIPTION MATERIAL COLOUR
1
2
Tolerances if not otherwise shown
According to DIN ISO 2768-1
Linear measures:
up to 30mm class M, otherwise class C
According to DIN ISO 2768-2
Form and position: class L
Lens
Holder
PMMA
PC
black
Ledil Oy
Salorankatu 10
FIN 24240 SALO
Finland
THIRD ANGLE PROJECTION:
DRAWING TITLE
This drawing is the property
of LEDiL Oy. It may not be
reproduced, copied or
communicated without a written
agreement with LEDiL Oy.
1
Datasheet_LXP-Series
SIZE
PART NUMBER
1
A3
SCALE
1:1 WEIGHT
-
-
SHEET
1/1
H
G
B
A

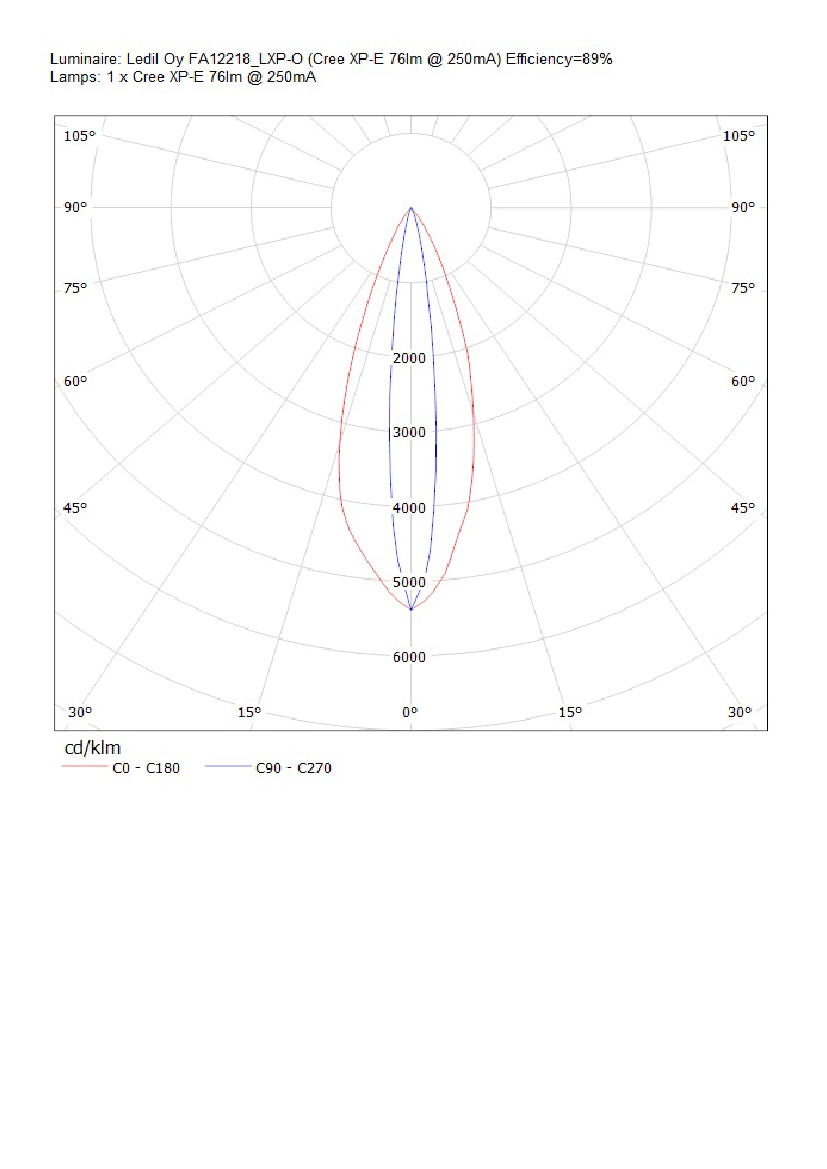

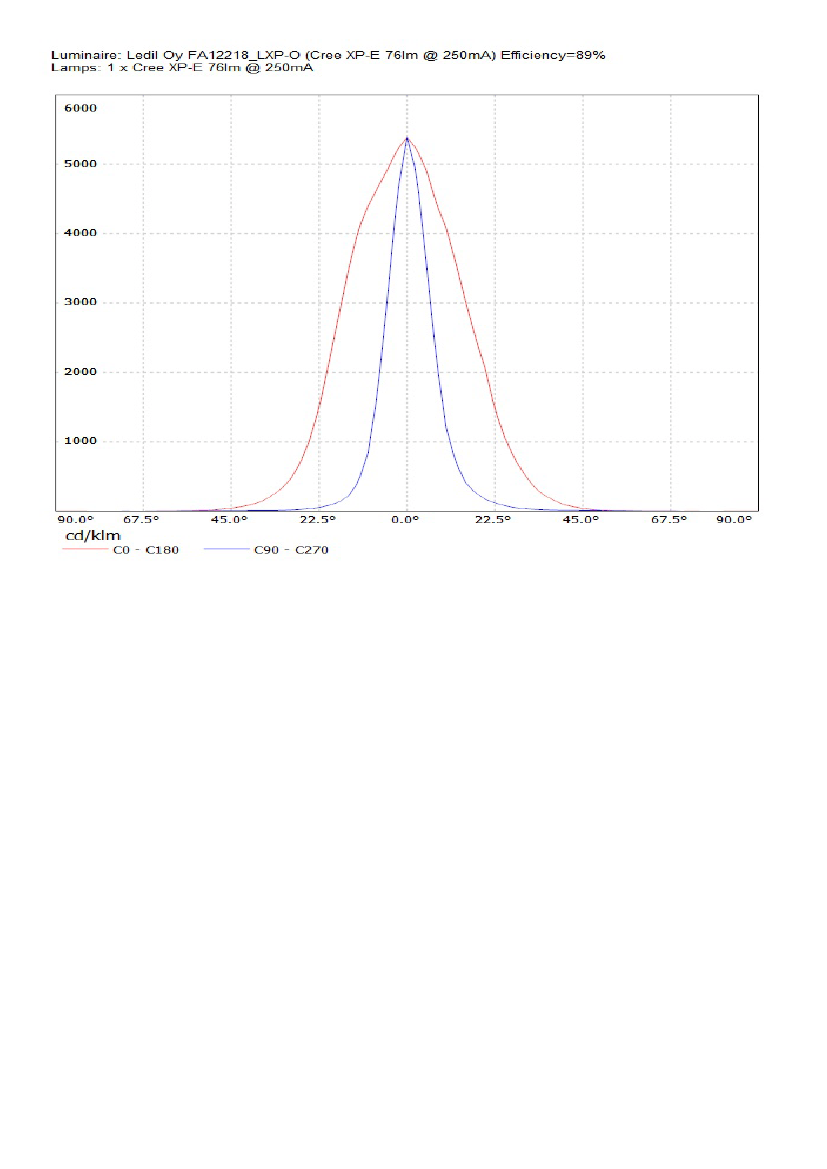

NOTE: The typical divergence will be changed by different color, chip size and chip position
tolerance. The typical total divergence is the full angle measured where the luminous intensity
is half of the peak value.
