586-2402-105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 586-2402-105

586-2402-105: DescriptionLED Replacement Lamps - Based LEDs BASEDLED T3 1/4 GREE; CategoryLED optoelectronic/LED photoelectric; File Size105KB，3 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

586-2402-105 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	586-2402-105	-	-	View	Buy Now

586-2402-105 Overview

LED Replacement Lamps - Based LEDs BASEDLED T3 1/4 GREE

586-2402-105 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
JESD-609 code	e0
Lens type	TINTED
Nominal luminous intensity	1650.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	15.65 mm
method of packing	BULK
peak wavelength	525 nm
shape	ROUND
size	10.7 mm
surface mount	NO
T code	T-3 1/4
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

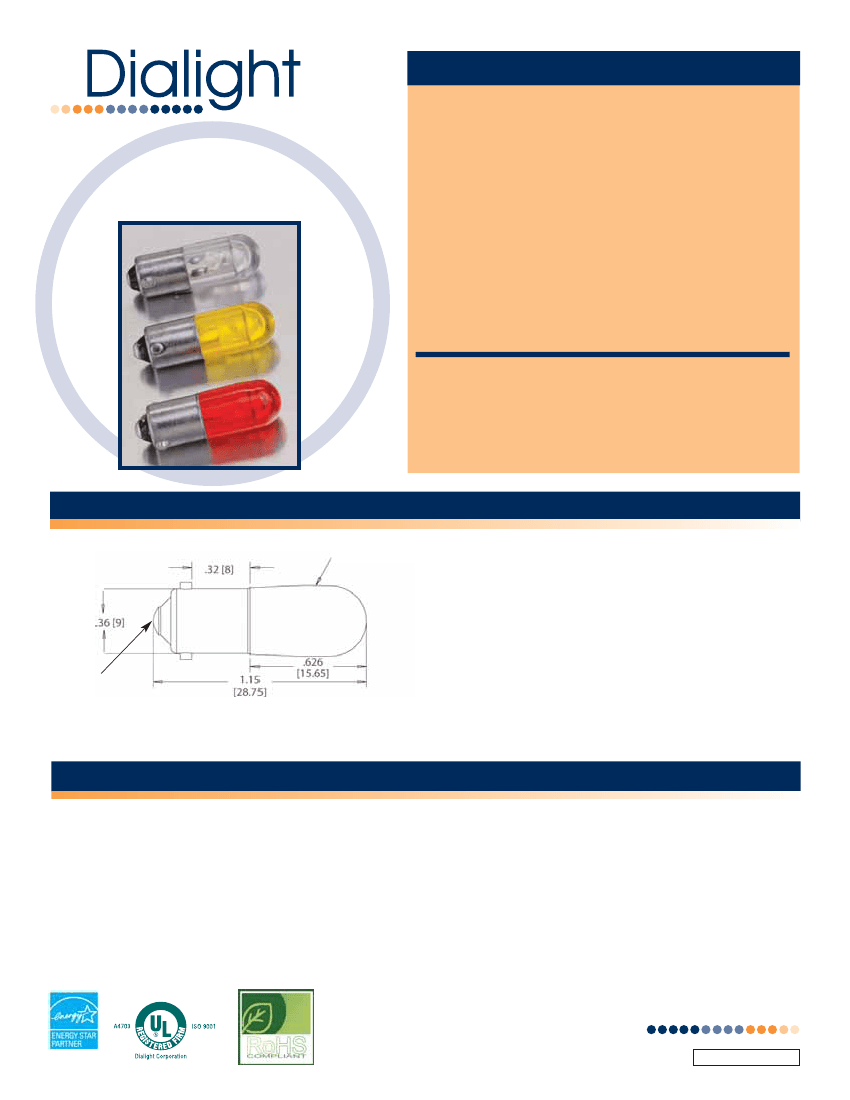

FEATURES / BENEFITS

RoHS Compliant

586 Series

Single Chip BASED LED

T 3 1/4 MINIATURE BAYONET (BA9s)

High brightness with low current draw - uses up to 90%

less energy than incandescent

Long life - up to 100K hours

True non-polarized configurations available

No heat generated

Mounts directly into industry-standard socket

Resistant to shock and vibration

AlInGaP and InGaN technology

Super bright single chip design

Colors include red, green, yellow, blue and white

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

SPECIFICATIONS

Operating Voltages: 6, 14, and 28 VDC

Tinted Color Lens

Polarized and non-polarized available

Operating temperature: -30

to +

Storage temperature: -40

to +

100

Replaces incandescent lamp numbers: 44,

47, 313, 755,1815, 1819, 1847, 1850, 1866,

1889, 1891, 1892, 1893 and 1895*

Center Contact

(+) Plus for

Polarized Versions

Measurements are typical

Dimensions are inches [mm]

See Dialight’s Incandescent lamp/based LED

cross reference for a complete listing.

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the

LED. If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,

which will optimize the light output.

If you are unfamiliar with the the polarity of the circuit, Dialight recommends using a non-polarized version.

Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL586E001_F
