T-1 (3mm) SOLID STATE LAMP
PRELIMINARY SPEC
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: WP7104VW1C
White
Features
Low power consumption.
Popular T-1 diameter package.
General purpose leads.
Reliable and rugged.
Long life - solid state reliability.
Available on tape and reel.
RoHS compliant.
Description
The source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

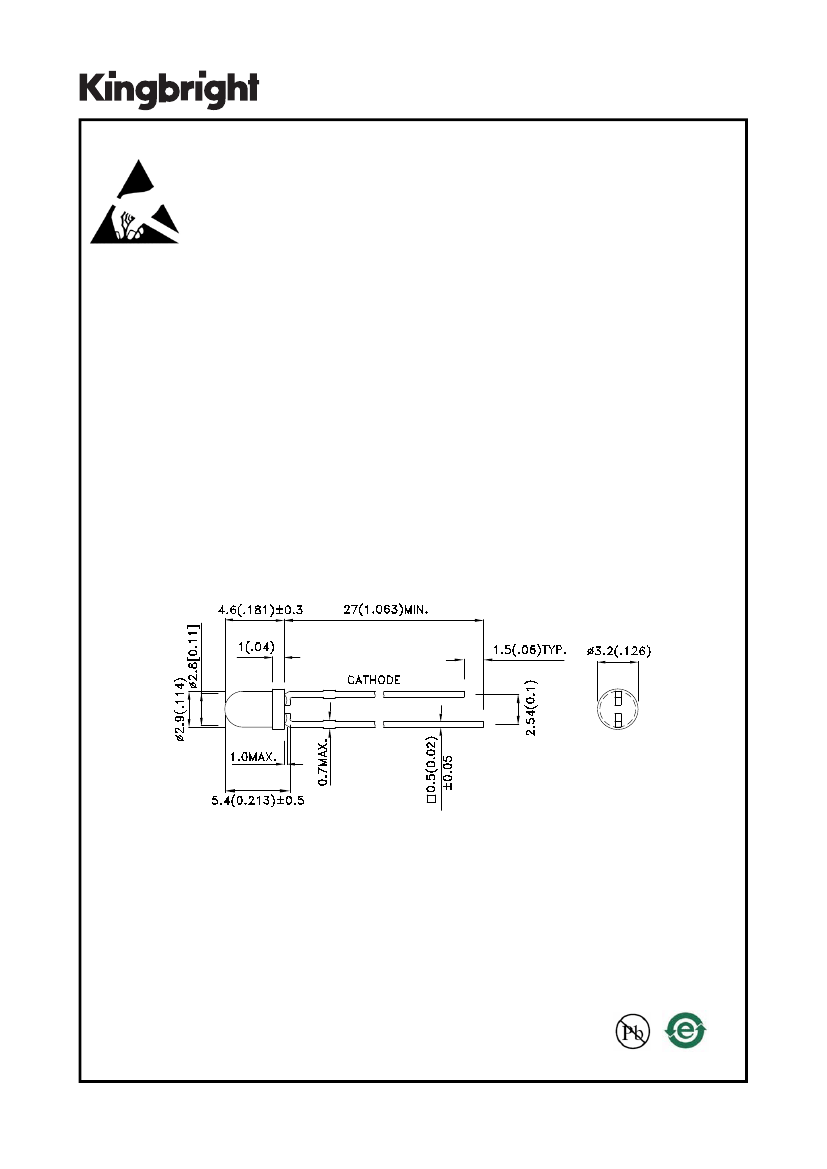

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAJ9211
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: OCT/17/2009
DRAWN: J.Yu
PAGE: 1 OF 5
ERP: 1101026724
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
WP7104VW1C
White (InGaN)
WATER CLEAR
2800
Typ.
5100
Viewing
Angle [1]
2θ1/2
34
°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Electrical / Optical Characteristics at TA=25°C
Symbol
V
F
[1]
I
R
X [2]
Chromaticity Coordinates
Y [2]
C
Capacitance
White
White
0.31
100
pF
V
F
=0V;f=1MHz
Parameter
Forward Voltage
Reverse Current
Device
White
White
0.31
Typ.
3.3
Max.
4.0
10
Units
V
uA
Test Conditions
I
F
=20mA
V
R
= 5V
Notes:
1. Forward Voltage: +/-0.1V.
2. Measurement tolerance of the chromaticity coordinates is ±0.02.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
White
120
30
100
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAJ9211
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: OCT/17/2009
DRAWN: J.Yu
PAGE: 2 OF 5

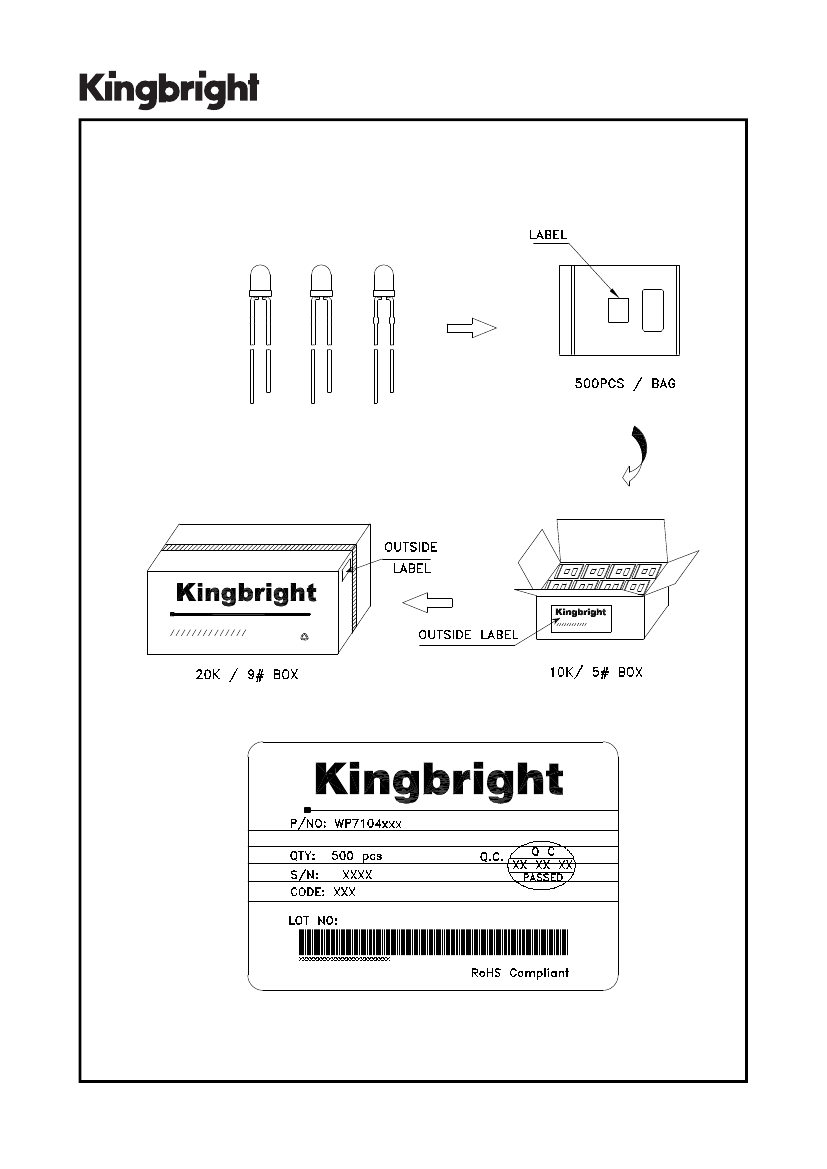

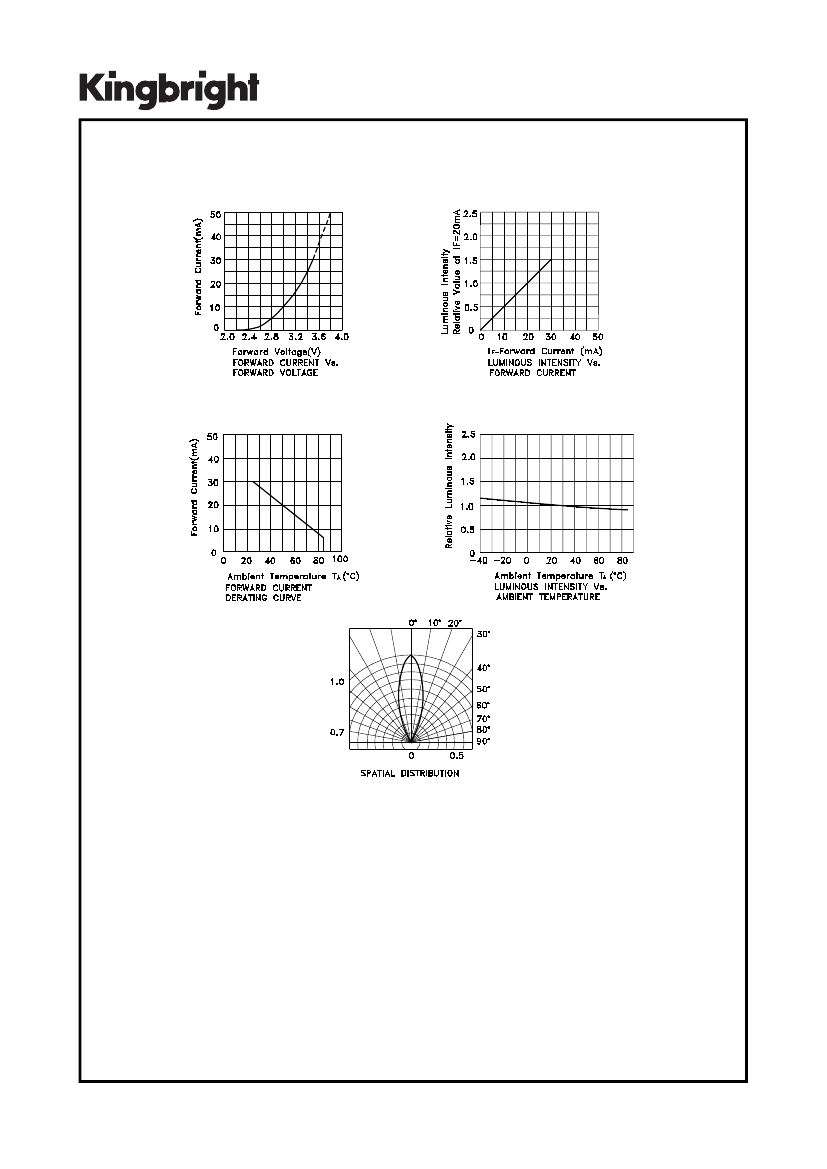

ERP: 1101026724
