SML-010JT datasheet, PDF - EEWORLD Datasheet

SML-010JT: DescriptionChip LEDs with reflectors; CategoryLED optoelectronic/LED photoelectric; File Size198KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SML-010JT Overview

Chip LEDs with reflectors

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Is Samacsys	N
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
JESD-609 code	e4
Lens type	TRANSPARENCE CLEAR
Nominal luminous intensity	40 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.3 mm
method of packing	BULK
peak wavelength	660 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	3 mm
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal pitch	2.3 mm
Base Number Matches	1

LED lamps

Chip LEDs with reflectors

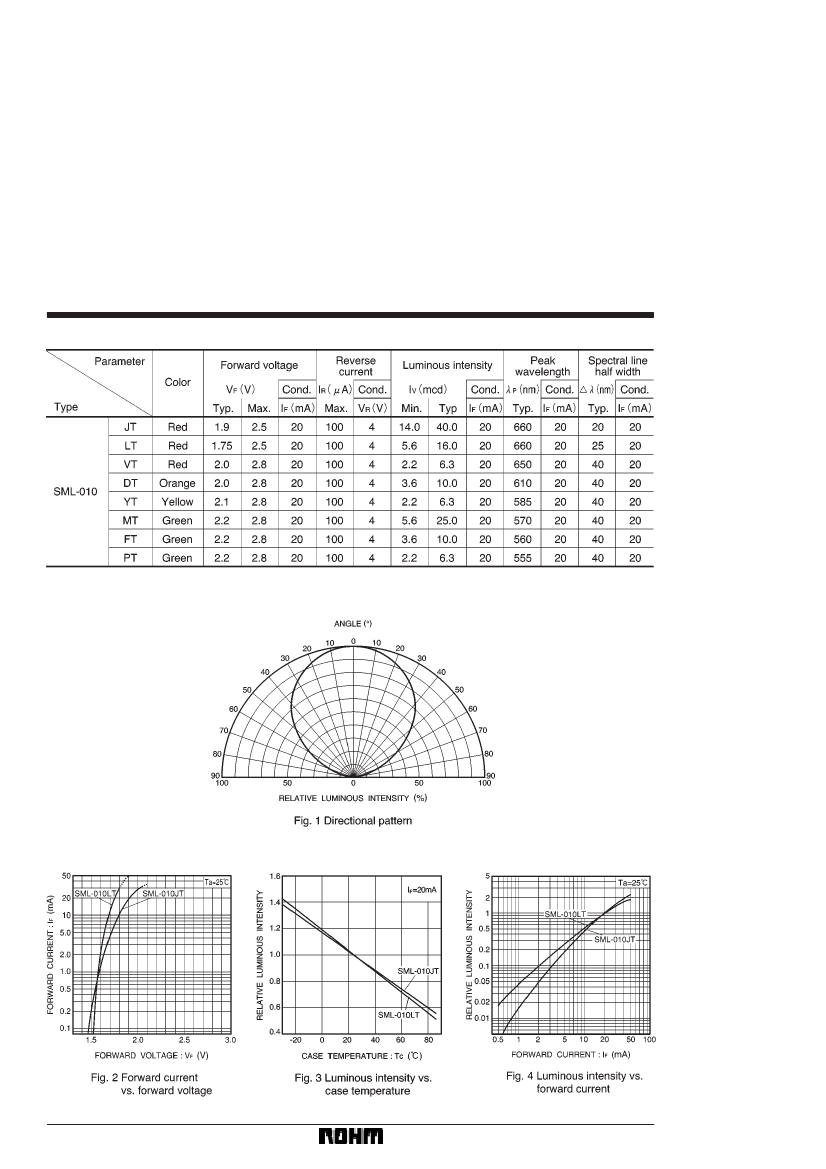

SML-010 Series

The SML-010 series are high lumi-

nance chip LEDs with reflectors. The

compact and leadless design of these

LEDs allows for high mounting density.

FExternal

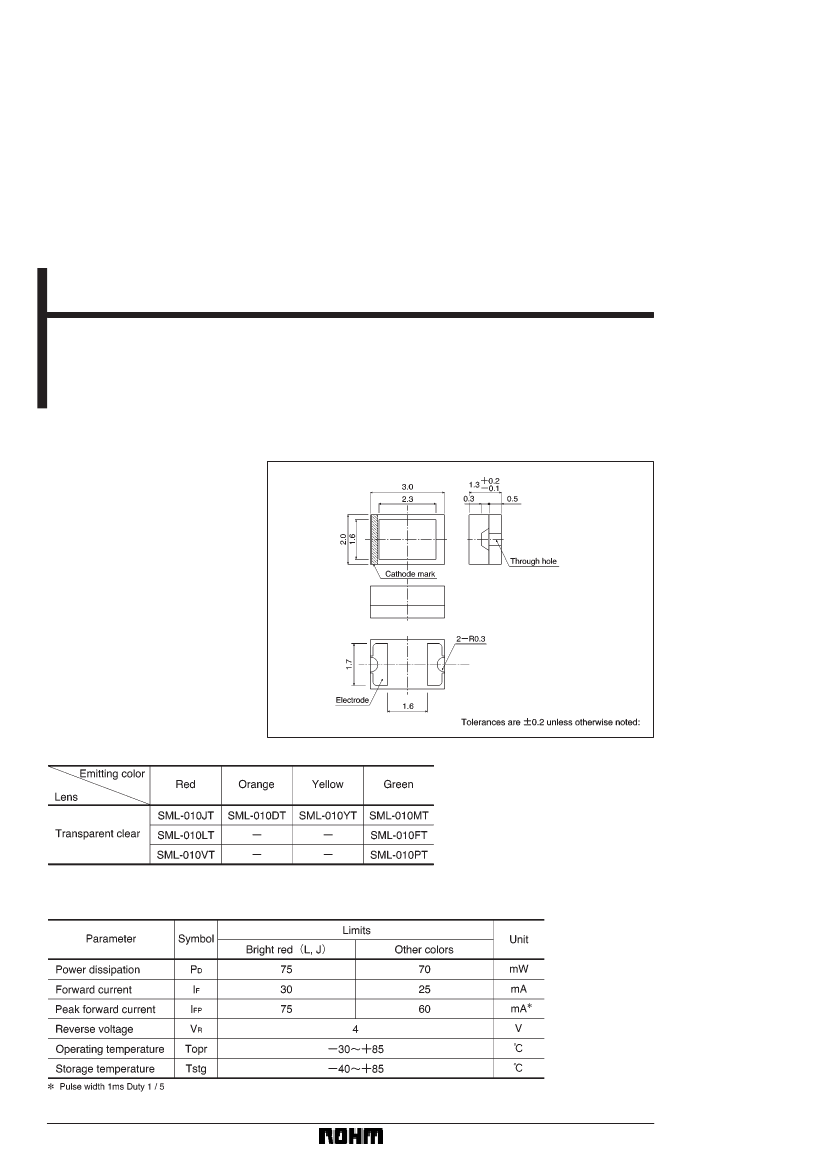

dimensions (Units: mm)

FFeatures

1) Reflectors are used to achieve a

high luminance.

2) Four colors: red, orange, yellow and

green.

3) Rectangular and leadless (3

2

mm).

4) Can be mounted by automatic

mounting.

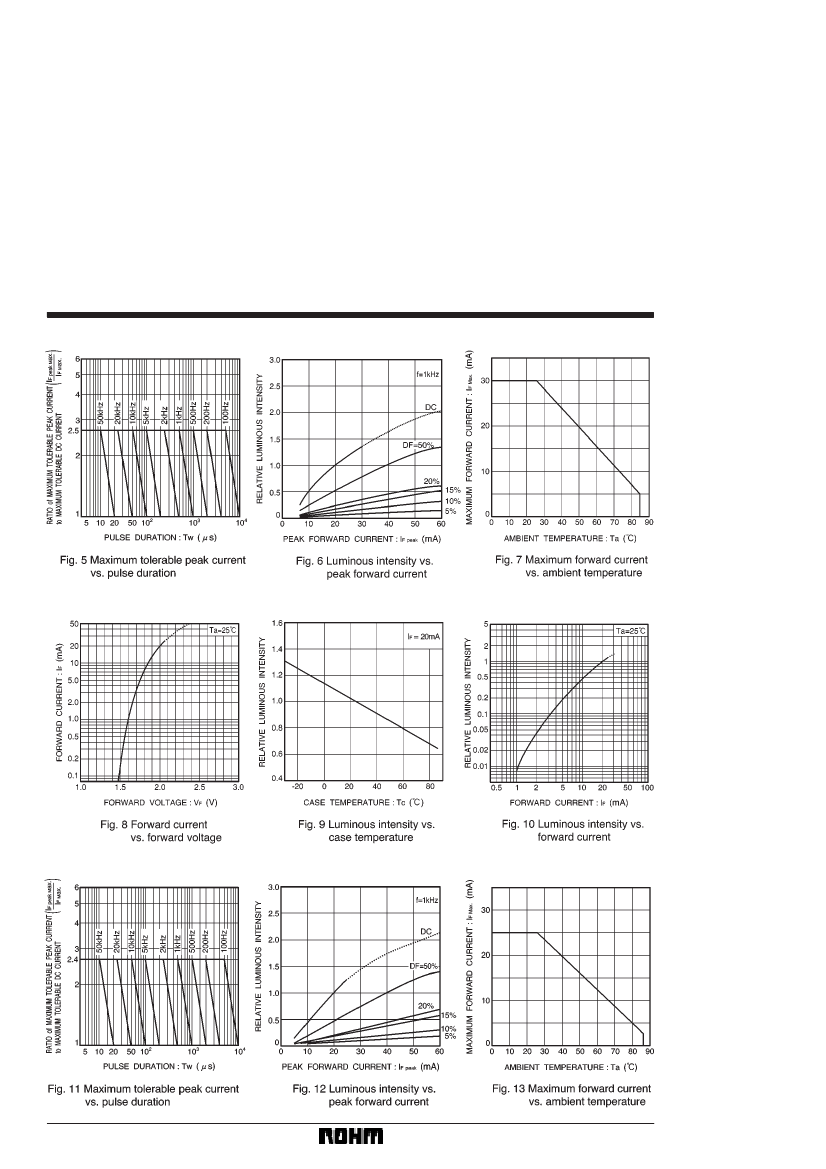

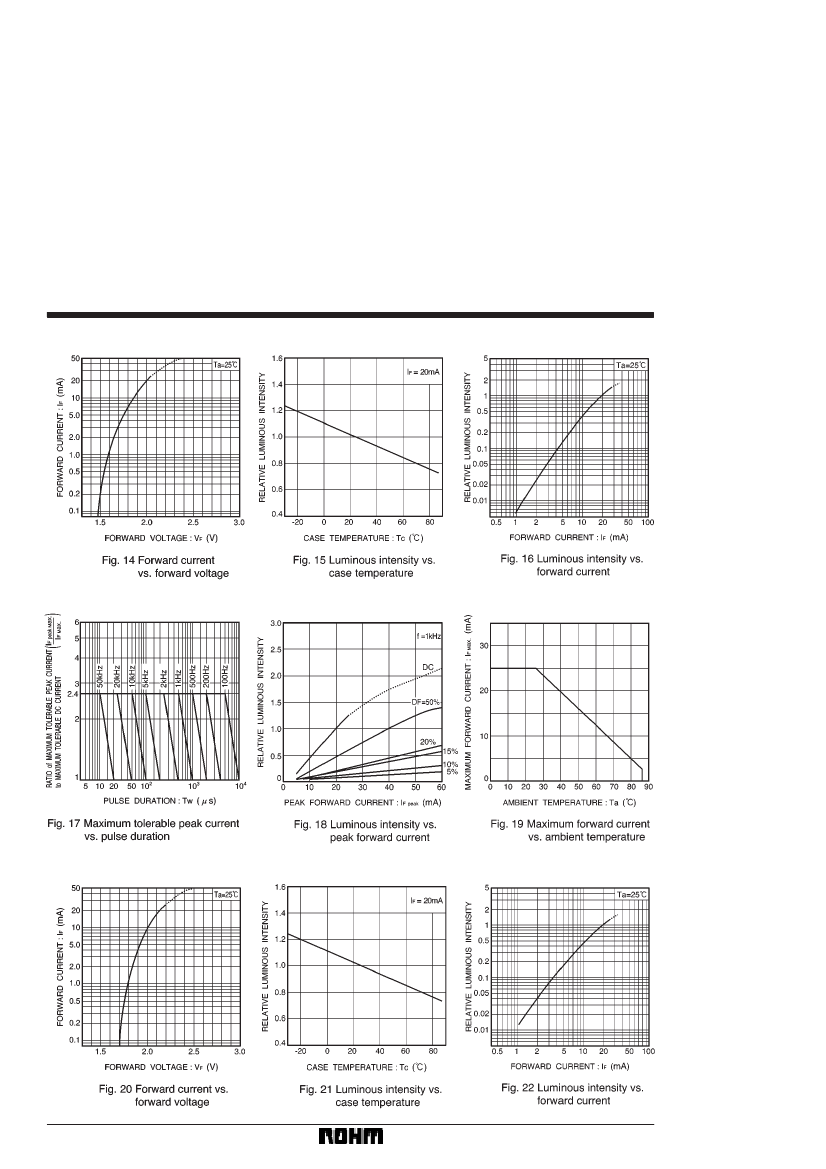

FSelection

guide

FAbsolute

maximum ratings (Ta = 25_C)

27

	SML-010JT	SML-010FT
Description	Chip LEDs with reflectors	Chip LEDs with reflectors
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknow	compli
Is Samacsys	N	N
color	RED	GREEN
color@wavelength	Red	Red
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.025 A
Maximum forward voltage	2.5 V	2.5 V
JESD-609 code	e4	e4
Lens type	TRANSPARENCE CLEAR	TRANSPARENT CLEAR
Nominal luminous intensity	40 mcd	10.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	80 °C	85 °C
Minimum operating temperature	-25 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.3 mm	1.3 mm
method of packing	BULK	BULK
peak wavelength	660 nm	560 nm
Maximum reverse voltage	4 V	4 V
shape	RECTANGULAR	RECTANGULAR
size	3 mm	2.3 mm
surface mount	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie
Terminal pitch	2.3 mm	2.3 mm
Base Number Matches	1	1
