Product Specification
2.125 Gb/s RoHS Compliant Short Wavelength 2x5 SFF Transceiver
FTLF8519F2xTL
PRODUCT FEATURES
Up to 2.125 Gb/s bi-directional
data links
Standard 2x5 pin SFF footprint
(MSA compliant)
850nm Oxide VCSEL laser
transmitter
Duplex LC connector
RoHS compliant and Lead Free
Up to 500m on 50/125μm MMF,
300m on 62.5/125μm MMF
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation <750mW
Industrial operating temperature
range: -40°C to 85°C

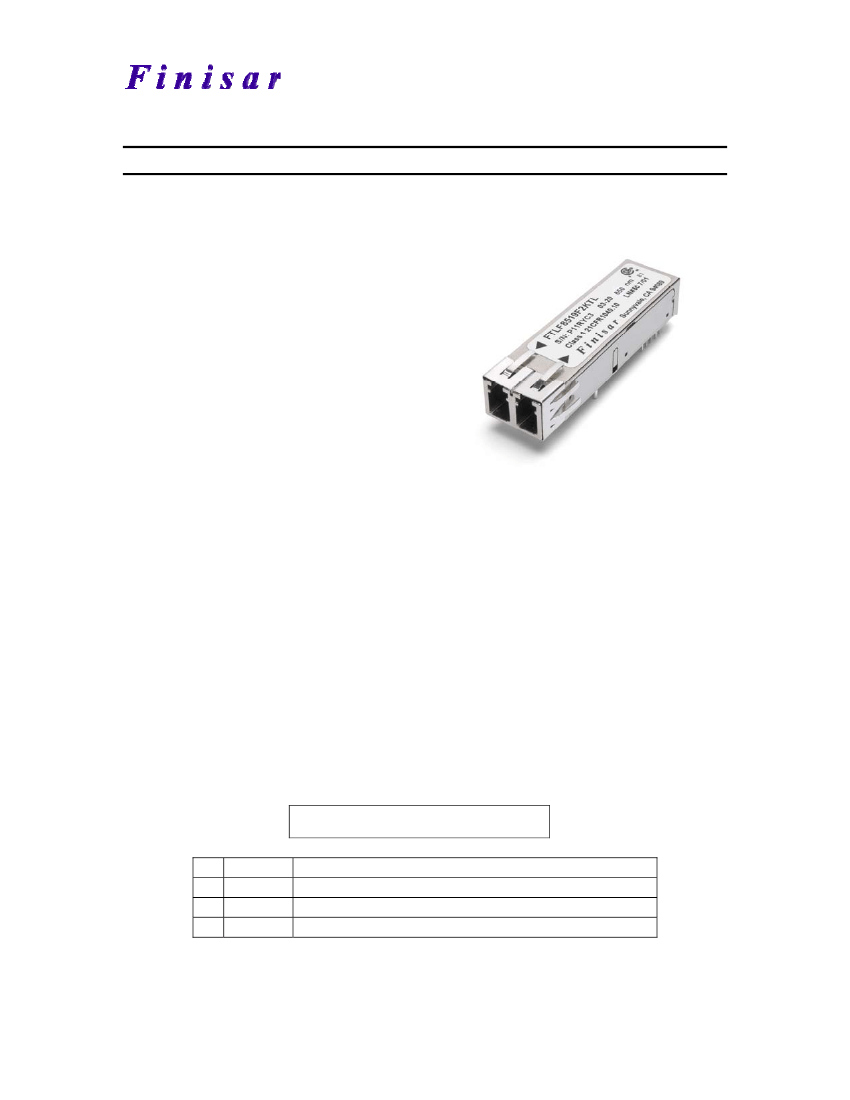

Finisar’s FTLF8519F2xTL Small Form Factor (SFF) transceivers comply with the 2x5
standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA)
1
.
They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std
802.3
2
and Fibre Channel FC- PI-2 Rev. 7.0
3
. They are RoHS compliant and lead-free
per Directive 2002/95/EC
4
and Finisar Application Note AN-2038.
PRODUCT SELECTION
APPLICATIONS
1.25 Gb/s 1000Base-SX Ethernet
Dual Rate 1.063/2.125 Gb/s Fibre
Channel
FTLF8519F2xTL
x
G
M
K
H
2 Grounding Pins, Short EMI shield
6 Grounding Pins, Short EMI shield
2 Grounding Pins, Long EMI shield
6 Grounding Pins, Long EMI shield
©
Finisar Corporation May 11, 2006 Rev C
Page 1
FTLF8519F2xTL 2x5 Pin SFF Product Specification – May 2006
I.
Pin Descriptions
Pin
MS
Symbol
MS
Name/Description
Mounting Studs are for mechanical attachment and are connected
to chassis ground.
Chassis ground is internally isolated from
circuit grounds.
Connection to user’s ground plane is
recommended.
Receiver Ground (Common with Transmitter Ground)
Receiver Power Supply
Signal Detect. Logic 1 indicates normal operation.
Receiver Inverted DATA out. AC Coupled
Receiver Non-inverted DATA out. AC Coupled
Transmitter Power Supply
Transmitter Ground (Common with Receiver Ground)
Transmitter Disable
Transmitter Non-Inverted DATA in. AC Coupled.
Transmitter Inverted DATA in. AC Coupled
MS
Logic Family
NA
1
2
3
4
5
6
7
8
9
10
V
EER
V
CCR
SD
RD-
RD+
V
CCT
V
EET
T
DIS
TD+
TD-
NA
NA
LVTTL
See Rx spec.
See Rx spec.
NA
NA
LVTTL
See Tx spec.
See Tx spec.
10 9 8 7 6
TOP VIEW
12345
MS
II.
Absolute Maximum Ratings
Symbol
Vcc
T
S
T
OP
RH
Min
-0.5
-40
-40
0
Typ
Max
4.0
85
85
85
260/10
260/10
Unit
V
°C
°C
%
°C/s
°C/s
Ref.
Parameter
Maximum Supply Voltage
Storage Temperature
Case Operating Temperature
Relative Humidity
Hand Lead Soldering Temperature/Time
Wave Lead Soldering Temperature/Time
Notes:
1. Non condensing.
1
©
Finisar Corporation May 11, 2006 Rev C
Page 2
FTLF8519F2xTL 2x5 Pin SFF Product Specification – May 2006
III.
Electrical Characteristics
(T
OP
= -40 to 85
°C,
V
CC
= 3.0 to 3.6 Volts)
Parameter
Supply Voltage
Supply Current
Transmitter
Input differential impedance
Single ended data input swing
Transmit Disable Voltage
Transmit Enable Voltage
Receiver
Output differential impedance
Single ended data output swing
Data output rise/fall time
Mask Margin
Signal Detect Normal
Signal Detect Fault
Power Supply Rejection
Deterministic Jitter Contribution (p-p)
Total Jitter Contribution (p-p)
Symbol
Vcc
Icc
R
in
Vin,pp
V
D
V
EN
Rout
Vout,pp
t
r
/ t
f
SD
normal
SD
fault
PSR
RX
Δ
DJ
RX
Δ
TJ
Min
3.0
Typ
180
100
Max
3.6
240
Unit
V
mA
Ω
mV
V
V
Ω
mV
ps
V
V
mVpp
ps
ps
Ref.
1
250
2
Vee
100
350
45%
Vee
1200
Vcc
Vee+ 0.8
2
1
3
4
5
5
6
7
8
250
550
170
Vcc
HOST
Vee+0.5
100
51.7
123
Notes:
1. AC coupled.
2. Or open circuit.
3. Into 100
Ω
differential termination. Data pattern is PRBS 2
7
-1.
4. 20 – 80 %.
5. Signal detect is LVTTL. Logic 1 indicates normal operation; logic 0 indicates no signal detected.
6. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5
MHz up to specified value applied through the power supply filtering network shown on page 23 of the
Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA), September 14, 2000
5
.
7. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ
and
Δ
DJ.
8. If measured with TJ-free data input signal. In actual application, output TJ will be given by:
TJ
OUT
=
DJ
IN
+ Δ
DJ
+
(
TJ
IN
−
DJ
IN
)
+
(
Δ
TJ
− Δ
DJ
)
2
2
©
Finisar Corporation May 11, 2006 Rev C
Page 3
FTLF8519F2xTL 2x5 Pin SFF Product Specification – May 2006
IV.
Optical Characteristics
(T
OP
= -40 to 85
°C,
V
CC
= 3.0 to 3.6 Volts)
Parameter
Symbol
P
OUT
λ
σ
OMA
Tx
t
r
/ t
f
RIN
TX
Δ
DJ
TX
Δ
TJ
ER
Min
-9
830
196
150
-120
56.5
119
Typ
Max
-2.5
860
0.85
Unit
dBm
nm
nm
μW
ps
dB/Hz
ps
ps
dB
Ref.
1
Transmitter
Output Opt. Pwr: 50 or 62.5 MMF
Optical Wavelength
Spectral Width
Optical Modulation Amplitude
Optical Rise/Fall Time
Relative Intensity Noise
Deterministic Jitter Contribution (p-p)
Total Jitter Contribution (p-p)
Extinction Ratio @ 1.25 Gb/s
Mask Margin
Receiver
Receiver Sensitivity = 1.0625 Gb/s
Receiver Sensitivity = 2.125 Gb/s
Receiver Sensitivity = 1.25 Gb/s
Stressed RX sens. = 1.0625 Gb/s
Stressed RX sens. = 2.125 Gb/s
Stressed RX sens = 1.25 Gb/s
Average Received Power
Receiver Elec. 3 dB cutoff freq.
Optical Center Wavelength
Return Loss
Signal Detect Normal
Signal Detect Fault
Signal Detect Hysteresis
2
3
4
5
20
9
45%
Rx
SENS
Rx
SENS
Rx
SENS
0.055
0.096
Rx
MAX
λ
C
RL
SD
normal
SD
fault
770
12
-30
0.5
-20
-18
-20
-13.5
0
1500
860
-20
dBm
dBm
dBm
mW
mW
dBm
dBm
MHz
nm
dB
dBm
dBm
dB
6
6
7
8
8
9
Notes:
1. Class 1 Laser Safety per FDA/CDRH, EN (IEC) 60825 laser safety regulations.
2. Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average
power.
3. Unfiltered, 20-80%. Complies with FC 1x and 2x eye mask when filtered.
4. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ
and
Δ
DJ.
5. If measured with TJ-free data input signal. In actual application, output TJ will be given by:
TJ
OUT
=
DJ
IN
+ Δ
DJ
+
6.
7.
8.
9.
(
TJ
IN
−
DJ
IN
)
+
(
Δ
TJ
− Δ
DJ
)
2
2
Specifications are for 50 micro-meter or 62.5 micro-meter fiber
As measured with 9dB extinction ratio.
Measured with conformance signals defined in FC-PI-2 Rev. 7.0 specifications.
Measured with conformance signals defined in IEEE 802.3 specifications.
©
Finisar Corporation May 11, 2006 Rev C
Page 4
FTLF8519F2xTL 2x5 Pin SFF Product Specification – May 2006
V. General Specifications
Parameter
Data Rate
Symbol
BR
Min
Typ
1.062,
1.25
2.125
Max
Units
Gb/sec
Ref.
1
Bit Error Rate
Fiber Length on 50/125μm MMF
Fiber Length on 62.5/125μm MMF
BER
L
L
10
-12
500
300
300
150
m
m
4
2
3
2
3
Notes:
1. Gigabit Ethernet and 1x, 2x Fibre Channel compatible per IEEE 802.3 and FC-PI-2 Rev. 7.0
respectively. Typical maximum data rate extends to 2.5Gb/s.
2. At 1.0625 Gb/s Fibre Channel and 1.25 Gb/s Gigabit Ethernet data rates.
3. At 2.125 Gb/s Fibre Channel data rate.
4. At 1.0625, 1.25, and 2.125Gb/s with PRBS 2
7
-1.
VI.
Environmental Specifications
FTLF8519F2xTL SFF transceivers have an industrial operating temperature range from
-40°C to +85°C case temperature.
Parameter
Case Operating Temperature
Storage Temperature
Symbol
T
op
T
sto
Min
-40
-40
Typ
Max
85
85
Units
°C
°C
Ref.
Notes:
1. SFF transceivers may be water washed. However, the process must be followed by a baking step at
80°C for one hour, to ensure the drying of any water which may be trapped inside then shells of the
modules.
VII.
Regulatory Compliance
Finisar transceivers are Class 1 Laser Products and comply with US FDA regulations.
These products are certified by TÜV and CSA to meet the Class 1 eye safety
requirements of EN (IEC) 60825 and the electrical safety requirements of
EN (IEC) 60950. Copies of certificates are available at Finisar Corporation upon request.
©
Finisar Corporation May 11, 2006 Rev C
Page 5
