Double Digits High Brightness, LED Numeric Display
LBP-602 A / K2 Series
SIM-013STW1
Datasheet
LBP-602 A / K2 series are the numberical display units featuring ROHM’s in-house 4-element
(AlGaInP) high-brightness LED dies.Their luminous intensity is top class in the industry
while degradation is considerably slow, which helps to keep illumination vividness
almost unchanged and the image of sets high over a long period of time.
lFeatures
1) 14.3mm for letter height, two-lines LED numerical displays.
2) About 10 times more luminous intensity than the conventional
products by use of 4-element LED dies. (in case of orange color)
3) The same luminous intensity as the conventional products at their 1/10 of current,
which contributes lots to energy-saving of sets.
4) Light-leakage from segments probable with the small display packages is very rare.
5) Both anode common type and cathode common type are available in lineup for each color.

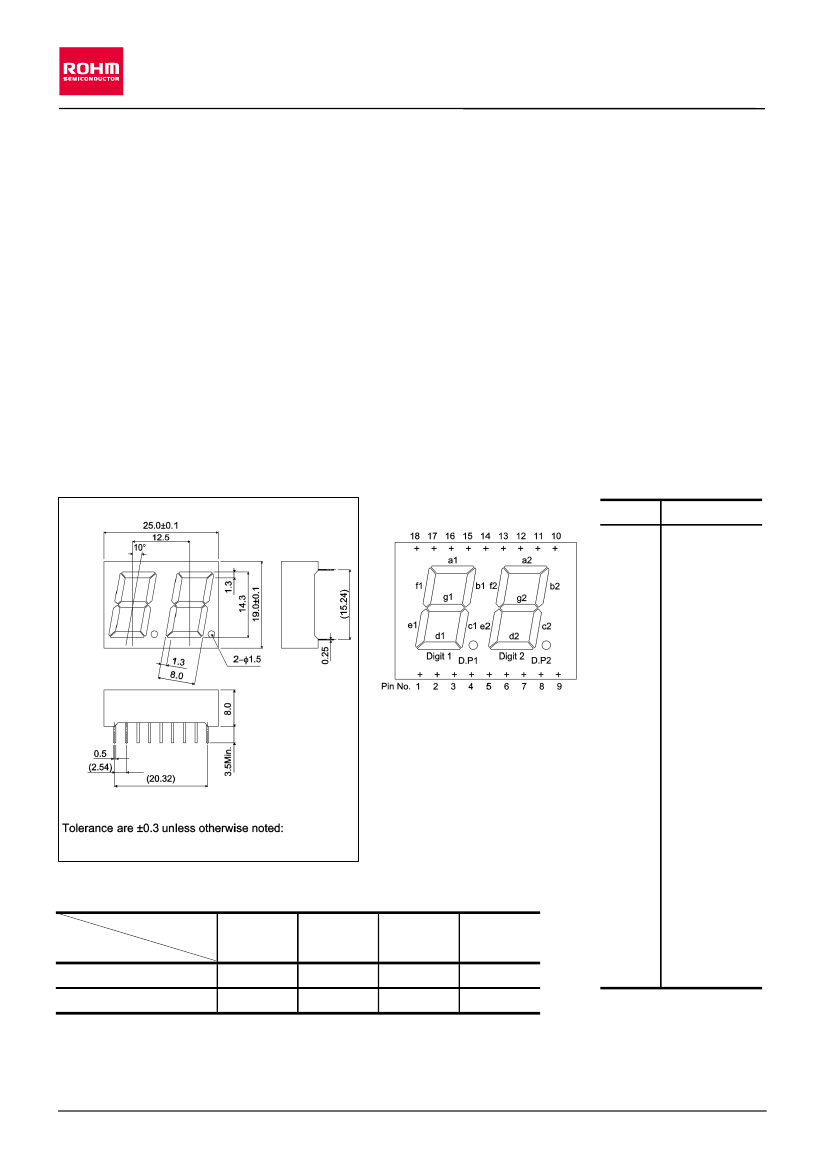

lDimensions
(Unit : mm)
lPin
assignments
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Function
Segment "e1"
Segment "d1"
Segment "c1"
D.P1
Segment "e2"
Segment "d2"
Segment "g2"
Segment "c2"
D.P2
Segment "b2"
Segment "a2"
Segment "f2"
Digit 2 Common
Digit 1 Common
lSelection
guide
Emitting color
Common
Anode
Cathode
Red
Orange
Yellow
Green
15
16
17
18
Segment "b1"
Segment "a1"
Segment "g1"
Segment "f1"
LBP-602VA2 LBP-602DA2 LBP-602YA2
LBP-602MA2
LBP-602VK2 LBP-602DK2 LBP-602YK2
LBP-602MK2
