556-1004-304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 556-1004-304

556-1004-304: CategoryLED optoelectronic/LED photoelectric; File Size501KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

556-1004-304 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	556-1004-304	-	-	View	Buy Now

556-1004-304 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
color	WHITE
Configuration	COMPLEX
Maximum forward current	0.032 A
JESD-609 code	e0
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	46.23 mm
method of packing	BULK
shape	ROUND
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

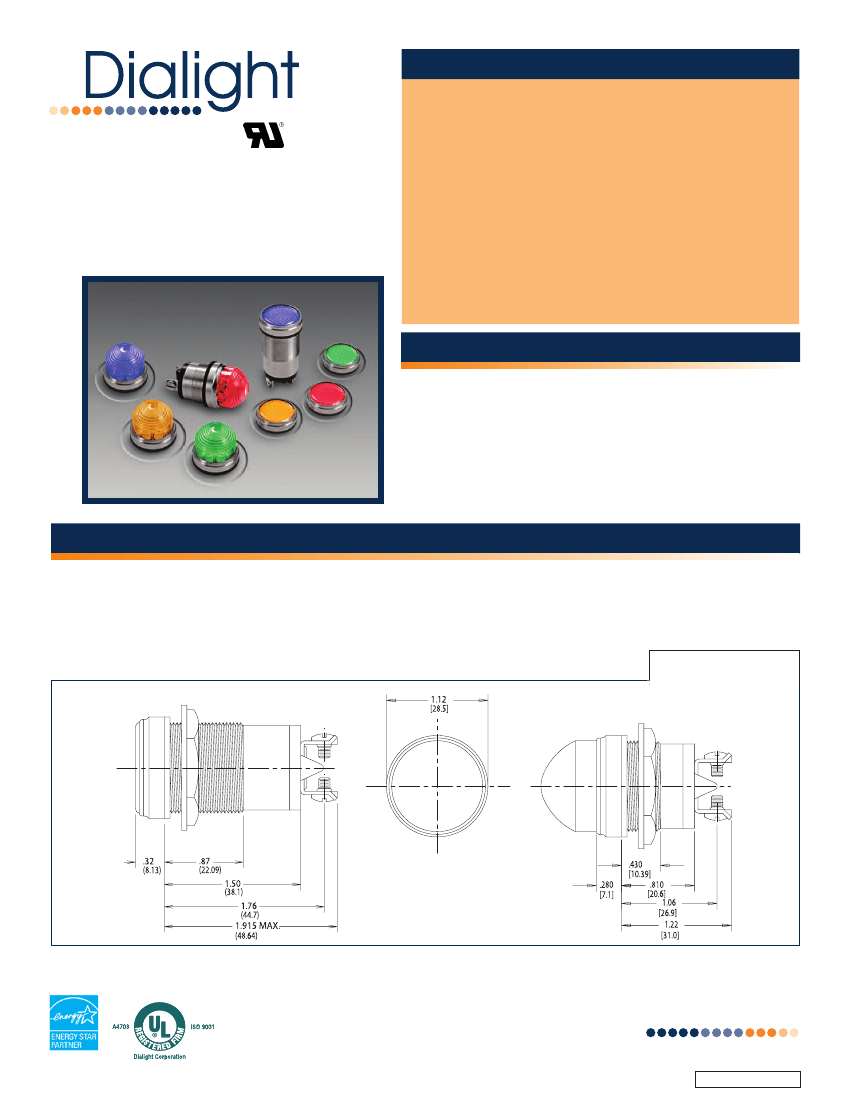

FEATURES / BENEFITS

Daylight viewable

556 Series

High Intensity LED

Panel Mount Indicators

for 1” Mounting Hole

Watertight - NEMA4X IP66

Safety standards - UL and NEMA

Tamperproof / Designed for high durability

Long life, lasting up to 100k hours

Uniform illumination - multi-LED construction

Lens options:

Low profile flat

Wide angle domed

APPLICATIONS

The 556 Series LED Panel Mount Indicators incorporate both InGaN

and AlInGaP technologies to offer higher intensities. This is a highly

durable package, designed to withstand outdoor applications

susceptible to rain, dust and sunlight.

• Instrument panels

• Lane control

• Safety applications

• Display lighting

• Vending, gaming

• Transportation - rail, bus, airline

... and many more!

SPECIFICATIONS

Available in red, yellow, green, blue, white, orange and cyan

Voltage range of 12 to 125 VDC, 125 and 230 VAC

Watertight seal from front of panel meets NEMA 4X IP66

Maximum Mounting Torque - 40 in./lb.

Housing material: Nickel plated brass

Lens material: Polycarbonate 94 - VO

FLAT LENS

UL recognized - File #E156890

Front mounting in 1” clearance hole

Operating temperature: -30

C to +85

Storage temperature: -40

C to +100

Dimensions in inches [mm]

All measurements are typical

Polarity marking indicated on housing

near positive supply terminal

DOMED LENS

Max. panel thickness:

Flat .600”

Dome .187”

Please see back of page for part numbers and additional specifications.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEL556X001_D
