Near Infrared Light Ring Series
OPA80 and OPA83 Series
Features
•
•
•
•
Designed for Near Infrared wavelength Cameras
Daylight Light sensor available
Variety of ring sizes
Surface Mount or Through Hole Emitters
Product Photo Here
Description:
The OPA80 through OPA83 series are designed to easily illuminate an area with infrared light for a variety of
uses including security cameras, spot lighting, etc..
The light ring can be purchased with an ambient light sensing device for minimal current drain during high
ambient light conditions. This is great for battery usage and for security cameras during daylight.
A choice of through hole and surface mount LED packages, near infrared wavelength and ring sizes are
available.
Custom mounting, electrical, cabling and connectors are available. Contact your local representative or
OPTEK for more information.
Applications include:
•
Security camera lighting
•
Spot lighting
•
Flash lighting
Ordering Information
OPA80 _
OPA81 _
OPA82 _
OPA83 _
5
5
5
5
_
_
_
_
Y
Vcc 12 Volts, Light Ring with Daylight Light Sensor
Vcc 12 Volts, Light Ring with NO Daylight Light Sensor
Vcc 5 Volts, Light Ring with Daylight Light Sensor
Vcc 5 Volts, Light Ring with NO Daylight Light Sensor
Z
Z =
Meets RoHS requirements
W 5
Type of Optical component Package =
W
Through Hole - 3 mm package
T3
Surface Mount -
SM
Y
=
Ring Size ID & OD
Qty of LEDs
12 Volt
5 Volt
A
Near IR 850 nm center wavelength
= 5
B
C
D
.625" ID & 1.25" OD
1.0" ID & 1.75" OD
1.25" ID & 2.0" OD
1.5" ID & 2.25" OD
12
18
18
24
10
16
16
20
Example:
OPA80T35CZ
12 VDC power,
Light Ring with Daylight Light Sensor,
Through Hole 3mm package,
IR - 850 nm center wavelength LED,
Ring Size = 1.25" ID & 2.0" OD with 18 LEDs
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue B.1 01/09
Page 1 of 4
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Near Infrared Light Ring Series
OPA80 and OPA83 Series
Absolute Maximum Ratings
(T
A
= 25° C unless otherwise noted)
Storage Temperature
Operating Temperature
Lead Soldering Temperature (1/16” (1.6mm) from case for 5 seconds with soldering iron)
Reverse Voltage per Emitter
Continuous Forward Current
Peak Forward Current (2 µs pulse width, 0.1% duty cycle)
Notes:
(1) RMA flux is recommended. Duration can be extended to 10 seconds maximum when flow soldering.
-40° C to +100° C
-40° C to +85° C
260° C
(1)
2.0 V
50 mA
1.0 A
Electrical Characteristics
(T
A
= 25° C unless otherwise noted)
SYMBOL
V
F
PARAMETER
Forward Voltage
MIN
(each LED)
850 nm LED
1.20
1.35
1.80
Volts
I
F
= 20 mA
TYP MAX
UNITS
CONDITIONS
Viewing Angle (at 50% power points, each component)
2 ½lH-H
3 mm—T3 Package
Surface Mount—SM Package
V
CC
Power Supply Voltage
OPA80, OPA81
OPA82, OPA83
—
18°
25°
12
5.0
—
Deg.
Total inclusive angle at
50% of maximum
optical power.
I
CC
varies with V
CC
11
4.5
13
5.5
Volts
OPBA80 & OPBA82 Series
OPBA81 & OPBA83 Series
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue B.1 01/09
Page 2 of 4
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Near Infrared Light Ring Series
OPA80 and OPA83 Series

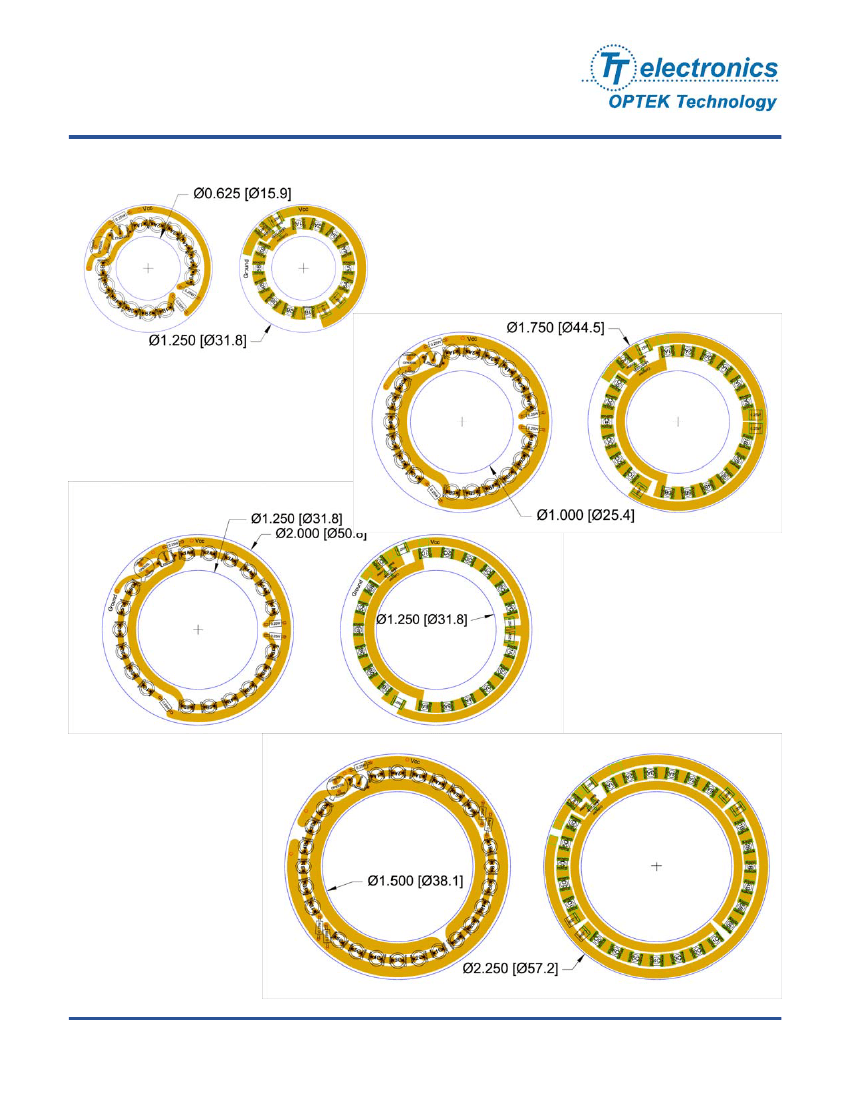

PCBoard Layout
