679-2222-322F: DescriptionLED Panel Mount Indicators 9mm HG/G PMI-6VDC With O Ring; CategoryLED optoelectronic/LED; File Size376KB，3 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

679-2222-322F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	679-2222-322F	-	-	View	Buy Now

679-2222-322F Overview

LED Panel Mount Indicators 9mm HG/G PMI-6VDC With O Ring

679-2222-322F Parametric

Parameter Name	Attribute value
Product Category	LED Panel Mount Indicators
Manufacturer	DIALIGHT
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	25

Preview

Download Datasheet

View All

Watertight Panel Mount Indicators

679 Series

On when

it counts.

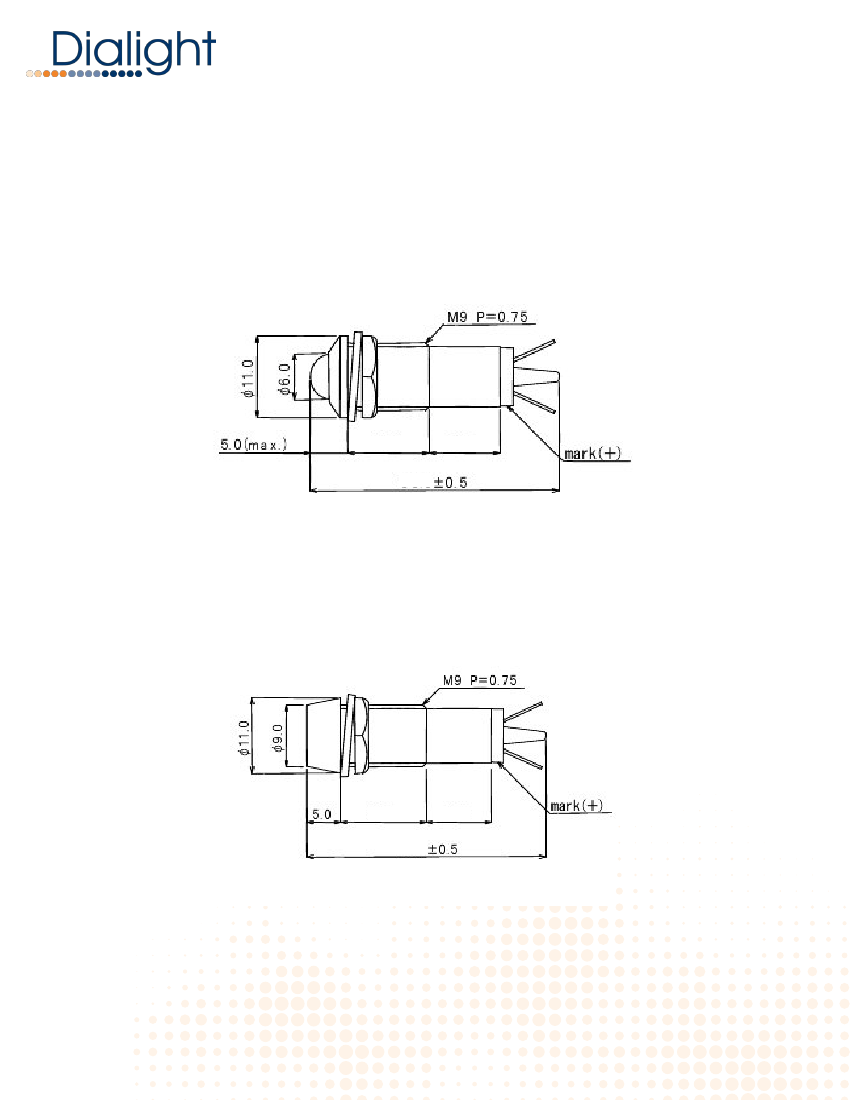

Mechanical Information:

Mounting hole size:

Max panel thickness:

Mounting torque:

0.374” (9.5mm)

0.378” (9.50mm)

with gasket - 0.318” (8.0mm)

0.362 lbs/ft (5 kg/cm)

Electrical Specifications:

Operating voltage:

Operating temperature:

Storage temperature:

6, 12 & 24 VDC (no resistor required)

-4°F to +167°F (-20°C to +75°C)

-40°F to +212°F (-40°C to +100°C)

Solder terminals and wire leads

Application

• Main power indication

• Remote power indication

• Status indication

• Maintenance and warning indication

• Instrumentation

...and many more!

Electrical connection:

Construction:

Housing:

Chrome or black plated brass (see

ordering note on back)

All values typical unless otherwise stated

Certifications & Ratings

• RoHS compliant

• NEMA 4X

• IP66

Features & Benefits

• Low power consumption - uses up to 90% less energy than

an incandescent indicator

• No heat generated

• Long life, lasting up to 100K hours

• Colors include red, green, orange, and blue

• Front panel mounting

• LED can be recessed, protrude, and internal from housing

www.dialight.com | MDEL679CR_C

1
