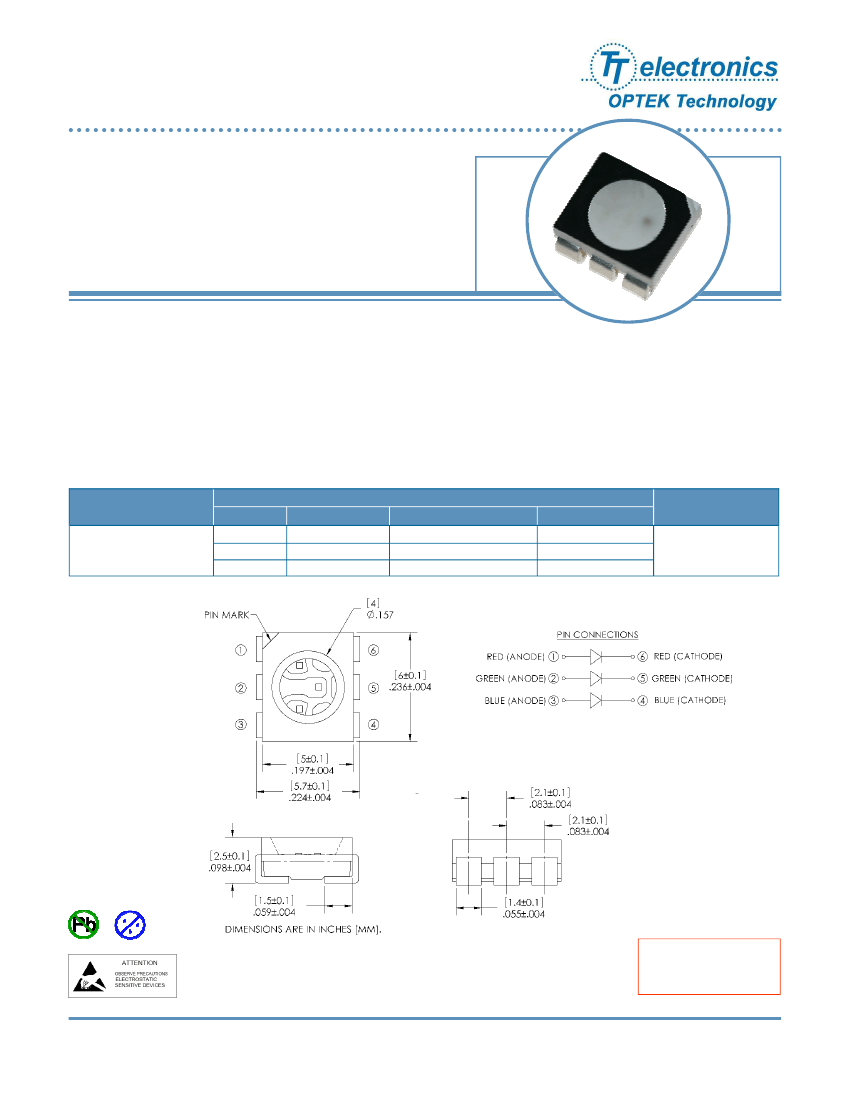

Full Color PLCC6 LED
OVSTRGBB1CR8
•
•
•
•
•
Full-color red/green/blue
PLCC package with 6 pins
Wide viewing angle
High performance
Tuneable color mix
Product Photo Here
The
OVSTRGBB1CR8
package design provides wide viewing angle, low power consumption, and high luminous
intensity. Color on demand is made possible by isolated chip circuits, allowing each LED to be driven individually
or in tunable color combinations.
Applications
•
Amusement equipment
•
Information boards
•
Automotive interior lighting
•
Portable appliances
Part Number
Type
R
G
B
•
•
•
Indoor and outdoor displays
Backlighting
RGB full-color displays
Chip
Emitted Color
Red
Green
Blue
OVSTRGBB1CR8
Material
AlInGaP
InGaN
InGaN
Intensity Typ. mcd
700
1800
400
Lens Color
Diffused
5a
RoHS
Moisture
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A 10/2010
Page 1 of 6
Full Color PLCC6 LED
OVSTRGBB1CR8
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
PARAMETER
R
Storage Temperature
Operating Temperature
Reverse Voltage
Continuous Forward Current (1 chip on)
Peak Forward Current (10% Duty Cycle, PW
≤
100
µsec,
1 chip on)
Power Dissipation
Junction Temperature
Junction/ambient (1 chip on)
Junction/ambient (3 chips on)
Junction/solder point (1 chip on)
Junction/solder point (3 chips on)
Electrostatic Discharge Classification (JEDEC-JESD22-A114F)
Moisture Sensitivity Level (IPC/JEDEC J-STD-020C)
50
200
130
110
450
650
300
450
RATING
G
-40 ~ +100
-40 ~ +100
5
50
100
200
110
400
580
280
430
50
100
200
110
450
680
300
480
B
°
C
°
C
V
mA
mA
mW
°
C
°
C/W
°
C/W
°
C/W
°
C/W
Class 1C
5a / 24 Hrs
UNIT
Electrical Characteristics
T
A
= 25
o
C unless otherwise noted
VALUES
SYMBOL
PARAMETER
Min
I
V
Luminous Intensity
Avg
Avg
V
F
I
R
λ
D
λ
P
2
Θ½
∆λ
Forward Voltage
Max
Reverse Current (max)
Dominant Wavelength
Wavelength at Peak Emission
Beam Angle
Spectral Radiation Bandwidth
2.6
10
619-624
630
120
24
4.0
10
520-540
527
120
38
4.0
10
460-480
470
120
28
µA
nm
nm
deg
nm
700
2.0
1600
3.2
400
3.2
V
I
F
= 50 mA
V
R
= 5 V
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
R
560
G
1120
B
280
mcd
I
F
= 50 mA
UNIT
CONDITIONS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A 10/2010
Page 2 of 6
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Phone: (972) 323-2200 or (800) 341-4747
Full Color PLCC6 LED
OVSTRGBB1CR8
Standard Bins
LEDs are sorted to luminous intensity (I
V
) and dominant wavelength (nm) bins shown. Each reel consists of a
single intensity bin and a single color bin. Orders are filled using all intensity and color bins listed in the following
tables. Optek will not accept orders for single intensity bins or single color bins.
Luminous Intensity (I
V
) @ 50mA
RED
Code
K
M
N
Min (mcd)
560
710
900
Max (mcd)
710
900
1120
Code
P
Q
R
GREEN
Min (mcd)
1120
1400
1800
Max (mcd)
1400
1800
2240
Code
G
H
J
BLUE
Min (mcd)
280
355
450
Max (mcd)
355
450
560
Dominant Wavelength (nm)
RED
Code
RB
Min (nm)
619
Max (nm)
624
Code
G7
G8
G9
Ga
GREEN
Min (nm)
520
525
530
535
Max (nm)
525
530
535
540
Code
B3
B4
B5
B6
BLUE
Min (nm)
460
465
470
475
Max (nm)
465
470
475
480
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A 10/2010
Page 3 of 6
Full Color PLCC6 LED
OVSTRGBB1CR8

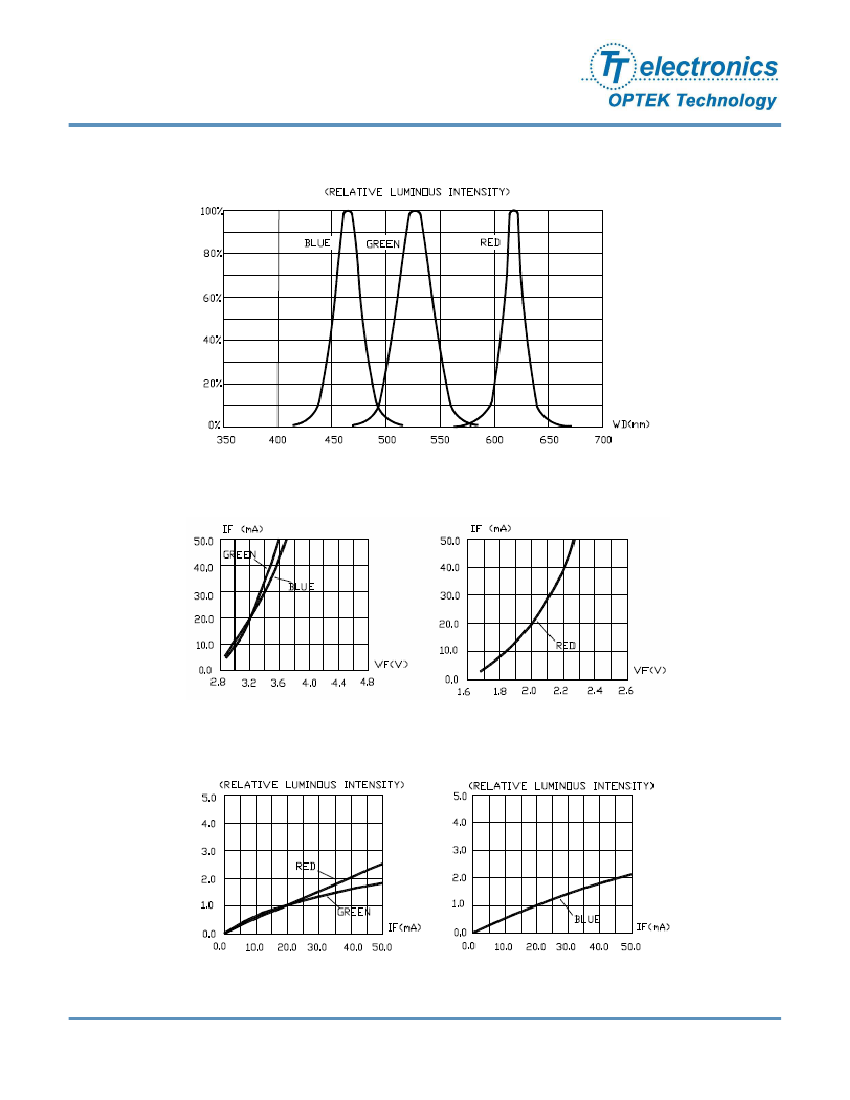

Typical Electro-Optical Characteristics Curves
Relative Intensity vs Dominant Wavelength
Forward Current vs Forward Voltage
Relative Luminous Intensity vs Forward Current
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A 10/2010
Page 4 of 6
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Phone: (972) 323-2200 or (800) 341-4747
Full Color PLCC6 LED
OVSTRGBB1CR8
Typical Electro-Optical Characteristics Curves

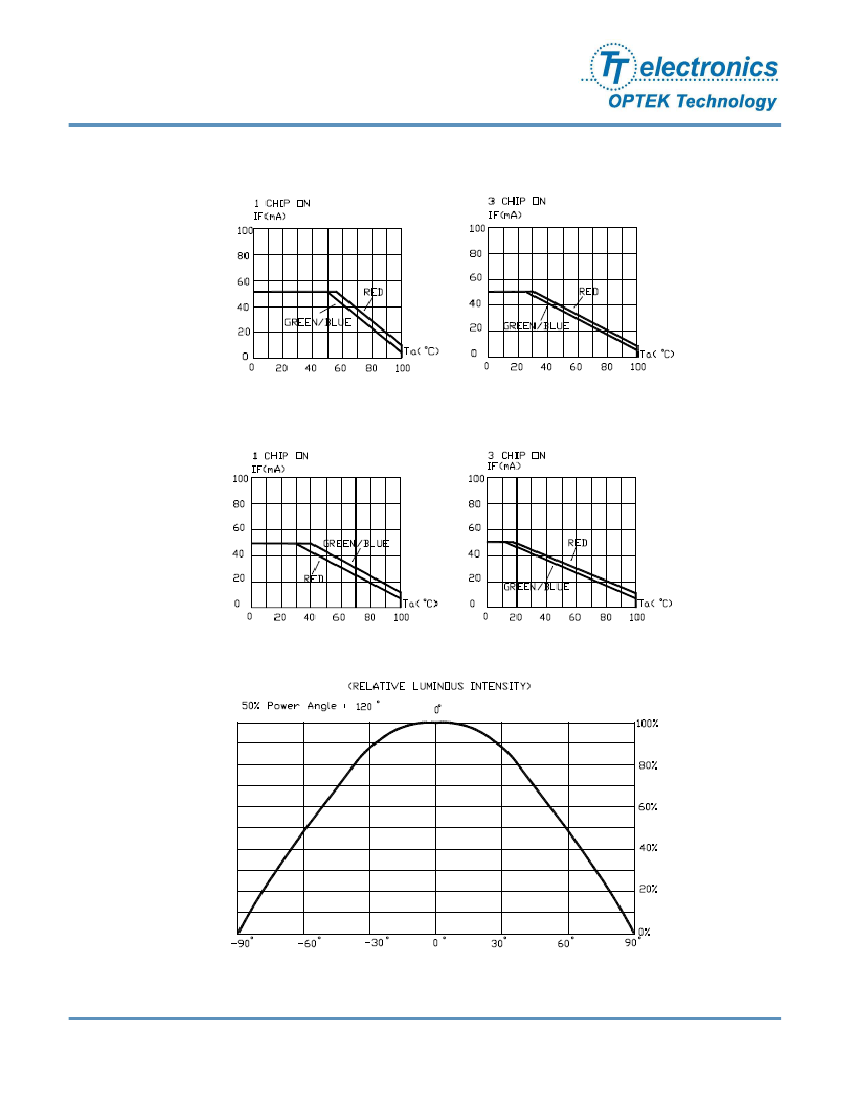

Maximum Forward DC Current vs Solder Point Temperature
Maximum Forward DC Current vs Ambient Temperature
Far Field Pattern
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A 10/2010
Page 5 of 6
