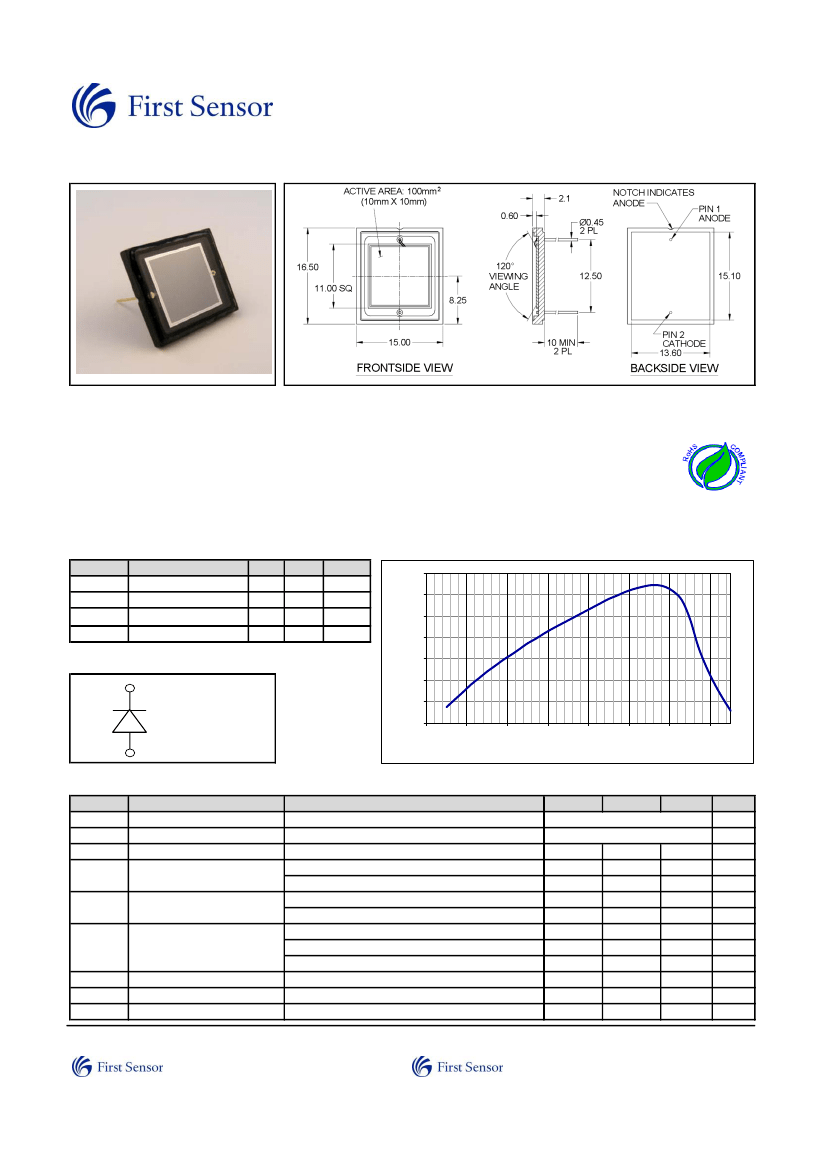

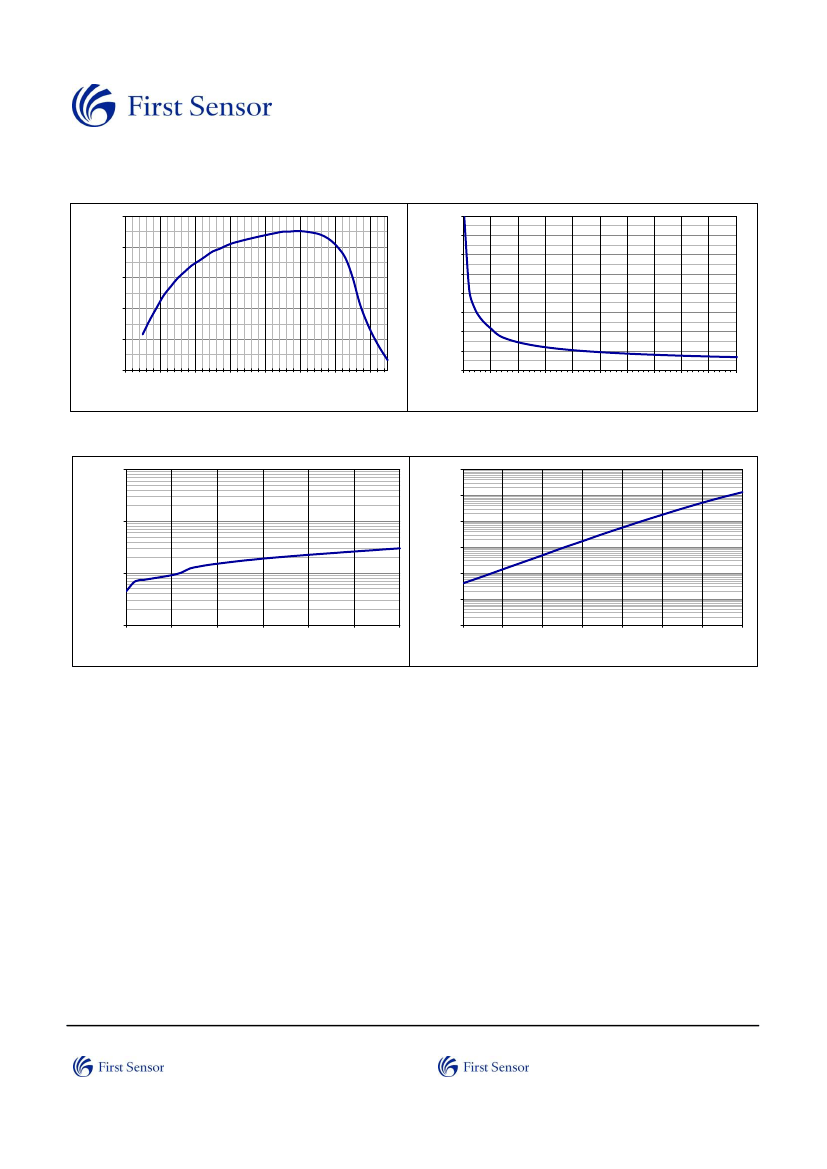

First Sensor PIN PD Data Sheet
Part Description PS100-6 THD
Order # 500149
Version 24-11-11
Features
• 100 mm² PIN detector
• Low dark current
• High shunt resistance
• High sensitivity
Description
Low dark current PIN photodiode
with 100 mm² square active area.
Non-hermetic ceramic carrier
package with glass window. Epoxy
or silicone potting on special
request.
Application
• Precision photometry
• Analytical instruments
• Medical equipment
• Fluorescence detector
RoHS
2002/95/EC
Absolute maximum ratings
Symbol
T
STG
T
OP
V
max
I
PEAK
Parameter
Storage temp
Operating temp
Max reverse voltage
Peak DC current
Min
-40
-40
Max
125
100
50
10
Unit
°C
°C
V
mA
Spectral response (23 °C)
0,70
0,60
0,50
Responsivity (A/W)
0,40
0,30
0,20
0,10
0,00
Schematic
Pin 2
350
450
550
650
750
850
950
1050
Pin 1
Wavelength (nm)
Electro-optical characteristics @ 23 °C
Symbol
Characteristic
Active area
Active area
Dark current
Capacitance
Responsivity
t
R
Rise time
Test Condition
Min
Typ
Max
10000 x 10000
100
1
10
900
160
0.4
0.64
2000
40
10
150
2.8 E-14
Unit
µm
mm²
nA
pF
pF
A/W
A/W
ns
ns
ns
MΩ
W/√Hz
V
I
D
C
V
BR
Shunt Resistance
N.E.P.
Breakdown voltage
V
R
= 10 V
V
R
= 0 V
V
R
= 10 V
λ = 632 nm
λ = 900 nm
V
R
= 0 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 10 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 80 V; λ = 850 nm; R
L
= 50 Ω
V
R
= 10 mV
V
R
= 10 V; λ = 900 nm
I
R
= 2 µA
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
50
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
European, International Sales:
USA:
ta Sheet
First Sensor PIN PD Data Sheet
Part Description PS100-6 THD
Order # 500149
Version 24-11-11
00-6 THD
# 500149
sion 24-11-11
Quantum efficiency (23 °C)
100
Capacitance as fct of reverse bias (23 °C)
800
700
Quantum efficiency (%)
80
600
Capacitance (pF)
350
450
550
650
750
850
950
1050
60
500
400
300
200
100
40
20
0
0
0
5
10
15
20
25
30
35
40
45
50
Wavelength (nm)
Reverse bias (V)
Dark current as fct of bias (23 °C)
1,0E-08
Dark current as fct of temperature (10 V)
1,0E-05
1,0E-06
Dark current (A)
1,0E-09
1,0E-10
1,0E-11
0
5
10
15
20
25
30
Dark current (A)
1,0E-07
1,0E-08
1,0E-09
1,0E-10
1,0E-11
30
40
50
60
70
80
90
100
Reverse bias [V]
Temperature [°C]
Package dimension:
Small quantities: Foam pad, boxed (12 cm x 16.5 cm)
Handling:
Please refer to document "Instructions for handling and processing"
Disclaimer:
Due to our strive for continuous improvement, specifications are subject to change within our PCN policy according to JESD46C.
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
European, International Sales:
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
