ASMT-QWBH-NGJFE datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> ASMT-QWBH-NGJFE

ASMT-QWBH-NGJFE: DescriptionHigh Power LEDs - White White, 30.6lm; CategoryLED optoelectronic/LED; File Size178KB，9 Pages; ManufacturerBroadcom

Download Datasheet Parametric Compare View All

ASMT-QWBH-NGJFE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASMT-QWBH-NGJFE	-	-	View	Buy Now

ASMT-QWBH-NGJFE Overview

High Power LEDs - White White, 30.6lm

ASMT-QWBH-NGJFE Parametric

Parameter Name	Attribute value
Product Category	High Power LEDs - White
Manufacturer	Broadcom
RoHS	Details
Illumination Color	White (Neutral White)
Wavelength/Color Temperature	4000 K
Luminous Flux/Radiant Flux	54.3 lm
Color Rendering Index - CRI	75
Viewing Angle	120 deg
If - Forward Current	150 mA
Vf - Forward Voltage	3.4 V
Length	3.5 mm
Width	3.2 mm
Height	1.1 mm
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 40 C
Packaging	MouseReel
Packaging	Reel
Packaging	Cut Tape
Color Temperature	4000 K
Factory Pack Quantity	1000
Unit Weight	0.003527 oz

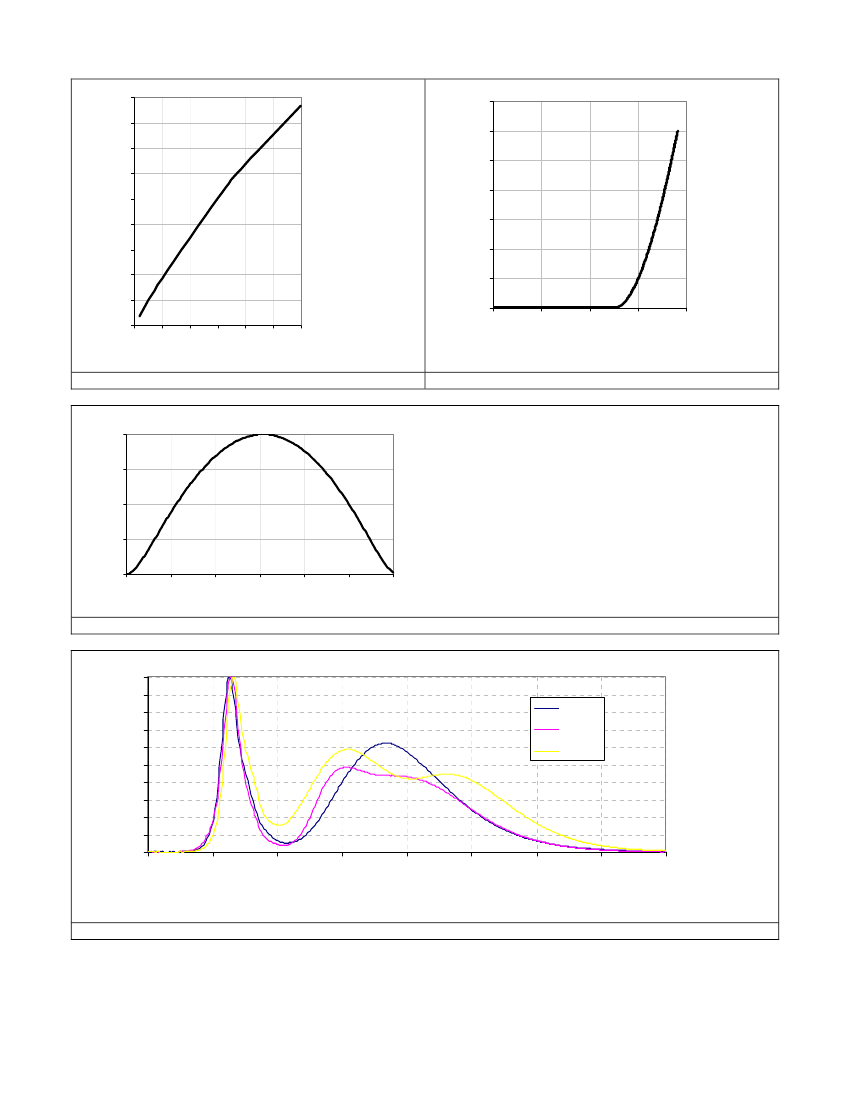

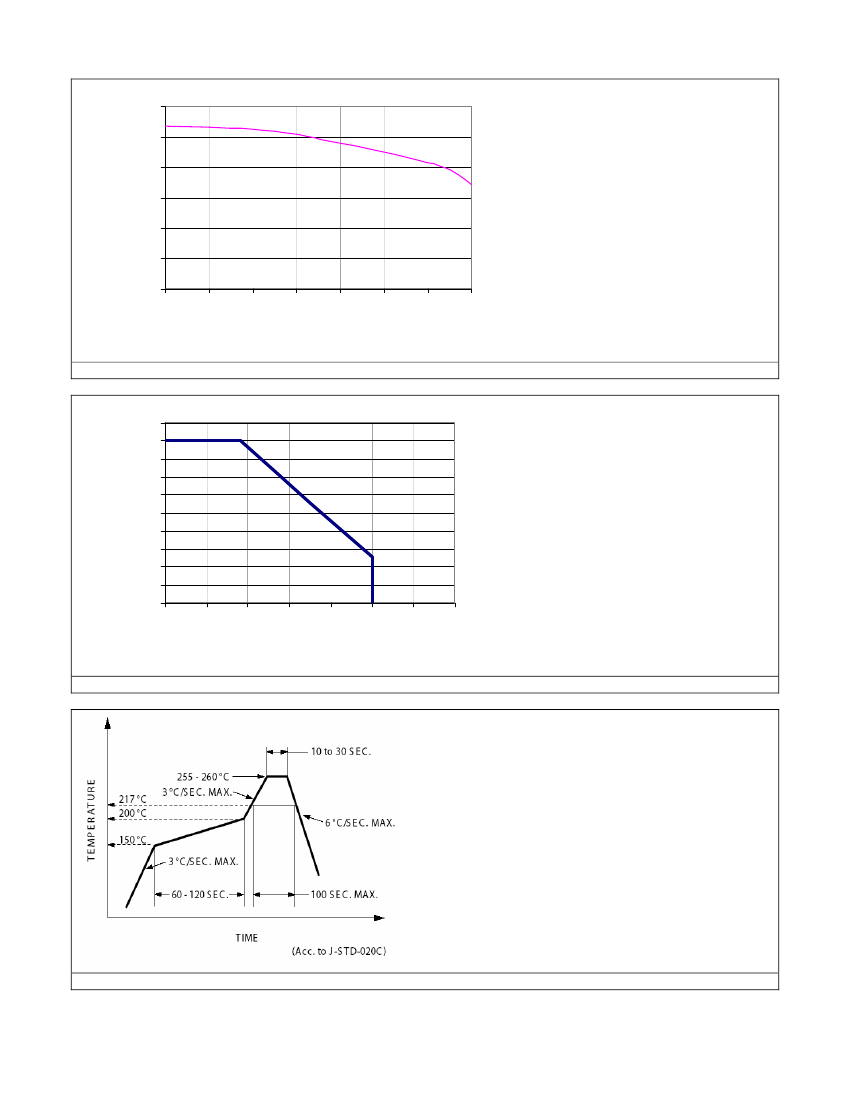

Preview

Download Datasheet

View All

ASMT-QWBG / ASMT-QWBH / ASMT-QWBJ

0.5W Cool White Power PLCC4

Surface Mount LED

Datasheet

CAUTION:

Static sensitive device. Please observe appropriate precautions during handling and processing.

Description

The 0.5W Cool White Power PLCC4 SMT LED is using InGaN chip technology. The package can be driven at high current due to its

superior package design. The product is able to dissipate the heat more efficiently. These LEDs produce higher light output with better

flux performance.

The 0.5W Cool White Power PLCC4 SMT LEDs are designed for higher reliability, better performance, and operate under a wide range

of environmental conditions.

To facilitate easy pick and place assembly, the LEDs are packed in EIA-compliant tape and reel. Every reel is shipped in single intensity

and color bin, to provide close uniformity.

Features

(1) 4000K to 8000K CCT

(2) ANSI bin

(3) Wide view angle 120°

(4) High reliability package with enhanced silicone resin encapsulation

Applications

(1) Fluorescent replacement

(2) Under cabinet lighting

(3) Panel lights

(4) Retails display lighting

ASMT-QWBH-NGJFE Related Products

	ASMT-QWBH-NGJFE	ASMT-QWBJ-NGJCE	ASMT-QWBG-NFHAE	ASMT-QWBJ-NGJDE	ASMT-QWBG-NFHFE	ASMT-QWBH-NGJBE	ASMT-QWBG-NFHCE	ASMT-QWBH-NGJ0E	ASMT-QWBJ-NGJAE
Description	High Power LEDs - White White, 30.6lm	High Power LEDs - White Cool White, 5700K 54.3lm, CRI60, 150mA	Current Sense Amplifiers Hgh Vltg Precision Diff Amp w/EMI Fltr	High Power LEDs - White Cool White, 5000K 54.3lm, CRI60, 150mA	High Power LEDs - White Cool White, 4000K 48lm, CRI85, 150mA	High Power LEDs - White Cool White, 6500K 54.3lm, CRI75, 150mA	High Power LEDs - White Cool White, 5700K 48lm, CRI85, 150mA	High Power LEDs - White White, 4000 - 8000K 54.3lm, CRI75, 150mA	High Power LEDs - White Cool White, 8000K 54.3lm, CRI60, 150mA
Product Category	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White	High Power LEDs - White
Manufacturer	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Illumination Color	White (Neutral White)	White (Cool White)	White (Cool White)	White (Cool White)	White (Neutral White)	White (Cool White)	White (Cool White)	White (Cool White)	White (Cool White)
Wavelength/Color Temperature	4000 K	5700 K	8000 K	5000 K	4000 K	6500 K	5700 K	8000 K	8000 K
Luminous Flux/Radiant Flux	54.3 lm	54.3 lm	48 lm	54.3 lm	48 lm	54.3 lm	48 lm	54.3 lm	54.3 lm
Color Rendering Index - CRI	75	60	85	60	85	75	85	75	60
Viewing Angle	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
If - Forward Current	150 mA	180 mA	180 mA	180 mA	150 mA	180 mA	180 mA	150 mA	180 mA
Vf - Forward Voltage	3.4 V	3.6 V	3.6 V	3.6 V	3.4 V	3.6 V	3.6 V	3.4 V	3.6 V
Length	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Width	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Height	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
Maximum Operating Temperature	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C	+ 100 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Color Temperature	4000 K	5700 K	8000 K	5000 K	4000 K	6500 K	5700 K	8000 K	8000 K
Factory Pack Quantity	1000	1000	1000	1000	1000	1000	1000	1000	1000
Unit Weight	0.003527 oz	0.003527 oz	0.003527 oz	0.003527 oz	0.003527 oz	0.003527 oz	0.003527 oz	0.003527 oz	0.003527 oz
Packaging	Cut Tape	MouseReel	MouseReel	MouseReel	Cut Tape	Reel	Reel	Reel	MouseReel
Package / Case	-	PLCC-4	PLCC-4	PLCC-4	-	PLCC-4	PLCC-4	PLCC-4	PLCC-4
Power Rating	-	500 mW	500 mW	500 mW	-	500 mW	500 mW	640 mW	500 mW
Mounting Style	-	SMD/SMT	SMD/SMT	SMD/SMT	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
LED Size	-	3.5 mm x 3.2 mm x 1.1 mm	3.5 mm x 3.2 mm x 1.1 mm	3.5 mm x 3.2 mm x 1.1 mm	-	3.5 mm x 3.2 mm x 1.1 mm	3.5 mm x 3.2 mm x 1.1 mm	3.5 mm x 3.2 mm x 1.1 mm	3.5 mm x 3.2 mm x 1.1 mm
Lens Shape	-	Rectangular	Rectangular	Rectangular	-	Rectangular	Rectangular	Round Flat	Rectangular
Type	-	Surface Mount LEDs	Surface Mount LEDs	Surface Mount LEDs	-	Surface Mount LEDs	Surface Mount LEDs	-	Surface Mount LEDs
