678-1112-341F Overview

LED Panel Mount Indicators 8mm HR/R PMI-24VDC With O Ring

678-1112-341F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	compliant
Is Samacsys	N
Optoelectronic device types	SINGLE COLOR LED
Base Number Matches	1

Preview

Download Datasheet

View All

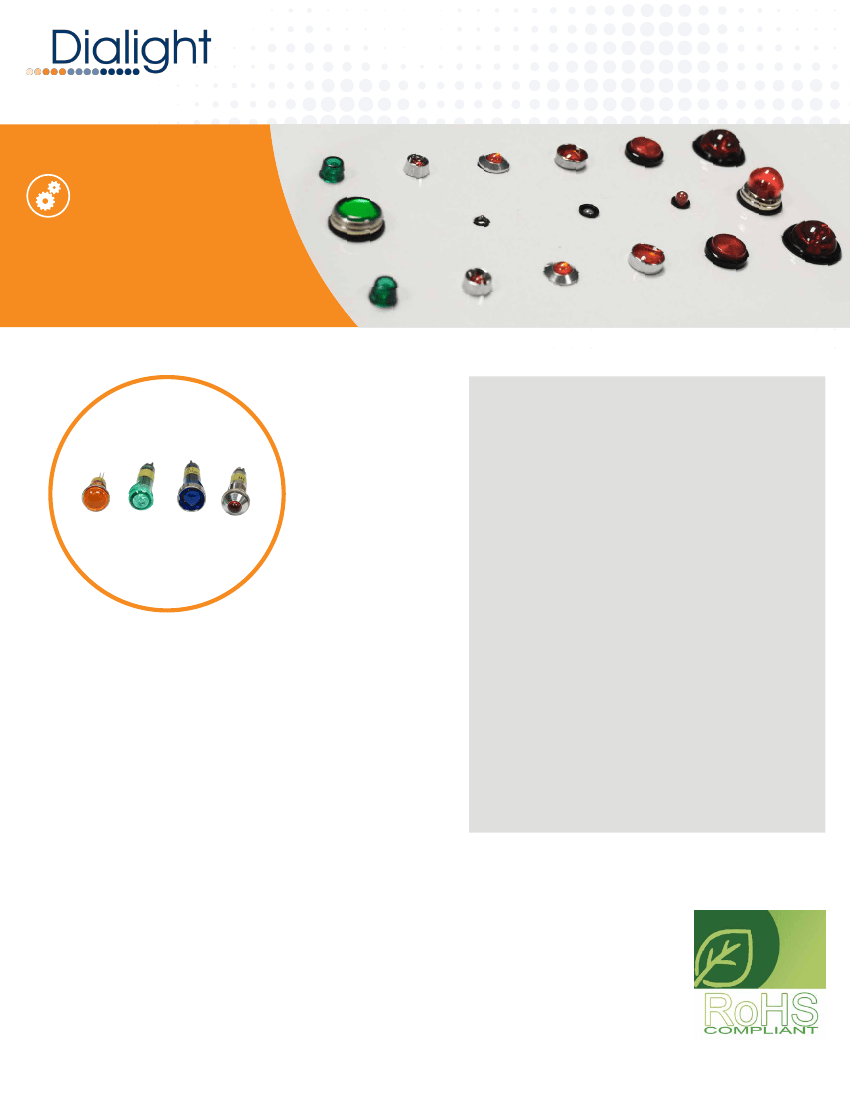

Panel Mount Indicators

678 Series

On when

it counts.

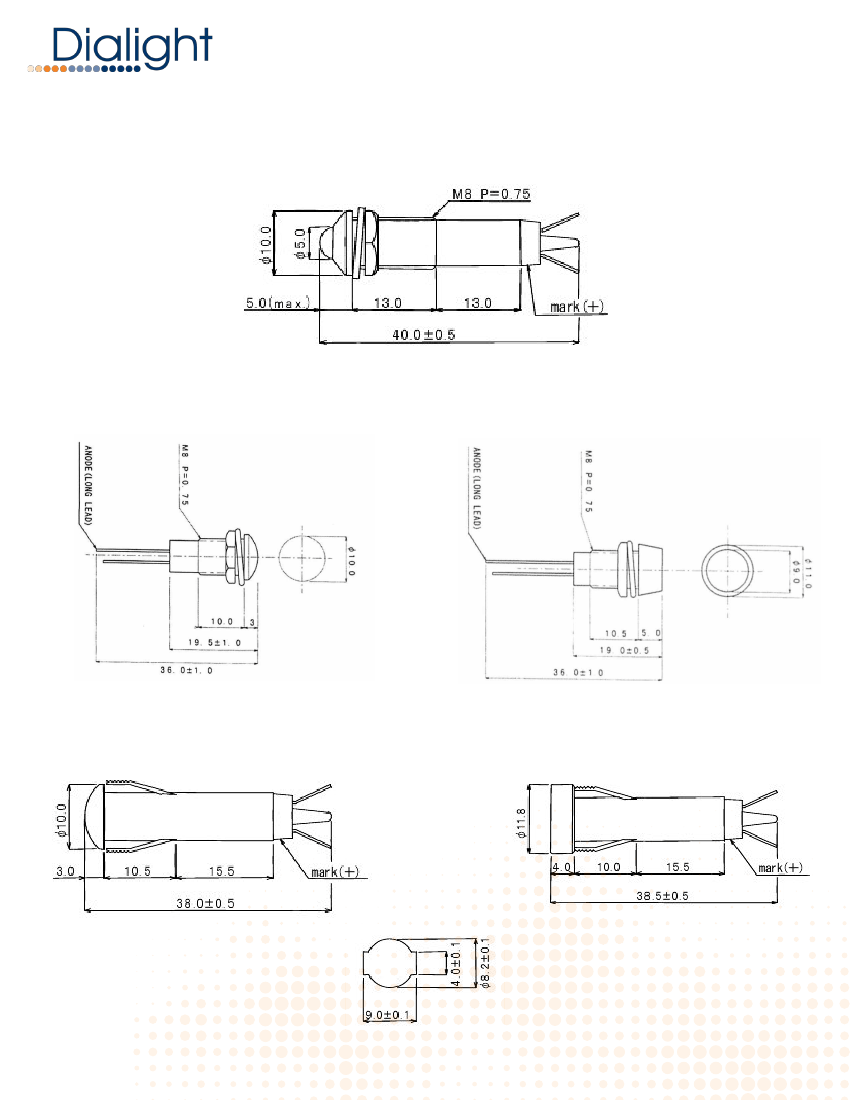

Mechanical Information:

Mounting hole size:

Figure 1 - 0.335” (8.5mm)

Figure 2 & 3 - 0.323” (8.2mm)

Figure 4 & 5 - See on next page

See part numbers

Figure 1 - 0.362 lbs/ft (5 kg/cm)

Figure 2 & 3 - 0.217 lbs/ft (3 kg/cm)

Max panel thickness:

Mounting torque:

Electrical Specifications:

Operating voltage:

2 (red, orange) & 3.3 (green, blue) VDC

(current limiting resistor required on

both voltages)

6, 12 & 24 VDC (no resistor required)

-4°F to +167°F (-20°C to +75°C)

-40°F to +212°F (-40°C to +100°C)

Solder terminals and wire leads

Application

• Main power indication

• Remote power indication

• Status indication

• Maintenance and warning indication

• Instrumentation

...and many more!

Operating temperature:

Storage temperature:

Electrical connection:

Construction:

Housing:

Protruding: Chrome plated brass;

Internal position; Polycarbonate

All values typical unless otherwise stated

Certifications & Ratings

• RoHS compliant

Features & Benefits

• Low power consumption - uses up to 90% less energy than

an incandescent indicator

• No heat generated

• Long life, lasting up to 100K hours

• Colors include red, green, orange, and blue

• Front panel mounting

• Housing matches emitted color

www.dialight.com | MDEL678CR_C

1
