LEDIL F’FORM OPTICS

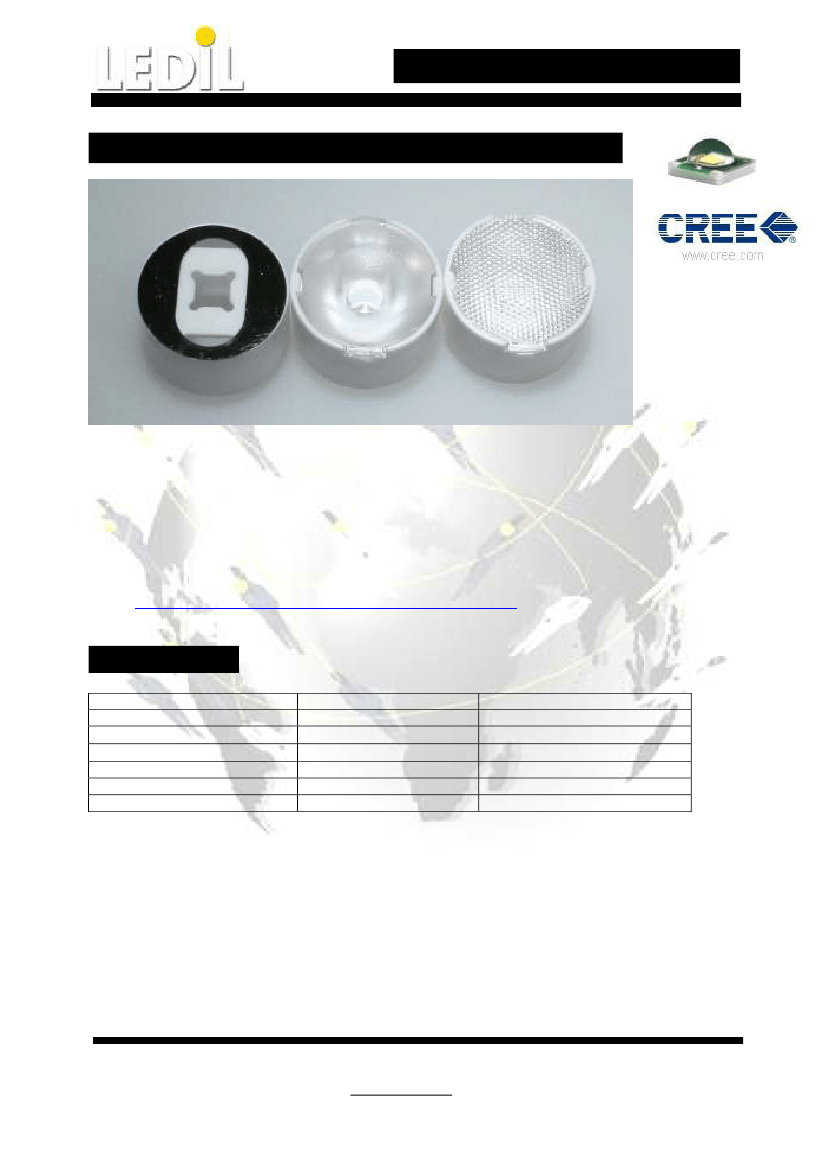

TINA-TAPE lenses for CREE XP-E LEDs
-
-
-
-
-
-
-
Designed & optimized for Cree’s XP-E series of LEDs
Lens material optical grade PMMA with high UV and temperature resistance
(105°C/220°F). Allows use of high current and temperature conditions
Best available optical efficiency, over 90%, with an extremely good cutoff of light
Fastening to heat sink with a PU foam adhesive tape of automotive grade (included)
We advise customer to ensure the suitability and sufficiency of the bond in the end
product. For example, mechanical stress, vibration and holes on the surface of the
circuit boar weaken the strength of the tape.
Please check fastening details from this link:
(http://www.ledil.com/datasheets/DataSheet_TAPE.pdf)

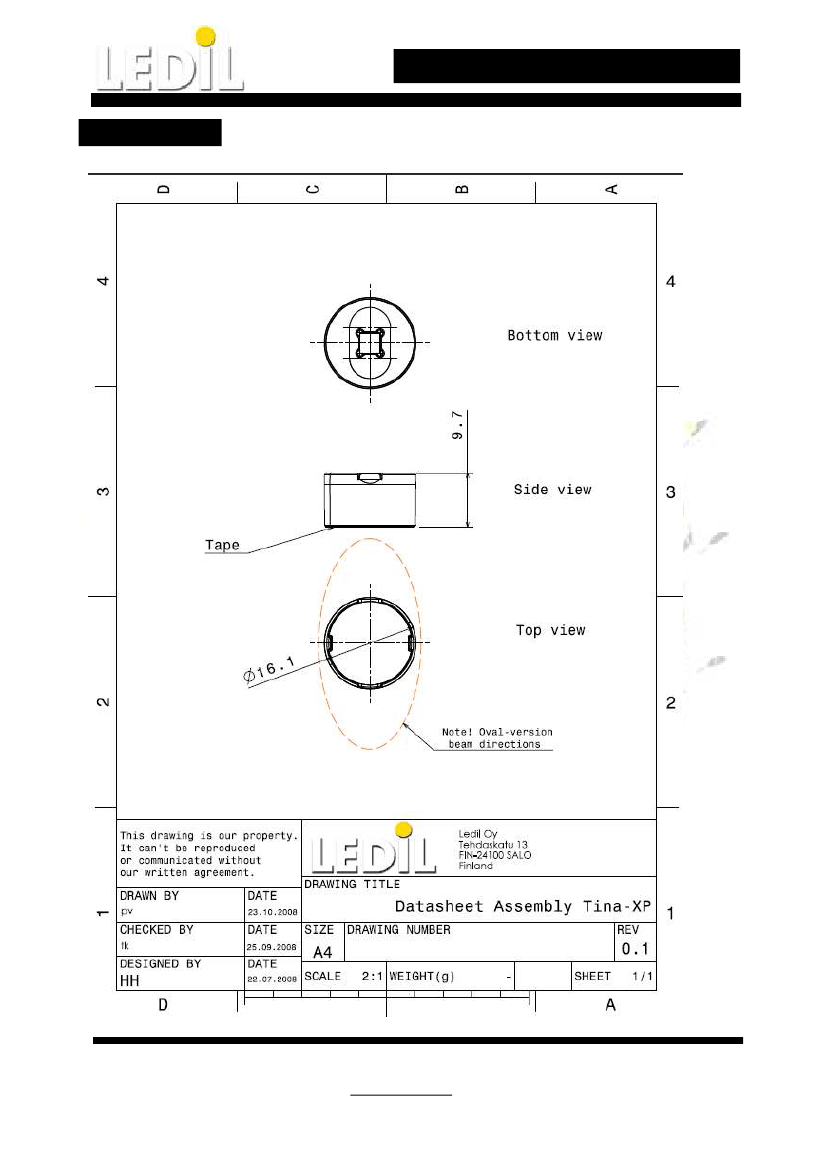

Compact dimensions 16.1 x 10.1 mm.
LENS TYPES
NAME
ORDERING CODE
FWHM Angle
TINA-XP REAL SPOT
TINA-XP DIFFUSER
TINA-XP MEDIUM
TINA-XP WIDE
TINA-XP WW
TINA-XP OVAL
FA10887_Tina-XP-RS
FA10644_Tina-XP-D
FA10645_Tina-XP-M
FA10838_Tina-XP-W
FA11019_Tina-XP-WW
FA11200_Tina-XP-O
±5.5
±6.5°
±15°
±20°
±21°
±17°x ±7°
© Ledil Oy – PRELIMINARY - Subject to change without prior notice
Ledil Oy
Tehdaskatu 13
FIN-24100 SALO, Finland
www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
2011-03-07
LEDIL F’FORM OPTICS
MEASUREMENTS

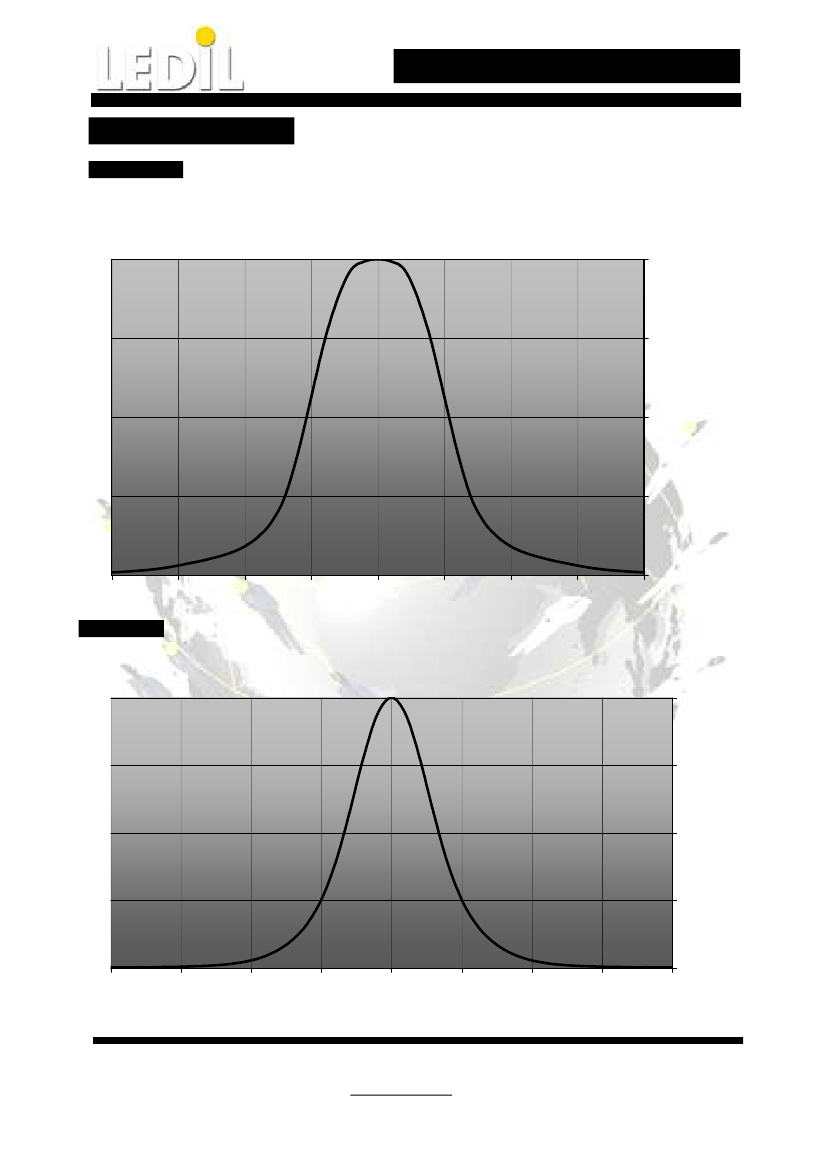

TINA-XP-RS
Relative Intensity of FA10887-Tina-XP-RS
100 %
75 %
50 %
25 %
0%
20
TINA-XP-D
Relative Intensity of Tina-XP-D
100 %
15
10
5
0
-5
-10
-15
-20
75 %
50 %
25 %
0%
40
30
20
10
0
Angle
-10
-20
-30
-40
© Ledil Oy – PRELIMINARY - Subject to change without prior notice
Ledil Oy
Tehdaskatu 13
FIN-24100 SALO, Finland
www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
2011-03-07
LEDIL F’FORM OPTICS

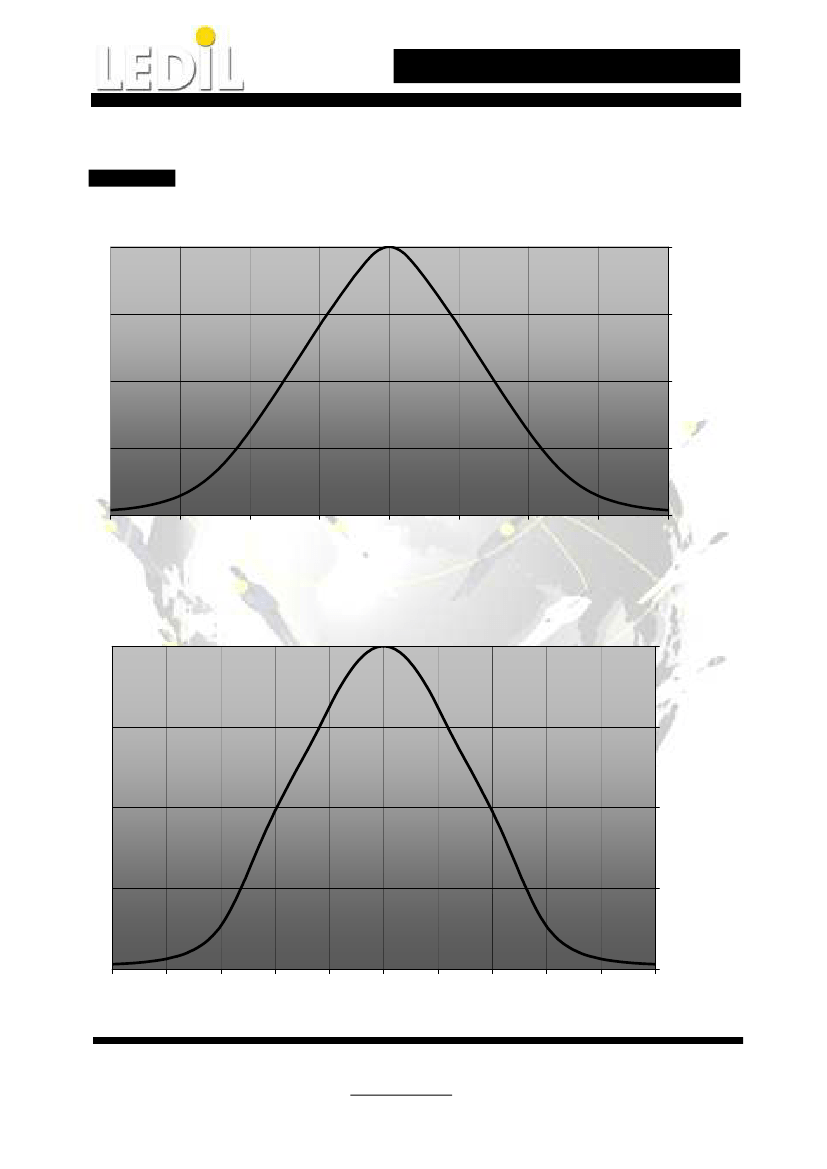

TINA-XP-M
Relative Intensity of Tina-XP-M
100 %
75 %
50 %
25 %
0%
40
30
20
10
0
Angle
-10
-20
-30
-40

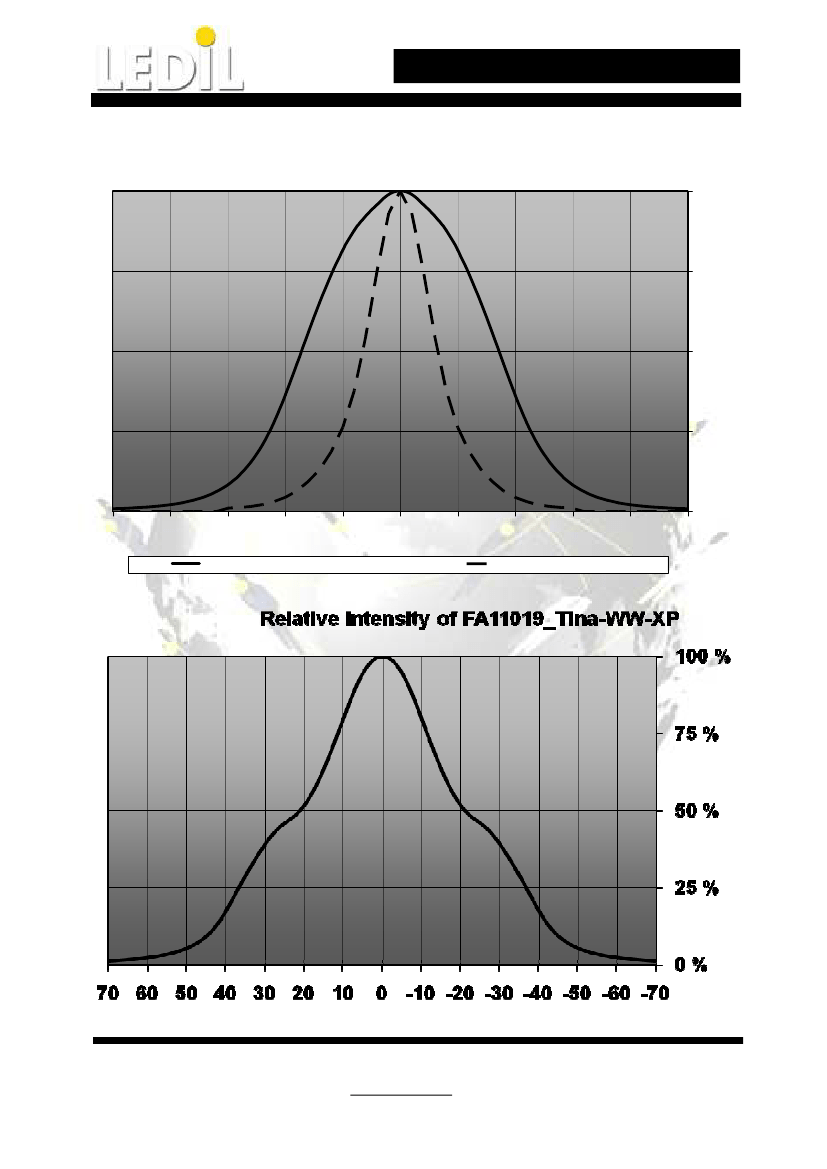

Relative Intensity of FA10838_Tina-XP-W
100 %
75 %
50 %
25 %
0%
50
40
30
20
10
0
-10
-20
-30
-40
-50
© Ledil Oy – PRELIMINARY - Subject to change without prior notice
Ledil Oy
Tehdaskatu 13
FIN-24100 SALO, Finland
www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
2011-03-07
LEDIL F’FORM OPTICS
Relative Intensity of FA11200_Tina-XP-O
100 %
75 %
50 %
25 %
0%
50
40
30
20
10
0
-10
-20
-30
-40
-50
Relative Intensity of FA11200_Tina-XP-O
FA11200_Tina-XP-O_Vertical
© Ledil Oy – PRELIMINARY - Subject to change without prior notice
Ledil Oy
Tehdaskatu 13
FIN-24100 SALO, Finland
www.ledil.com
email: ledil@ledil.com
FAX: +358-2-733 8001
2011-03-07
