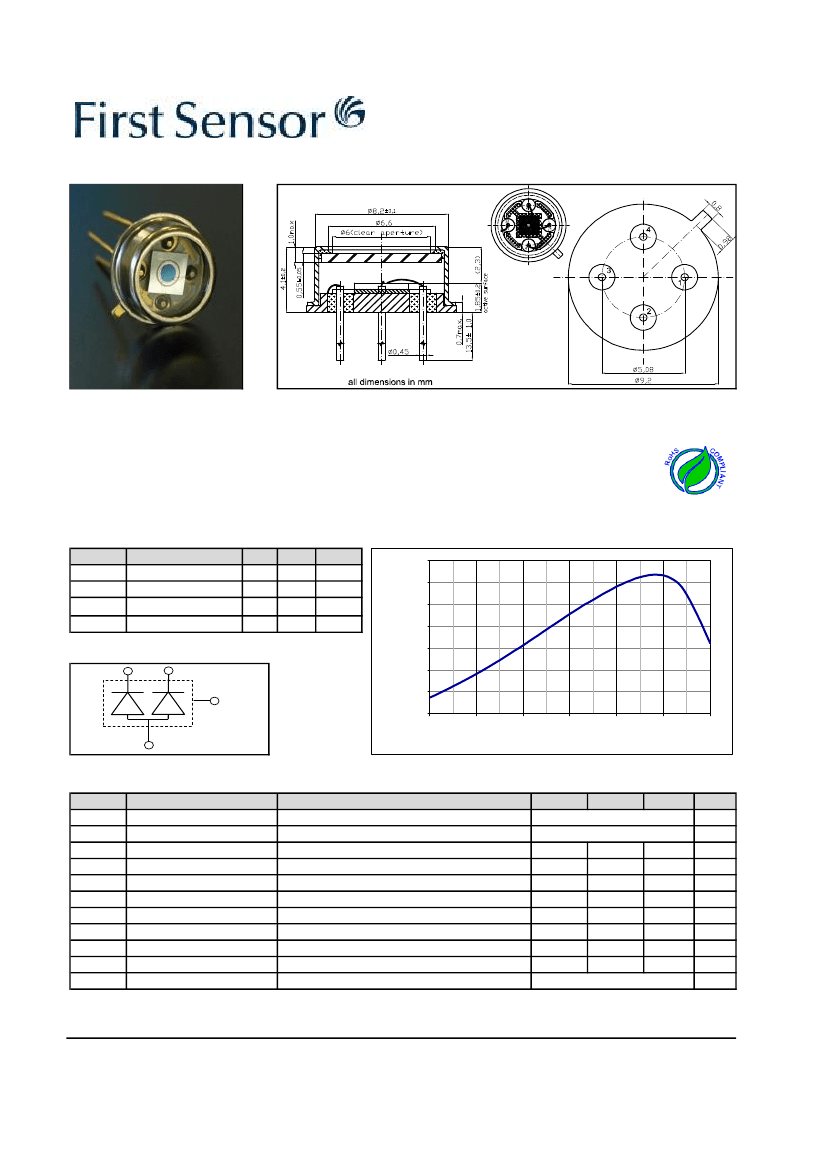

First Sensor APD Data Sheet
Part Description AD1500-10 TO
Order # 500883
Version 09-10-15
Features
• ø 1500 µm active area
• High QE for λ = 850-1064 nm
• Low noise
• Low slope multiplication curve
Description
Circular active area APD chip with IR
enhanced sensitivity. Very low dark
current due to guard ring diode.
Metal can type hermetic TO5i
package with clear glass window.
Application
• Pulsed 1064 nm laser detection
• Laser range finding
• Fluorescence detection
RoHS
2011/65/EU
Absolute maximum ratings
Symbol
T
STG
T
OP
M
max
I
PEAK
Parameter
Storage temp
Operating temp
Gain (I
P0
= 1 nA)
Peak DC current
Min
-55
-40*
1000
Max
125
100
0.25
Unit
°C
°C
mA
Spectral response (M = 100; 23 °C)
70
60
50
Responsivity (A/W)
40
30
20
10
0
500
600
700
800
900
1000
1100
Schematic
PIN 2
GR
PIN 4
PIN 1
PIN 3
Wavelength (nm)
Electro-optical characteristics @ 23 °C
Symbol
Characteristic
Active area
Active area
Dark current
Capacitance
Responsivity
Responsivity
Rise time
Cut-off frequency
Breakdown voltage
Temperature coefficient
Field of view
Test Condition
Min
Typ
ø 1500
1.77
7
3
59
49
5
70
300
3.3
± 50
Max
Unit
µm
mm²
nA
pF
A/W
A/W
ns
MHz
V
V/K
°
I
D
C
t
R
t
R
V
BR
FOV
M = 100
M = 100
M = 100; λ = 905 nm
M = 100; λ = 1064 nm
M = 100; λ = 1064 nm; R
L
= 50 Ω
-3dB
I
R
= 2 µA
90
220
600
* please note that depending on operation voltage APD operation at temperatures below -15°C may require sophisticated control circuit.
European, International Sales:
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com

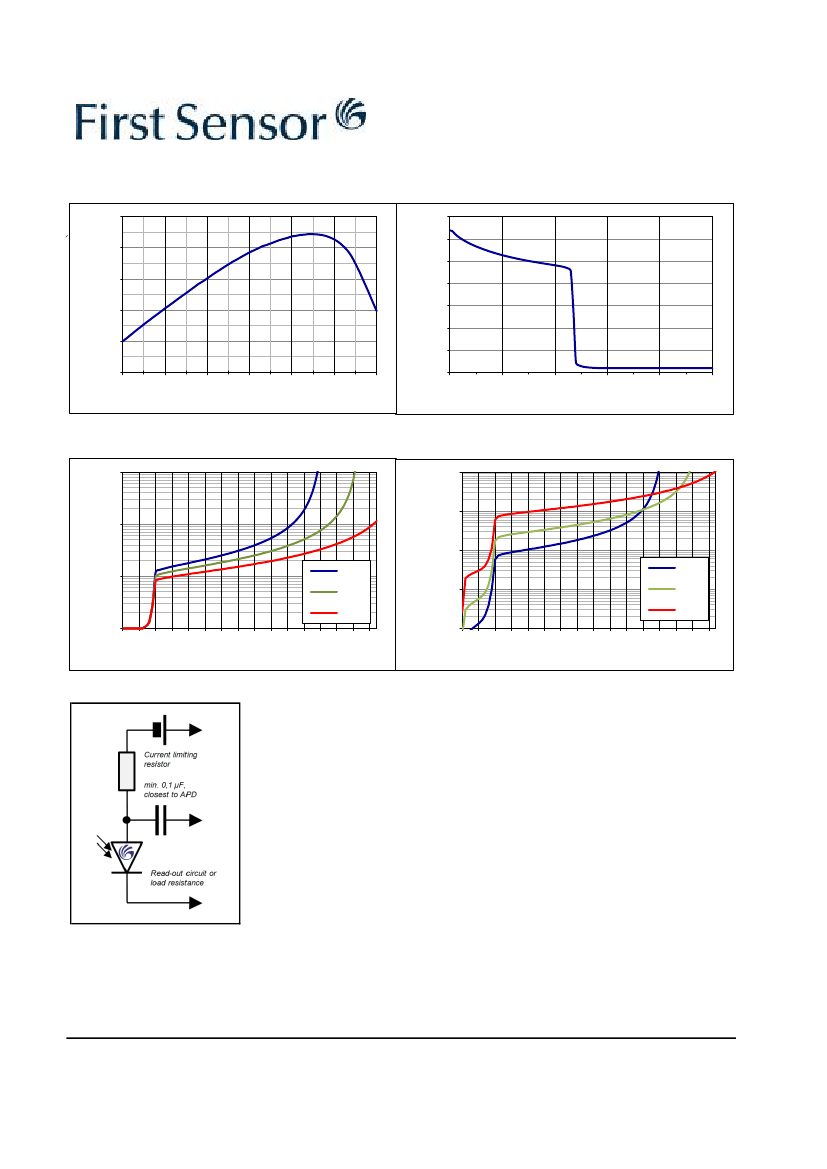

ta Sheet
First Sensor APD Data Sheet
Part Description AD1500-10 TO
Order # 500883
Version 09-10-15
500-10 TO
# 500883
sion 09-10-15
Quantum efficiency (23 °C)
100
Capacitance as fct of reverse bias (23 °C)
70
60
Quantum efficiency (%)
80
50
60
Capacitance (pF)
40
30
20
10
40
20
0
500
600
700
800
900
1000
1100
0
0
20
40
60
80
100
Wavelength (nm)
Reverse bias (V)
Multiplication as fct of reverse bias
1000
Dark current as fct of reverse bias
10E-08
Dark current per element (A)
01E-08
100
Multiplication
1,000E-12
10
23°C
40°C
23°C
100E-12
40°C
60°C
1
0
25 50 75 100 125 150 175 200 225 250 275 300 325 350 375
60°C
10E-12
0
25 50 75 100 125 150 175 200 225 250 275 300 325 350 375
Reverse bias (V)
Reverse bias (V)
Application hints:
• Current should be limited by a protecting resistor or current limiting - IC
inside the power supply
• Guard ring should be connected to ground
• For low light level applications blocking of ambient light should be used
• For high gain applications bias voltage should be temperature compensated
• Please consider basic ESD protection while handling
• Use low noise read-out - IC
• For further questions please refer to document "Instructions for handling and processing"
and application notes for APDs and APD-Arrays
Package dimension:
Small quantities: Foam pad, boxed (12 cm x 16.5 cm)
Disclaimer:
Due to our strive for continuous improvement, specifications are subject to change within our PCN policy according to JESD46C.
First Sensor AG
Peter-Behrens-Strasse 15
12459 Berlin
Germany
T +49 30 6399 2399
F +49 30 639923-752
sales.opto@first-sensor.com
European, International Sales:
USA:
First Sensor Inc.
5700 Corsa Avenue #105
Westlake Village
CA 91362 USA
T +1 818 706 3400
F +1 818 889 7053
sales.us@first-sensor.com
